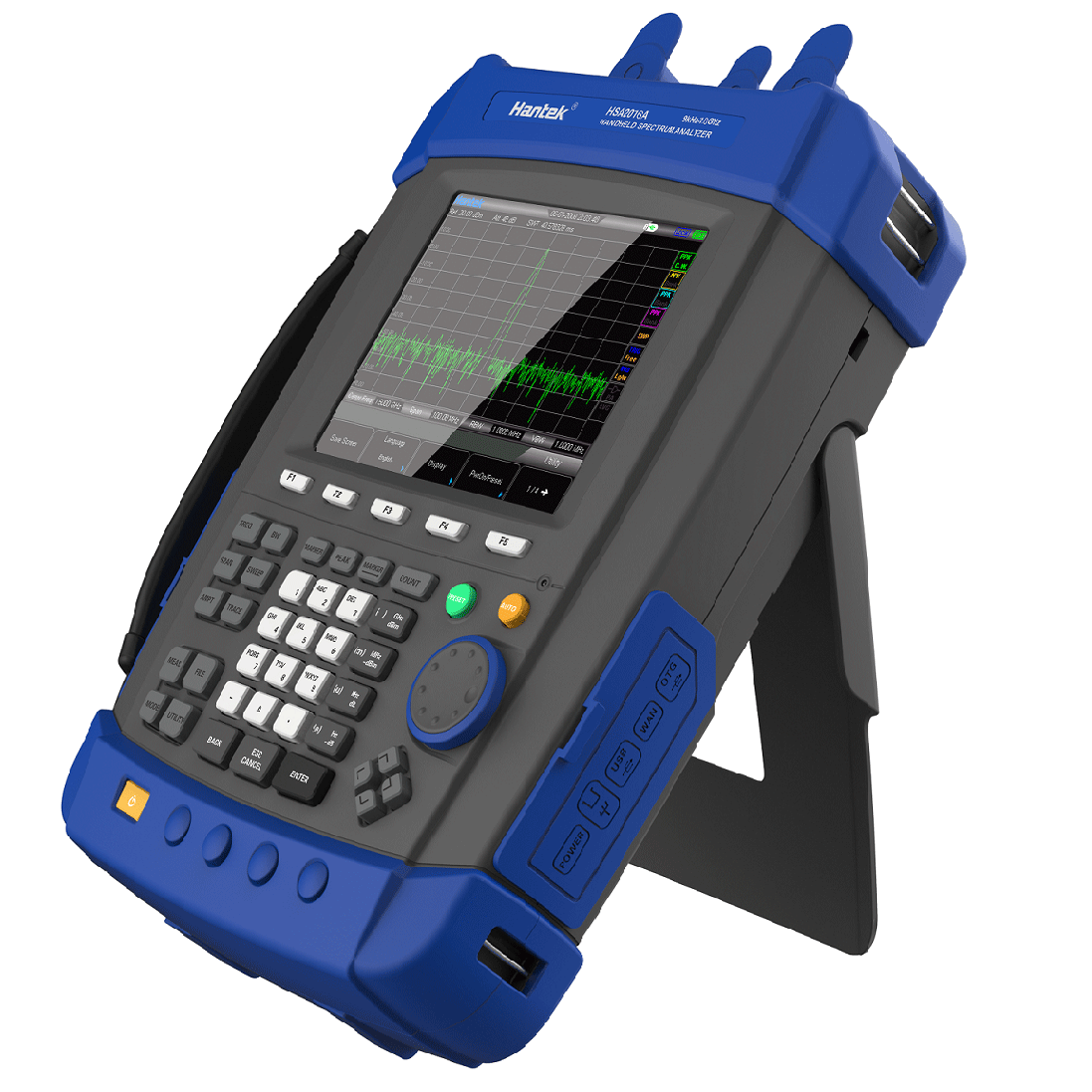

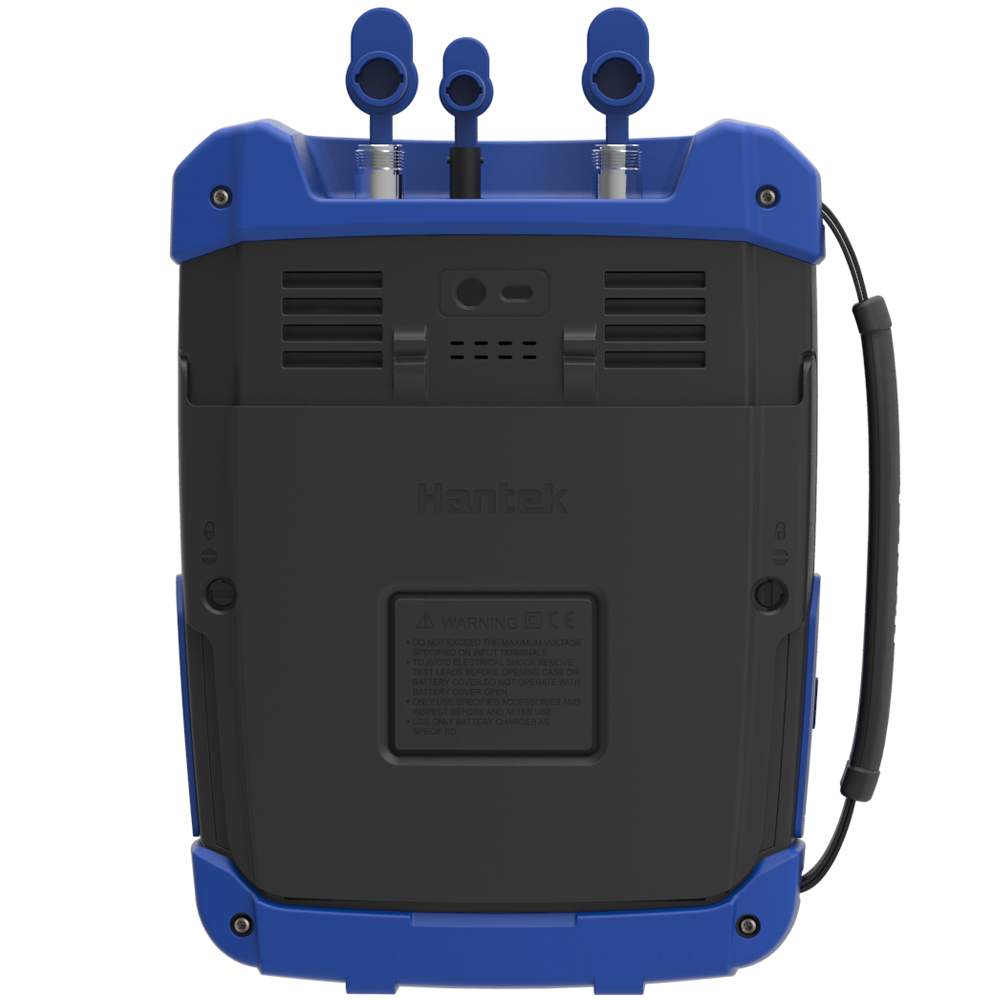

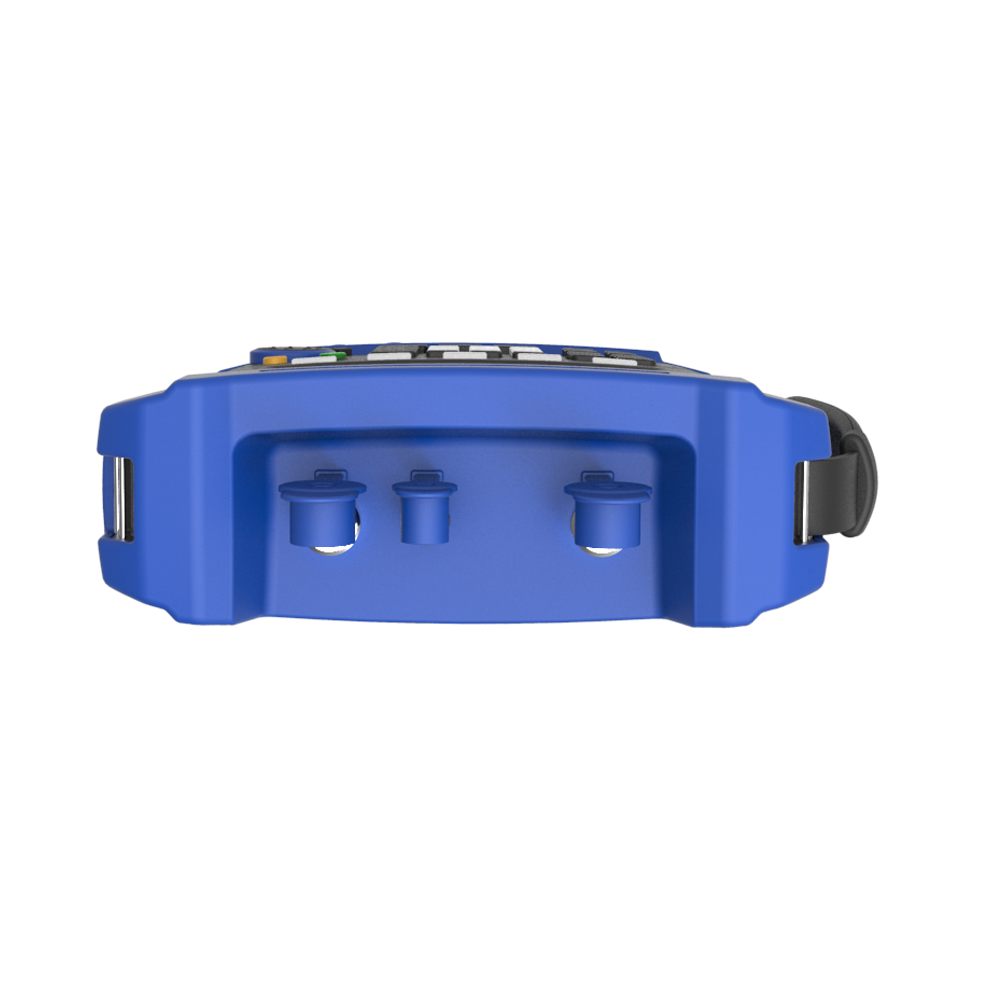

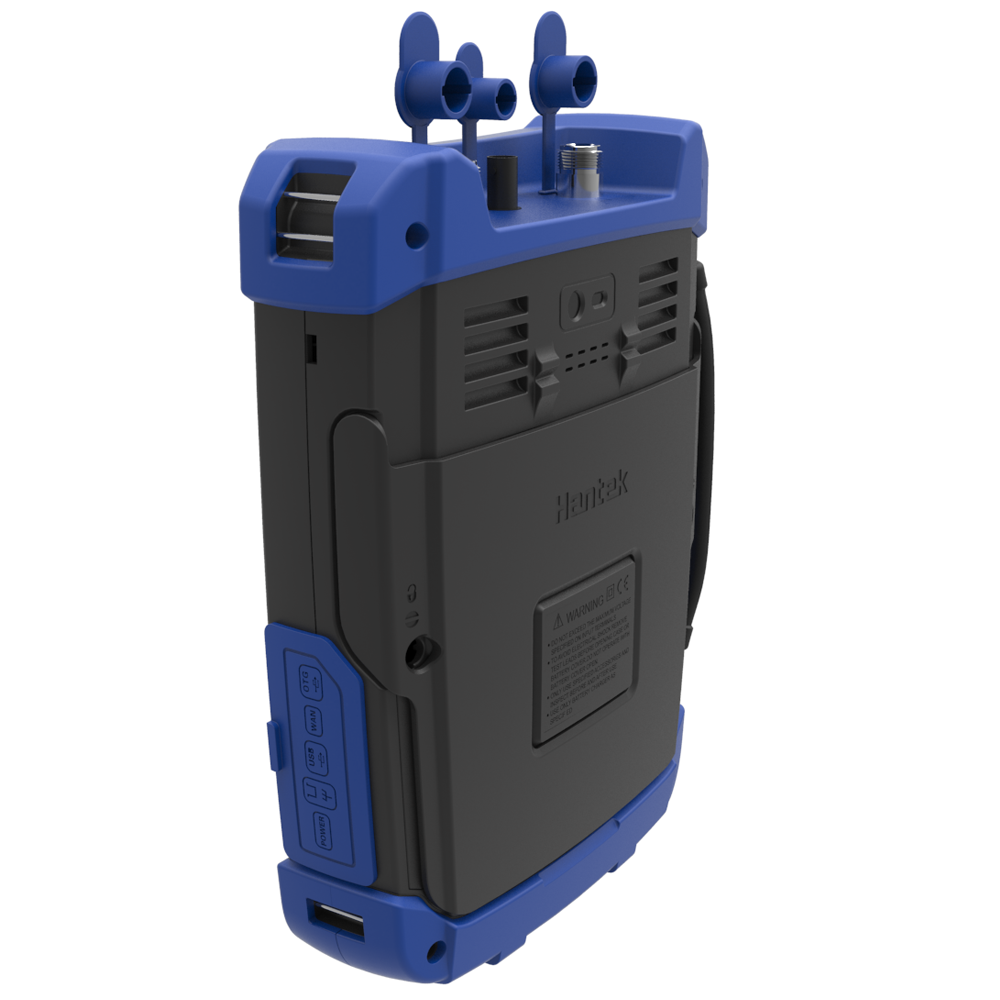

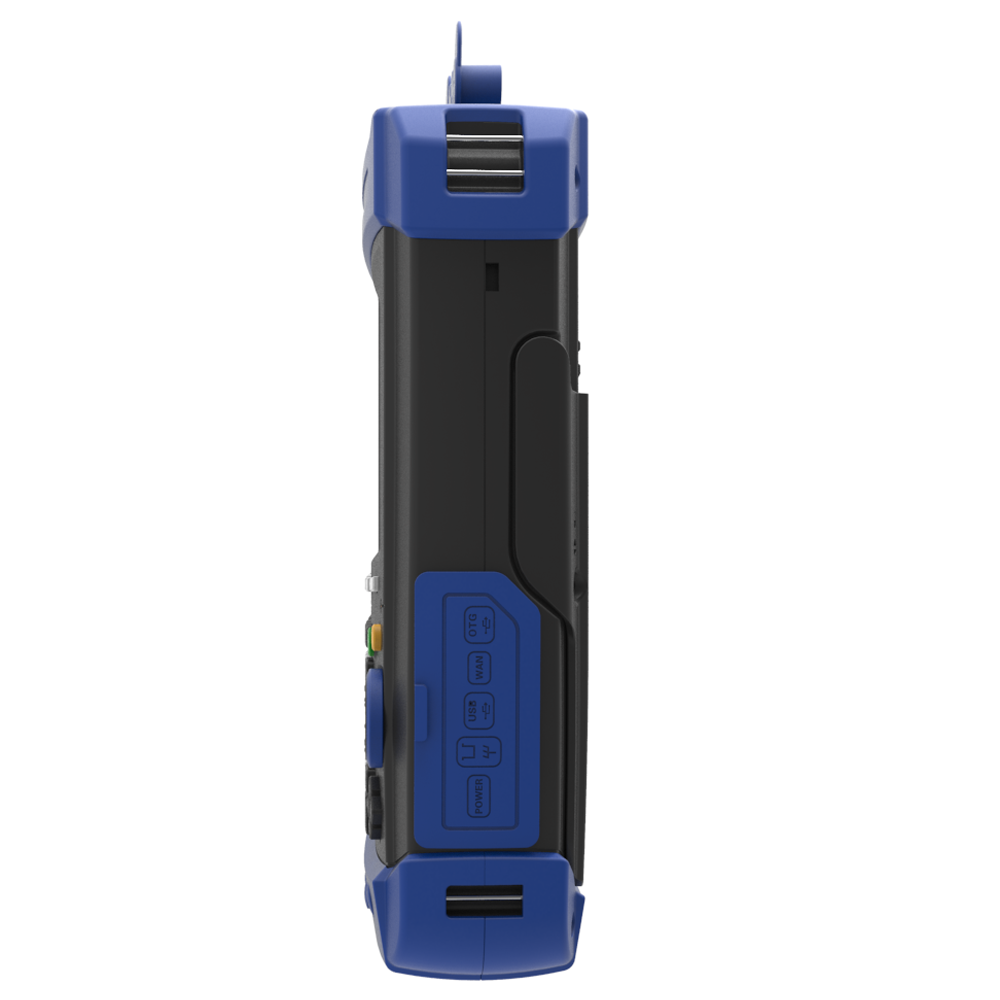

Features

Frequency range: 9KHz-1.6GHz (tunable to 9KHz) AC Coupled
Optimal sensitivity: -161dBm RBW:10Hz to 1MHz
IP-51 High protection portable design, sturdy and durable, can be used in laboratory, more suitable for field mobile use.
built-in large capacity lithium battery, can work for more than 4 hours. 18650 rechargeable battery.
5.6 inch highlight color display, 640*480 resolution, waveform display clearly.
HSA2000 Series spectrum analyzer has the lowest DANL and SSB phase noise, and narrowest RBW. It greatly enhances the recognition ability to the spurious signal and noise signal.
Optional FM/AM modulation analysis, including carrier power, modulation rate, AM depth/FM deviation, SINAD and carrier frequency offset.
Standard spectrum feature. It can analyze the signal time stability, and find out lacunar signal in communication system accurately.
Strong field strength test function, fit for the test work in transmitter, base station and the antenna coverage site. It can show the density of field strength or power. The user could also calibrate gain or loss by using amplitude offset function.
HAS2000 Series has least RBW in the same level of analyzers, and can easily confirm, distinguish and measure two similar signals.
The 5.7 inch highlight color display can provide accurate, bright and clear trace both inside and outside, no need to move to shading place for work.
Short scanning time. It can fast catch the data and help to locate and recognize the irregular transient disturbance signal, and then optimize the testing time and accuracy.
Advanced built-in battery management system is adopted. Standard super large capacity-7800mAh lithium battery, and support 6 packs of 18650 battery pack which can keep measurement working in site for over 4 hours.
Firm and tight mechanical structure, close rubber sleeve pack, which is fit for harsh site work environment.
Integration USB Host & Device, support USB flash disk memory, optional WIFI/LAN, which is convenient for networking and long-range control.
Its PC software can achieve the management and storage of testing data.
HSA2000 Series site measurement application.

Aerospace and Defense: Radio and Radar, interferometric analysis, site repairment.

Wireless service provider: interferometric analysis, site repairmen.

TV & Radio: interferometric analysis, check of channel power.

Spectrum management agency: spectrum monitor.

RBW low to 10Hz 2

DANL low to -161dBm 6

0span test time signal 1

SSB phase noise is normalized to -92dBc 6

PC software

Parameters
Model		HSA2016A	HSA2016B
Frequency
Frequency Range	9KHz~1.6GHz AC Coupled		9KHz~1.6GHz AC Coupled 5M~1.6GHz TG
Frequency Resolution	1Hz
Reference Frequency	10MHz
Frequency Readout Accuracy	±(frequency indicationfrequency reference uncertainty+1%span+20%RBW+marker resolution+1Hz)
Internal 10MHz Reference Accuracy	Aging rate		±1ppm/year（0℃~50℃，Reference is 25℃）
	Temperature stability		±1ppm/year
Marker Resolution	(Frequency span)/(number of sweep points-1)
Resolution Bandwidth（RBW）
-3dB Bandwidth		10Hz to 1MHz，1-3-10 sequence
Accuracy		±5% RBW=10Hz~1MHz nominal
Resolution Filter Shape Factor		＜5:1 nominal
Video Bandwidth（VBW）		-3dB bandwidth	1Hz to 1MHz，1-3-10 sequence
		Accuracy	±10% VBM=1Hz~1MHz nominal
Displayed Average Noise Level (normalized to1Hz)
9K~1MHz		Preamp off	-108dBm，typical -127dBm
1MHz ~10MHz			-128dBm，typical -146dBm
10MHz ~500MHz			-142dBm，typical -146dBm
500MHz ~2.5GHz			-141dBm，typical -145dBm
2.5GHz ~3GHz			-140dBm，typical -144dBm
9K~1MHz		Preamp on	-131dBm，typical -150dBm
1MHz ~10MHz			-148dBm，typical -163dBm
10MHz ~500MHz			-161dBm，typical -164dBm
500MHz ~2.5GHz			-159dBm，typical -162dBm
2.5GHz ~3GHz			-158dBm，typical -161dBm
SSB Phase Noise
Carrier Offset(20℃~ 30℃，500MHz Central Frequency）		10K	< -92 dBc/Hz, typical -95 dBc/Hz
		30K	< -93 dBc/Hz, typical -96 dBc/Hz
		100K	< -95 dBc/Hz, typical -97 dBc/Hz
		1MHz	< -117 dBc/Hz, typical -119 dBc/Hz
Sweep Time
Range		Span >100Hz	2ms to 1000s
		Span=0Hz	600ns to 200s
Sweep Mode		Continuous, single
Trigger Source		Free run; video; external
Trigger slope		Selectable positive or negative edge
Trigger delay		Span =0Hz	±12ms to ±12s nominal
Frequency Counter
Counter Resolution		1Hz
Accuracy		± (marker frequency × frequency reference uncertainty + counter resolution)
Level Display Range
Log Scale and Units		1 to 10 dB/divisions in 1, 2, 5, 10 dB steps, 10 divisions displayed
Linear Scale and Units		0 to 100%，10 divisions displayed
Scale Unit		dBm，dBmV,dBuV,Watts，Volts
Sweep (Trace) Points		461
Number of Markers		4
Detectors		Normal, positive peak, dample, negative peak, RMS
Number of Traces		4
Trace Functions		Clear/write, maximum hold, minimum hold, average, check，close
Level Measurement Error		±1.5dB(excluding input VSWR mismatch) 20~30℃，peak detector, preamplifier off, input signal -50dBm to 0dBm
Reference Level
Setting Range		-100dBm to +30dBm, steps of 1dB
Setting Resolution		Log scale	0.01dB
		Linear scale	Almost log（2.236μV to 7.07V）
Amplitude
Maximum Safety Input Level		Average continuous power	+33dBm
		DC input voltage	50Vdc
Measurement Range		9KHz~2MHz	Displayed average noise level (DANL) to +10dB
		2MHz~3GHz	Displayed average noise level (DANL) to +20dB
		Input attenuator range	0 to 51dB,1dB steps
Spurious Response
Second Harmonic Distortion（SHI）		<65dBc，50MHz to 3GHz（Mixer level -30dBm，attenuator =0dB，preamp off，20℃~30℃）
Input Related Spurious		<-75dBc，(input mixer = -30dBm)
Inherent Residual Response		<-90dBm，typical -98dBm (Input terminated and 0 dB RF attenuation, preamplifier off)
RF Input VSWR (at Tuned Frequency)		10MHz to 1.6GHz	＜1.5:1, nominal Attenuator setting 10~20dB
10MHz Reference/External Trigger Input
Reference Iinput Frequency	10MHz
Reference Input Amplitude	0~10dBm
Trigger Voltage	5V TTL level
Connector and Output Impendence	N female；（50Ω）
Gennral Feature
Interface Language		English，Chinese，Chinese Traditional
Display Index		5.7 inch，640*480 resolution，64M color LCD display
Temperature Range		Working	-10℃ to +50℃，（battery：0℃ to 50℃）
		Storage	-40℃ to +70℃，（battery :-20℃ to 50℃）
Relative Humidity		<95%
Weight		2.9kg（with battery），2.6kg（without battery）
Size		260m X 220m X 75m
Power		Input voltage range	DC: 12-17V, maximum 2.8A input 220VAC±15%
		AC frequency range	40Hz to 60Hz
		Power consumption	Maximum 32W

Standard Accessory：

Optional Accessory：

Kit I ：

Accessory bag * 1
N-SMA adaptor * 1
N-BNC adaptor * 1
BNC-BNC cable * 1
315MHz antenna * 1
433MHz antenna * 1
900M/1.8GHz antenna * 1
2.4GHz antenna * 1
specification * 1

Kit II ：

Accessory bag * 1
N-SMA adaptor * 1
N-BNC adaptor * 1
BNC-BNC cable * 1
315MHz antenna * 1
433MHz antenna * 1
900M/1.8GHz antenna * 1
2.4GHz antenna * 1
50Ω-75Ω impedance converter * 1
N-SMA cable * 1
specification *1

HSA2000 Series User Mannuel V1.0.1_English

2021-07-29

HSA2016 Software

2019-10-30
