TO1000 Series

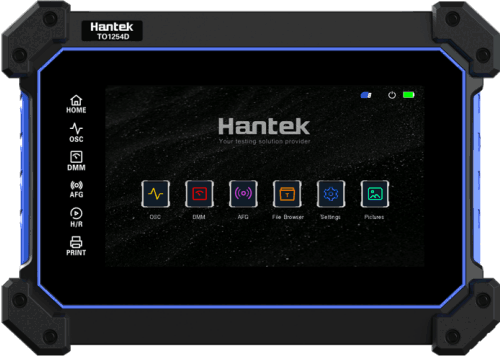

The new generation of TO1000 series multi-functional full touch screen oscilloscope has a thin body, light weight and is easy to carry;Unique hanging design, hands-free, anti falling and anti-seismic, sturdy and durable; It integrates oscilloscope, multimeter, signal generator and spectrum analyzer; Built in super large capacity battery, long endurance, support fast charging, and abundant power.
  • Multi touch large screen, resolution up to 800 * 480, friendly and easy-to-use UI, good interaction experience.
  • Standard configuration of 4 or 2-channel oscilloscope, maximum bandwidth of 250MHz, maximum sampling rate of 1GSa/s, 8M large storage.
  • Provide high-precision multimeter with data recording, storage, trend chart, statistical analysis and other functions.
  • A variety of arbitrary waveforms are built into the signal generator, and the highest output frequency is 25MHz.
  • One key waveform storage, convenient and fast.
  • Suspension foot design, multi angle adjustment, anti falling and anti-seismic, put it on the go.
  • Built in super large capacity lithium battery, full power, long endurance, standby for up to half a year.
  • The standard 18W charger supports type-C fast charging, and can also share a set of charging equipment with mobile phones.
Integrates multiple functions
Digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter, data recorder, frequency meter, FFT spectrum analyzer.

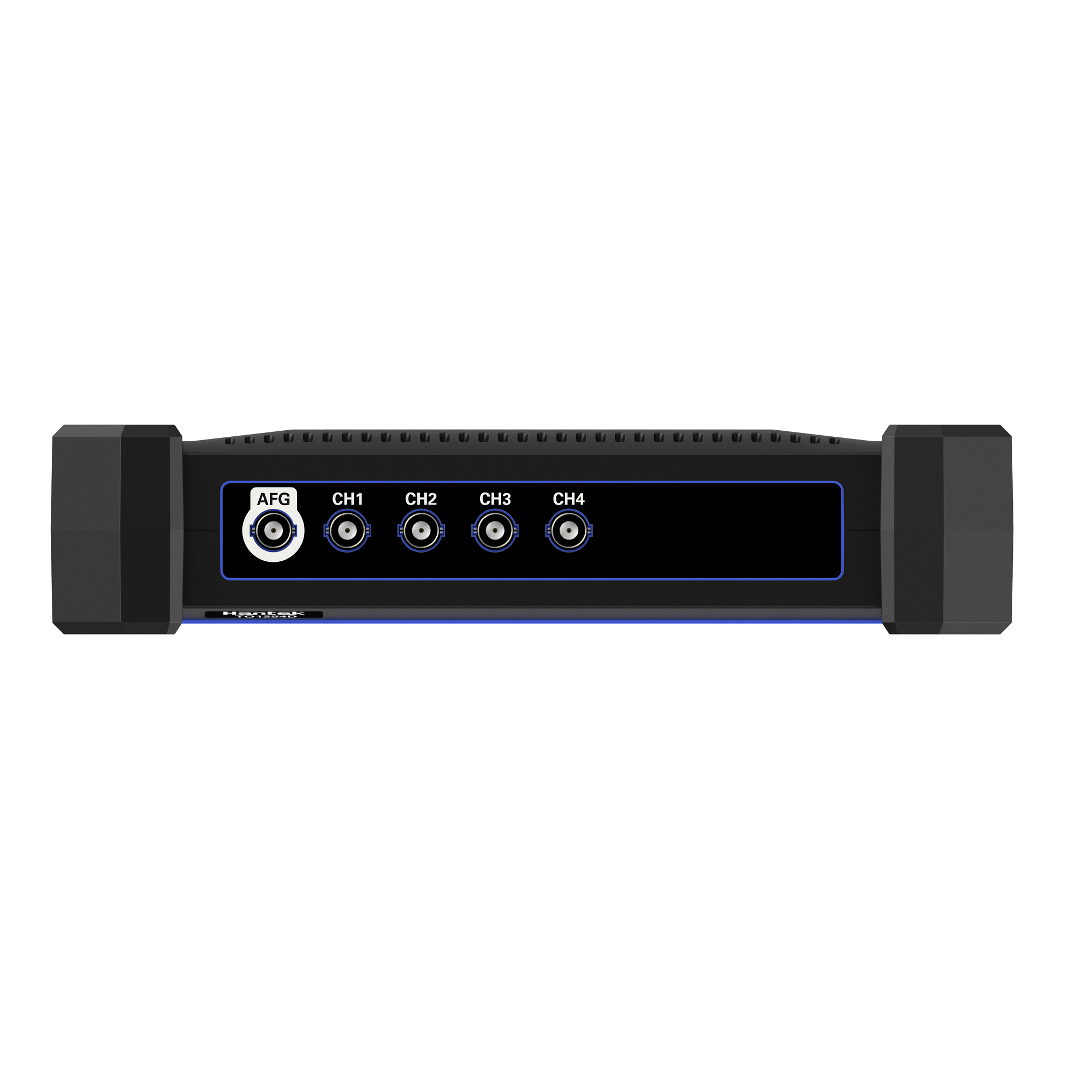

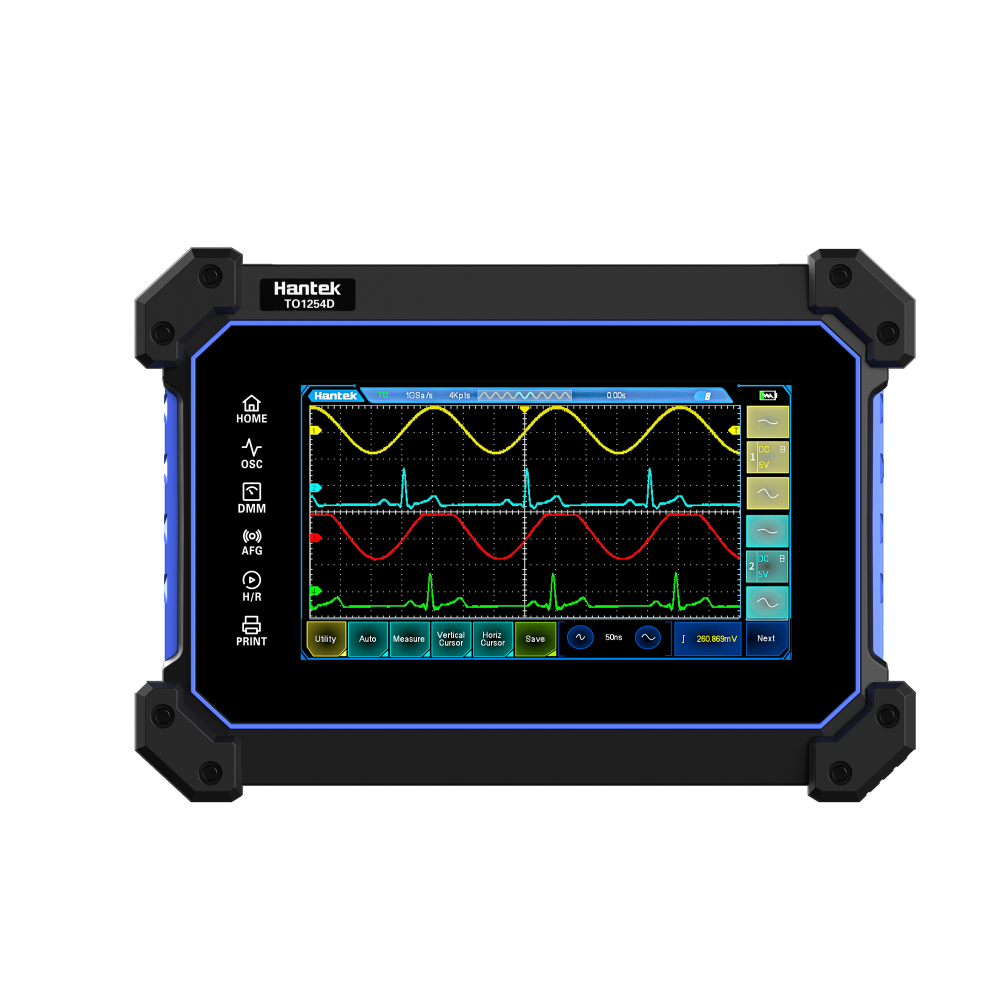

Four channel digital storage oscilloscope
Bandwidth up to 250MHz, 1GSa/ s high sampling rate, 8M large storage depth;<br> Edge, slope, pulse width, video, timeout and other triggers; <br>Up to 42 measurement functions.

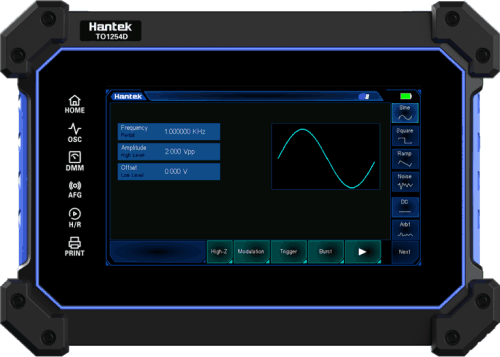

Function of arbitrary function signal generator
The highest output frequency reaches 25MHz, 12bit high resolution, 200Ms / s high sampling rate; <br> Built in a variety of arbitrary waves, support AM / FM modulation, output high resistance and low resistance can be switched.
Digital multimeter function
AC and DC voltage, current, resistance, capacitance, diode, on-off measurement; <br> The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.
Suspension foot、hands-free
Unique suspension foot design, free hands; <br> It can be used and put at any time. It is anti falling and anti-seismic, sturdy and durable.
High power and long endurance
Built in 10000mah detachable lithium battery; <br> Full power, long endurance and standby time of up to half a year.
Support multiple fast charging protocols
Standard 18W charger for fast charging; <br> The type-C interface is compatible with mobile phones and can share a set of charging equipment.
Model
Oscilloscope channel Bandwidth Sampling rate Storage depth Signal source Multimeter
TO1112 2 CH 110 MHz 250MSa/S 8M  -  -
TO1112C 2 CH 110 MHz 250MSa/S 8M  -
TO1112D 2 CH 110 MHz 250MSa/S 8M

Model
Oscilloscope channel Bandwidth Sampling rate Storage depth Signal source Multimeter
TO1154C 4 CH 150 MHz 1GSa/s 8M  -
TO1204C 4 CH 200 MHz 1GSa/s 8M  -
TO1254C 4 CH 250 MHz 1GSa/s 8M  -
TO1154D 4 CH+1CH 150 MHz 1GSa/s 8M 25MHz
TO1204D 4 CH+1CH 200 MHz 1GSa/s 8M 25MHz
TO1254D 4 CH+1CH 250 MHz 1GSa/s 8M 25MHz

Model
Oscilloscope channel Bandwidth Sampling rate Storage depth Signal source Multimeter
TO1152C 2 CH 150 MHz 1GSa/s 8M  -
TO1202C 2 CH 200 MHz 1GSa/s 8M  -
TO1252C 2 CH 250 MHz 1GSa/s 8M  -
TO1152D 2 CH+1CH 150 MHz 1GSa/s 8M 25MHz
TO1202D 2 CH+1CH 200 MHz 1GSa/s 8M 25MHz
TO1252D 2 CH+1CH 250 MHz 1GSa/s 8M 25MHz

Series
TO1000 Series (1G Sampling)
TO1112 Series (250M Sampling)
Level
Horizontal Scale Range
2ns/div~100s/div1、2、5 sequence 2ns/div~100s/div1、2、5 sequence

Incremental Time Measurement Accuracy

(Full Bandwidth)

Single, "Sampling" mode
Single, "Sampling" mode

± (1 sampling interval +100ppm× reading +0.6ns)

± (1 sampling interval +100ppm× reading +0.6ns)
>16 times on average >16 times on average
±(1 sampling interval +100ppm× reading +0.4ns) ±(1 sampling interval +100ppm× reading +0.4ns)
Sampling interval = seconds/grid ÷200
Sampling interval = seconds/grid ÷200
Vertical
A/D Converter
8-bit resolution,each channel sampled simultaneously
8-bit resolution,each channel sampled simultaneously
Vertical Cale Range
2mV/div~10V/div at input BNC 10mV/div~10V/div at input BNC
Vertical Resolution 8bit 8bit
Vertical Sensitivity Range 2mV/div~10V/div 10mV/div~10V/div
Offset Range ±1V(2mV/div~100mV/div)

±1Vmax(100mV/div)

±10V(200mV/div~1V/div)

±10Vmax (1V/div)

±50V(2V/div~10V/div)

±50Vmax (10V/div)

Dynamic Range ±5div(8bit) ±5div(8bit)
Optional Analog Bandwidth Limitation, Typical
20MHz,Each channel is independently selectable 20MHz,Each channel is independently selectable
DC Gain Accuracy
±3% FullScale ±3% FullScale
Isolation Between Channels
40dB,DC to the maximum rated bandwidth of each model 40dB,DC to the maximum rated bandwidth of each model
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Sampling Rate Range
1GSa/s 250MSa/s
Acquisition Modes Normal, Average, Peak, High resolution Normal, Average, Peak, High resolution
Waveform Interpolation
(sinx)/x (sinx)/x
Single Sequence
Acquisition Modes
Collection Stop Time
Collection Stop Time
Normal and Peak  All channels perform single collection at the same time.
Simultaneous single acquisition of all channels
Average
All channels perform collections for N times at the same time. N can be 2, 4, 8, 16, 32, 64, 128, or 256.
All channels conduct n acquisitions at the same time, and N can take the values of 2, 4, 8, 16, 32, 64, 128, 256
Storage Depth
8Mpts 8Mpts
Trigger
Mode
Automatic, Normal, Single
Automatic, Normal, Single
Level
CH1~CH4  ±4 divisions from center of screen CH1/CH2   ±4 divisions from center of screen
Release Inhibition Range
8ns~10s 8ns~10s
Trigger Level Accuracy
CH1~CH4 / CH1~CH2 CH1/CH2
Trigger Sensitivity

±0.87div(2mV/div)

±0.78div(5mV/div)

±0.69div(10mV/div)

±0.52div(20mV/div)

±0.47div(50mV/div)

±0.26div(100mV/div)

±0.26div(200mV/div)

±0.47div(500mV/div)

±0.26div(1V/div)

±0.26div(2V/div)

±0.26div(5V/div)

±0.26div(10V/div)

±0.87div(2mV/div)

±0.78div(5mV/div)

±0.69div(10mV/div)

±0.52div(20mV/div)

±0.47div(50mV/div)

±0.26div(100mV/div)

±0.26div(200mV/div)

±0.47div(500mV/div)

±0.26div(1V/div)

±0.26div(2V/div)

±0.26div(5V/div)

±0.26div(10V/div)

Edge-triggered

Slope
Rising, Falling, Rising & Falling Rising, Falling, Rising & Falling
Source
CH1~CH4 / CH1~CH2 CH1/CH2

Pulse Width Trigger

Polarity
Positive polarity, negative polarity
Positive polarity, negative polarity
Condition
<、>、!=、= <、>、!=、=
Source
CH1~CH4 / CH1~CH2 CH1/CH2
Pulse width range
8ns~10s 8ns~10s

Video Trigger

Signal standard
NTSC、PAL、HDTV720p、HDTV1080p、HDTV1080i NTSC、PAL、HDTV720p、HDTV1080p、HDTV1080i
Source CH1~CH4 / CH1~CH2 CH1~CH2
Synchronization
Scan line, Line number, Odd field, Even field, All fields
Scan line, Line number, Odd field, Even field, All fields

Slope Trigger

Slope
Rising, Falling
Rising, Falling
Condition
<、>、!=、= <、>、!=、=
Source
CH1~CH4 / CH1~CH2 CH1/CH2
Time Range 8ns~10s 8ns~10s

Timeout Trigger

Source
CH1~CH4 / CH1~CH2 CH1/CH2
Polarity
Positive polarity, negative polarity
Positive polarity, negative polarity

Time Range

8ns~10s 8ns~10s
Input
Channel Count
4 / 2 Analog channels
2 Analog channels
Input Coupling
DC, AC or GND
DC, AC or GND
Input Impedance
1MΩ±2% 1MΩ±2%
Input Capacitance
18pF±3pF 18pF±3pF
Probe Attenuation
1X、10X 1X、10X
Support probe attenuation coefficient
0.01X~10000X 0.01X~10000X
Voltage Level
300VCATII 300VCATII
Maximum Input Voltage
300VRMS(10X) 300VRMS(10X)
Measurement
Cursor

The voltage difference between the cursors △Y

The time difference between the cursors △X

Reciprocal of △X in Hertz (1/△X)
Auto Measure
Frequency、Bimodal value、Average value、Maximum value、Minimum value、Period、Top value, Middle value、Bottom value、 Amplitude、 Root mean square、Rising edge overshoot、Rising edge precharge、Cycle root mean Square、Cycle average value、Rising time、Falling time、Positive pulse Width、Negative pulse width、Positive duty cycle、Negative duty cycle、FRR、FFF、Falling edge overshoot, Falling edge precharge, Pulse width、FRF、FFR、LRR、LRF、LFR、LFF、Maximum value time、Minimum value time、Positive phase difference、Negative phase difference、Variance、Number of positive pulses、Number of negative pulses、Number of rising edges、Number of falling edges、Trigger count
Math Operations
Data Source
CH1~CH4 / CH1~CH2 CH1/CH2
Operator
+、-、×、/、FFT
FFT Point
1024
Window
Rectangle, Hanning, Hemming, Blackman, Bartlett, Flat top
Display
Display single or display all
Vertical scale
dB、VRms
Storage
Save / Transfer out
Save and call out, Including Images, References, CSV, Binary, Settings
Save to External Storage
Images, References, CSV, Binary, Settings

Arbitrary Waveform Generator

Channel Number
1
Sampling Rate
200MSa/s
Vertical Resolution
12bit
The Highest Frequency
25MHz
Standard Waveform
Sine wave, Square wave, Triangle wave, Noise, DC
Sine Wave
Frequency range
0.1Hz~25MHz
Square wave/Pulse
Frequency range
0.1Hz~10MHz
Duty ratio
0~100%
Triangle Wave
Frequency range
0.1Hz~1MHz
Symmetry
0%~100%
Noise
Bandwidth
>25MHz
DC Offset
±1.5V(50Ω)、±3.0V(high resistance)
Resolution
100μV
Precision
2%(1KHz)
Arbitrary Wave
Frequency range
0.1Hz~10MHz
Support upper computer download, and external memory calling out
Amplitude
50Ω+2%
Amplitude
0mV~3Vpp(50Ω)
0mV~6Vpp(high resistance)
Frequency Resolution
0.1 Hz or 4 bits, take the greater one of the two
Wavelength
4KSa
Frequency Accuracy
100 ppm (< 10 kHz) 50 ppm (> 10 kHz)
Modulation
FM Modulation waveform
Sine wave, Square wave, Triangle wave
Modulation frequency
1Hz~50KHz
Modulation deviation
0.1Hz~1KHz
AM Modulation waveform
Sine wave, Square wave, Triangle wave
Modulation frequency
1Hz~50KHz
Modulation depth
0%-120%
Burst
Type
Multi-period, Infinite
Cycle Number
1~2000000000
Trigger source
Manual

Multimeter

Maximum resolution
4000 points
Measuring method
Voltage, Current, resistance, capacitance, diode, on-off measurement
Maximum Input Voltage
AC:600V,DC:600V
Maximum Input Current
AC:10A,DC:10A
Input Impedance
10MΩ
Measurement Item
Range
Precision
Resolution
DC Voltage
400mV ±(1%+2) 100μV
4.000V 1mV
40.00V 10mV
400.0V 100mV
600.0V 1V
Overload protection: 400mV: 250V, other: 600Vrms.
AC Voltage
4.000V ±(1.2%+5) 1mV
40.00V 10mV
400.0V 100mV
600.0V ±(1.5%+5) 1V
Frequency:40Hz~400Hz
Frequency of 400V and 600V:40Hz~100Hz
DC Current
40.00mA ±(1%+2) 10μA
200.0mA ±(1.5%+2) 100μA
4.000A ±(1.8%+2) 1mA
10.00A ±(3%+2) 10mA
Overload protection: self restoring fuse: 200mA/250V, 4A and 10A range no fuse
AC Current
40.00mA ±(1.3%+2) 10μA
400.0mA ±(1.8%+2) 100μA
4.000A ±(2%+3) 1mA
10.00A ±(3%+5) 10mA
Frequency: 40Hz~400Hz;
Self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
Resistance
400.0Ω ±(1%+3) 0.1Ω
4.000KΩ ±(1.2%+5)
60.00KΩ 10Ω
400.0KΩ 100Ω
4.000MΩ 1KΩ
40.00MΩ ±(1.5%±3) 10KΩ
Overload protection: 220Vrms
Capacitance
40.00nF ±(3%+5) 10pF
400.0nF 100pF
4.000μF 1nF
40.00μF 10nF
100.0μF 100nF
Overload protection: 220Vrms
Diode
0V~1.0V
On off Measurement
<50Ω
General Specifications
Panel Type
7 "TFT LCD
Display Resolution
800 (horizontal) *480 (vertical) pixels
Display Type
Point, Vector
Waveform Brightness
Adjustable
Grid Types
Solid line, Dotted line, None
Grid Brightness
Adjustable
Screen Brightness
Adjustable
Afterglow
1s、5s、10s、30s、Infinite, Off
Standard Interface
USB Host、USB Device
Power Supply
AC 100 ~ 240V, 50 ~ 60Hz;  DC input 5V3A/9V2A/12v1.5A
Power Consumption
<8W
Fast Charge
Support fast charging
Battery
3.7V 2600mAh*4 in parallel 3.7V 2600mAh*2 in parallel
Environmental
Temperature
0℃-50℃
Storage Temperature
-20℃-60℃
Humidity
≤+104℉(≤+40°C): ≤90% relative humidity
106℉~122℉(+41°C~50°C):≤60% relative humidity
Cooling
Convection
Altitude
Operating and Nonoperating
3,000m(10,000 feet
Random vibration
0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis
Nonoperating
2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis
Mechanical
Dimension
248mm*176mm*54mm (L x W x H)
Weight
1.2KG (including batteries)
Series
TO1000 Series (1G Sampling)
TO1112 Series (250M Sampling)
Level
Horizontal Scale Range
2ns/div~100s/div1、2、5 sequence 2ns/div~100s/div1、2、5 sequence

Incremental Time Measurement Accuracy

(Full Bandwidth)

Single, "Sampling" mode
Single, "Sampling" mode

± (1 sampling interval +100ppm× reading +0.6ns)

± (1 sampling interval +100ppm× reading +0.6ns)
>16 times on average >16 times on average
±(1 sampling interval +100ppm× reading +0.4ns) ±(1 sampling interval +100ppm× reading +0.4ns)
Sampling interval = seconds/grid ÷200
Sampling interval = seconds/grid ÷200
Vertical
A/D Converter
8-bit resolution,each channel sampled simultaneously
8-bit resolution,each channel sampled simultaneously
Vertical Cale Range
2mV/div~10V/div at input BNC 10mV/div~10V/div at input BNC
Vertical Resolution 8bit 8bit
Vertical Sensitivity Range 2mV/div~10V/div 10mV/div~10V/div
Offset Range ±1V(2mV/div~100mV/div)

±1Vmax(100mV/div)

±10V(200mV/div~1V/div)

±10Vmax (1V/div)

±50V(2V/div~10V/div)

±50Vmax (10V/div)

Dynamic Range ±5div(8bit) ±5div(8bit)
Optional Analog Bandwidth Limitation, Typical
20MHz,Each channel is independently selectable 20MHz,Each channel is independently selectable
DC Gain Accuracy
±3% FullScale ±3% FullScale
Isolation Between Channels
40dB,DC to the maximum rated bandwidth of each model 40dB,DC to the maximum rated bandwidth of each model
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Sampling Rate Range
1GSa/s 250MSa/s
Acquisition Modes Normal, Average, Peak, High resolution Normal, Average, Peak, High resolution
Waveform Interpolation
(sinx)/x (sinx)/x
Single Sequence
Acquisition Modes
Collection Stop Time
Collection Stop Time
Normal and Peak  All channels perform single collection at the same time.
Simultaneous single acquisition of all channels
Average
All channels perform collections for N times at the same time. N can be 2, 4, 8, 16, 32, 64, 128, or 256.
All channels conduct n acquisitions at the same time, and N can take the values of 2, 4, 8, 16, 32, 64, 128, 256
Storage Depth
8Mpts 8Mpts
Trigger
Mode
Automatic, Normal, Single
Automatic, Normal, Single
Level
CH1~CH4  ±4 divisions from center of screen CH1/CH2   ±4 divisions from center of screen
Release Inhibition Range
8ns~10s 8ns~10s
Trigger Level Accuracy
CH1~CH4 / CH1~CH2 CH1/CH2
Trigger Sensitivity

±0.87div(2mV/div)

±0.78div(5mV/div)

±0.69div(10mV/div)

±0.52div(20mV/div)

±0.47div(50mV/div)

±0.26div(100mV/div)

±0.26div(200mV/div)

±0.47div(500mV/div)

±0.26div(1V/div)

±0.26div(2V/div)

±0.26div(5V/div)

±0.26div(10V/div)

±0.87div(2mV/div)

±0.78div(5mV/div)

±0.69div(10mV/div)

±0.52div(20mV/div)

±0.47div(50mV/div)

±0.26div(100mV/div)

±0.26div(200mV/div)

±0.47div(500mV/div)

±0.26div(1V/div)

±0.26div(2V/div)

±0.26div(5V/div)

±0.26div(10V/div)

Edge-triggered

Slope
Rising, Falling, Rising & Falling Rising, Falling, Rising & Falling
Source
CH1~CH4 / CH1~CH2 CH1/CH2

Pulse Width Trigger

Polarity
Positive polarity, negative polarity
Positive polarity, negative polarity
Condition
<、>、!=、= <、>、!=、=
Source
CH1~CH4 / CH1~CH2 CH1/CH2
Pulse width range
8ns~10s 8ns~10s

Video Trigger

Signal standard
NTSC、PAL、HDTV720p、HDTV1080p、HDTV1080i NTSC、PAL、HDTV720p、HDTV1080p、HDTV1080i
Source CH1~CH4 / CH1~CH2 CH1~CH2
Synchronization
Scan line, Line number, Odd field, Even field, All fields
Scan line, Line number, Odd field, Even field, All fields

Slope Trigger

Slope
Rising, Falling
Rising, Falling
Condition
<、>、!=、= <、>、!=、=
Source
CH1~CH4 / CH1~CH2 CH1/CH2
Time Range 8ns~10s 8ns~10s

Timeout Trigger

Source
CH1~CH4 / CH1~CH2 CH1/CH2
Polarity
Positive polarity, negative polarity
Positive polarity, negative polarity

Time Range

8ns~10s 8ns~10s
Input
Channel Count
4 / 2 Analog channels
2 Analog channels
Input Coupling
DC, AC or GND
DC, AC or GND
Input Impedance
1MΩ±2% 1MΩ±2%
Input Capacitance
18pF±3pF 18pF±3pF
Probe Attenuation
1X、10X 1X、10X
Support probe attenuation coefficient
0.01X~10000X 0.01X~10000X
Voltage Level
300VCATII 300VCATII
Maximum Input Voltage
300VRMS(10X) 300VRMS(10X)
Measurement
Cursor

The voltage difference between the cursors △Y

The time difference between the cursors △X

Reciprocal of △in Hertz (1/△X)
Auto Measure
Frequency、Bimodal value、Average value、Maximum value、Minimum value、Period、Top value, Middle value、Bottom value、 Amplitude、 Root mean square、Rising edge overshoot、Rising edge precharge、Cycle root mean Square、Cycle average value、Rising time、Falling time、Positive pulse Width、Negative pulse width、Positive duty cycle、Negative duty cycle、FRR、FFF、Falling edge overshoot, Falling edge precharge, Pulse width、FRF、FFR、LRR、LRF、LFR、LFF、Maximum value time、Minimum value time、Positive phase difference、Negative phase difference、Variance、Number of positive pulses、Number of negative pulses、Number of rising edges、Number of falling edges、Trigger count
Math Operations
Data Source
CH1~CH4 / CH1~CH2 CH1/CH2
Operator
+、-、×、/、FFT
FFT Point
1024
Window
Rectangle, Hanning, Hemming, Blackman, Bartlett, Flat top
Display
Display single or display all
Vertical scale
dB、VRms
Storage
Save / Transfer out
Save and call out, Including Images, References, CSV, Binary, Settings
Save to External Storage
Images, References, CSV, Binary, Settings

Arbitrary Waveform Generator

Channel Number
1
Sampling Rate
200MSa/s
Vertical Resolution
12bit
The Highest Frequency
25MHz
Standard Waveform
Sine wave, Square wave, Triangle wave, Noise, DC
Sine Wave
Frequency range
0.1Hz~25MHz
Square wave/Pulse
Frequency range
0.1Hz~10MHz
Duty ratio
0~100%
Triangle Wave
Frequency range
0.1Hz~1MHz
Symmetry
0%~100%
Noise
Bandwidth
>25MHz
DC Offset
±1.5V(50Ω)、±3.0V(high resistance)
Resolution
100μV
Precision
2%(1KHz)
Arbitrary Wave
Frequency range
0.1Hz~10MHz
Support upper computer download, and external memory calling out
Amplitude
50Ω+2%
Amplitude
0mV~3Vpp(50Ω)
0mV~6Vpp(high resistance)
Frequency Resolution
0.1 Hz or 4 bits, take the greater one of the two
Wavelength
4KSa
Frequency Accuracy
100 ppm (< 10 kHz) 50 ppm (> 10 kHz)
Modulation
FM Modulation waveform
Sine wave, Square wave, Triangle wave
Modulation frequency
1Hz~50KHz
Modulation deviation
0.1Hz~1KHz
AM Modulation waveform
Sine wave, Square wave, Triangle wave
Modulation frequency
1Hz~50KHz
Modulation depth
0%-120%
Burst
Type
Multi-period, Infinite
Cycle Number
1~2000000000
Trigger source
Manual

Multimeter

Maximum resolution
4000 points
Measuring method
Voltage, Current, resistance, capacitance, diode, on-off measurement
Maximum Input Voltage
AC:600V,DC:600V
Maximum Input Current
AC:10A,DC:10A
Input Impedance
10MΩ
Measurement Item
Range
Precision
Resolution
DC Voltage
400mV ±(1%+2) 100μV
4.000V 1mV
40.00V 10mV
400.0V 100mV
600.0V 1V
Overload protection: 400mV: 250V, other: 600Vrms.
AC Voltage
4.000V ±(1.2%+5) 1mV
40.00V 10mV
400.0V 100mV
600.0V ±(1.5%+5) 1V
Frequency:40Hz~400Hz
Frequency of 400V and 600V:40Hz~100Hz
DC Current
40.00mA ±(1%+2) 10μA
200.0mA ±(1.5%+2) 100μA
4.000A ±(1.8%+2) 1mA
10.00A ±(3%+2) 10mA
Overload protection: self restoring fuse: 200mA/250V, 4A and 10A range no fuse
AC Current
40.00mA ±(1.3%+2) 10μA
400.0mA ±(1.8%+2) 100μA
4.000A ±(2%+3) 1mA
10.00A ±(3%+5) 10mA
Frequency: 40Hz~400Hz;
Self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
Resistance
400.0Ω ±(1%+3) 0.1Ω
4.000KΩ ±(1.2%+5)
60.00KΩ 10Ω
400.0KΩ 100Ω
4.000MΩ 1KΩ
40.00MΩ ±(1.5%±3) 10KΩ
Overload protection: 220Vrms
Capacitance
40.00nF ±(3%+5) 10pF
400.0nF 100pF
4.000μF 1nF
40.00μF 10nF
100.0μF 100nF
Overload protection: 220Vrms
Diode
0V~1.0V
On off Measurement
<50Ω
General Specifications
Panel Type
7 "TFT LCD
Display Resolution
800 (horizontal) *480 (vertical) pixels
Display Type
Point, Vector
Waveform Brightness
Adjustable
Grid Types
Solid line, Dotted line, None
Grid Brightness
Adjustable
Screen Brightness
Adjustable
Afterglow
1s、5s、10s、30s、Infinite, Off
Standard Interface
USB Host、USB Device
Power Supply
AC 100 ~ 240V, 50 ~ 60Hz;  DC input 5V3A/9V2A/12v1.5A
Power Consumption
<8W
Fast Charge
Support fast charging
Battery
3.7V 2600mAh*4 in parallel 3.7V 2600mAh*2 in parallel
Environmental
Temperature
0℃-50℃
Storage Temperature
-20℃-60℃
Humidity
≤+104℉(≤+40°C): ≤90% relative humidity
106℉~122℉(+41°C~50°C):≤60% relative humidity
Cooling
Convection
Altitude
Operating and Nonoperating
3,000m(10,000 feet
Random vibration
0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis
Nonoperating
2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis
Mechanical
Dimension
248mm*176mm*54mm (L x W x H)
Weight
1.2KG (including batteries)

DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
Probe
Model Description View Manual
HT300B,HT500B 350Mhz,500MHz,10:1/1:1 Download
HT100B,HT200B 100MHz,200MHz,10:1/1:1 Download
PP-80,PP-150,PP-200 60MHz,100MHz,200MHz,10:1/1:1 Download
PP80B, PP150B, PP200B, PP300B 80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1 Download
PP-90 80MHz,10:1/1:1 Download
T3100 100MHz,100:1,2000VDC Peak AC Download
AC/DC Current Clamp
Model Description View Manual
CC65 AC/DC: 0 – 20KHz,20mA to 65A DC Download
CC650 AC:0 – 5KHz,1A - 500A ,DC:1A - 650A Download
CC800 AC:0 – 5KHz,1A - 500A ,DC:1A - 800A Download
High voltage isolated probe
Model Description View Manual
HT8050 50MHz,1300V peakAC,1:50,1:500 Download
HT8100 100MHz,1300V peakAC,1:50,1:500 Download
