Four digit display voltage and current, resolution up to 10mV/1mA;
Standard USB quick charging function, 5-12V output, supporting a variety of quick charging protocols;
10 groups of data storage/retrieval functions;
AC input voltage 230/115V switch, universal;
Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system;
Over voltage, over current, overload, overheating, short circuit protection functions;
Low noise temperature control fan, quiet and durable;
35V/6A output is stable and pure; On/Off output control, one-key panel lock function to prevent misoperation;
Constant voltage (CV)/ constant current (CC) mode automatic switch, effectively protect the circuit;
Two-stage adjustment topology, no impact on the load when the power is turned on;
Ultra-thin body, light and easy to carry, excellent indicators, excellent quality, stable performance, strong durability.

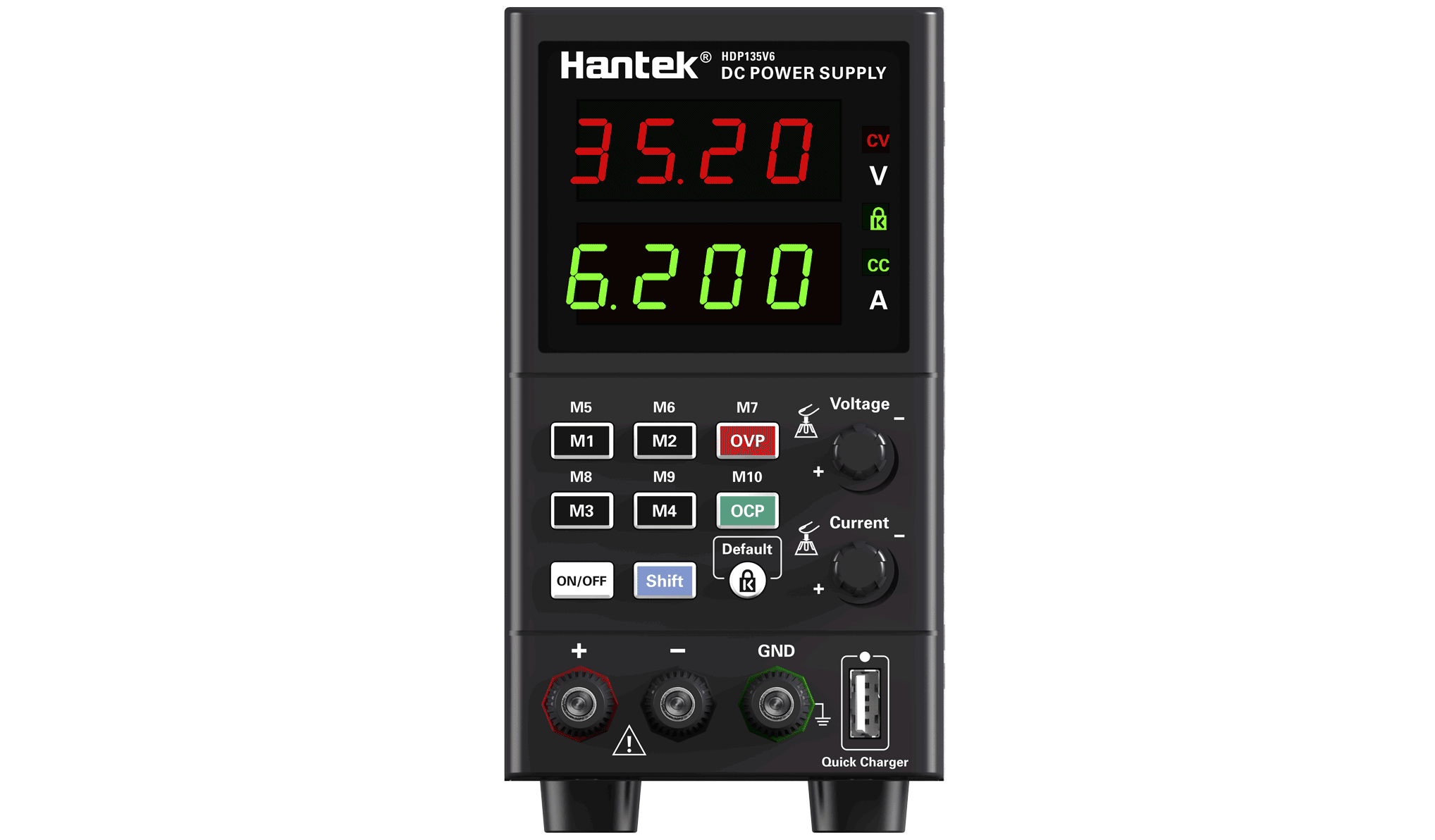

Small size, high power, full protection

Ultra-thin body, abundant power, stable performance. Over voltage, over current, overload, overheating, short circuit protection functions. Constant voltage (CV)/ constant current (CC) automatic switch. It can be used as constant voltage source or constant current source.

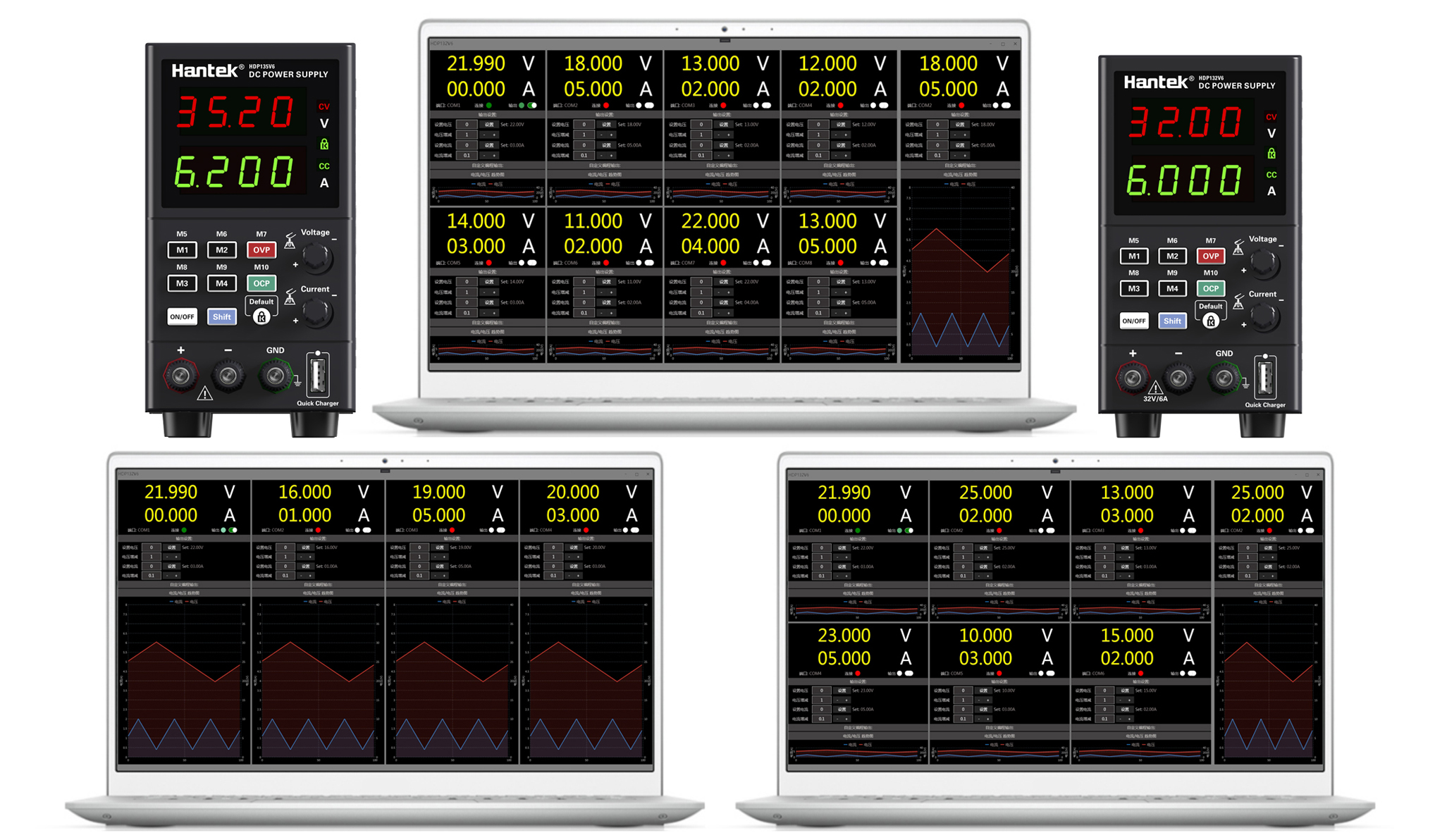

Support computer control, multi-machine linkage

Fully isolated serial port, software support multiple power supply control at the same time, Easy to set up measurement and control or aging system; 10 groups of data storage/retrieval functions.

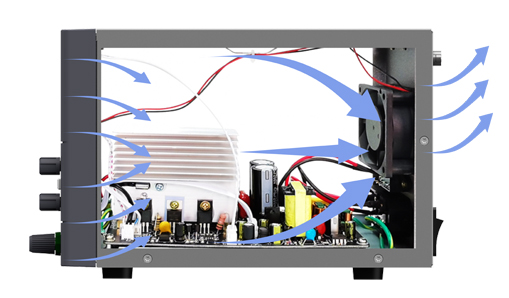

Intelligent cooling system

Low noise temperature control fan, quiet and durable. Reasonable cooling air duct design, all-weather full load work without burning machine, more lasting work. 230V/115V switchable input, universal.

Low ripple, low noise

10mVrms Low ripple low noise.
10mV/1mA reading resolution, high voltage/current output accuracy.

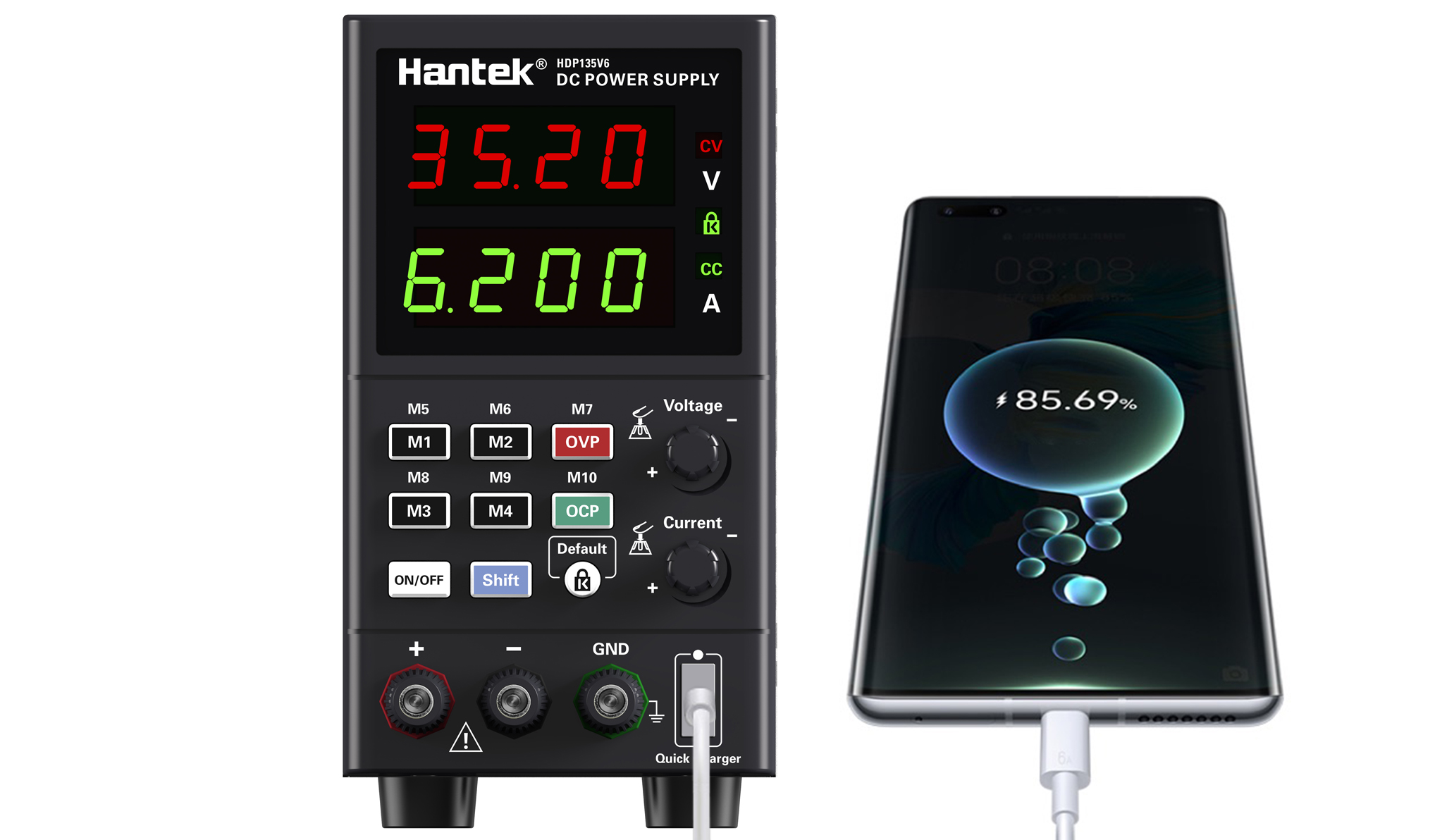

USB quick charging function

Automatic recognition of fast charging protocol and adjustment of output voltage and current.
5V/ 3.4A, 9V/2.0A, 12V/1.5A can provide a maximum of 18 W output power. DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC.

Model	HDP135V6	HDP135V6S	HDP135V6A	HDP135V6B
Channel	1CH
Storage	10 Groups of data
Output voltage/current	35V/6A
Input voltage	115 VAC ± 10%, 230 VAC ± 10%, 50/60Hz		230 VAC ± 10%, 50/60Hz	115 VAC ± 10%, 50/60Hz
Maximum output power	210W
Communication interface	None	RS232	None	None
Voltage
Load regulation	≤0.1% + 5 mv
Linear regulation	≤0.01% + 5 mv
Set resolution	10mV
Set precision	≤0.1% + 1 digits
Read back resolution	10mV
Read back accuracy	≤0.1% + 1 digits
Ripple	10mVrms
Current
Load regulation	≤0.2% + 3mA
Linear regulation	≤0.2% + 3mA
Set resolution	1mA
Set precision	≤0.2% + 3mA
Read back resolution	1mA
Read back accuracy	≤0.2% + 3 digits
Ripple	5mArms
Overvoltage protection (OVP)	0 ~ 35V ± 0.2%FS
Maximum voltage	35V ± 0.2%
Overcurrent protection (OCP)	0 ~ 6A ± 0.2%FS
Maximum current	6A ± 0.2%
Quick charge
Output voltage range	5V~12V
Output power	Maximum: 18 w
Supported fast charging protocol	DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC
General features
Working conditions	Temperature -10 ° C to 40 ° C, relative humidity ≤80%
Storage conditions	Temperature -20 ° C to 60 ° C, relative humidity ≤80%
Cooling	Air cooling
Weight	2 Kg
Size	85 * 160 * 260 (mm)

Model	HDP135V6	HDP135V6S	HDP135V6A	HDP135V6B
Channel	1CH
Storage	10 Groups of data
Output voltage/current	35V/6A
Input voltage	115 VAC ± 10%, 230 VAC ± 10%, 50/60Hz		230 VAC ± 10%, 50/60Hz	115 VAC ± 10%, 50/60Hz
Maximum output power	210W
Communication interface	None	RS232	None	None
Voltage
Load regulation	≤0.1% + 5 mv
Linear regulation	≤0.01% + 5 mv
Set resolution	10mV
Set precision	≤0.1% + 1 digits
Read back resolution	10mV
Read back accuracy	≤0.1% + 1 digits
Ripple	10mVrms
Current
Load regulation	≤0.2% + 3mA
Linear regulation	≤0.2% + 3mA
Set resolution	1mA
Set precision	≤0.2% + 3mA
Read back resolution	1mA
Read back accuracy	≤0.2% + 3 digits
Ripple	5mArms
Overvoltage protection (OVP)	0 ~ 35V ± 0.2%FS
Maximum voltage	35V ± 0.2%
Overcurrent protection (OCP)	0 ~ 6A ± 0.2%FS
Maximum current	6A ± 0.2%
Quick charge
Output voltage range	5V~12V
Output power	Maximum: 18 w
Supported fast charging protocol	DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC
General features
Working conditions	Temperature -10 ° C to 40 ° C, relative humidity ≤80%
Storage conditions	Temperature -20 ° C to 60 ° C, relative humidity ≤80%
Cooling	Air cooling
Weight	2 Kg
Size	85 * 160 * 260 (mm)
