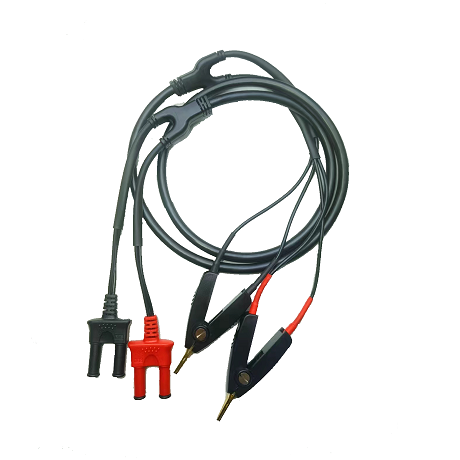

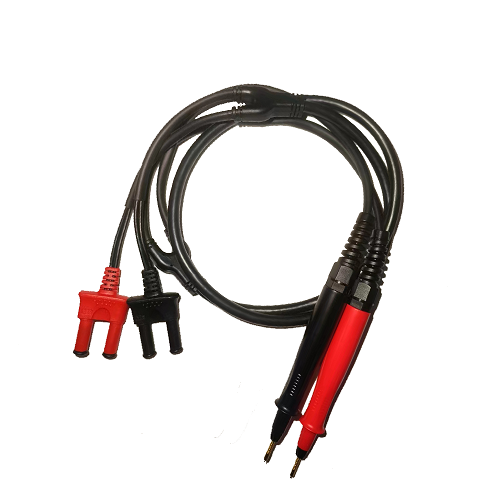

Probe
Video

6 1/2-bit reading high-resolution internal resistance testing tester is a battery internal resistance tester with high accuracy and rapid measurement characteristics, and the measurement voltage range reaches 2100V.
0.1 μΩ resistance resolution, 10 μV voltage resolution, has high precision, high speed, and suitable for various battery types.
Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, optional GPIB interface, suitable for more testing scenarios.
Using AC 4 -terminal method, the impedance can not be affected by the impedance of the test line during the impedance measurement.
It has a comparison function with resistance and voltage respectively, and the battery intimidation and voltage are displayed at the same time.
Short -circuit zero adjustment function, remove the bias voltage of the instrument or the error caused by the measurement environment.
Support U disk screenshots to save functions, and you can upgrade the instrument program through the U disk.
Internal impedance measurement range:3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3.9kΩ.
The full range of voltage measurement covers:1300V/1700V/2100V.

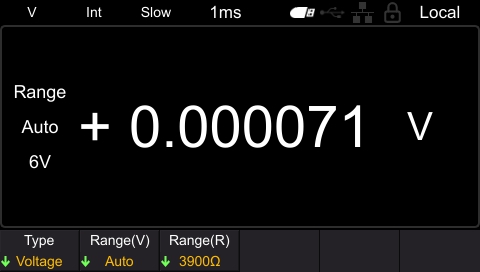

Draw a normal distribution map and visually observe the normal distribution of measurement results.
The measurement results are easily saved into the U disk to facilitate subsequent data analysis and processing.

High precision and wide range

6 1/2, the voltage measurement range reaches 2100V, the resistance measurement range is 0 ~ 3.9kΩ, and the battery internal resistance testing internal resistance testing internal resistance test instrument with high accuracy and rapid measurement characteristics is covered. Field meets your needs.

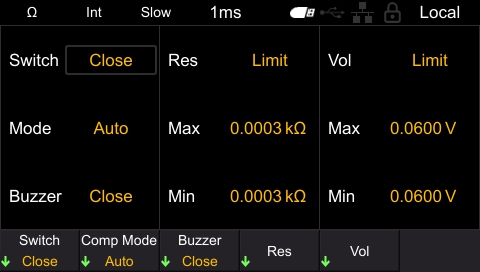

Comparator function

Resistance and voltage are independent, and the function of displaying and output the measurement results will help you better understand the working status of your circuit or equipment.

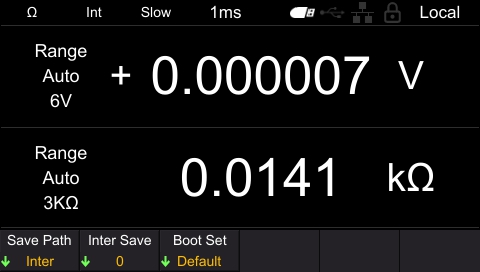

Save/Load Function

The startup settings can be saved to the internal or U disk. There is no need to perform tedious application settings every time you use. Press the corresponding power -on settings button to easily load the previously saved application settings.

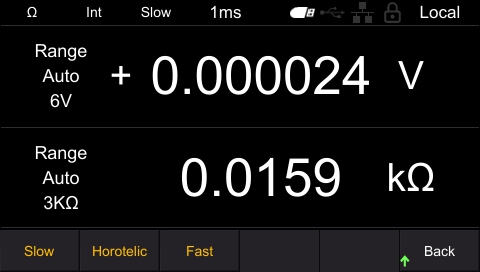

Three-speed sampling rate

The sampling rate can be changed in three stages (Fast/Horotelic/Slow), and the appropriate sampling rate can be selected according to different testing needs. The fastest high-speed measurement can be about 40 ms. The lower the sampling rate, the higher the testing accuracy.

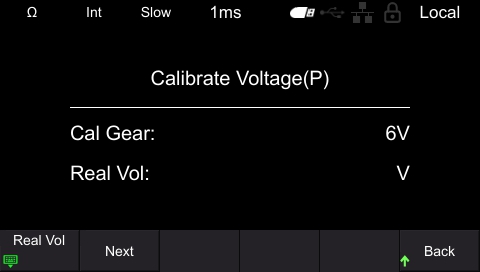

Correction function

The calibration is divided into voltage calibration and resistance calibration, which is used to compensate the bias voltage or gain drift of the internal circuit of the instrument to improve the test accuracy.

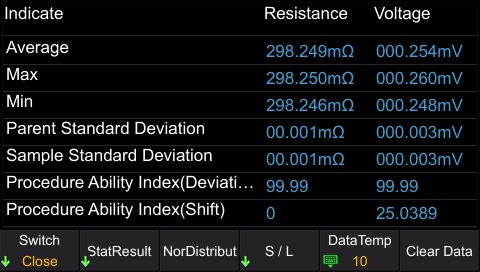

Statistical function

Calculating a variety of statistical indicators, including but not limited to Average, Max, Min, Parent Standard Deviation, etc., makes it easy to plot the normal distribution and helps you visualize the normal distribution of your measurements.

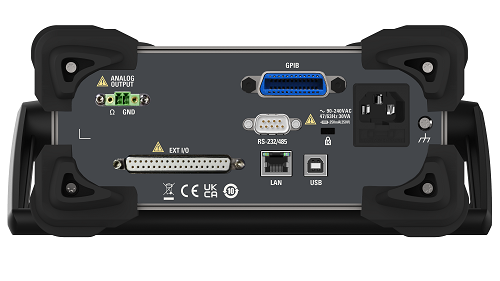

Rich configuration interfaces

Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, optional GPIB interface.

Model	Resistance Resolution	Resistance Range	Resistance Accuracy	Voltage Resolution	Voltage Range	Voltage Accuracy	Interface
HBT4564A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~1300V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4564H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~1300V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB
HBT4565A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~1700V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4565H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~1700V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB
HBT4566A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~2100V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4566H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	10μV	0~2100V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB

Model		HBT4564A/H		HBT4565A/H	HBT4566A/H
Resistance	Range	3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3900Ω
	Measuring Range	0~3.9kΩ
	Min. Resolution	0.1μΩ
Voltage	Range	15V/150V/1300V		15V/150V/1700V	15V/150V/2100V
	Measuring Range	0-1300V		0-1700V	0-2100V
	Min. Resolution	10μV
Rating Input Voltage		DC土1300VDC		DC土1700VDC	DC土2100VDC
Current Frequency		1KHz
Input Impedance		3mΩ~3900Ω 10MΩ
Open Terminal Voltage		3mΩ~3900Ω 15V peak
Detect Abnormal Test Results and Display (Contact detection)		Detection content: Abnormal connection between SOURCE HIGH and LOW Abnormal connection display between SENSE HIGH LOW: [------]
Sampling	Sample Rate	FAST/MEDIUM/SLOW(3rd gear)
	Sample Time	Function	Frequency	FAST	MEDIUM	SLOW
		ΩV	50Hz/60Hz	60ms	300ms	600ms
		Ω	50Hz/60Hz	40ms	200ms	400ms
		V	50Hz/60Hz	40ms	200ms	400ms
Time	Response Time	Measurement response time: approximately 5ms
	Total Measurement Time	Time required for the entire measurement: sampling time+response time
Comparator Function Module	Comparator Function	ON/OFF (shared resistance and voltage)
	Comparator Settings	Comparator mode: HIGH · LOW/REF ·% Upper and lower limit values: 0-3000 (resistance)/0-1500 (voltage) Reference value: 0-3000 (resistance)/0-1500 (voltage) Precent(%): 0.00%~99.99% (% range set to+/- universal) Buzzer: Close/HL/IN/BT1/BT2 Comp mode: AUTO/Manual
	Compare	Compare Result: Hi/IN/Lo (independent judgment of resistance and voltage) PASS/UNPASS judgment: Compare the resistance judgment result with the voltage judgment result AND operation, followed by PASS/UNPASS output (EXT I/O output) Test outlier determination: OF Hi determination -OF Lo determination Test Exception - No Judgment (No Judgment)
Absolute Function		Under this function, even if the battery polarity is reversed, it can be compared based on absolute values
Average Function		Output the average measurement value, which can reduce the deviation of the displayed value. The average frequency is 1, 2, 4, and 8 times
Delay Time		0-9999 ms
Calibrate		Voltage calibration/resistance calibration, used to compensate for bias voltage or gain drift within this instrument
Adjustable Zero Range		Resistance measurement: -1000 to 1000 count values Voltage measurement: -1000~1000 count values (i.e. zero range is less than or equal to ± 1000 dgt.)
Trigger		Int/Ext/Man
Save		ON/OFF/Clear, the measured values can be saved to the USB flash drive through EXT I/O, buttons, and commands
Statistics	Statistical Operations	ON/OFF/Clear
	Operational Content	Average, Max, Min, Parent Standard Deviation, Sample Standard Deviation, Procedure Ability Index (Shift), Procedure Ability Index (Deviation)
	Arithmetic Trigger	Perform statistical calculations on measured values through EXT I/O, buttons, and commands
Measurement Settings Saving and Reading	Function	Can save and read measurement settings
	Save Settings	Test function, resistance range, voltage range, automatic range setting, using rate, trigger source, delay setting, average setting, comparator settings, statistical operation settings
Keytone		ON/OFF
Communication Interface		HBT4000 series: standard RS232/485, USB, LAN, IO, ANALOGOUTFUT, optional GPIB

Model		HBT4564A/H		HBT4565A/H	HBT4566A/H
Resistance	Range	3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3900Ω
	Measuring Range	0~3.9kΩ
	Min. Resolution	0.1μΩ
Voltage	Range	15V/150V/1300V		15V/150V/1700V	15V/150V/2100V
	Measuring Range	0-1300V		0-1700V	0-2100V
	Min. Resolution	10μV
Rating Input Voltage		DC土1300VDC		DC土1700VDC	DC土2100VDC
Current Frequency		1KHz
Input Impedance		3mΩ~3900Ω 10MΩ
Open Terminal Voltage		3mΩ~3900Ω 15V peak
Detect Abnormal Test Results and Display (Contact detection)		Detection content: Abnormal connection between SOURCE HIGH and LOW Abnormal connection display between SENSE HIGH LOW: [------]
Sampling	Sample Rate	FAST/MEDIUM/SLOW(3rd gear)
	Sample Time	Function	Frequency	FAST	MEDIUM	SLOW
		ΩV	50Hz/60Hz	60ms	300ms	600ms
		Ω	50Hz/60Hz	40ms	200ms	400ms
		V	50Hz/60Hz	40ms	200ms	400ms
Time	Response Time	Measurement response time: approximately 5ms
	Total Measurement Time	Time required for the entire measurement: sampling time+response time
Comparator Function Module	Comparator Function	ON/OFF (shared resistance and voltage)
	Comparator Settings	Comparator mode: HIGH · LOW/REF ·% Upper and lower limit values: 0-3000 (resistance)/0-1500 (voltage) Reference value: 0-3000 (resistance)/0-1500 (voltage) Precent(%): 0.00%~99.99% (% range set to+/- universal) Buzzer: Close/HL/IN/BT1/BT2 Comp mode: AUTO/Manual
	Compare	Compare Result: Hi/IN/Lo (independent judgment of resistance and voltage) PASS/UNPASS judgment: Compare the resistance judgment result with the voltage judgment result AND operation, followed by PASS/UNPASS output (EXT I/O output) Test outlier determination: OF Hi determination -OF Lo determination Test Exception - No Judgment (No Judgment)
Absolute Function		Under this function, even if the battery polarity is reversed, it can be compared based on absolute values
Average Function		Output the average measurement value, which can reduce the deviation of the displayed value. The average frequency is 1, 2, 4, and 8 times
Delay Time		0-9999 ms
Calibrate		Voltage calibration/resistance calibration, used to compensate for bias voltage or gain drift within this instrument
Adjustable Zero Range		Resistance measurement: -1000 to 1000 count values Voltage measurement: -1000~1000 count values (i.e. zero range is less than or equal to ± 1000 dgt.)
Trigger		Int/Ext/Man
Save		ON/OFF/Clear, the measured values can be saved to the USB flash drive through EXT I/O, buttons, and commands
Statistics	Statistical Operations	ON/OFF/Clear
	Operational Content	Average, Max, Min, Parent Standard Deviation, Sample Standard Deviation, Procedure Ability Index (Shift), Procedure Ability Index (Deviation)
	Arithmetic Trigger	Perform statistical calculations on measured values through EXT I/O, buttons, and commands
Measurement Settings Saving and Reading	Function	Can save and read measurement settings
	Save Settings	Test function, resistance range, voltage range, automatic range setting, using rate, trigger source, delay setting, average setting, comparator settings, statistical operation settings
Keytone		ON/OFF
Communication Interface		HBT4000 series: standard RS232/485, USB, LAN, IO, ANALOGOUTFUT, optional GPIB
