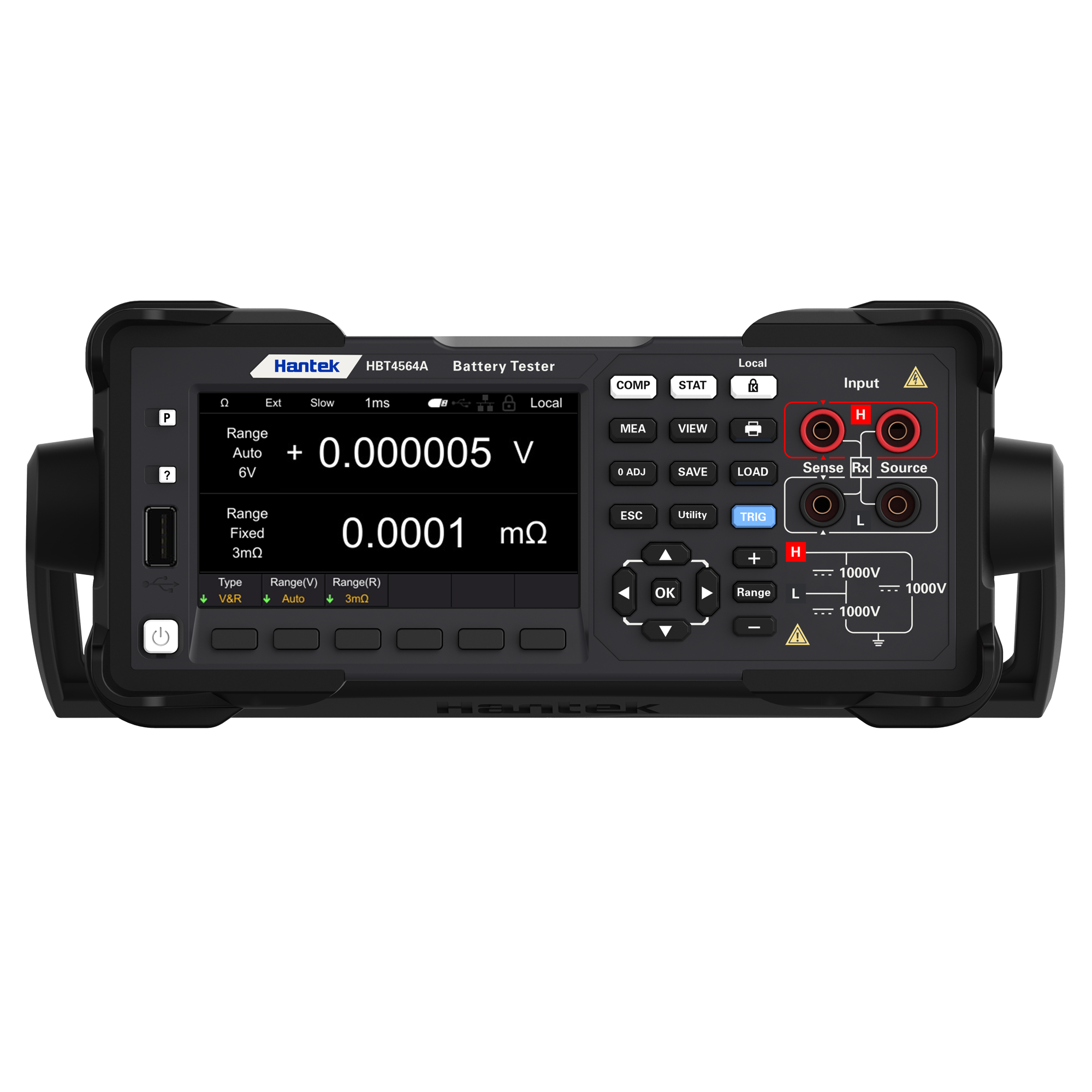

6 1/2-bit reading high -resolution internal resistance tester is a battery internal resistance tester with high accuracy and rapid measurement characteristics. The measured resistance range reaches 3.9kΩ and the measurement voltage range reaches 410V.
1μV voltage resolution, 0.1μΩ Resistance resolution, with high precision, high speed, suitable for various battery types.
Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, optional GPIB interface, suitable for more testing scenarios.

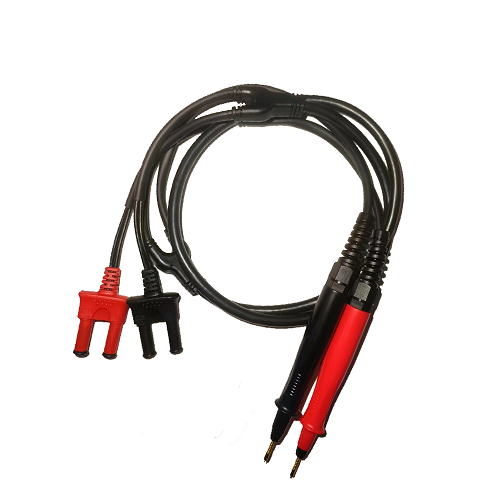

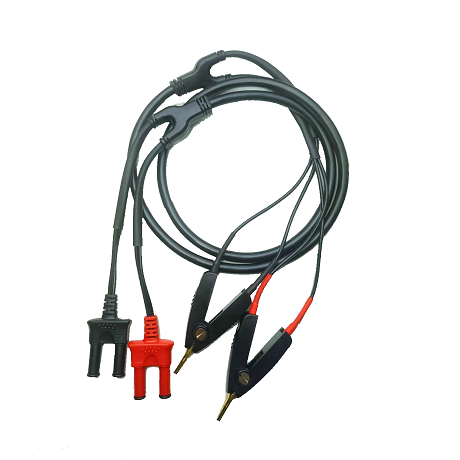

Using AC 4 -terminal method, the impedance can not be affected by the impedance of the test line during the impedance measurement.
It has a comparison function with resistance and voltage respectively, and the battery intimidation and voltage are displayed at the same time.
Support U disk screenshots to save functions, and you can upgrade the instrument program through the U disk.
Sampling rate: slow/medium/fast, with a maximum speed of approximately 40 ms for high-speed measurement.
Internal impedance measurement range:3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3.9kΩ.
The full range of voltage measurement covers:160V/260V/410V
Draw the normal distribution diagram to observe the normal distribution of the measurement results.
The measurement results are easily saved into the U disk to facilitate subsequent data analysis and processing.

High precision and wide range

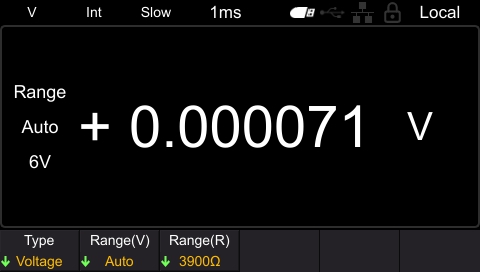

6 1/2, resistance measurement range 0~3.9kΩ, 1μV voltage resolution, 0.1μΩ resistance resolution, with high precision, fast measurement characteristics of the battery internal resistance tester, covering the most large battery pack to button cell test requirements, accurate to meet your needs.

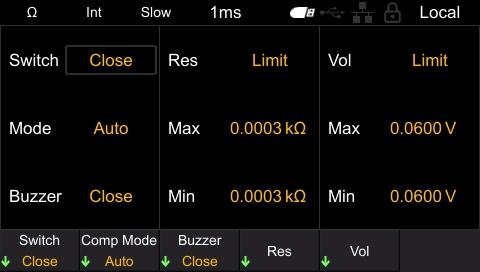

Comparator function

Resistance and voltage are independent, and the function of displaying and output the measurement results will help you better understand the working status of your circuit or equipment.

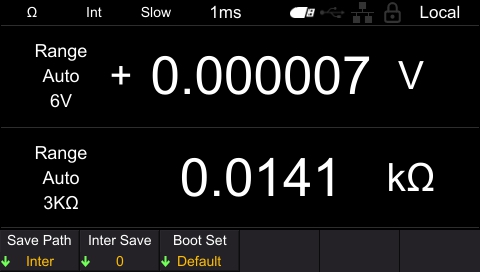

Save/Load Function

The startup settings can be saved to the internal or U disk. There is no need to perform tedious application settings every time you use. Press the corresponding power -on settings button to easily load the previously saved application settings.

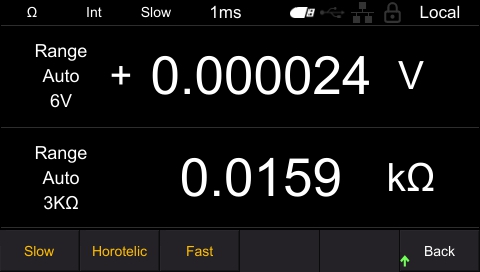

Three-speed sampling rate

The sampling rate can be changed in three stages (Fast/Horotelic/Slow), and the appropriate sampling rate can be selected according to different testing needs. The fastest high-speed measurement can be about 40 ms. The lower the sampling rate, the higher the testing accuracy.

Correction function

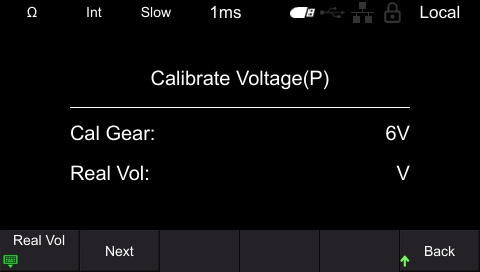

The calibration is divided into voltage calibration and resistance calibration, which is used to compensate the bias voltage or gain drift of the internal circuit of the instrument to improve the test accuracy.

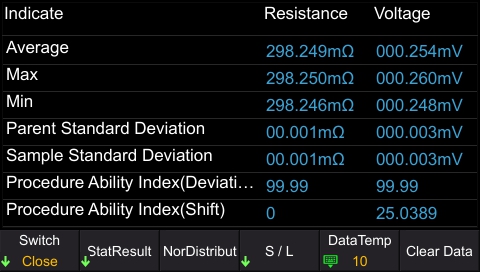

Statistical function

Calculating a variety of statistical indicators, including but not limited to Average, Max, Min, Parent Standard Deviation, etc., makes it easy to plot the normal distribution and helps you visualize the normal distribution of your measurements.

Rich configuration interfaces

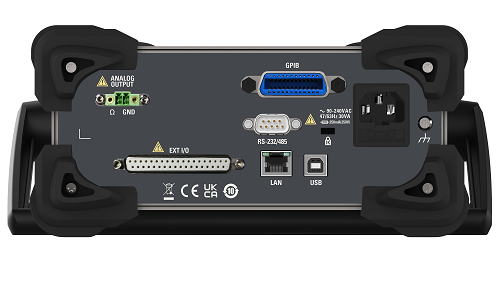

Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, optional GPIB interface.

Model	Resistance Resolution	Resistance Range	Resistance Range	Voltage Resolution	Voltage Range	Voltage Accuracy	Interface
HBT4561A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~160V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4561H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~160V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB
HBT4562A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~260V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4562H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~260V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB
HBT4563A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~410V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4563H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~410V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB

Model		HBT4561A/H		HBT4562A/H	HBT4563A/H
Resistance	Range	3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3900Ω
	Measuring Range	0~3.9kΩ
	Min. Resolution	0.1μΩ
Voltage	Range	6V/60V/160V		6V/60V/260V	6V/60V/410V
	Measuring Range	0-160V		0-260V	0-410V
	Min. Resolution	1μV
Rating Input Voltage		DC土160VDC		DC土260VDC	DC土410VDC
Current Frequency		1KHz
Input Impedance		3mΩ~3900Ω 1MΩ
Open Terminal Voltage		3mΩ~3900Ω 12V peak
Detect Abnormal Test Results and Display (Contact detection)		Detection content: Abnormal connection between SOURCE HIGH and LOW Abnormal connection display between SENSE HIGH LOW: [------]
Sampling	Sample Rate	FAST/MEDIUM/SLOW(3rd gear)
	Sample Time	Function	Frequency	FAST	MEDIUM	SLOW
		ΩV	50Hz/60Hz	60ms	300ms	600ms
		Ω	50Hz/60Hz	40ms	200ms	400ms
		V	50Hz/60Hz	40ms	200ms	400ms
Time	Response Time	Measurement response time: approximately 5ms
	Total Measurement Time	Time required for the entire measurement: sampling time+response time
Comparator Function Module	Comparator Function	ON/OFF (shared resistance and voltage)
	Comparator Settings	Comparator mode: HIGH · LOW/REF ·% Upper and lower limit values: 0-3000 (resistance)/0-410 (voltage) Reference value: 0-3000 (resistance)/0-410 (voltage) Precent(%): 0.00%~99.99% (% range set to+/- universal) Buzzer: Close/HL/IN/BT1/BT2 Comp mode: AUTO/Manual
	Compare	Compare Result: Hi/IN/Lo (independent judgment of resistance and voltage) PASS/UNPASS judgment: Compare the resistance judgment result with the voltage judgment result AND operation, followed by PASS/UNPASS output (EXT I/O output) Test outlier determination: OF Hi determination -OF Lo determination Test Exception - No Judgment (No Judgment)
Absolute Function		Under this function, even if the battery polarity is reversed, it can be compared based on absolute values
Average Function		Output the average measurement value, which can reduce the deviation of the displayed value. The average frequency is 1, 2, 4, and 8 times
Delay Time		0-9999 ms
Calibrate		Voltage calibration/resistance calibration, used to compensate for bias voltage or gain drift within this instrument
Adjustable Zero Range		Resistance measurement: -1000 to 1000 count values Voltage measurement: -1000~1000 count values (i.e. zero range is less than or equal to ± 1000 dgt.)
Trigger		Int/Ext/Man
Save		ON/OFF/Clear, the measured values can be saved to the USB flash drive through EXT I/O, buttons, and commands
Statistics	Statistical Operations	ON/OFF/Clear
	Operational Content	Average, Max, Min, Parent Standard Deviation, Sample Standard Deviation, Procedure Ability Index (Shift), Procedure Ability Index (Deviation)
	Arithmetic Trigger	Perform statistical calculations on measured values through EXT I/O, buttons, and commands
Measurement Settings Saving and Reading	Function	Can save and read measurement settings
	Save Settings	Test function, resistance range, voltage range, automatic range setting, using rate, trigger source, delay setting, average setting, comparator settings, statistical operation settings
Keytone		ON/OFF
Communication Interface		HBT4000 series: standard RS232/485, USB, LAN, IO, ANALOGOUTFUT, optional GPIB
