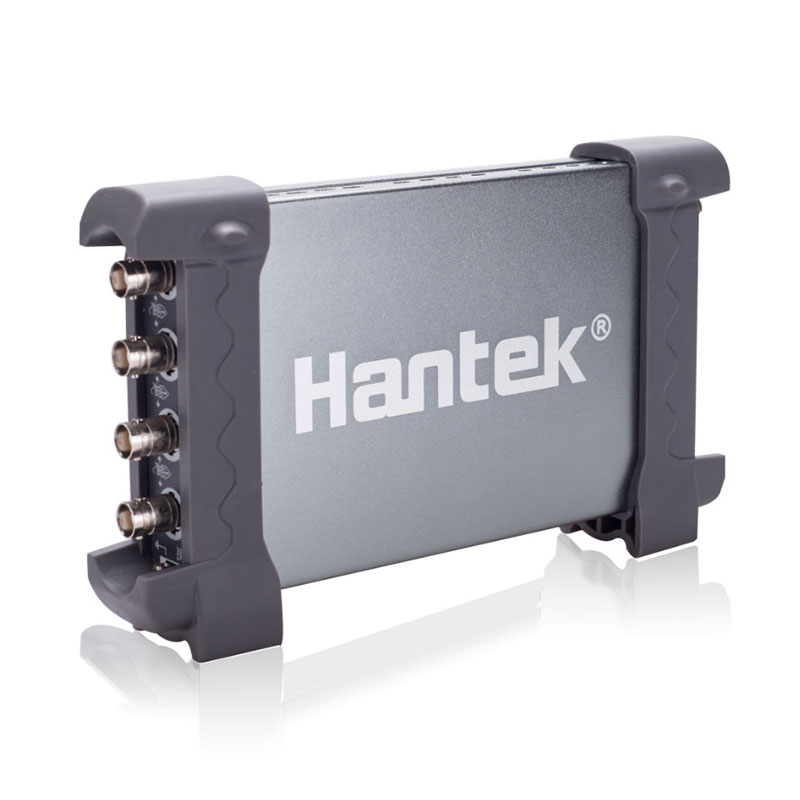

Hantek6074BE Series Kit

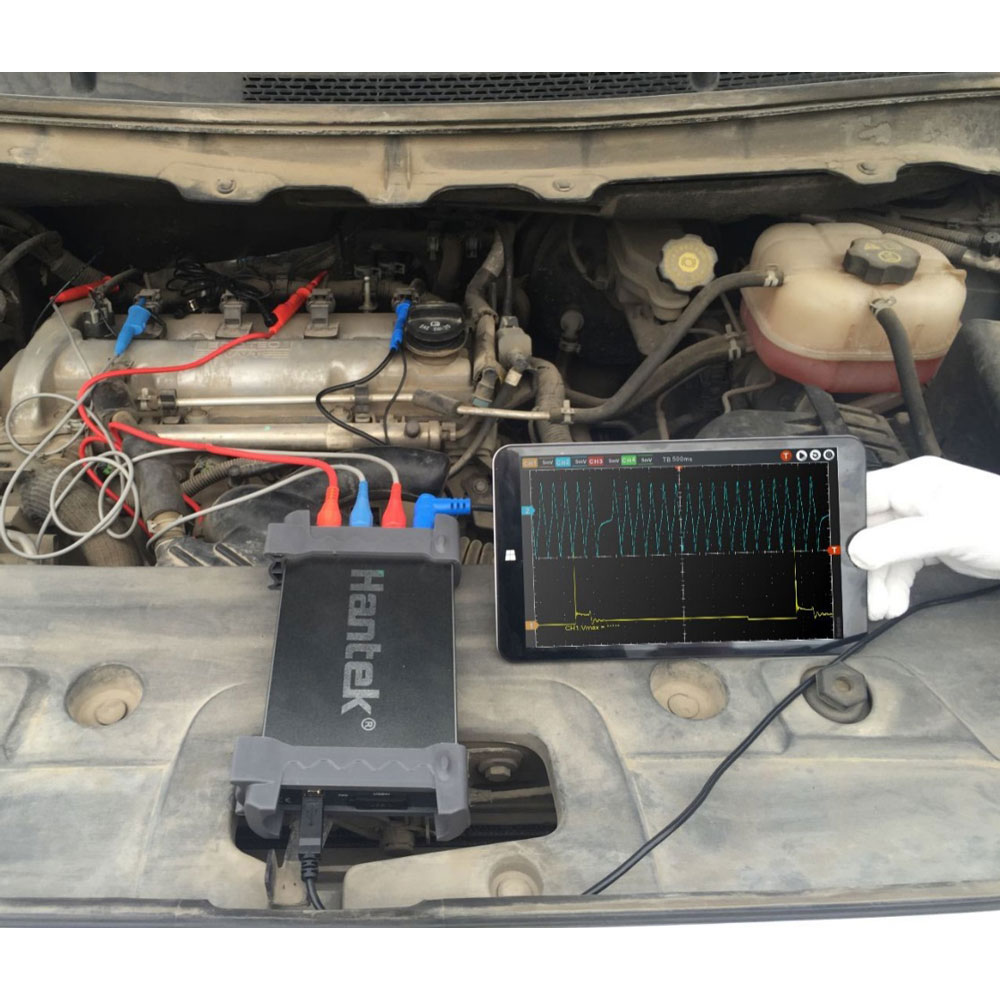

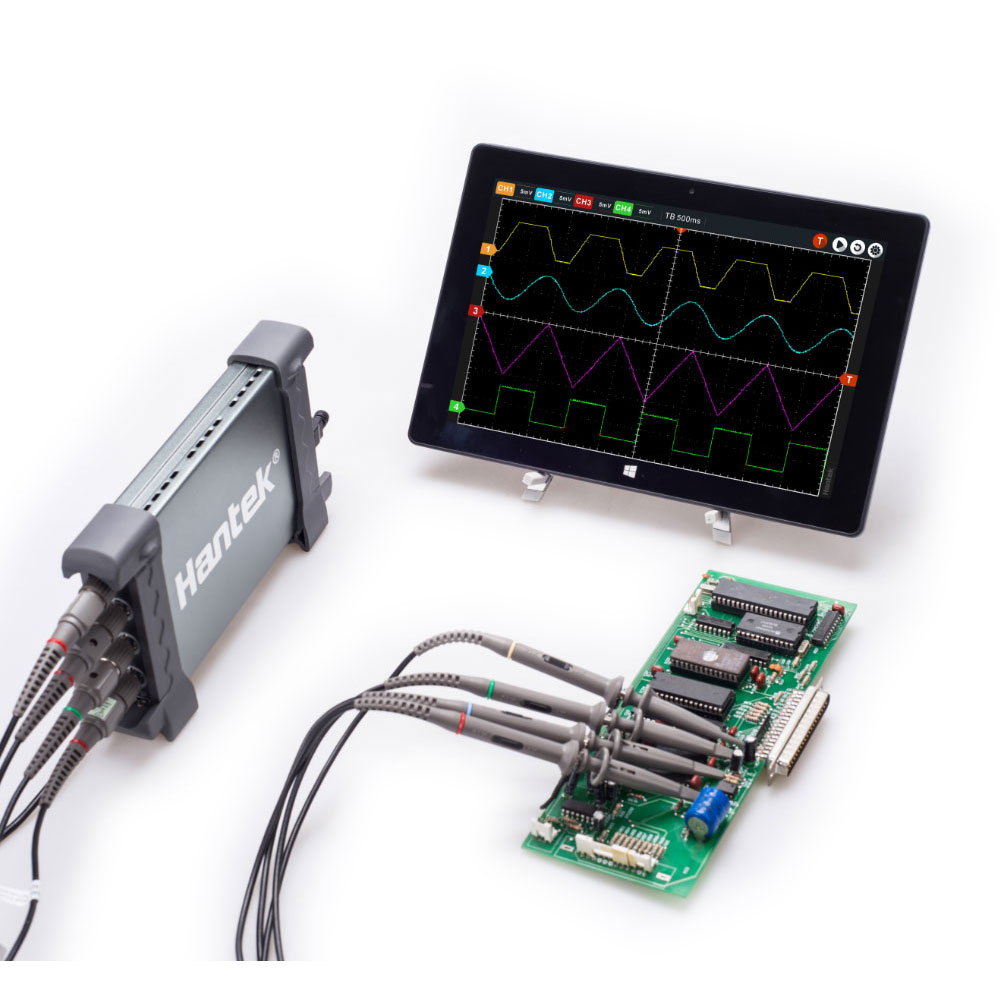

Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); USB 2.0 interface plug and play, and no need extra power supply; Support tablet PC; Support WIN10/ WIN8/WIN7 etc. Free software upgrading constantly, higher cost performance; Support USBXI, easy to operate. 4 channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size, easy for carrying. Dynamic cursor tracking, waveform record and replay function.

Feature

First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition

Ignition: primary and secondary

Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position

Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus

Performer: Petrol/Diesel

Starter and charging circuits









Model Hantek6074BE Hantek6104BE  Hantek6204BE Hantek6254BE
Bandwidth 70MHz 100MHz 200MHz 250MHz
Automotive Measurement Function Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition;

Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;

CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;

Performer: Petrol/Diesel;

Starter and charging circuits

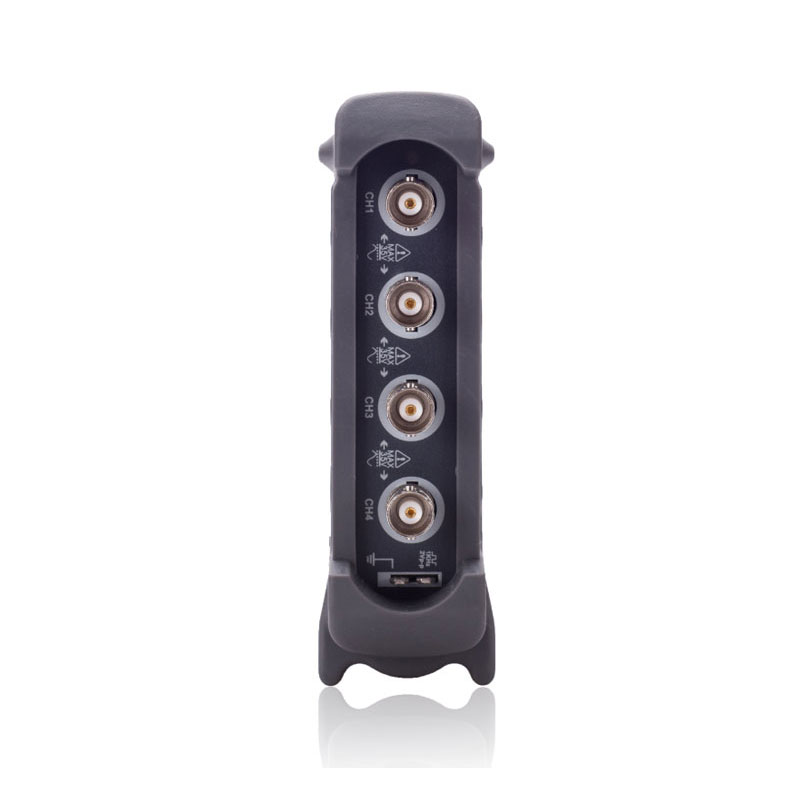

Channel 4 CH
Real-time Sampling Rate 1GSa/s
Memory Depth 64K
Time Base Precision ±50ppm
Time Base Range 2ns/div-1000s/div (1-2-4 sequences)
Input Impedance 1MΩ 25pF
Input Sensitivity 2mV/div10V/div
Vertical Resolution 8Bit
Vertical Displacement Range 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe
200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy ±3%
Bandwidth Limit 20MHz
Trigger Mode Edge, Pulse, Video, Alternative
Trigger Source CH1, CH2, CH3,CH4
Waveform Signal Process +,-,x,÷,FFT, Invert
Cursors Measurement Cross, Trace, Horizontal, Vertical
Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume 175mm * 105mm * 25mm
Weight 0.9KG
