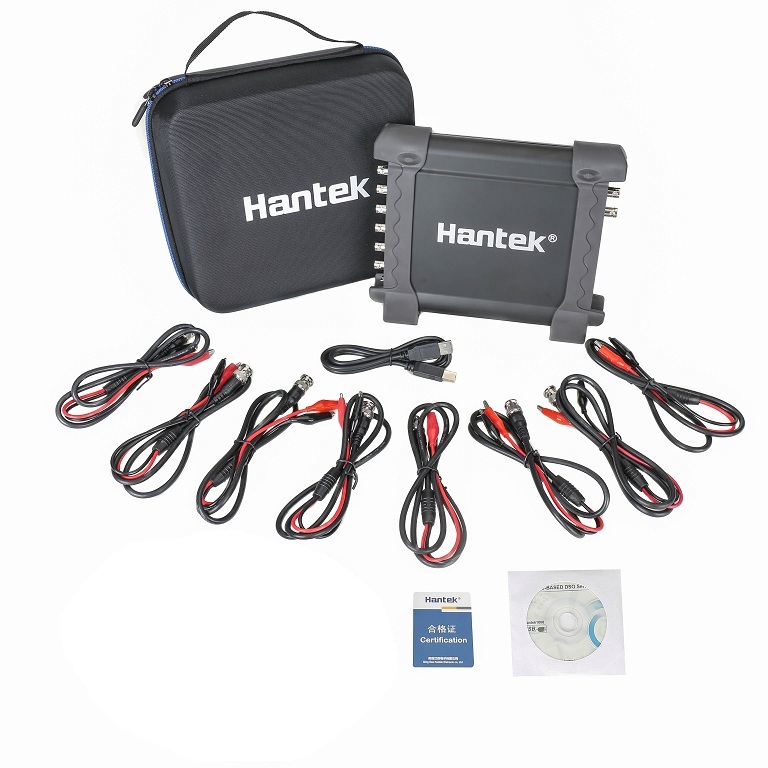

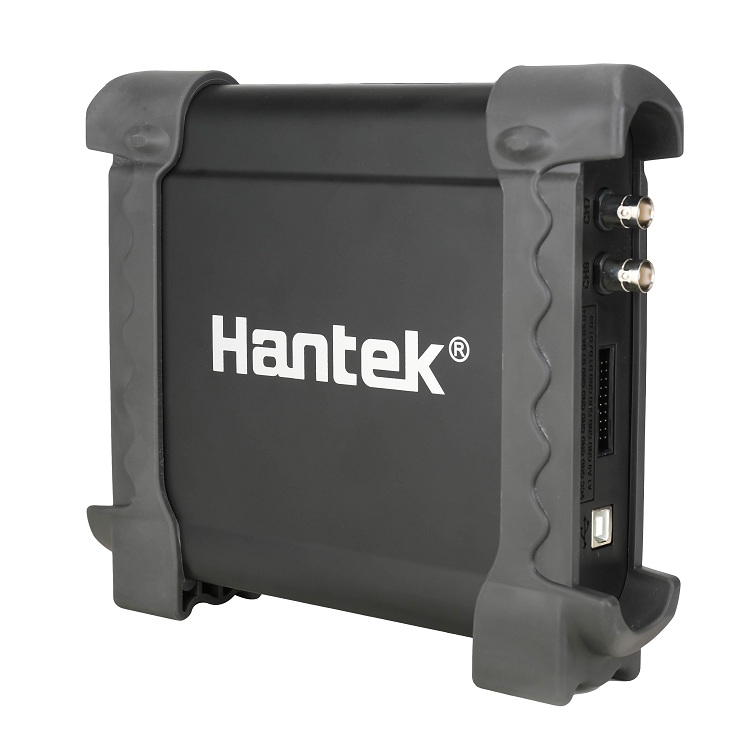

Features：
8 channels oscilloscope for vehicle testing. Over 80 types of automotive diagnostic function (Ignition/Sensor/Bus detection/Performe/Starter and charging circuits etc.).
Video Help Function, provides the video help of diagnostic which can be watching online,
The diagnostic result can be generated diagnostic report., printed or taken screenshot by pushing one key, many methods to save the data.
Supported to record waveform for a long time. It can simulate camshaft and crankshaft signal.
Transmit signals through USB 2.0 interface plug and play, and no need extra power supply;
 |
 |
 |
 |
 |
Function Selection
There are three functions of vehicle diagnosis, oscilloscope and signal generator, including 78 types of vehicle diagnosis function.
One Button Screenshot
Save the current waveform and generate pictures. Storage location is optional and easy to find.
Quick Guide
Callout the quick guide column with one button. There are special vedio guide for each vehicle diagnosis function, including wiring method, adjustment method, reference waveform etc. And it is supported to be checked through scanning the QR code.
Reference Waveform
Over 80 types of standard reference waveform inside and can be callout or close with one button. It is convenient to be compared.
Measurement Method
20 types of automatic measurement method which can be callout or close with one button. It is convenient and visual to read out the result.
Print
The result can be printed with one button and generate diagnosis report which is easy to be saved and recorded.
REF Comparison Waveform
The user can save the waveform as REF format and callout it again when you need to compare the two waveforms catched in different time.
Data Storage
The diagnosis result can be saved as the format of txt, csv, rfc, xls, doc, jpg and etc. It is convenient to be checked and compared later.

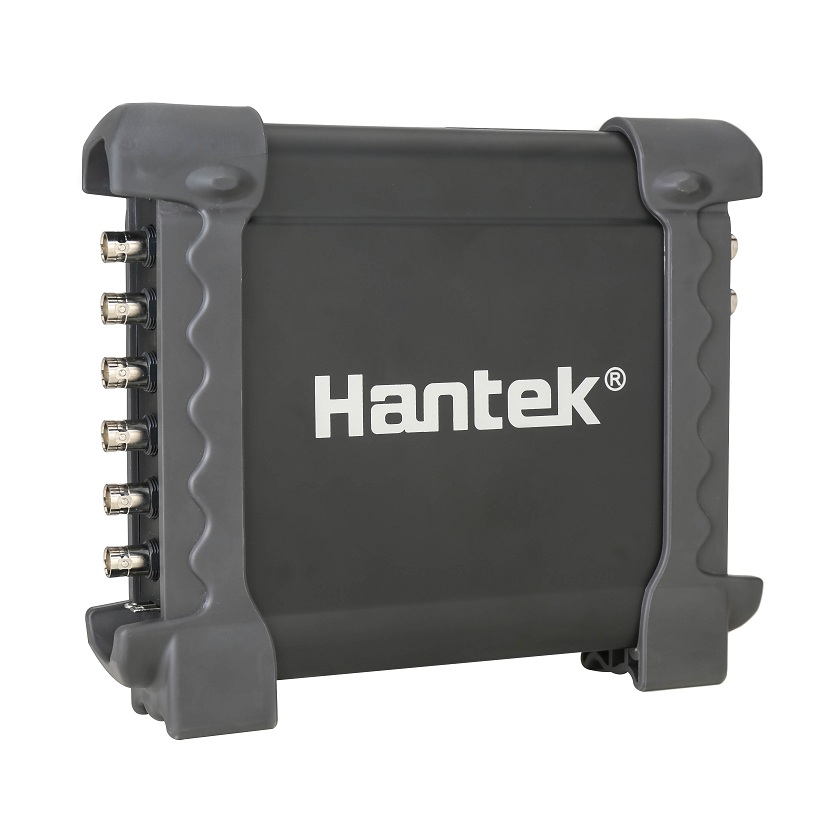

8CH Vehicle Diagnosis
8CH signal can be measured simultaneously. The measurement voltage of each channel can be adjusted independently. You can choose to open or close each channel.
Waveform Record
Support to record and replay the waveform. The waveform can be save into the computer hard disk and easy to read. There is no limit to the record time which can long-time measure and record the waveform for troubleshooting.
Multilanguage Support
Support the display surface in Chinese, English, German language, and it can be switched freely.
Cursor Measurement
Support 4 types of cursor measurement mode -cross,track, horizontal, and vertical.It's easy to read out the time and voltage of irregular signal.
Color and Lightness
The background color is optional as user's preference. And the lightness of waveform and gridding is settable.
Easy to Install Software
Install the PC software and start to use without any other drivers. Support WIN XP/7/8/10.
USB Communication
USB2.0 power supply + communication interface, plug and play, and support hot plugging.
Signal Generator
Signal generator function, can simulate crankshaft and camshaft signal.
Vehicle Diagnosis
Vehicle
Diagnostic Function
Ignition
Primary Ignition (Voltage)
Primary Ignition（current）
Primary Ignition（Voltage& Current）
Primary Ignition (Crankshaft Senser)
Primary
Ignition&SecondaryIgnition
Secondary
Secondary Ignition Distributor Type (Plug Lead)
Secondary Ignition Distributor
Type (King Lead)
Secondary DIS (Positive-fired)
Secondary DIS or CPC
(Negative-fired)）
Secondary Coil Output
Diagnosis
Secondary Ignition&Primary
Ignition
Sensors
Air Flow Meter
Air Flow Meter (Hot Wire)
Air Flow Meter (Air Vane)
Air FlowSensor (BOSCH Diesel)
Air Intake PressureSensor
(BOSCH Diesel)
Camshaft
Camshaft (Inductive)
Camshaft (AC Excited)
Camshaft (Hall Effect)
Camshaft (BOSCH Common Rail
Diesel)
Crankshaft
Crankshaft Inductive Running
Crankshaft Inductive Cranking
Crankshaft Hall Effect
Crankshaft Sensor &Primary Ignition
Distributor
Distributor Pick-up (Hall Effect)
Distributor Inductive Pick-up
Cranking
Distributor Inductive Pick-up
Running
Lambda Sensors
Lambda Sensor Titania
Lambda Sensor Zirconia
Lambda Sensor Zirconia Pre
& Post cat
Throttle Position
Throttle Position Potentiometer
Throttle Position Switch
Throttle Pedal Switch (Bosch
Diesel)
ABS Digital Speed Sensor
ABS Analog Speed Sensor
Coolant Temperature (5V)
Coolant Temperature
(GM/Vauxhall Simtec
Crash Sensor
MAP Analog
MAP Digital
Hall Effect Road Speed Sensor
Accelerator Pedal (Bosch
Diesel)
Bus Diagnosis
CAN Bus
CAN Bus Data View
CAN Bus Signal Integrity
CAN Bus LH Long Capture
LIN Bus
LIN Bus
Engine
Petrol
Single-point Injector (Voltage)
Single-point Injector
(Current)
Multi-point Injector (Voltage)
Multi-point Injector (Current)
Injector Voltage & Current
Injector Current & Primary
Ignition
Diesel
Common Rail Diesel (Current)
Injector Bosch CDi 3 (Current)
Injector Bosch Diesel (Idling)
Injector Bosch Diesel
(Accelerating)
Diesel Glow Plugs
Electronic Fuel Pump
Carbon Canister Solenoid Valve
ERG Recirculation Solenoid
Valve
Stepper Motor Example 1
Stepper Motor Example 2
Idle Speed Control Valve
(Rotary)
Idle Speed Control Valve
(Electromagmetic)
Throttle Servomotor (Idling)
Throttle Servomotor
(Accelerating)
Bosch CDi3 Quantity Control
Valve
Bosch CDi3 Pressure Regulator
Valve
Variable-Speed Cooling Fan On
Variable-Speed Cooling Fan Off
Variable Camshaft Valve Timing
Startup & Charge
Charging Circuits
Charging Circuits Current/Voltage
Charging Circuits
Current/Voltage Starting 24V
Charging Circuits
Current/Voltage Idling 24V
Charging Circuits Alternator
AC Ripple/Diode Diagnosis
Relative Compression Petrol
Relative Compression Diesel
Starting Voltage Drop
General Oscilloscope
Model
Hantek1008B
Analog
Channel
8
Input Impedance
Resistance: 1MΩ
Input
Sensitivity
10mV/div to 5V/div
Input Coupling
DC
Resolution
12 bits
Memory
Depth
4K
Max. Input
400V (DC+AC Peak)
Real-Time
Sampling Rate
2.4MSa/s
Time BaseRange
1ns/div to 20000s/div(1-2-5sequences)
Time Base
Precision
±50ppm
Trigger
Source
CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Trigger
Mode
Edge
X-Axis
Input
CH1
Y-Axis
Input
CH2
Voltage
Measurement
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms,
Preshoot, Overshoot
Time
Measurement
Frequency, Period, Rise Time, Fall Time, Positive Width, Negative
Width, Duty Cycle
Cursors
Measurement
Horizontal ,Vertical, Track, Auto Measure
Modes
Waveform
Signal Process
+,- , x,÷, FFT, Invert
Voltage Range
10mV to 5V/div @ x 1 probe
100mV to 50V/div @ x 10 probe
10V to 5000V/div @ x 1000 probe
100V to 50000V/div @ x 10000 probe
200mV to 100V/div @ 20:1
Current Range
100mA to50.0A/div @ CC65(20A)
1000mA to500.0A/div @ CC65(65A)
1A to100.0A/div @ CC650(60A)
1A to200.0A/div @CC1100(100A)
10A to2000.0A/div @CC1100(1100A)
FFT
Rectangular, Hanning, Hamming, Blackman Window
Math
Addition, subtraction, multiplication,
division
Interface
USB 2.0(Full Speed)
Power
No need extra power supply
Size
190 x 167 x 35 (mm)
Weight
0.63kg
High pressure ignition probe
1
Programmablesignal generator
Channel
8CH
Output Level
LVTTL
Frequency Range
0-250kHz
 |
 |
 |
|
 |
