DSO3000(A) Series (1GSa/s)
4CH Oscilloscope 16CH Logic Analyzer 1CH Function/Arb. Waveform Generator 16 Bits Word Generator 1CH EXT Trigger. Its performance can compete benchtop oscilloscope’s, 4 independent analog channels, 1GSa/s high-speed real-time sampling rate, 1mV-10V/DIV high input sensitivity, 250MHz high bandwidth. Function/Arb. waveform generator: 200MSa/s DDS, 12 bits vertical resolution, build-in various standard waveforms, arbitrary waveform which is convenient to edit and show irregular signals like transducer. USB2.0 Interface, plug and play device. Small size, easy for carrying. High cost performance. PASS/FAIL test, rich trigger function, dynamic cursor tracking, waveform recording and replay function. Support PoE module, support PoE power supply remotely and network port communication (optional).

Feature:

  • 4CH Oscilloscope + 16CH Logic Analyzer + 1CH Function/Arb. Waveform Generator + 16 Bits Word Generator + 1CH EXT Trigger.
  • 128M memory depth, save maximum 128M sampling points, accurately display sampling signal.
  • Support PoE module, support power supply remotely and communication. (optional)
  • Its performance can compete benchtop oscilloscope’s, 4 independent analog channels, 1GSa/s high-speed real-time sampling rate, 1mV-10V/DIV high input sensitivity, 250MHz high bandwidth.
  • Function/Arb. waveform generator: 200MSa/s DDS, 12 bits vertical resolution, build-in various standard waveforms, arbitrary waveform which is convenient to edit and show irregular signals like transducer.
  • PASS/FAIL test, rich trigger function, dynamic cursor tracking, similar interface with bench oscilloscope, easy to use. High cost performance.
  • Continuous waveform recording and replay function (200Hz recording bandwidth );

  • 1 GSa/s sampling rate.
  • 12-36V wide range input power.
  • Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
  • More fit for tablet PC, laptop PC, maintenance and adjustment of production line, convenient for travel.
  • Software support: Windows10, Windows 8, Windows 7
  • The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.
  • More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
  • Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
  • FFT spectrum analyzer
  • One computer could connect with multiple oscilloscopes, expand the channel number easily.
  • Provide SCPI protocol.

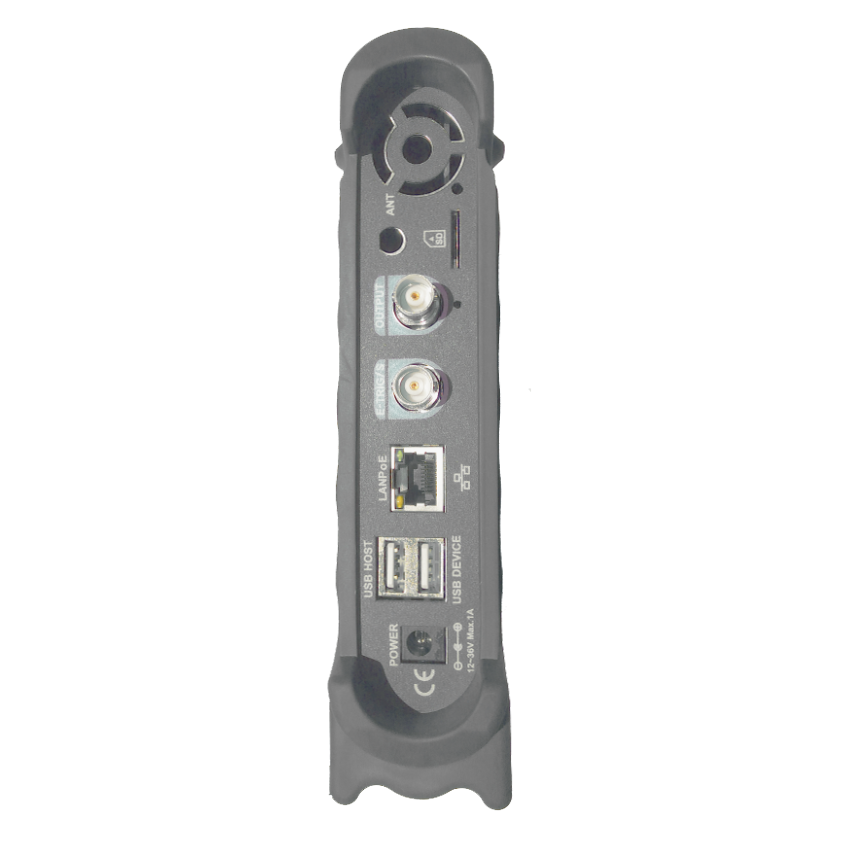

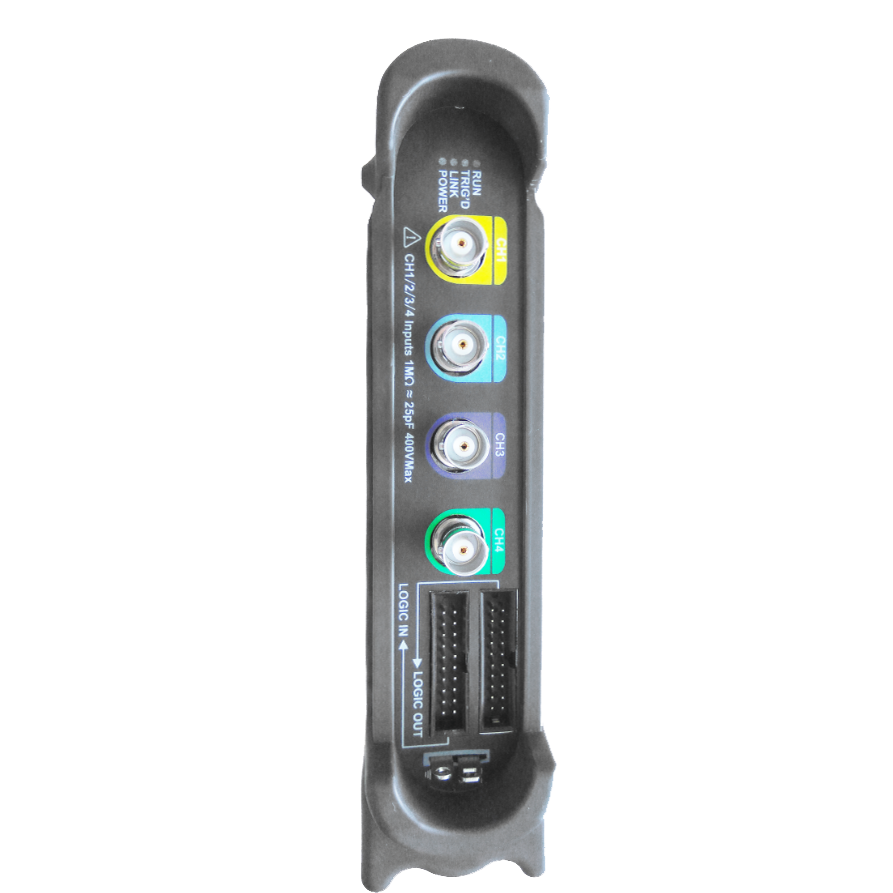

Function Picture:





This device is running Linux 3.2, for more detail see


Model

DSO3104

DSO3104A

DSO3204

DSO3204A

DSO3254

DSO3254A

VERTICAL

Analog Channels

4

Bandwidth

100MHz

100MHz

200MHz

200MHz

250MHz

250MHz

Rise Time

3.5ns

3.5ns

1.7ns

1.7ns

1.4ns

1.4ns

Input Impedance

Resistance: 1MΩ; Capacitance: 25 pF

Input Sensitivity

1mV/div to 10V/div

Input Coupling

AC/DC/GND

Vertical Resolution

8 bits

Memory Depth

1.6K-128M/CH

Max. Input Voltage

400V (DC+AC Peak)

HORIZONTAL

Real-Time Sampling Rate

1GSa/s

Time Base Range

2ns/div to 1000s/div

Time Base Precision

±50ppm

TRIGGER

Source

CH1, CH2,CH3,CH4,EXT,EXT/10

Mode

Edge, Pulse, Video, Slope, Timeout

Type

Signal, Auto, Normal

Auto Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Cursors Measurement

Horizontal ,Vertical,Cross

Waveform Signal Process

+,- , x,÷, FFT, Invert

Voltage Range

1mV to 10V/div @ x 1 probe; 10mV to 100V/div @ x 10 probe;

100mV to 1KV/div @ x 100 probe; 1V to10KV/div @ x 1000 probe;

FFT

Rectangular,Hanning,Hamming,Blackman Window

Logic Analyzer

Channels

--

16CH

--

16CH

--

16CH

Max. Input Impedance

--

200KΩ
(C=10pF)

--

200KΩ
(C=10pF)

--

200KΩ
(C=10pF)

Max. Input Voltage

--

 -60V~60V

--

 -60V~60V

--

 -60V~60V

Max. Sampling Rate

--

250MSa/s

--

250MSa/s

--

250MSa/s

Bandwidth

--

10MHz

--

10MHz

--

10MHz

Compatible lnput

--

TTL,LVTTL
CMOS,

--

TTL,LVTTL
CMOS,

--

TTL,LVTTL
CMOS,

--

LVCMOS,ECL.
PECL,EIA

--

LVCMOS,ECL
PECL,EIA

--

LVCMOS,ECL
PECL,EIA

Memory Depth

--

1.6K~64M

--

1.6K~64M

--

1.6K~64M

Function/Arb. Waveform Generator

Waveform Frequency

--

DC~25MHz

--

DC~25MHz

--

DC~25MHz

DAC Clock

--

2K~200MHz
adjustable

--

2K~200MHz adjustable

--

2K~200MHz adjustable

Channel

--

1CH

--

1CH

--

1CH

Waveform Length

--

4K

--

4K

--

4K

Vertical Resolution

--

12 Bits

--

12 Bits

--

12 Bits

Waveform Amplitude

--

±3.5V Max.

--

±3.5V Max.

--

±3.5V Max.

Output Impedance

--

50 Ω

--

50 Ω

--

50 Ω

Output current

--

50mA

--

50mA

--

50mA

Bandwidth

--

25M

--

25M

--

25M

Interface

USB  2.0

Power Supply

8--36V Wide range of input voltage,suitable

Size

255 x 190 x 45 (mm)

Weight

1Kg

Standard Accessories:


DSO3000A Series Special Accessories:




Optional Accessories:



Probe
Model Description View Manual
HT300B,HT500B 350Mhz,500MHz,10:1/1:1 Download
HT100B,HT200B 100MHz,200MHz,10:1/1:1 Download
PP-80,PP-150,PP-200 60MHz,100MHz,200MHz,10:1/1:1 Download
PP80B, PP150B, PP200B, PP300B 80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1 Download
PP-90 80MHz,10:1/1:1 Download
T3100 100MHz,100:1,2000VDC Peak AC Download
AC/DC Current Clamp
Model Description View Manual
CC65 AC/DC: 0 – 20KHz,20mA to 65A DC Download
CC650 AC:0 – 5KHz,1A - 500A ,DC:1A - 650A Download
CC800 AC:0 – 5KHz,1A - 500A ,DC:1A - 800A Download
High voltage isolated probe
Model Description View Manual
HT8050 50MHz,1300V peakAC,1:50,1:500 Download
HT8100 100MHz,1300V peakAC,1:50,1:500 Download
