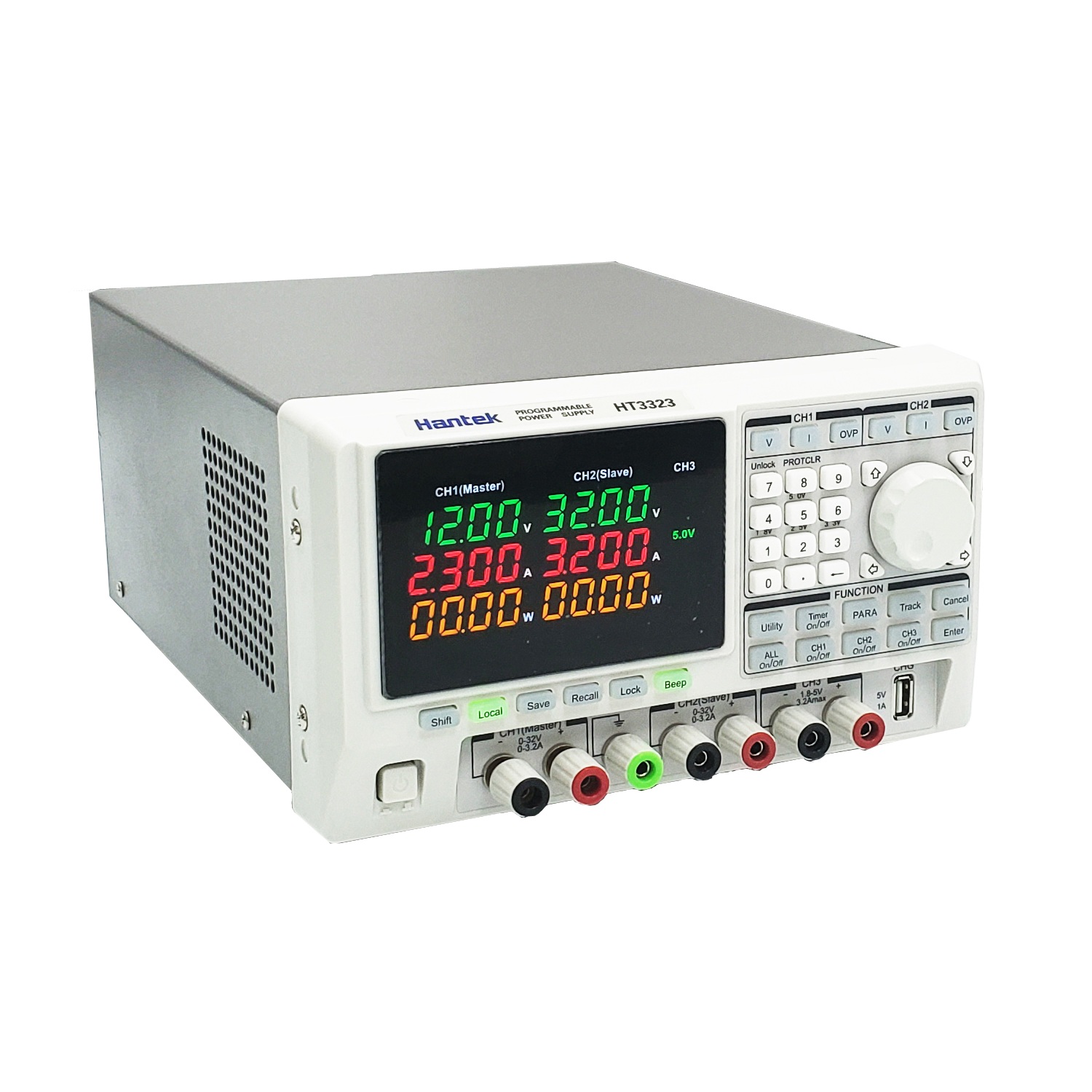

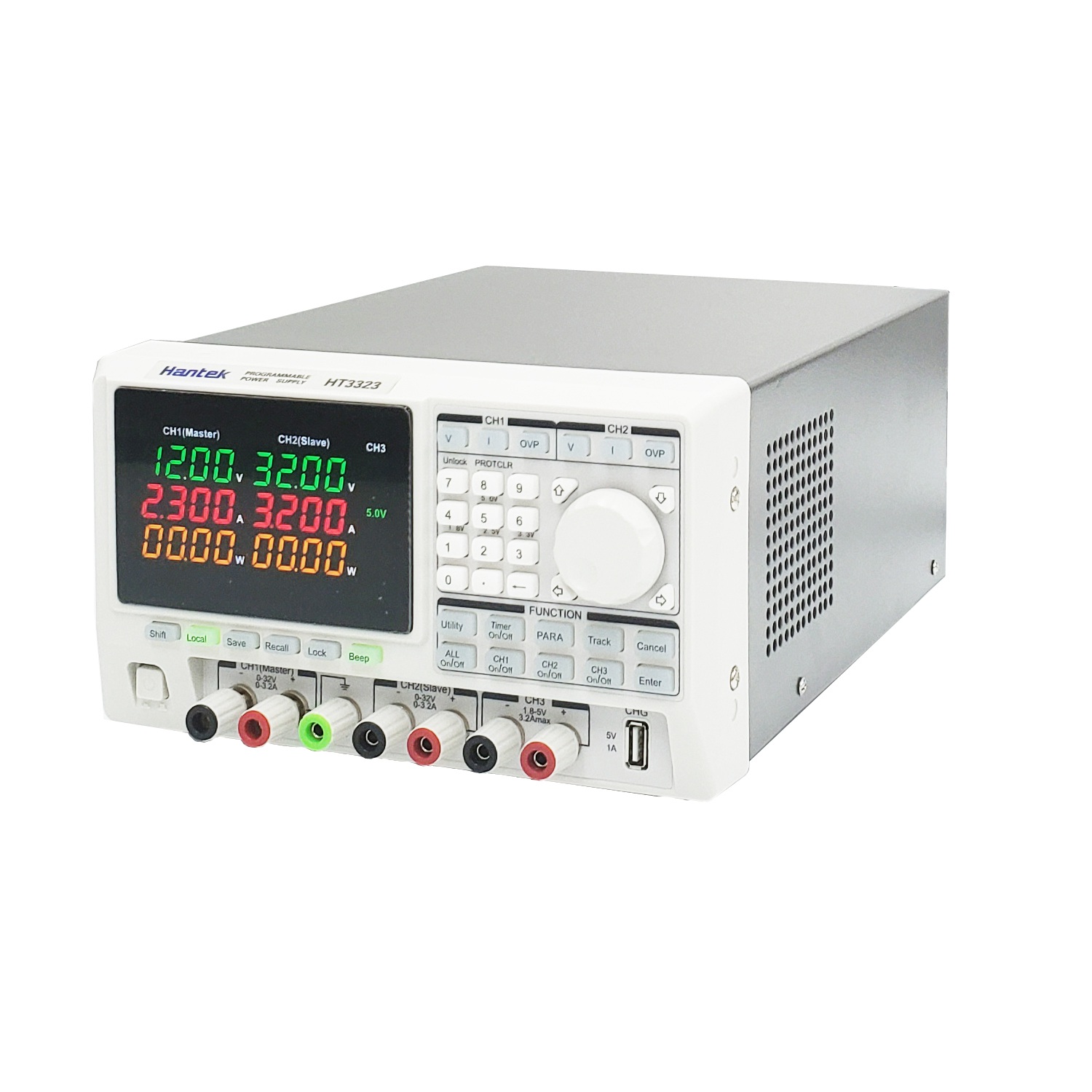

HT3323/HT3325
HT3323/HT3325 is a new generation DC stable power supply we launched,which can be program controlled.It has a USB program control interface and can output arbitrary voltage or current value;uses LED to display the working state of power;uses large scale intergrated circuit,supplies 3 circuits voltage output,voltage-stabilization values and current-stabilization values of circuit 1 and circuit 2 can be changed step by step, the two working states of steady voltage and steady current can be changed automatically with the change of load.The output of circuit 1 and circuit 2 can be in series,in parallel and work independently.The third circuit supplies the optional 4 kinds of output votage,1.8V、2.5V、3.3V、5V,and supplies overload protection.

Main features:

3-circuit high precision power independent controllable output:

32V/5A(32V/3A) these 2 circuits can be adjusted arbitrarily,1 circuit can be switched to 1.8V/2.5V/3.3V/5V/3A

5-bit voltage and 4-bit current display,the minimum resolution is 10mV,1mA

3 kinds of output mode:independent,series and parallel connection,support timing output and SCPI remote command

All digital control,low drift

Nixie tube to display voltage,current and power

Memory replay function

Constant voltage and constant current automatic switching

3 kinds of output:independent,series and parallel modes,increase the range of output power

Digital knob adjustment;can coarse control,fine control;easy to set,intuition output

Fan speed control

USB interface,5V1AUSB charge and output interface

Support timing output function,can achieve 10 sets of timing settings and output control

5 groups of system parameters save/call inside, support data storage space expansion


Model

HT3323

HT3325

channel

CH1

0~32V/0~3A

0~32V/0~5A

CH2

0~32V/0~3A

0~32V/0~5A

CH3

1.8V/2.5V/3.3V/5V /0~3A

Source effect

Constant voltageCV

CH1, CH2,CH3

≤1×10-4+2mV

Constant currentCC

CH1, CH2,CH3

≤1×10-4+300uA

Load effect

Constant voltageCV

CH1

≤1×10-4+3mV

≤1×10-4+8mV

CH2

CH3

≤1×10-4+3mV

Constant currentCC

CH1, CH2,CH3

≤1×10-4+300μA

≤1×10-4+600μA

Accuracy

Constant voltageCV

CH1

≤±(0.05%+30mV)

CH2

CH3

≤±7%

Constant currentCC

CH1

≤±(0.3%+30mA)

≤±(1%+60mA)

CH2

CH3

≤±7%

Ripple wave and noise

Constant voltageCV

≤1mV

Constant currentCC

≤3mA

Display resolution

Constant voltageCV

10mV

Constant currrentCC

1mA

Screen resolution

Constant voltageCV

bits

Constant currentCC

bits

Orther functions

Timing output

Overload protection

Mechanical features

Nominal voltage

220-230 (198-242)V

Rated power

500W  700VA

600W  800VA

frequency

50 (45-60) Hz

USB output

5V 1A

Remote interface

USB

Size

256×160×440mm3

Weight

9KGs

10KGs




Model

HT3323

HT3325

channel

CH1

0~32V/0~3A

0~32V/0~5A

CH2

0~32V/0~3A

0~32V/0~5A

CH3

1.8V/2.5V/3.3V/5V /0~3A

Source effect

Constant voltageCV

CH1, CH2,CH3

≤1×10-4+2mV

Constant currentCC

CH1, CH2,CH3

≤1×10-4+300uA

Load effect

Constant voltageCV

CH1

≤1×10-4+3mV

≤1×10-4+8mV

CH2

CH3

≤1×10-4+3mV

Constant currentCC

CH1, CH2,CH3

≤1×10-4+300μA

≤1×10-4+600μA

Accuracy

Constant voltageCV

CH1

≤±(0.05%+30mV)

CH2

CH3

≤±7%

Constant currentCC

CH1

≤±(0.3%+30mA)

≤±(1%+60mA)

CH2

CH3

≤±7%

Ripple wave and noise

Constant voltageCV

≤1mV

Constant currentCC

≤3mA

Display resolution

Constant voltageCV

10mV

Constant currrentCC

1mA

Screen resolution

Constant voltageCV

bits

Constant currentCC

bits

Orther functions

Timing output

Overload protection

Mechanical features

Nominal voltage

220-230 (198-242)V

Rated power

500W  700VA

600W  800VA

frequency

50 (45-60) Hz

USB output

5V 1A

Remote interface

USB

Size

256×160×440mm3

Weight

9KGs

10KGs

HT3323/HT3325 programable control DC stable power supply and accessaries

HT3323/HT3325 Program control DC stable power supply  1 psc

Three-core supply line  1psc

CD(Including user guide)  1psc
