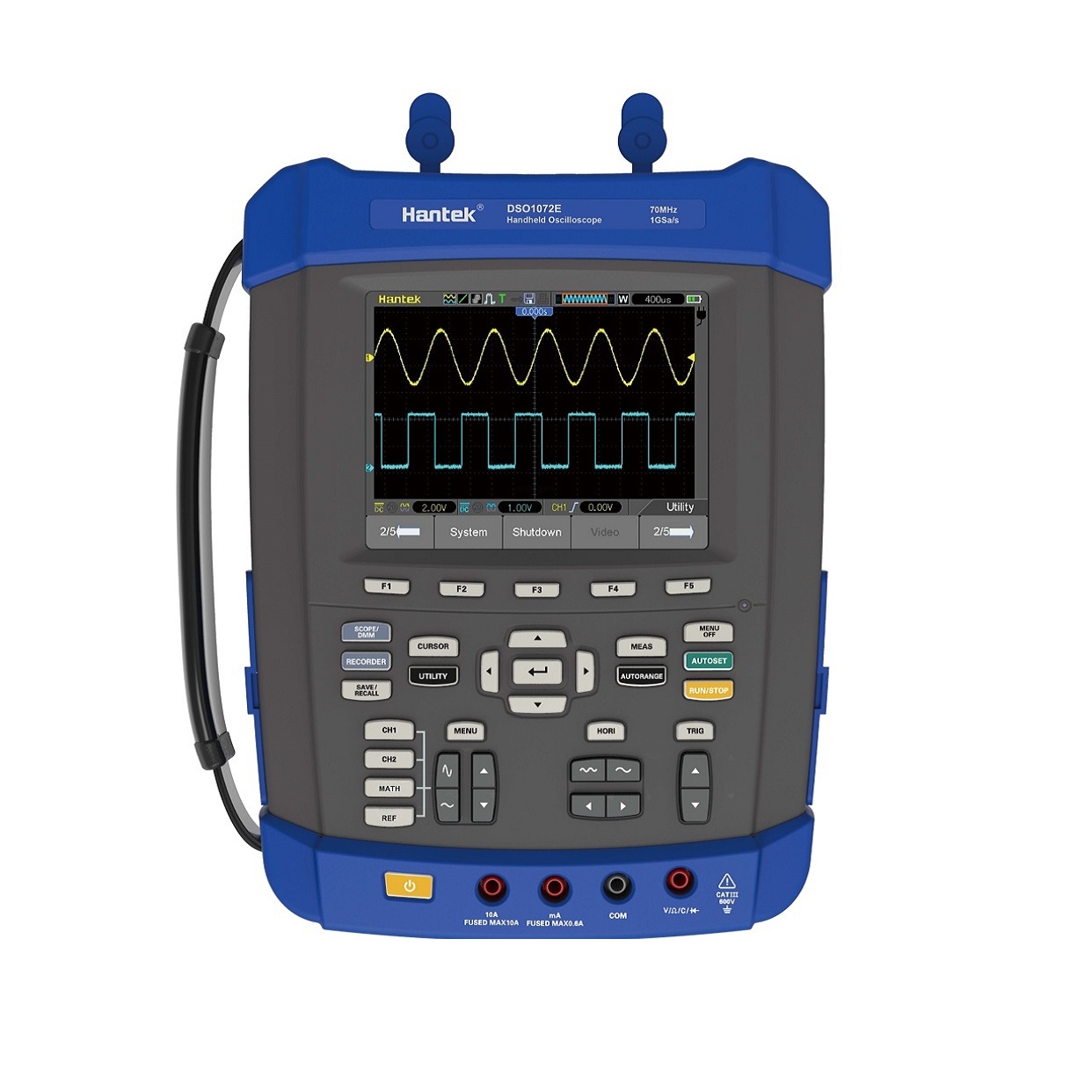

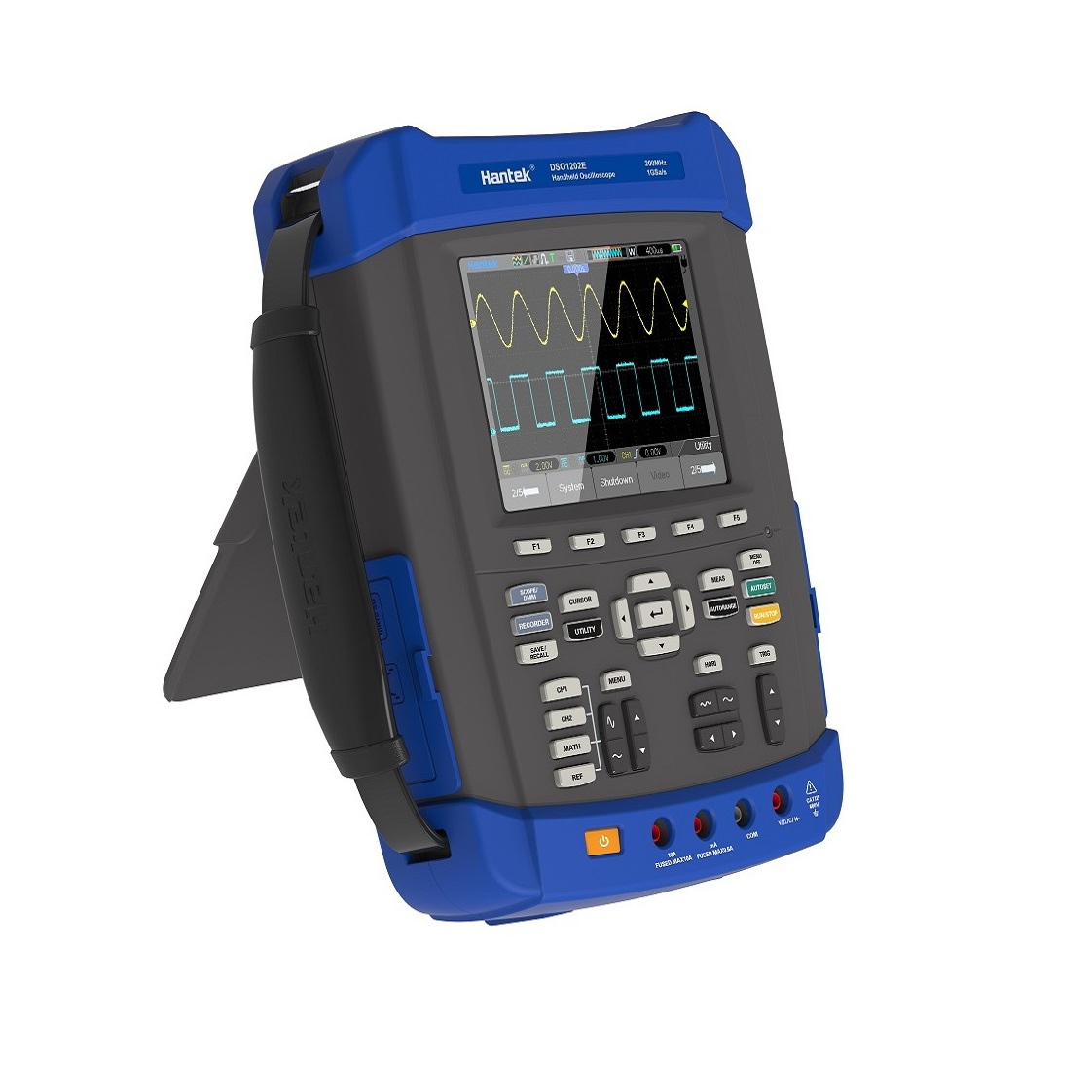

DSO1000E Series
Five in one: Oscilloscope/Recorder/DMM/FFT Spectrum Analyzer/Frequency Counter. IP-51 rated for dust, drip and shake proof to withstand harsh environments. Large fuse confirms to European Safety Standard. Battery indicator with easy-changed connect points. Selectable 18650 battery box for matching 18650 battery by yourself. Anti-theft lock hole, tripod fixed hole, hang rope, FLASH light that can be used in darkness. Replaceable BNC safety joints, and additional one set of joints. 1GSa/s sample rate, 2M Memory depth, 6000 counts DMM. Large 5.6 inch TFT Color LCD Display; High Resolution(640*480)

Function Picture



This device is running Linux 2.6, for more detail see


Model DSO1072E DSO1102E DSO1152E DSO1202E
Acquisition
Sample Modes Real-Time Sample
Acquisition Modes  
Normal Normal data only
Peak Detect High-frequency and randon glith capture
Average Wavefom Average, selectable 4,8,16,32,64,128
Inputs
Inputs Coupling AC, DC, GND
Inputs Impendance 1MΩ±2% ‖20pF±3pF
Probe Attenuation 1X, 10X
Supported Probe Attenuation Factor 1X, 10X, 100X, 1000X
Maximum Input Voltage CAT I and CAT II: 300VRMS (10×), Installation Category;
CAT III: 150VRMS (1×)
Horizontal System
Sample Rate Range 1GS/s
Waveform Interpolation (sin x)/x
Record Length 2M
SEC/DIV Range 4ns/div~2000s/div, in a  2, 4, 8 sequence 2ns/div~2000s/div, in a  2, 4, 8 sequence
Sample Rate and
Delay Time Accuracy 		±50ppm over any ≥1ms time interval
Scanning Speed Range 4ns/div to 8ns/div; (-8div x s/div) to 40ms;
20ns/div to 80μs/div;(-8div×s/div) to 40ms
200μs/div to 40s/div; (-8div×s/div) to 400s 		2ns/div to10ns/div;
 (-4div×s/div) to 20ms;
Delta Time Measurement Accuracy
(Full Bandwidth) 		Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);
>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns);
Sample interval = s/div ÷ 200
Vertical System
Vertical Resolution 8-bit resolution, all channel sampled simultaneously
Volts Range 2mV/div to 10V/div at input BNC
Bandwidth 70MHz 100MHz 150MHz 200MHz
Rise Time at BNC( typical) 5ns 3.5ns 2.3ns 1.8ns
Analog Bandwidth in
Normal and Average
modes at BNC or with probe,
DC Coupled 		±50V(10V/div-5V/div)
±40V(2V/div-500mV/div);
±2V(200mV/div-50mV/div)
±400mV(20mV/div-2mV/div)
Math +, -, *, /, FFT
FFT Windows:Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point
Bandwidth Limit 20MHz
Low Frequency Response (-3db) ≤10Hz at BNC
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 100V/div to 10mV/div.
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div.
DC Measurement Accuracy,
Average Acquisition Mode 		Measurement Type: Average of ≥16 waveforms with vertical position at zero
Accuracy: ± (3% × reading + 0.1div + 1mV) when 10mV/div or greater is selected.
Measurement Type: Average of ≥16 waveforms with vertical position not at zero
Accuracy: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div].
Volts Measurement Repeatability,
Average Acquisition Mode 		Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions
Trigger System
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source CH1, CH2, AC Line
Trigger Modes Auto, Normal, Single
Coupling Type DC, AC, HF Reject, LF Reject, Noise Reject
Trigger Sensitivity
(Edge Trigger Type) 		DC(CH1,CH2):
1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full;
AC: Attenuates signals below 10Hz ;
HF Reject: Attenuates signals above 80kHz;
LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz.
Trigger Level Range CH1/CH2: ±8 divisions from center of screen;
Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen;
Set Level to 50%(typical) Operates with input signals ≥50Hz
Video Trigger  
Video Trigger Type CH1, CH2: Peak-to-peak amplitude of 2 divisions;
Signal Formats and Field Rates Supports NTSC, PAL and SECAM broadcast systems for any field or any line
Holdoff Range 100ns ~ 10s
Pulse Width Trigger  
Pulse Width Trigger Mode Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse
Pulse Width Trigger Point Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level.
Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width.
Less than: The trigger point is the trailing edge.
Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width
Pulse Width Range 20ns ~ 10s
Slope Trigger  
Slope Trigger Mode Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope
Slope Trigger Point Equal: The oscilloscope triggers when the waveform slope is equal to the set slope.
Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope.
Less than: The oscilloscope triggers when the waveform slope is less than the set slope.
Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope.
Time Range 20ns ~ 10s
Overtime Trigger  
Over Time Modee Rising edge or Falling edge
Time Range 20ns ~ 10s
Alternative Trigger  
Trigger on CH1 Internal Trigger: Edge, Pulse Width, Video, Slope
Trigger on CH2 Internal Trigger: Edge, Pulse Width, Video, Slope
Trigger Frequency Counter  
Readout Resolution 6 digits
Accuracy (typical) ±30ppm (including all frequency reference errors and ±1 count errors)
Frequency Range AC coupled, from 4Hz minimum to rated bandwidth
Signal Source Pulse Width or Edge Trigger modes: all available trigger sources
The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed.
Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time.
Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity.
Video Trigger mode: The Frequency Counter does not work.
Measure
Cursor Measurement Manual: Voltage difference between cursors: △V
             Time difference between cursors: △T
             Reciprocal of △T in Hertz (1/ΔT);
Tracing: The valtage and time at a waveform point;
Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS,
Scope Trendplot 1.2M Point
General Specifications
Display Resolution 640 horizontal by 480 vertical pixels
Display Contrast Adjustable (16 gears) with the progress bar
Probe Compensator Output  
Output Voltage( typical) About 2Vpp into ≥1MΩ load
Frequency(typical) 1kHz
Power Supply  
Supply Voltage AC Input:100-240VACRMS,1.5A MAX,50Hz~60Hz; DC Output: 12V,3A
Power Consumption <30W
Environmental  
Temperature Operating: 32℉ to 122℉ (0℃ to 50℃);
Nonoperating: -40℉ to 159.8℉ (-40℃ to +71℃)
Cooling Method Convection
Humidity +104℉ or below (+40℃ or below): ≤90% relative humidity;
106℉ to 122℉ (+41℃ to 50℃): ≤60% relative humidity
Altitude Operating: Below 3,000m (10,000 feet);
Nonoperaring: Below 15,000m(50,000 feet)
Mechanical  
Size 260mmmm; 220mm; 75mm
Weight 2.5KG(without Packing)
DMM Mode
Max. Resolution 6000 Counts
DMM Testing Modes Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage AC:600V, DC: 800V
Max. Input Current AC: 10A, DC:10A
Input Impedance 10MΩ
DMM TrendPlot 1.2M  Point
Range Resolution Accuracy Resolution
DC Voltage 60.00mV ±1%±3 digit 10uV
600.0mV 100uV
6.000V 1mV
60.00V 10mV
600.0V 100mV
800V 1V
AC Voltage 60.00mV ±1%±3 digit 10uV
600.0mV 100uV
6.000V 1mV
60.00V 10mV
600.0V 100mV
DC Current 60.00mA ±1%±5 digit 10uA
600.0mA ±1.5%±5 digit 100uA
6.000A 1mA
10.00A 10mA
AC Current 60.00mA ±1%±5 digit 10uA
600.0mA ±1.5%±5 digit 100uA
6.000A 1mA
10.00A 10mA
Resistance 600Ω ±1%±3 digit 0.1Ω
6.000KΩ 1Ω
60.00KΩ 10Ω
600.0KΩ 1KΩ
6.000MΩ 10KΩ
60.00MΩ ±1%±5 digit 100KΩ
Capacitance 40.00nF ±2%±5 digit 10pF
400.0nF 100pF
4.000uF 1nF
40.00uF 10nF
400.0uF 100nF
Attention: the smallest capacitance value that can be measured in 5nF
Diode 0V~2.0V
ON-OFF test <10Ω
