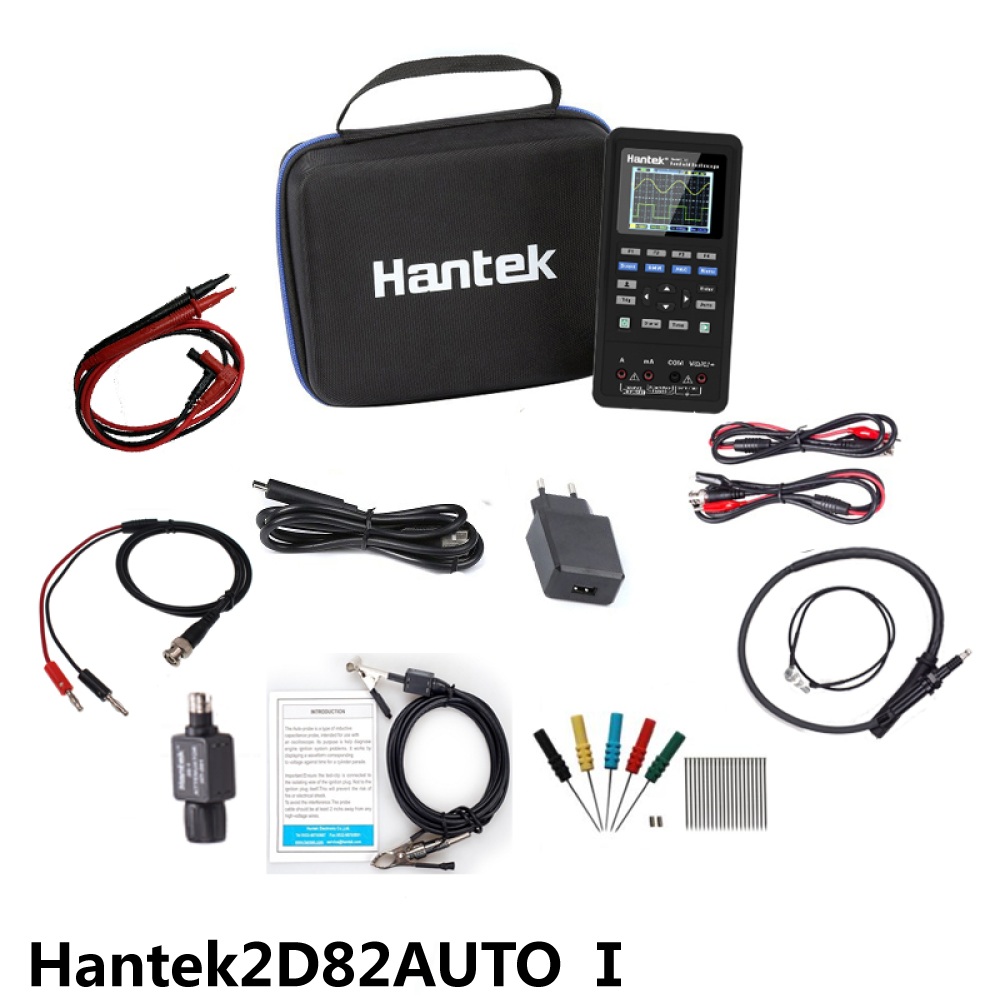

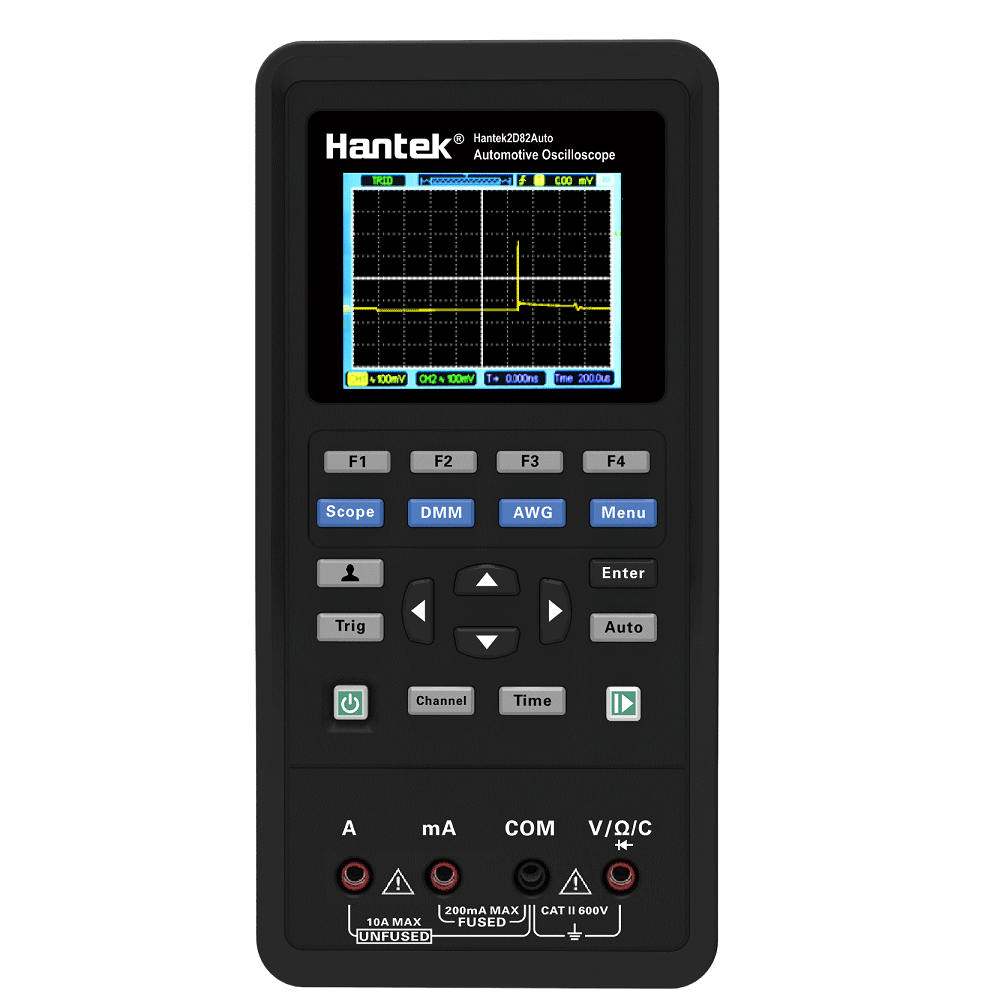

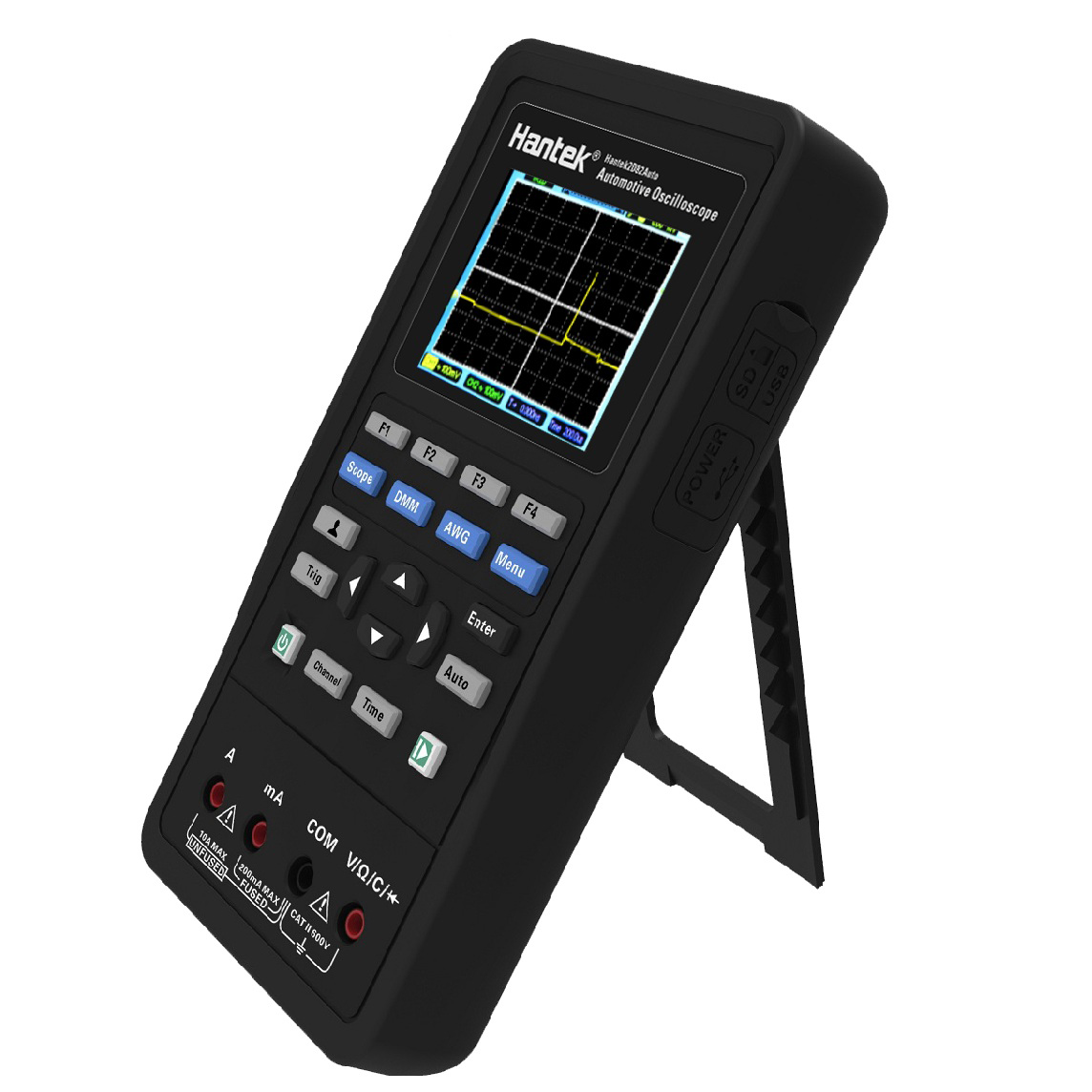

Hantek2D82AUTO
An all-new handheld oscilloscope-Hantek2000 series, it continues the compact and lightweight concept but with a new generation of 4 in 1 multifunction tester: Automotive Diagnostic, oscilloscope, signal source and multimeter; A small volume of the non-profit grip by a single hand; The suspendingstand was designed to support multi-angle adjustment; Ultra-low-power, Type C charging interface, each 2 hours battery charge allow working one full day or standbytwo months; High-definition color LCD screen display clear and delicate; Minimalist keyboard design simplifyoperation, easy to use.

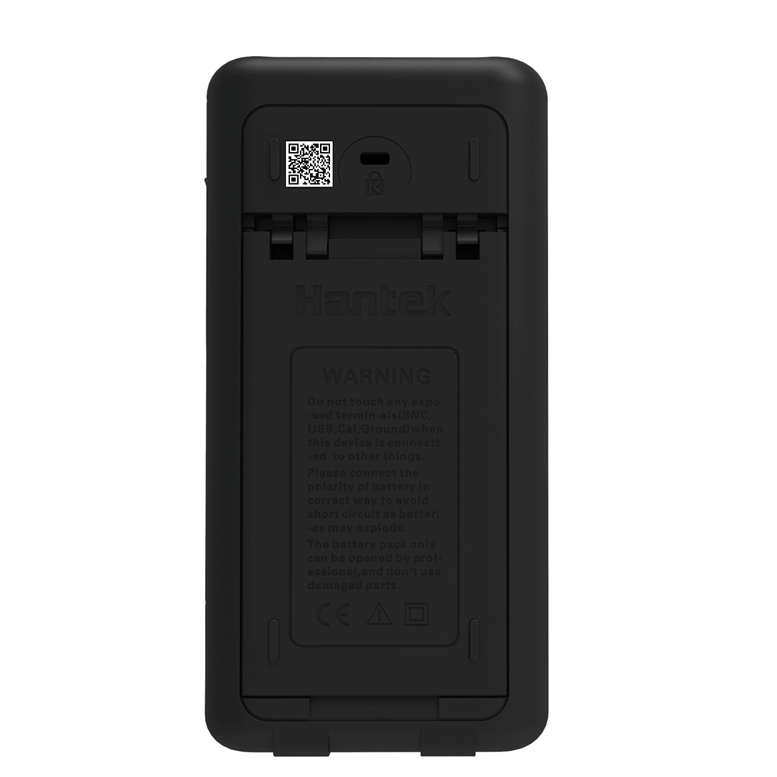

With more than 80 kinds of car testing, and scan the QR code on the back of device can open video help files to show you how to test vehicles.

Primary ignition voltage and crankshaft sensor test




Charging circuit current and voltage test


Primary ignition and secondary ignition test


Primary ignition current test


Secondary ignition test


Cylinder relative pressure test


Crankshaft and camshaft sensor test


ABS wheel speed sensor test


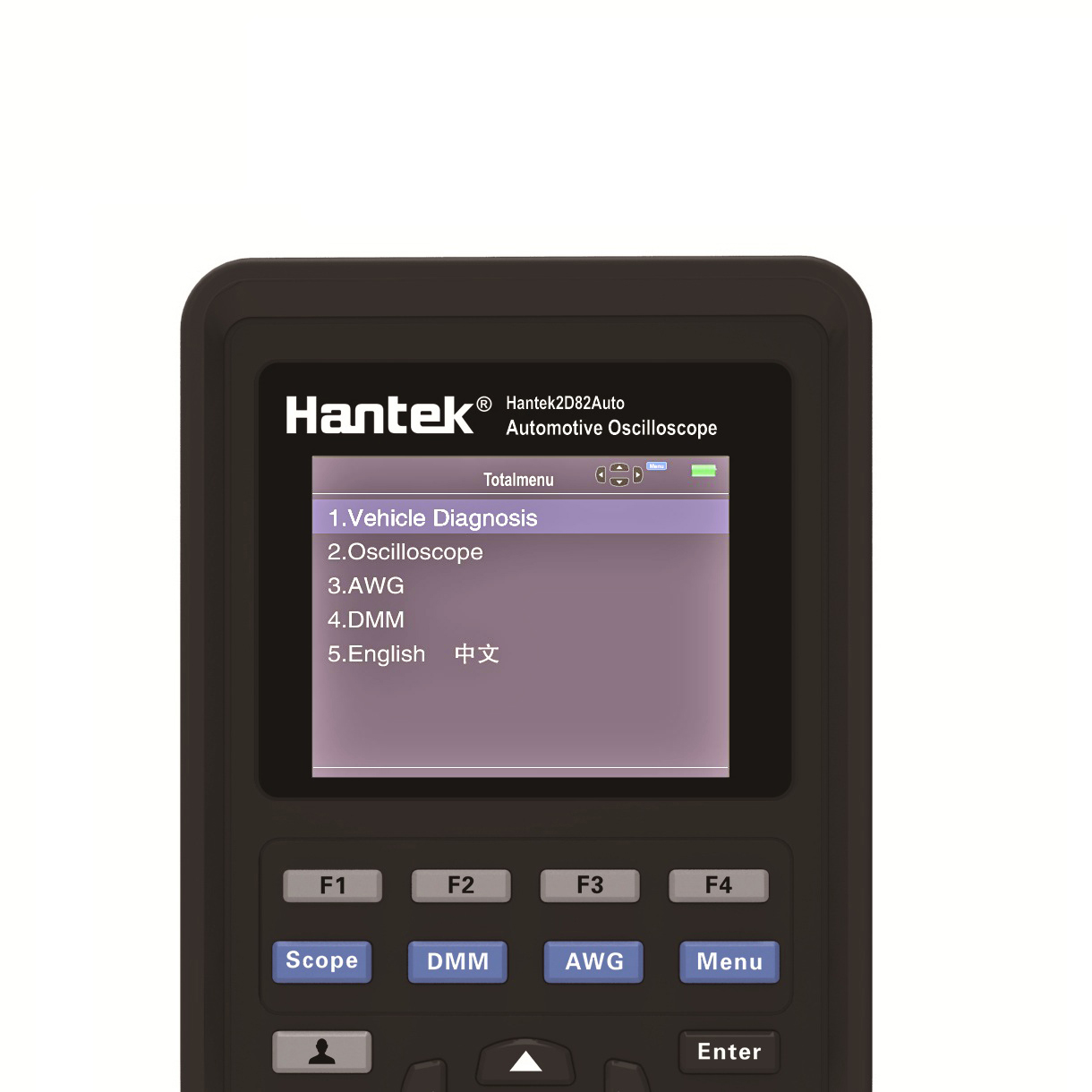

Automotive Diggnostic, 4 in 1


More than 80 kinds of car testing


80MHz Bandwidth 10mV~10V Vertical resolution


 High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry


A multipurpose instrument that helps complete your tasks more quickly, improves work

 efficiency, and meets all your current and future test needs.

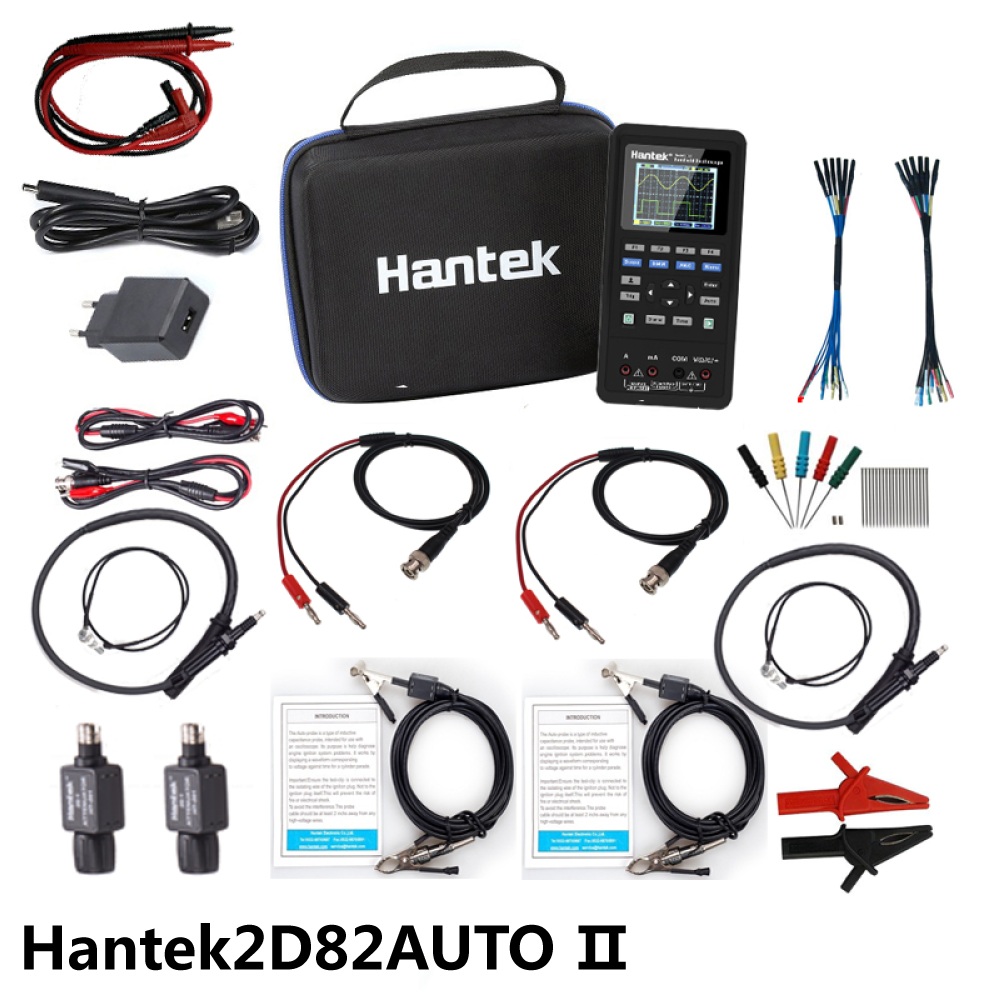

test accessories



Parameters

Model Hantek2D82AUTO
 Vehicle Testing Mode
Vehicle Diagnosis Vehicle Diagnostic Function Ignition Primary Ignition (Voltage)
Primary Ignition(current)
Primary Ignition(Voltage& Current)
Primary Ignition (Crankshaft Senser)
Primary Ignition&SecondaryIgnition
Secondary Secondary Ignition Distributor Type (Plug Lead)
Secondary Ignition Distributor Type (King Lead)
Secondary DIS (Positive-fired)
Secondary DIS or CPC (Negative-fired))
Secondary Coil Output Diagnosis
Secondary Ignition&Primary Ignition
Sensors Air Flow Meter Air Flow Meter (Hot Wire)
Air Flow Meter (Air Vane)
Air FlowSensor (BOSCH Diesel)
Air Intake PressureSensor (BOSCH Diesel)
Camshaft Camshaft (Inductive)
Camshaft (AC Excited)
Camshaft (Hall Effect)
Camshaft (BOSCH Common Rail Diesel)
Crankshaft Crankshaft Inductive Running
Crankshaft Inductive Cranking
Crankshaft Hall Effect
Crankshaft Sensor &Primary Ignition
Distributor Distributor Pick-up (Hall Effect)
Distributor Inductive Pick-up Cranking
Distributor Inductive Pick-up Running
Lambda Sensors Lambda Sensor Titania
Lambda Sensor Zirconia
Lambda Sensor Zirconia Pre & Post cat
Throttle Position Throttle Position Potentiometer
Throttle Position Switch
Throttle Pedal Switch (Bosch Diesel)
ABS Digital Speed Sensor
ABS Analog Speed Sensor
Coolant Temperature (5V)
Coolant Temperature (GM/Vauxhall Simtec
Crash Sensor
MAP Analog
MAP Digital
Hall Effect Road Speed Sensor
Accelerator Pedal (Bosch Diesel)
Bus Diagnosis CAN Bus CAN Bus Data View
CAN Bus Signal Integrity
CAN Bus LH Long Capture
LIN Bus LIN Bus
Engine Petrol Single-point Injector (Voltage)
Single-point Injector (Current)
Multi-point Injector (Voltage)
Multi-point Injector (Current)
Injector Voltage & Current
Injector Current & Primary Ignition
Diesel Common Rail Diesel (Current)
Injector Bosch CDi 3 (Current)
Injector Bosch Diesel (Idling)
Injector Bosch Diesel (Accelerating)
Diesel Glow Plugs
Electronic Fuel Pump
Carbon Canister Solenoid Valve
ERG Recirculation Solenoid Valve
Stepper Motor Example 1
Stepper Motor Example 2
Idle Speed Control Valve (Rotary)
Idle Speed Control Valve (Electromagmetic)
Throttle Servomotor (Idling)
Throttle Servomotor (Accelerating)
Bosch CDi3 Quantity Control Valve
Bosch CDi3 Pressure Regulator Valve
Variable-Speed Cooling Fan On
Variable-Speed Cooling Fan Off
Variable Camshaft Valve Timing
Startup & Charge Charging Circuits Charging Circuits Current/Voltage
Charging Circuits Current/Voltage Starting 24V
Charging Circuits Current/Voltage Idling 24V
Charging Circuits Alternator AC Ripple/Diode Diagnosis
Relative Compression Petrol
Relative Compression Diesel
Starting Voltage Drop
Oscilloscope Mode
Bandwidth 80MHz

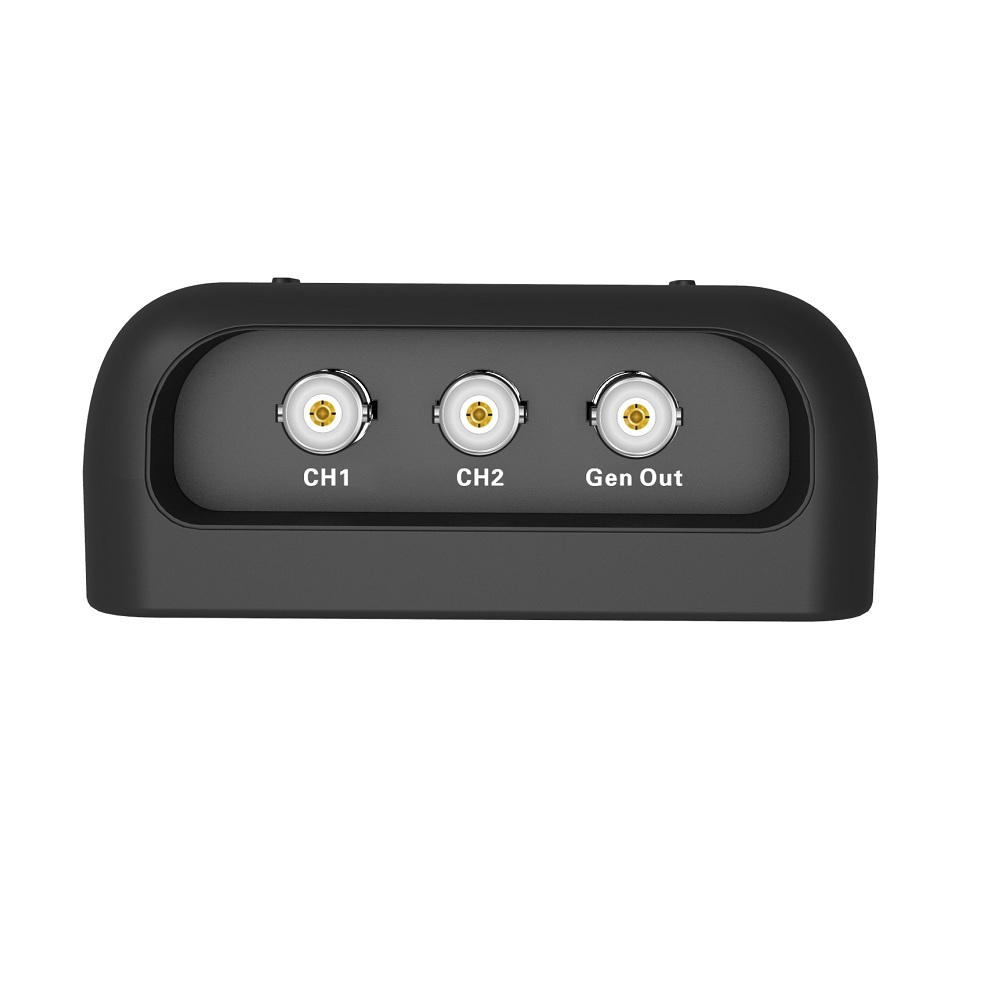

Channel 2CH+DMM+AWG
Horizontal
Sample Rate Range 250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation (sin x)/x
Record Length 3K samples per dual-channel
SEC/DIV Range 5ns/div~500s/div  1, 2, 5 sequence
Vertical
A/D Converter 8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range 10mV/div~10V/divat input BNC
Bandwidth Limit, typical 20MHz
Low Frequency Response (-3db) ≤10Hz at BNC
Rise Time at BNC, typical ≤5ns
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes Normal
Trigger
Type Edge
Mode Auto, Normal, single
Level ±4 divisions from center of screen
Trigger Level Accuracy 0.2div × volts/div within ±4 divisions from center of screen
Slope Rising, Falling, Rising & Falling
Source CH1/CH2
Input
Coupling DC, AC or GND
Input Impedance,  25pF±3 pF, 1MΩ±2%
DC coupled
Probe Attenuation 1X, 10X
Supported Probe Attenuation Factors 1X, 10X, 100X, 1000X
Maximum Input Voltage 150VRMS
Measurement
Cursor Voltage difference between cursors: △V
Time difference between cursors: △T
Automatic Measurements Frequency, Amplitude
Arbitrary Waveform Generator Mode
Waveform Frequency Sine: 1Hz~25MHz
Square: 1Hz~10MHz
Ramp: 1Hz~1MHz
EXP: 1Hz~5MHz
Sampling 250MSa/s
Amplitude 2.5Vpp(50Ω)
5Vpp(High impedance)
Frequency Resolution 0.001
Channel 1CH waveform output
Waveform Depth 512Sa
Vertical Resolution 12 bit
Frequency Stability <30ppm
Output Impedance 50 Ω
DMM Testing Modes
Maximum Resolution 4000 Counts
DMM Testing Modes Voltage,Current,Resistance,Capacitance,Diode &On-Off
Maximum Input Voltage AC:600V, DC: 800V
Maximum Input Current AC: 10A, DC:10A
Input Impedance 10MΩ
Measurement Term Range Accuracy Resolution
DC Voltage 400.00mV ± (0.8% + 5) 100uV
4.000V 1mV
40.00V 10mV
400.0V 100mV
600.0V ± (1% + 2) 1V
Overload protection: 400mV: 250V, other: 600Vrms.
AC Voltage 4.000V ± (1.2% + 5) 1mV
40.00V 10mV
400.0V 100mV
600.0V ±(1.5% + 5) 1V
Frequency: 40Hz~400Hz;
Frequency of 400V and 600V: 40Hz~100Hz
DC Current 40.00mA ± (1% + 2) 10uA
200.0mA ± (1.5% + 2) 100uA
4.000A ± (1.8% + 2) 1mA
10.00A ± (3% + 2) 10mA
Overload protection:
self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
AC Current 40.00mA ± (1.3% + 2) 10uA
400.0mA ± (1.8% + 2) 100uA
4.000A ± (2% + 3) 1mA
10.00A ± (3% + 5) 10mA
Frequency: 40Hz~400Hz;
self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
Resistance 400.0Ω ±(1% + 3) 0.1Ω
4.000KΩ ±(1.2% + 5)
60.00KΩ 10Ω
400.0KΩ 100Ω
4.000MΩ 1KΩ
40.00MΩ ± (1.5%±3) 10KΩ
Overload protection: 220Vrms
Capacitance 40.00nF ±(3% + 5) 10pF
400.0nF 100pF
4.000uF 1nF
40.00uF 10nF
100.0uF 100nF
Overload protection: 220Vrms
Diode 0V~2.0V
On-Off <50Ω
General Specifications
Display
Display Type 2.8 inch64K color TFT
Display Resolution 320 horizontal by 240 vertical pixels
Display Contrast Adjustable
Power Supply
Supply Voltage 100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A
Power Consumption <2.5W
Fuse T, 3A
Battery 2600mA*2
Environmental
Operating Temperature 0~50 °C (32~122 °F)
Storage Temperature -40~+71 °C (-40~159.8 °F)
Humidity ≤+104℉(≤+40°C): ≤90% relative humidity
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
Cooling Method Convection
Altitude Operating and 3,000m (10,000 feet)
Nonoperating
Mechanical Shock Random Vibration 0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis
Nonoperating 2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis
Operating 50g, 11ms, half sine
Mechanical
Dimension 199 x 98x 40mm (L x W x H)
Weight 400g

Model Hantek2D82AUTO
 Vehicle Testing Mode
Vehicle Diagnosis Vehicle Diagnostic Function Ignition Primary Ignition (Voltage)
Primary Ignition(current)
Primary Ignition(Voltage& Current)
Primary Ignition (Crankshaft Senser)
Primary Ignition&SecondaryIgnition
Secondary Secondary Ignition Distributor Type (Plug Lead)
Secondary Ignition Distributor Type (King Lead)
Secondary DIS (Positive-fired)
Secondary DIS or CPC (Negative-fired))
Secondary Coil Output Diagnosis
Secondary Ignition&Primary Ignition
Sensors Air Flow Meter Air Flow Meter (Hot Wire)
Air Flow Meter (Air Vane)
Air FlowSensor (BOSCH Diesel)
Air Intake PressureSensor (BOSCH Diesel)
Camshaft Camshaft (Inductive)
Camshaft (AC Excited)
Camshaft (Hall Effect)
Camshaft (BOSCH Common Rail Diesel)
Crankshaft Crankshaft Inductive Running
Crankshaft Inductive Cranking
Crankshaft Hall Effect
Crankshaft Sensor &Primary Ignition
Distributor Distributor Pick-up (Hall Effect)
Distributor Inductive Pick-up Cranking
Distributor Inductive Pick-up Running
Lambda Sensors Lambda Sensor Titania
Lambda Sensor Zirconia
Lambda Sensor Zirconia Pre & Post cat
Throttle Position Throttle Position Potentiometer
Throttle Position Switch
Throttle Pedal Switch (Bosch Diesel)
ABS Digital Speed Sensor
ABS Analog Speed Sensor
Coolant Temperature (5V)
Coolant Temperature (GM/Vauxhall Simtec
Crash Sensor
MAP Analog
MAP Digital
Hall Effect Road Speed Sensor
Accelerator Pedal (Bosch Diesel)
Bus Diagnosis CAN Bus CAN Bus Data View
CAN Bus Signal Integrity
CAN Bus LH Long Capture
LIN Bus LIN Bus
Engine Petrol Single-point Injector (Voltage)
Single-point Injector (Current)
Multi-point Injector (Voltage)
Multi-point Injector (Current)
Injector Voltage & Current
Injector Current & Primary Ignition
Diesel Common Rail Diesel (Current)
Injector Bosch CDi 3 (Current)
Injector Bosch Diesel (Idling)
Injector Bosch Diesel (Accelerating)
Diesel Glow Plugs
Electronic Fuel Pump
Carbon Canister Solenoid Valve
ERG Recirculation Solenoid Valve
Stepper Motor Example 1
Stepper Motor Example 2
Idle Speed Control Valve (Rotary)
Idle Speed Control Valve (Electromagmetic)
Throttle Servomotor (Idling)
Throttle Servomotor (Accelerating)
Bosch CDi3 Quantity Control Valve
Bosch CDi3 Pressure Regulator Valve
Variable-Speed Cooling Fan On
Variable-Speed Cooling Fan Off
Variable Camshaft Valve Timing
Startup & Charge Charging Circuits Charging Circuits Current/Voltage
Charging Circuits Current/Voltage Starting 24V
Charging Circuits Current/Voltage Idling 24V
Charging Circuits Alternator AC Ripple/Diode Diagnosis
Relative Compression Petrol
Relative Compression Diesel
Starting Voltage Drop
Oscilloscope Mode
Bandwidth 80MHz
Channel 2CH+DMM+AWG
Horizontal
Sample Rate Range 250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation (sin x)/x
Record Length 3K samples per dual-channel
SEC/DIV Range 5ns/div~500s/div  1, 2, 5 sequence
Vertical
A/D Converter 8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range 10mV/div~10V/divat input BNC
Bandwidth Limit, typical 20MHz
Low Frequency Response (-3db) ≤10Hz at BNC
Rise Time at BNC, typical ≤5ns
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes Normal
Trigger
Type Edge
Mode Auto, Normal, single
Level ±4 divisions from center of screen
Trigger Level Accuracy 0.2div × volts/div within ±4 divisions from center of screen
Slope Rising, Falling, Rising & Falling
Source CH1/CH2
Input
Coupling DC, AC or GND
Input Impedance,  25pF±3 pF, 1MΩ±2%
DC coupled
Probe Attenuation 1X, 10X
Supported Probe Attenuation Factors 1X, 10X, 100X, 1000X
Maximum Input Voltage 150VRMS
Measurement
Cursor Voltage difference between cursors: V
Time difference between cursors: T
Automatic Measurements Frequency, Amplitude
Arbitrary Waveform Generator Mode
Waveform Frequency Sine: 1Hz~25MHz
Square: 1Hz~10MHz
Ramp: 1Hz~1MHz
EXP: 1Hz~5MHz
Sampling 250MSa/s
Amplitude 2.5Vpp(50Ω)
5Vpp(High impedance)
Frequency Resolution 0.001
Channel 1CH waveform output
Waveform Depth 512Sa
Vertical Resolution 12 bit
Frequency Stability <30ppm
Output Impedance 50 Ω
DMM Testing Modes
Maximum Resolution 4000 Counts
DMM Testing Modes Voltage,Current,Resistance,Capacitance,Diode &On-Off
Maximum Input Voltage AC:600V, DC: 800V
Maximum Input Current AC: 10A, DC:10A
Input Impedance 10MΩ
Measurement Term Range Accuracy Resolution
DC Voltage 400.00mV ± (0.8% + 5) 100uV
4.000V 1mV
40.00V 10mV
400.0V 100mV
600.0V ± (1% + 2) 1V
Overload protection: 400mV: 250V, other: 600Vrms.
AC Voltage 4.000V ± (1.2% + 5) 1mV
40.00V 10mV
400.0V 100mV
600.0V ±(1.5% + 5) 1V
Frequency: 40Hz~400Hz;
Frequency of 400V and 600V: 40Hz~100Hz
DC Current 40.00mA ± (1% + 2) 10uA
200.0mA ± (1.5% + 2) 100uA
4.000A ± (1.8% + 2) 1mA
10.00A ± (3% + 2) 10mA
Overload protection:
self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
AC Current 40.00mA ± (1.3% + 2) 10uA
400.0mA ± (1.8% + 2) 100uA
4.000A ± (2% + 3) 1mA
10.00A ± (3% + 5) 10mA
Frequency: 40Hz~400Hz;
self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
Resistance 400.0Ω ±(1% + 3) 0.1Ω
4.000KΩ ±(1.2% + 5)
60.00KΩ 10Ω
400.0KΩ 100Ω
4.000MΩ 1KΩ
40.00MΩ ± (1.5%±3) 10KΩ
Overload protection: 220Vrms
Capacitance 40.00nF ±(3% + 5) 10pF
400.0nF 100pF
4.000uF 1nF
40.00uF 10nF
100.0uF 100nF
Overload protection: 220Vrms
Diode 0V~2.0V
On-Off <50Ω
General Specifications
Display
Display Type 2.8 inch64K color TFT
Display Resolution 320 horizontal by 240 vertical pixels
Display Contrast Adjustable
Power Supply
Supply Voltage 100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A
Power Consumption <2.5W
Fuse T, 3A
Battery 2600mA*2
Environmental
Operating Temperature 0~50 °C (32~122 °F)
Storage Temperature -40~+71 °C (-40~159.8 °F)
Humidity ≤+104(≤+40°C): ≤90% relative humidity
106~122 (+41°C ~50°C): ≤60% relative humidity
Cooling Method Convection
Altitude Operating and 3,000m (10,000 feet)
Nonoperating
Mechanical Shock Random Vibration 0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis
Nonoperating 2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis
Operating 50g, 11ms, half sine
Mechanical
Dimension 199 x 98x 40mm (L x W x H)
Weight 400g

Hantek2D82Auto Kit Accessory List

Kit

Hantek2D82Auto Kit I

Hantek2D82Auto Kit II

Hantek2D82Auto Kit III

Package Toolcase

1

1

1

Type C cable

1

1

1

Power Adaptor

1

1

1

Multimeter Probe

1

1

1

Test Leads with BNC plug and  alligator clip HT324

2

2

2

Auto Test Leads

HT30B

1

2

2

Auto Ignition Probe

HT25

1

2

2

Acupuncture Probe Set

HT307

1

1

2

Coil-on-Plug extension cord

HT308

1

2

2

20:1 Attenuator

HT201

1

2

2

Large Dolphin/Gator Clips

HT18A

0

1

2

Breakout Leads

HT301

0

0

1

6 Way Breakout Leads

HT306-2.8mm

0

1

1

6 Way Breakout Leads

HT306-2.3mm

0

0

1

6 Way Breakout Leads

HT306-1.5mm

0

1

1

6 Way Breakout Leads

HT306-1.0mm

0

0

1

65A AC/DC Current Clamp

CC65

0

0

1

650A AC/DC Current Clamp

CC650

0

0

1
