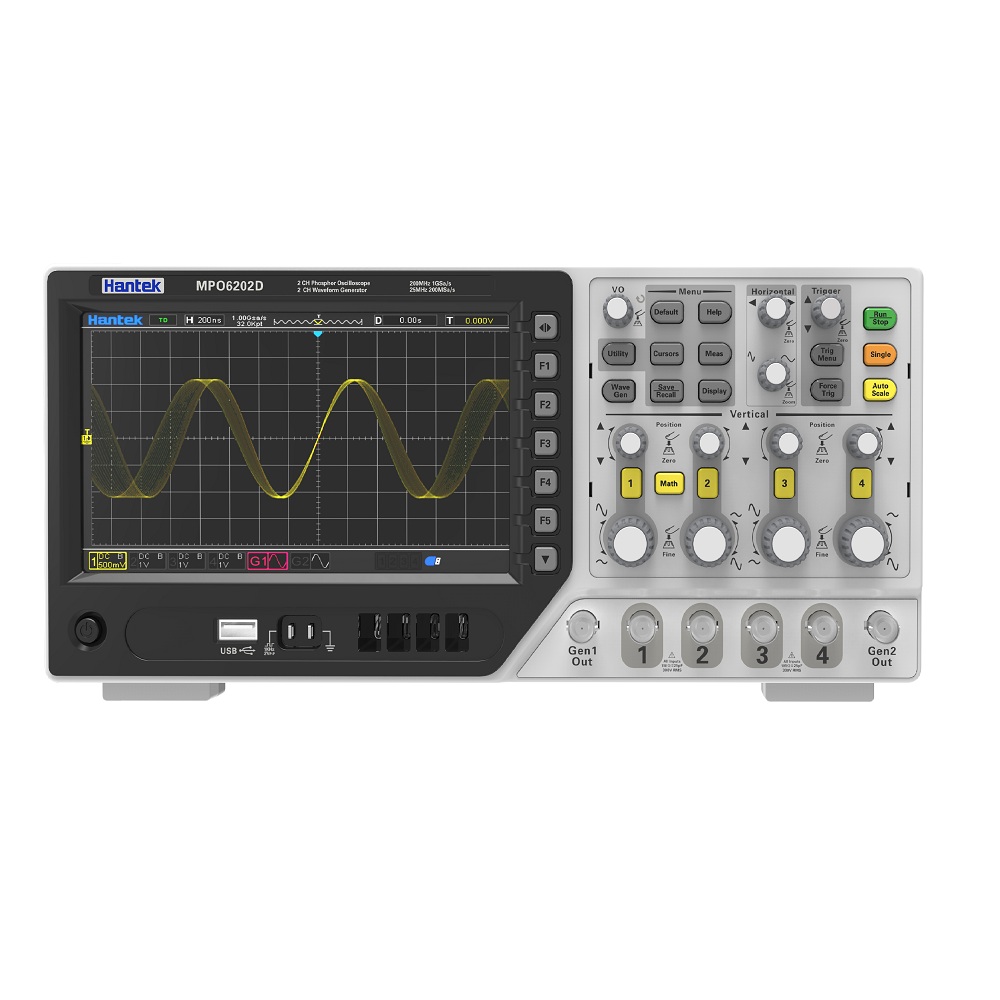

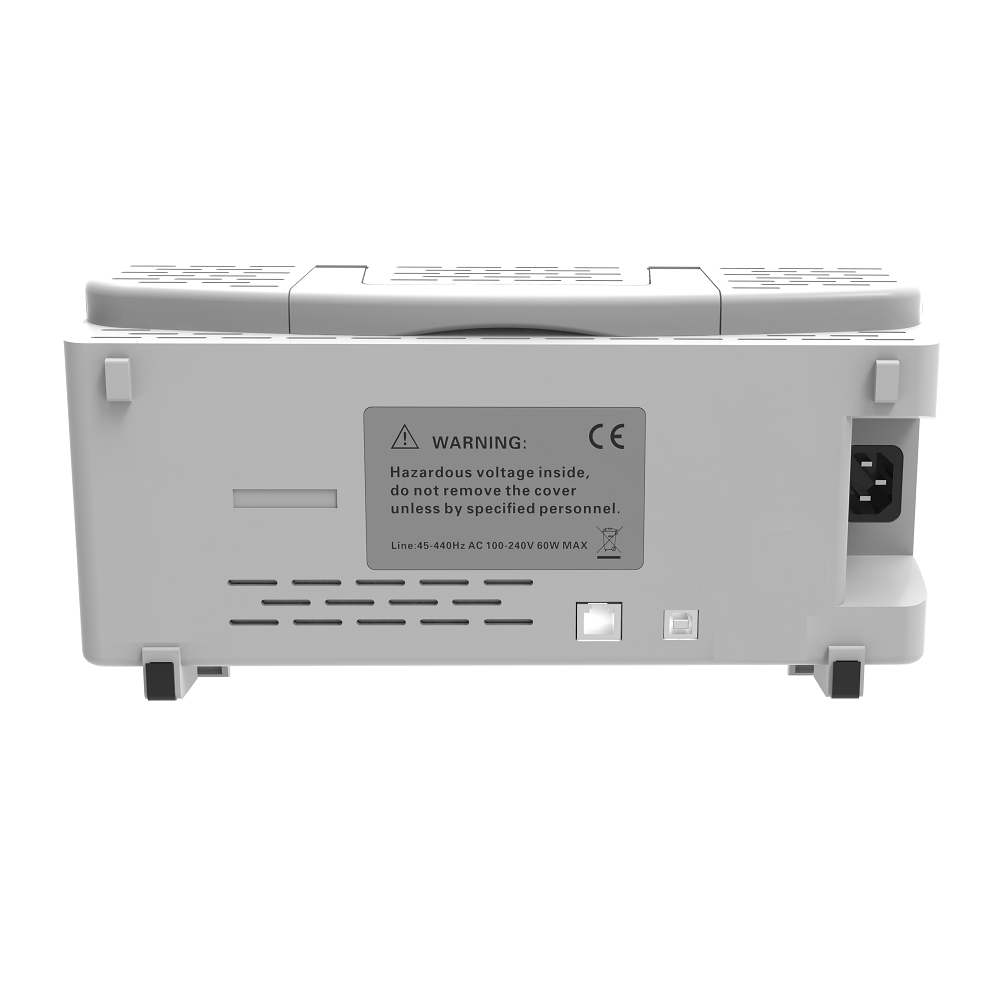

★Six in one oscilloscope:4 channels oscilloscope+16 channels logic analyzer+2 channels waveform generator+digital voltmeter+serial protocol analyzer+FFT spectral analysis.
★60 000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode)waveform capture rate.
★Segmented acquisition function,support to capture up to 80,000 sections.256 grade color display.
★Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers.Supply 5 serial decoding option.
★1 GSa/s real-time sample rate of the analog channels; 64 Mpts standardmemory depth.
★2-channe signal source,13 kinds of waveforms inside,4 sets of arbitrary waveforms,200M sample rate,8Kpts waveform length.
★1 GSa/s real-time sample rate of the digital channels.
★200 MHz, 100 MHz and 80 MHz analog channel bandwidth.
★Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.
★7 inch WVGA capacitive touch screen,(800*480) TFT , with ultra-wide screen, vivid picture, lowpower consumption and long service life.
★Auto measurement of 42 kinds of waveform parameters (with statistics).
★Bode diagram function(the oscilloscopes with signal source function can use).
★Multiple waveform math operation functions【MATH】.Event search function.
★Standard interfaces: USB Device, USB Host, LAN,Optional interfaces: HDMI ,UART
★Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick,economic and efficient creation and reconfiguration of test system.Supports remote command control.
Model
4-channel oscilloscope+2CH AFG + 16CH LA
Digital fluorescence display and color temperature display
Bode diagram function
256 grade color display
2-channel 25M waveform/Arb generator
Waveform capture rateup to 400,000
FFT function Scales show
Segmented acquisition and history waveform
16-channel digital channel
64M memory depth
7 inch capacitive touch screen
5 bits digital voltage meter , 6 bits frequency indicator
FFT function
Parameters
Oscilloscope function | |||||
Acquisition | Real-time sample rate | 1 GSa/s(single channel) 500 MSa/s(two channels) | |||
250 MSa/s(three/four channels); | |||||
Note:digital channel 12,34 open at the same time,it is considered as one channel | |||||
Peak detection | Analog channel 4ns | ||||
Note:digital channels don’t support | |||||
Average mode | Analog channel | ||||
All channels reach N time samples at the same time,N can be selected from 2、4、8、16、32、 64、128、256、512 and 1024. |
|||||
Note:digital channels don’t support | |||||
High resolution | Up to 12bit | ||||
Note:digital channels don’t support | |||||
Minimum test pulse width | 8ns | ||||
Memory depth | Single channel 64M | ||||
Two channels 32M | |||||
Three,four channels 16M | |||||
Input | Channel quantity | 4 analog channels | |||
Note:data channels can’t be opened | |||||
3 analog channels | |||||
Note:digital channel LA1/LA2/LA3/LA4/LA1LA2/LA3LA4 | |||||
2 analog channels | |||||
Note:digital channels infinitize | |||||
1 analog channel | |||||
Note:digital channels infinitize | |||||
0 analog channel | |||||
Note:digital channels infinitize | |||||
Input coupling | DC、AC or GND | ||||
Note:digital channels don’t support | |||||
Input impedance,DC coupling | Analog channel | ||||
25pF±3 pF,1MΩ±2% | |||||
Digital channel | |||||
(300KΩ±2%) ,(8 pF±3 pF) | |||||
Supported probe attenuation factor | Analog channel 1X、10X、100X、1000X | ||||
Voltage classes | 300V CAT II | ||||
Maximum input voltage | Analog channel 300VRMS (10X) | ||||
Digital channel -25V~25V | |||||
Horizontal | Waveform interpolation | (sin x)/x | |||
Maximum record length | Single channel maximum 64M | ||||
Two channels maximum32M | |||||
three/four channels maximum 16M | |||||
Horizontal scale range | DSO6084 DSO6104 | ||||
2ns/div~100s/div 1, 2, 5 step by step | |||||
Time base mode | Y-T、X-Y、Roll | ||||
X-Y number | Channel 1,2 1 XY channel、channel3 4 1 XY channel | ||||
Zero offset | ±0.5 div× minimum time base gear | ||||
Sample Rate and | ±25ppm | ||||
Delay Time Accuracy | |||||
Clock drifting | ≤±5 ppm/year | ||||
Delta Time Measurement | single,“acquisition”mode | ||||
Accuracy | |||||
(Full Bandwidth) | ±(1 sample interval+100ppm×reading+0.6ns) | ||||
>16 times averages | |||||
±(1 sample interval+100ppm×reading+0.4ns) | |||||
Sample interval=sec/div÷200 | |||||
Vertical | Bandwidth(-3db) | 6084 | 6104 | 6204 | |
80MHz | 100MHz | 200MHz | |||
Vertical resolution | Analog channel 8bit | ||||
Digital channel 1bit | |||||
Vertical scale range | nput BNC position is 500μV/div~10V/div | ||||
Position range | 500μV/div to 120mV/div,±1V | ||||
122mV/div to 1.2V/div,±10V | |||||
1.22V/div to 10V/div,±50V | |||||
Optional analog bandwidth limitation | Typical 20MHz | ||||
Bass response(-3db) | In BNC position is≤10Hz | ||||
Rising time in BNC position,typical | 6084 | 6104 | 6204 | ||
≤4.4ns | ≤3.5ns | ≤1.8ns | |||
Vertical gain accuracy |
In “normal” or “average” acquisition mode,the accuracy o f 10V/div to 10mV/div is ±3% |
||||
In “normal” or “average” acquisition mode,the accuracy of 5mV/div to 500uV/div is ±4%. |
|||||
DC offset accuracy | ±0.1 div±2 mV±1% offset value | ||||
The isolation of channels | DC maximum bandwidth:>40 dB | ||||
Note: Bandwidth reduced to 6MHz when using a 1X probe | |||||
Trigger | Trigger level range | ±5 divisions from the center of the screen | |||
Trigger mode | auto、general、single | ||||
Level | CH1~CH4 | ±4 divisions from the center of the screen | |||
Holdoff range | 8ns~10s | ||||
Trigger level accuracy | CH1~CH4 |
0.2 div×volts/div within ±4 divisions from the center of the screen |
|||
Edge trigger | Slope | Rising edge,falling edge,rising or falling edge | |||
Signal source | CH1~CH4, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Pulse width trigger | Polarity | Positive polarity,negative polarity | |||
Condition(When) | <,>, !=, = | ||||
Signal source | CH1~CH4, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Pulse width range | 8ns ~ 10s | ||||
Video trigger | Signal standard | NTSC, PAL | |||
Signal source | CH1~CH4 | ||||
Synchronization | Scanning line、line number、odd field、even field、all field | ||||
Slope trigger | Slope | rise,fal | |||
condition(When) | <,>, !=, = | ||||
Signal source | CH1 ~ CH4 | ||||
Time range | 8ns ~ 10s | ||||
Overtime trigger | Signal source | CH1~CH4, | |||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Polarity | Positive polarity,negative polarity | ||||
Time range | 8ns ~ 10s | ||||
Window trigger | Signal source | CH1~CH4LA1~LA4 | |||
Pattern trigger | Pattern | 0:low level;1:high level;X:ignore; | |||
Level(signal source) | CH1~CH4 | ||||
Interval trigger | Slope | rise,fall | |||
condition(When) | <,>, !=, = | ||||
Signal source | CH1~CH4, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Time rangeTime range | 8ns ~ 10s | ||||
Delay trigger | Edge type | Rising edge,falling edge | |||
Signal source | CH1~CH4 | ||||
condition(When) | <,>, !=, = | ||||
Time range | 8ns ~ 10s | ||||
Set up hold trigger | Edge type | Rising edge,falling edge | |||
Signal source | CH1~CH4 | ||||
condition(When) | <,>, !=, = | ||||
Time range | 8ns ~ 10s | ||||
Runt trigger | Polarity | Positive polarity,negative polarity | |||
Condition(When) | <,>, !=, = | ||||
Signal source | CH1~CH4 | ||||
Time range | 8ns ~ 10s | ||||
UART trigger | condition(When) | start、stop、data、odd-even check、reception error | |||
Signal source(RX/TX) | CH1~CH4, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Data length | 1 byte | ||||
Data bit width | 5 bit, 6 bit, 7 bit, 8 bit | ||||
Odd-even check | none、odd、even | ||||
Free level | high、low | ||||
Baud rate (optional) |
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600 /115200/230400/380400/460400 bit/s |
||||
Baud rate(user-defined) | 300bit/s~334000bit/s | ||||
LIN trigger | condition(When) |
Interval field、synchronization field、ID field、synchronization error 、identifier、IDand data |
|||
Signal source | CH1~CH4, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Baud rate(optional) |
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600 /115200/230400/380400/460400 bit/s |
||||
Baud rate(user-defined) | 300bit/s~334000bit/s | ||||
CAN trigger | condition(When) | Start bit、remote frame ID、data frame ID、frame ID、remote frame data、data frame data、wrong frame、all errors、answer error、overload frame | |||
Signal source | CH1~CH4 | ||||
Data format | Hex(hexadecimal) | ||||
Baud rate(optional) | 10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000 | ||||
Baud rate(user-defined) | 5kbit/s~1Mbit/s | ||||
SPI trigger | Signal source | CH1~CH4, | |||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Data bit width | 4, 8, 16, 24, 32 | ||||
IIC trigger | Signal source (SDA/SCL) | CH1~CH4, | |||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Data index | 0~7 | ||||
opportunity(condition) | Start bit、stop bit、no response、address、data、restart | ||||
Measurement | cursor | Voltage difference between cursors △V | |||
Time difference between cursors △T | |||||
Reciprocal of △T,in Hertz(1/△T) | |||||
Auto measurement | frequency、period、mean、peak-to-peak、RMS、minimum、mixmum、rising time、falling time、+ width、- width、base、top、middle、amplitude、overshoot、preshoot、rising edge phase difference、falling edge phase difference、+ duty、- duty、period mean、PRMS、FOVshoot、ROVshoot、BWIDTH、FRF、FFR、LRR、LRF、LFR、LFF | ||||
DVM | Data source | CH1,CH2,CH3,CH4 | |||
Measurement type | DC effective value | ||||
AC effective value | |||||
DC | |||||
Frequency meter | hardware 6 bits frequency meter | ||||
Arbitrary waveform generator | |||||
Arbitrary waveform generator(for oscilloscopes with signal source channels) | Channel number | 2channels | |||
Sample rate | 200MSa/s | ||||
Vertical resolution | 12 bits | ||||
Maximum frequency | 25 MHz | ||||
Standard waveforms | sin、square、pulse、triangular,noise、DC | ||||
Sinc、index、semi-distortion、lorentz,dual tone multiple frequency,gauss,ECG | |||||
Arbitrary waveform | Arb1,Arb2,Arb3,Arb4 | ||||
Sin | Frequency range | 0.1Hz~25MHz | |||
square/pulse | Frequency range | 0.1Hz~10MHz | |||
triangular wave | Frequency range | 0.1Hz~1MHz | |||
Sampling wave | Frequency range | 0.1Hz~1MHz | |||
Index | Frequency range | 0.1Hz~5MHz | |||
Semi-distortion | Frequency range | 0.1Hz~1MHz | |||
lorentz | Frequency range | 0.1Hz~1MHz | |||
Dual tone multiple frequency | Frequency range | 0.1Hz~1MHz | |||
Gauss | Frequency range | 0.1Hz~1MHz | |||
ECG | Frequency range | 0.1Hz~1MHz | |||
Arbitrary wave | Frequency range | 0.1 Hz to 10 MHz | |||
Waveform length | 8KSa | ||||
Frequency | accuracy | 100 ppm(<10 kHz) 50 ppm(>10 kHz) | |||
resolution | 0.1 Hz or 4 bits,take the greater one | ||||
Amplitude | Output range | 10mV~7Vp-p(high impedance) | |||
5mV~3.5Vp-p(50Ω) | |||||
DC offset | range | ±3.5 V,high impedance | |||
±1.75 V,50 Ω | |||||
resolution | 100 μV or 3 bits,take the greater one | ||||
accuracy | 2%(1 kHz) | ||||
Output impedance | 50 Ω | ||||
Logic analyzer | |||||
Logic analyzer | Input impedance,DC coupling | Digital channel | |||
(300KΩ±2%) ,(8 pF±3 pF) | |||||
Threshold value | 4 channels in 1 group adjustable threshold value | ||||
Threshold option | TTL(1.4 V) | ||||
5.0 V CMOS(+2.5 V) | |||||
3.3 V CMOS(+1.65 V) | |||||
2.5 V CMOS(+1.25 V) | |||||
1.8 V CMOS(+0.9 V) | |||||
ECL(-1.3 V) | |||||
PECL(+3.7 V) | |||||
LVDS(+1.2 V) | |||||
0V | |||||
User-defined | |||||
Threshold range | ±7.0V,10mV step by step | ||||
Threshold accuracy | ±(100mV+3% threshold setting) | ||||
Dynamic range | ±5.0V+ threshold | ||||
Minimum voltage swing | 500 mVpp | ||||
Vertical resolution | 1 bit | ||||
General specifications | |||||
Display | Display type | 7"TFT diagonal liquid crystal | |||
Display resolution | 800(horizontal)*480(vertical)pixels | ||||
Display colour | 16 million colours(24 bits true colour) | ||||
Persistence time | minimum、1 s、5 s、10 s、30S、infinite | ||||
Display type | dot、vector | ||||
Display mode | Color temperature,gray scale | ||||
Display brightness | adjustable | ||||
Grid type | adjustable | ||||
Grid brightness | adjustable | ||||
Interface | Standard interface | USB Host,USB Device,LAN, EDU signal WIFI | |||
Aux(trigger output/PassFail )--only EDU with this interface | |||||
Optional interface | PassFail | ||||
UART | |||||
HDMI | |||||
General specifications | Probe compensator output | ||||
Output voltage ,typical | about 2Vpp input≥1MΩ load | ||||
frequency、typical | 1kHz | ||||
Power supply | 100-120VACRMS(±10%),45Hz to 440Hz,CATⅡ | ||||
120-240VACRMS(±10%),45Hz to 66Hz,CATⅡ | |||||
Power consumption | <30W | ||||
Fuse | T,3.15A,250V,5x20mm | ||||
Operating temperature | 0~50 °C (32~122 °F) | ||||
Storage temperature | -40~+71 °C (-40~159.8 °F) | ||||
Humidity | ≤+104℉(≤+40°C): ≤90% relative humidity | ||||
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity | |||||
Cooling method | convection | ||||
Altitude | Operating and nonoperating | 3,000m(10,000 feet) | |||
Mechanical shock | Random vibration | 0.31 g RMS from 50Hz to 500Hz, | |||
10 minutes on each axis | |||||
Nonoperating | 2.46g RMS from 5Hz to 500Hz, | ||||
10 minutes on each axis | |||||
Operating | 50g,11ms,half-sine wave | ||||
Mechanical | Size | 318 x 140 x 150mm(length x width x height) | |||
Weight |
2900g |
Oscilloscope function | |||||
Acquisition | Real-time sample rate | 1 GSa/s(single channel) 500 MSa/s(two channels) | |||
250 MSa/s(three/four channels); | |||||
Note:digital channel 12,34 open at the same time,it is considered as one channel | |||||
Peak detection | Analog channel 4ns | ||||
Note:digital channels don’t support | |||||
Average mode | Analog channel | ||||
All channels reach N time samples at the same time,N can be selected from 2、4、8、16、32、 64、128、256、512 and 1024. |
|||||
Note:digital channels don’t support | |||||
High resolution | Up to 12bit | ||||
Note:digital channels don’t support | |||||
Minimum test pulse width | 8ns | ||||
Memory depth | Single channel 64M | ||||
Two channels 32M | |||||
Three,four channels 16M | |||||
Input | Channel quantity | 4 analog channels | |||
Note:data channels can’t be opened | |||||
3 analog channels | |||||
Note:digital channel LA1/LA2/LA3/LA4/LA1LA2/LA3LA4 | |||||
2 analog channels | |||||
Note:digital channels infinitize | |||||
1 analog channel | |||||
Note:digital channels infinitize | |||||
0 analog channel | |||||
Note:digital channels infinitize | |||||
Input coupling | DC、AC or GND | ||||
Note:digital channels don’t support | |||||
Input impedance,DC coupling | Analog channel | ||||
25pF±3 pF,1MΩ±2% | |||||
Digital channel | |||||
(300KΩ±2%) ,(8 pF±3 pF) | |||||
Supported probe attenuation factor | Analog channel 1X、10X、100X、1000X | ||||
Voltage classes | 300V CAT II | ||||
Maximum input voltage | Analog channel 300VRMS (10X) | ||||
Digital channel -25V~25V | |||||
Horizontal | Waveform interpolation | (sin x)/x | |||
Maximum record length | Single channel maximum 64M | ||||
Two channels maximum32M | |||||
three/four channels maximum 16M | |||||
Horizontal scale range | DSO6084 DSO6104 | ||||
2ns/div~100s/div 1, 2, 5 step by step | |||||
Time base mode | Y-T、X-Y、Roll | ||||
X-Y number | Channel 1,2 1 XY channel、channel3 4 1 XY channel | ||||
Zero offset | ±0.5 div× minimum time base gear | ||||
Sample Rate and | ±25ppm | ||||
Delay Time Accuracy | |||||
Clock drifting | ≤±5 ppm/year | ||||
Delta Time Measurement | single,“acquisition”mode | ||||
Accuracy | |||||
(Full Bandwidth) | ±(1 sample interval+100ppm×reading+0.6ns) | ||||
>16 times averages | |||||
±(1 sample interval+100ppm×reading+0.4ns) | |||||
Sample interval=sec/div÷200 | |||||
Vertical | Bandwidth(-3db) | DPO6084 | DPO6104 | DPO6204 | |
80MHz | 100MHz | 200MHz | |||
Vertical resolution | Analog channel 8bit | ||||
Digital channel 1bit | |||||
Vertical scale range | nput BNC position is 500μV/div~10V/div | ||||
Position range | 500μV/div to 120mV/div,±1V | ||||
122mV/div to 1.2V/div,±10V | |||||
1.22V/div to 10V/div,±50V | |||||
Optional analog bandwidth limitation | Typical 20MHz | ||||
Bass response(-3db) | In BNC position is≤10Hz | ||||
Rising time in BNC position,typical | DPO6084 | DPO6104 | DPO6204 | ||
≤4.4ns | ≤3.5ns | ≤1.8ns | |||
Vertical gain accuracy |
In “normal” or “average” acquisition mode,the accuracy o f 10V/div to 10mV/div is ±3% |
||||
In “normal” or “average” acquisition mode,the accuracy of 5mV/div to 500uV/div is ±4%. |
|||||
DC offset accuracy | ±0.1 div±2 mV±1% offset value | ||||
The isolation of channels | DC maximum bandwidth:>40 dB | ||||
Note: Bandwidth reduced to 6MHz when using a 1X probe | |||||
Trigger | Trigger level range | ±5 divisions from the center of the screen | |||
Trigger mode | auto、general、single | ||||
Level | CH1~CH4 | ±4 divisions from the center of the screen | |||
Holdoff range | 8ns~10s | ||||
Trigger level accuracy | CH1~CH4 |
0.2 div×volts/div within ±4 divisions from the center of the screen |
|||
Edge trigger | Slope | Rising edge,falling edge,rising or falling edge | |||
Signal source | CH1~CH4, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Pulse width trigger | Polarity | Positive polarity,negative polarity | |||
Condition(When) | <,>, !=, = | ||||
Signal source | CH1~CH4, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Pulse width range | 8ns ~ 10s | ||||
Video trigger | Signal standard | NTSC, PAL | |||
Signal source | CH1~CH4 | ||||
Synchronization | Scanning line、line number、odd field、even field、all field | ||||
Slope trigger | Slope | rise,fal | |||
condition(When) | <,>, !=, = | ||||
Signal source | CH1 ~ CH4 | ||||
Time range | 8ns ~ 10s | ||||
Overtime trigger | Signal source | CH1~CH4, | |||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Polarity | Positive polarity,negative polarity | ||||
Time range | 8ns ~ 10s | ||||
Window trigger | Signal source | CH1~CH4LA1~LA4 | |||
Pattern trigger | Pattern | 0:low level;1:high level;X:ignore; | |||
Level(signal source) | CH1~CH4 | ||||
Interval trigger | Slope | rise,fall | |||
condition(When) | <,>, !=, = | ||||
Signal source | CH1~CH4, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Time rangeTime range | 8ns ~ 10s | ||||
Delay trigger | Edge type | Rising edge,falling edge | |||
Signal source | CH1~CH4 | ||||
condition(When) | <,>, !=, = | ||||
Time range | 8ns ~ 10s | ||||
Set up hold trigger | Edge type | Rising edge,falling edge | |||
Signal source | CH1~CH4 | ||||
condition(When) | <,>, !=, = | ||||
Time range | 8ns ~ 10s | ||||
Runt trigger | Polarity | Positive polarity,negative polarity | |||
Condition(When) | <,>, !=, = | ||||
Signal source | CH1~CH4 | ||||
Time range | 8ns ~ 10s | ||||
UART trigger | condition(When) | start、stop、data、odd-even check、reception error | |||
Signal source(RX/TX) | CH1~CH4, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Data length | 1 byte | ||||
Data bit width | 5 bit, 6 bit, 7 bit, 8 bit | ||||
Odd-even check | none、odd、even | ||||
Free level | high、low | ||||
Baud rate (optional) |
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600 /115200/230400/380400/460400 bit/s |
||||
Baud rate(user-defined) | 300bit/s~334000bit/s | ||||
LIN trigger | condition(When) |
Interval field、synchronization field、ID field、synchronization error 、identifier、IDand data |
|||
Signal source | CH1~CH4, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Baud rate(optional) |
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600 /115200/230400/380400/460400 bit/s |
||||
Baud rate(user-defined) | 300bit/s~334000bit/s | ||||
CAN trigger | condition(When) | Start bit、remote frame ID、data frame ID、frame ID、remote frame data、data frame data、wrong frame、all errors、answer error、overload frame | |||
Signal source | CH1~CH4 | ||||
Data format | Hex(hexadecimal) | ||||
Baud rate(optional) | 10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000 | ||||
Baud rate(user-defined) | 5kbit/s~1Mbit/s | ||||
SPI trigger | Signal source | CH1~CH4, | |||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Data bit width | 4, 8, 16, 24, 32 | ||||
IIC trigger | Signal source (SDA/SCL) | CH1~CH4, | |||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Data index | 0~7 | ||||
opportunity(condition) | Start bit、stop bit、no response、address、data、restart | ||||
Measurement | cursor | Voltage difference between cursors △V | |||
Time difference between cursors △T | |||||
Reciprocal of △T,in Hertz(1/△T) | |||||
Auto measurement | frequency、period、mean、peak-to-peak、RMS、minimum、mixmum、rising time、falling time、+ width、- width、base、top、middle、amplitude、overshoot、preshoot、rising edge phase difference、falling edge phase difference、+ duty、- duty、period mean、PRMS、FOVshoot、ROVshoot、BWIDTH、FRF、FFR、LRR、LRF、LFR、LFF | ||||
DVM | Data source | CH1,CH2,CH3,CH4 | |||
Measurement type | DC effective value | ||||
AC effective value | |||||
DC | |||||
Frequency meter | hardware 6 bits frequency meter | ||||
Arbitrary waveform generator | |||||
Arbitrary waveform generator(for oscilloscopes with signal source channels) | Channel number | 2/3channels | |||
Sample rate | 200MSa/s | ||||
Vertical resolution | 12 bits | ||||
Maximum frequency | 25 MHz | ||||
Standard waveforms | sin、square、pulse、triangular,noise、DC | ||||
Sinc、index、semi-distortion、lorentz,dual tone multiple frequency,gauss,ECG | |||||
Arbitrary waveform | Arb1,Arb2,Arb3,Arb4 | ||||
Sin | Frequency range | 0.1Hz~25MHz | |||
square/pulse | Frequency range | 0.1Hz~10MHz | |||
triangular wave | Frequency range | 0.1Hz~1MHz | |||
Sampling wave | Frequency range | 0.1Hz~1MHz | |||
Index | Frequency range | 0.1Hz~5MHz | |||
Semi-distortion | Frequency range | 0.1Hz~1MHz | |||
lorentz | Frequency range | 0.1Hz~1MHz | |||
Dual tone multiple frequency | Frequency range | 0.1Hz~1MHz | |||
Gauss | Frequency range | 0.1Hz~1MHz | |||
ECG | Frequency range | 0.1Hz~1MHz | |||
Arbitrary wave | Frequency range | 0.1 Hz to 10 MHz | |||
Waveform length | 8KSa | ||||
Frequency | accuracy | 100 ppm(<10 kHz) 50 ppm(>10 kHz) | |||
resolution | 0.1 Hz or 4 bits,take the greater one | ||||
Amplitude | Output range | 10mV~7Vp-p(high impedance) | |||
5mV~3.5Vp-p(50Ω) | |||||
DC offset | range | ±3.5 V,high impedance | |||
±1.75 V,50 Ω | |||||
resolution | 100 μV or 3 bits,take the greater one | ||||
accuracy | 2%(1 kHz) | ||||
Output impedance | 50 Ω | ||||
Logic analyzer | |||||
Logic analyzer | Input impedance,DC coupling | Digital channel | |||
(300KΩ±2%) ,(8 pF±3 pF) | |||||
Threshold value | 4 channels in 1 group adjustable threshold value | ||||
Threshold option | TTL(1.4 V) | ||||
5.0 V CMOS(+2.5 V) | |||||
3.3 V CMOS(+1.65 V) | |||||
2.5 V CMOS(+1.25 V) | |||||
1.8 V CMOS(+0.9 V) | |||||
ECL(-1.3 V) | |||||
PECL(+3.7 V) | |||||
LVDS(+1.2 V) | |||||
0V | |||||
User-defined | |||||
Threshold range | ±7.0V,10mV step by step | ||||
Threshold accuracy | ±(100mV+3% threshold setting) | ||||
Dynamic range | ±5.0V+ threshold | ||||
Minimum voltage swing | 500 mVpp | ||||
Vertical resolution | 1 bit | ||||
General specifications | |||||
Display | Display type | 7"TFT diagonal liquid crystal | |||
Display resolution | 800(horizontal)*480(vertical)pixels | ||||
Display colour | 16 million colours(24 bits true colour) | ||||
Persistence time | minimum、1 s、5 s、10 s、30S、infinite | ||||
Display type | dot、vector | ||||
Display mode | Color temperature,gray scale | ||||
Display brightness | adjustable | ||||
Grid type | adjustable | ||||
Grid brightness | adjustable | ||||
Interface | Standard interface | USB Host,USB Device,LAN, EDU signal WIFI | |||
Aux(trigger output/PassFail )--only EDU with this interface | |||||
Optional interface | PassFail | ||||
UART | |||||
HDMI | |||||
General specifications | Probe compensator output | ||||
Output voltage ,typical | about 2Vpp input≥1MΩ load | ||||
frequency、typical | 1kHz | ||||
Power supply | 100-120VACRMS(±10%),45Hz to 440Hz,CATⅡ | ||||
120-240VACRMS(±10%),45Hz to 66Hz,CATⅡ | |||||
Power consumption | <30W | ||||
Fuse | T,3.15A,250V,5x20mm | ||||
Operating temperature | 0~50 °C (32~122 °F) | ||||
Storage temperature | -40~+71 °C (-40~159.8 °F) | ||||
Humidity | ≤+104℉(≤+40°C): ≤90% relative humidity | ||||
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity | |||||
Cooling method | convection | ||||
Altitude | Operating and nonoperating | 3,000m(10,000 feet) | |||
Mechanical shock | Random vibration | 0.31 g RMS from 50Hz to 500Hz, | |||
10 minutes on each axis | |||||
Nonoperating | 2.46g RMS from 5Hz to 500Hz, | ||||
10 minutes on each axis | |||||
Operating | 50g,11ms,half-sine wave | ||||
Mechanical | Size | 318 x 140 x 150mm(length x width x height) | |||
Weight | 2900g |
DPO6004B Series:
|
|
|
|
|
DPO6004C Series:
|
|
|
|
|
|
|
MPO6004D Series:
|
|
|
|
|
|
|
|
|
|
Model | Description | View Manual |
HT300B,HT500B | 350Mhz,500MHz,10:1/1:1 | Download |
HT100B,HT200B | 100MHz,200MHz,10:1/1:1 | Download |
PP-80,PP-150,PP-200 | 60MHz,100MHz,200MHz,10:1/1:1 | Download |
PP80B, PP150B, PP200B, PP300B | 80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1 | Download |
PP-90 | 80MHz,10:1/1:1 | Download |
T3100 | 100MHz,100:1,2000VDC Peak AC | Download |
Model | Description | View Manual |
CC65 | AC/DC: 0 – 20KHz,20mA to 65A DC | Download |
CC650 | AC:0 – 5KHz,1A - 500A ,DC:1A - 650A | Download |
CC800 | AC:0 – 5KHz,1A - 500A ,DC:1A - 800A | Download |
