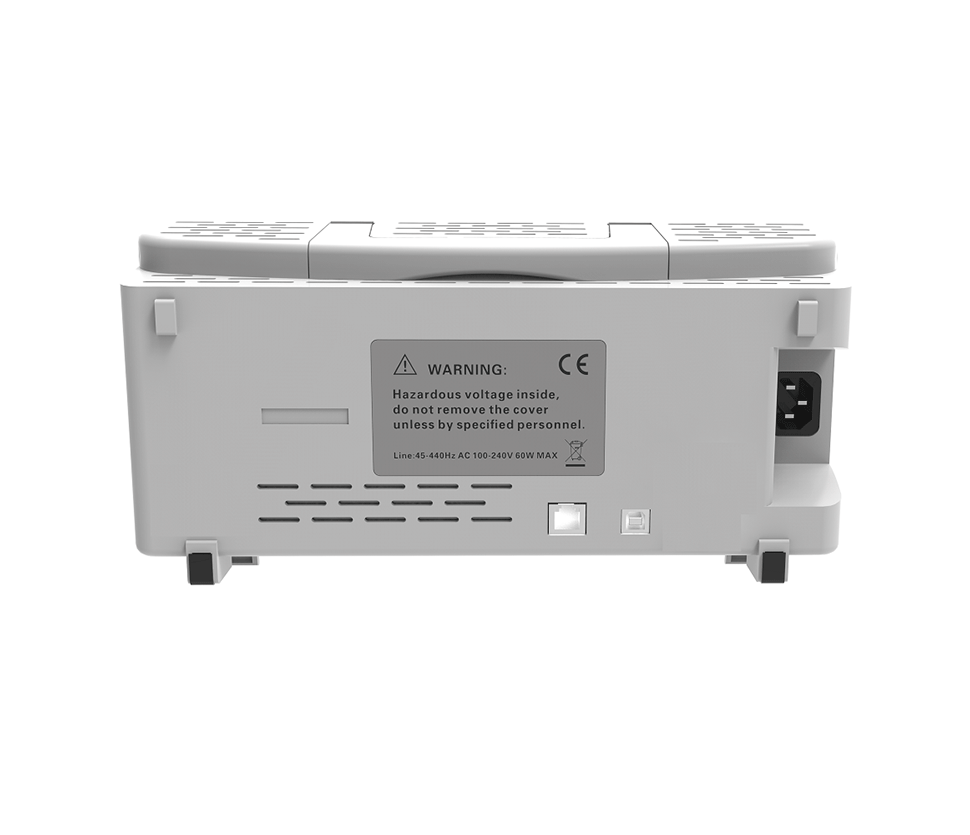

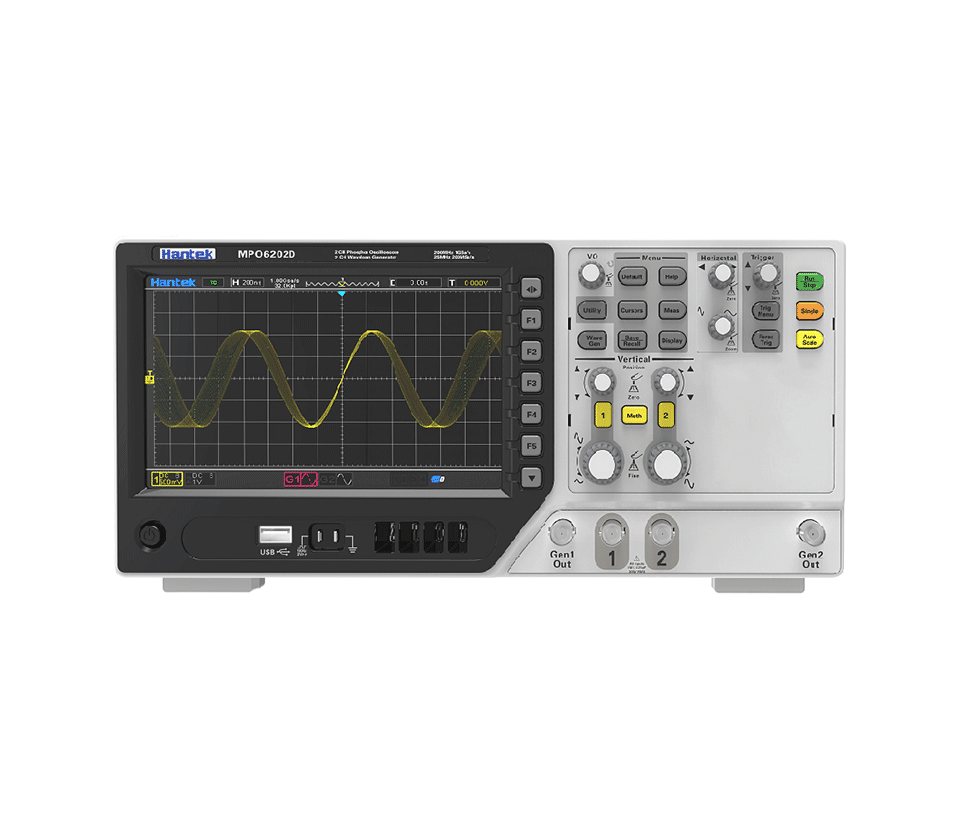

★Six in one oscilloscope:2 channels oscilloscope+16 channels logic analyzer+2 channels waveform generator+digital voltmeter+serial protocol analyzer+FFT spectral analysis.
★60 000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode) waveform capture rate.
★Segmented acquisition function,support to capture up to 80,000 sections. 256 grade color display.
★Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers.Supply 5 serial decoding option.
★1 GSa/s real-time sample rate of the analog channels; 64 Mpts standardmemory depth.
★2-channe signal source,13 kinds of waveforms inside,4 sets of arbitrary waveforms,200M sample rate,8Kpts waveform length.
★1 GSa/s real-time sample rate of the digital channels.
★200 MHz, 100 MHz and 80 MHz analog channel bandwidth.
★Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.
★7 inch WVGA capacitive touch screen,(800*480) TFT , with ultra-wide screen, vivid picture, lowpower consumption and long service life.
★Auto measurement of 42 kinds of waveform parameters (with statistics).
★5 bits digital voltage meter and 6 bits hardware frequency indicator function.
★Bode diagram function(the oscilloscopes with signal source function can use).
★Multiple waveform math operation functions【MATH】.Event search function.
★Standard interfaces: USB Device, USB Host, LAN,Optional interfaces: HDMI ,UART
★Conform
to LXI CORE 2011 DEVICE class instrument standards; enable quick,
economic and efficient creation and reconfiguration of test system.Supports
remote command control.
Model
2-channel oscilloscope+2CH AFG + 16CH LA
Digital fluorescence display and color temperature display
Bode diagram function
256 grade color display
2-channel 25M waveform/Arb generator
Waveform capture rateup to 400,000
FFT function Scales show
Segmented acquisition and history waveform
16-channel digital channel
64M memory depth
7 inch capacitive touch screen
5 bits digital voltage meter , 6 bits frequency indicator
FFT function
Parameters
All channels reach N time samples at the same
time,N can be selected from
2、4、8、16、32、 64、128、256、512 and 1024.
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/11520
0/230400/380400/460400
bit/s
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/11520
0/230400/380400/460400
bit/s
10000,
20000, 33300, 500000, 62500, 83300, 100000, 125000
, 250000, 500000, 800000,
1000000
Oscilloscope function
Acquisition
Real-time
sample rate
1
GSa/s(single channel) 500 MSa/s(two channels)
Note:digital channel 12,34 open at the same
time,it is considered as one channel
Peak detection
Analog
channel 4ns
Note:digital channels don’t support
Average mode
Analog
channel
Note:digital channels don’t support
High resolution
Up to
12bit
Note:digital channels don’t support
Minimum test pulse width
8ns
Memory depth
Single
channel 64M
Two channels 32M
Input
Channel
quantity
4
analog channels
Note:data channels can’t be opened
3 analog channels
Note:digital channel
LA1/LA2/LA3/LA4/LA1LA2/LA3LA4
2 analog channels
Note:digital channels infinitize
1 analog channel
Note:digital channels infinitize
0 analog channel
Note:digital channels infinitize
Input coupling
DC、AC
or GND
Note:digital channels don’t support
Input impedance,DC coupling
Analog
channel
25pF±3 pF,1MΩ±2%
Digital channel
(300KΩ±2%) ,(8 pF±3 pF)
Supported probe attenuation factor
Analog
channel 1X、10X、100X、1000X
Voltage classes
300V
CAT II
Maximum input voltage
Analog
channel 300VRMS (10X)
Digital channel -25V~25V
Horizontal
Waveform
interpolation
(sin
x)/x
Maximum record length
Single
channel maximum 64M
Two channels maximum32M
three/four channels maximum 16M
Horizontal scale range
DSO6084
DSO6104
2ns/div~100s/div 1, 2, 5 step by step
Time base mode
Y-T、X-Y、Roll
X-Y number
Channel
1,2 1 XY channel、channel3 4 1 XY channel
Zero offset
±0.5
div× minimum time base gear
Sample Rate and
±25ppm
Delay Time Accuracy
Clock drifting
≤±5
ppm/year
Delta Time Measurement
single,“acquisition”mode
Accuracy
(Full Bandwidth)
±(1
sample interval+100ppm×reading+0.6ns)
>16 times averages
±(1 sample interval+100ppm×reading+0.4ns)
Sample interval=sec/div÷200
Vertical
Bandwidth(-3db)
DPO6082
DPO6102
DPO6202
80MHz
100MHz
200MHz
Vertical resolution
Analog
channel 8bit
Digital channel 1bit
Vertical scale range
nput
BNC position is 500μV/div~10V/div
Position range
500μV/div
to 120mV/div,±1V
122mV/div to 1.2V/div,±10V
1.22V/div to 10V/div,±50V
Optional analog bandwidth limitation
Typical
20MHz
Bass response(-3db)
In
BNC position is≤10Hz
Rising time in BNC position,typical
DPO6082
DPO6102
DPO6202
≤4.4ns
≤3.5ns
≤1.8ns
Vertical gain accuracy
In
“normal” or “average” acquisition mode,the accuracy of 10V/div to 10mV/div is
±3%
In “normal” or “average” acquisition mode,the
accuracy of 5mV/div to 500uV/div is ±4%.
DC offset accuracy
±0.1
div±2 mV±1% offset value
The isolation of channels
DC
maximum bandwidth:>40 dB
Note: Bandwidth reduced to 6MHz when using a 1X probe
Trigger
Trigger
level range
±5
divisions from the center of the screen
Trigger mode
auto、general、single
Level
CH1~CH2
±4
divisions from the center of the screen
Holdoff range
8ns~10s
Trigger level accuracy
CH1~CH2
0.2
div×volts/div within ±4 divisions from the center of the screen
Edge trigger
Slope
Rising
edge,falling edge,rising or falling edge
Signal source
CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Pulse width trigger
Polarity
Positive
polarity,negative polarity
Condition(When)
<,>,
!=, =
Signal source
CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Pulse width range
8ns ~
10s
Video trigger
Signal
standard
NTSC,
PAL
Signal source
CH1~CH2
Synchronization
Scanning
line、line number、odd field、even field、all field
Slope trigger
Slope
rise,fal
condition(When)
<,>,
!=, =
Signal source
CH1 ~
CH2
Time range
8ns ~
10s
Overtime trigger
Signal
source
CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Polarity
Positive
polarity,negative polarity
Time range
8ns ~
10s
Window trigger
Signal
source
CH1~CH2LA1~LA4
Pattern trigger
Pattern
0:low
level;1:high level;X:ignore;
Level(signal source)
CH1~CH2
Interval trigger
Slope
rise,fall
condition(When)
<,>,
!=, =
Signal source
CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Time rangeTime range
8ns ~
10s
Delay trigger
Edge
type
Rising
edge,falling edge
Signal source
CH1~CH2
condition(When)
<,>,
!=, =
Time range
8ns ~
10s
Set up hold trigger
Edge
type
Rising
edge,falling edge
Signal source
CH1~CH2
condition(When)
<,>,
!=, =
Time range
8ns ~
10s
Runt trigger
Polarity
Positive
polarity,negative polarity
Condition(When)
<,>,
!=, =
Signal source
CH1~CH2
Time range
8ns ~
10s
UART trigger
condition(When)
start、stop、data、odd-even
check、reception error
Signal source(RX/TX)
CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Data format
Hex(hexadecimal)
Data length
1
byte
Data bit width
5
bit, 6 bit, 7 bit, 8 bit
Odd-even check
none、odd、even
Free level
high、low
Baud rate (optional)
Baud rate(user-defined)
300bit/s~334000bit/s
LIN trigger
condition(When)
Interval
field、synchronization field、ID field、synchronization error、identifier、IDand
data
Signal source
CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Data format
Hex(hexadecimal)
Baud rate(optional)
Baud rate(user-defined)
300bit/s~334000bit/s
CAN trigger
condition(When)
Start
bit、remote frame ID、data frame ID、frame ID、remote frame data、data frame
data、wrong frame、all errors、answer error、overload frame
Signal source
CH1~CH2
Data format
Hex(hexadecimal)
Baud rate(optional)
Baud rate(user-defined)
5kbit/s~1Mbit/s
SPI trigger
Signal
source
CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Data format
Hex(hexadecimal)
Data bit width
4, 8,
16, 24, 32
IIC trigger
Signal
source (SDA/SCL)
CH1~CH2,
D1.0~D1.3,
D2.0~D2.3,
D3.0~D3.3,
D4.0~D4.3
Data format
Hex(hexadecimal)
Data index
0~7
opportunity(condition)
Start
bit、stop bit、no response、address、data、restart
Measurement
cursor
Voltage
difference between cursors △V
Time difference between cursors △T
Reciprocal of △T,in Hertz(1/△T)
Auto measurement
frequency、period、mean、peak-to-peak、RMS、minimum、mixmum、rising
time、falling time、+ width、-
width、base、top、middle、amplitude、overshoot、preshoot、rising edge phase
difference、falling edge phase difference、+ duty、- duty、period
mean、PRMS、FOVshoot、ROVshoot、BWIDTH、FRF、FFR、LRR、LRF、LFR、LFF
DVM
Data
source
CH1,CH2
Measurement type
DC
effective value
AC effective value
DC
Frequency meter
hardware
6 bits frequency meter
Arbitrary waveform generator
Arbitrary waveform generator(for oscilloscopes
with signal source channels)
Channel
number
2
channels
Sample rate
200MSa/s
Vertical resolution
12
bits
Maximum frequency
25
MHz
Standard waveforms
sin、square、pulse、triangular,noise、DC
Sinc、index、semi-distortion、lorentz,dual tone
multiple frequency,gauss,ECG
Arbitrary waveform
Arb1,Arb2,Arb3,Arb4
Sin
Frequency
range
0.1Hz~25MHz
square/pulse
Frequency
range
0.1Hz~10MHz
triangular wave
Frequency
range
0.1Hz~1MHz
Sampling wave
Frequency
range
0.1Hz~1MHz
Index
Frequency
range
0.1Hz~5MHz
Semi-distortion
Frequency
range
0.1Hz~1MHz
lorentz
Frequency
range
0.1Hz~1MHz
Dual tone multiple frequency
Frequency
range
0.1Hz~1MHz
Gauss
Frequency
range
0.1Hz~1MHz
ECG
Frequency
range
0.1Hz~1MHz
Arbitrary wave
Frequency
range
0.1
Hz to 10 MHz
Waveform length
8KSa
Frequency
accuracy
100
ppm(<10 kHz) 50 ppm(>10 kHz)
resolution
0.1
Hz or 4 bits,take the greater one
Amplitude
Output
range
10mV~7Vp-p(high
impedance)
5mV~3.5Vp-p(50Ω)
DC offset
range
±3.5
V,high impedance
±1.75 V,50 Ω
resolution
100
μV or 3 bits,take the greater one
accuracy
2%(1
kHz)
Output impedance
50 Ω
Logic analyzer
Logic analyzer
Input
impedance,DC coupling
Digital
channel
(300KΩ±2%) ,(8 pF±3 pF)
Threshold value
4
channels in 1 group adjustable threshold value
Threshold option
TTL(1.4
V)
5.0 V CMOS(+2.5 V)
3.3 V CMOS(+1.65 V)
2.5 V CMOS(+1.25 V)
1.8 V CMOS(+0.9 V)
ECL(-1.3 V)
PECL(+3.7 V)
LVDS(+1.2 V)
0V
User-defined
Threshold range
±7.0V,10mV
step by step
Threshold accuracy
±(100mV+3%
threshold setting)
Dynamic range
±5.0V+
threshold
Minimum voltage swing
500
mVpp
Vertical resolution
1 bit
General specifications
Display
Display
type
7"TFT diagonal liquid crystal
Display resolution
800(horizontal)*480(vertical)pixels
Display colour
16
million colours(24 bits true colour)
Persistence time
minimum、1
s、5 s、10 s、30S、infinite
Display type
dot、vector
Display mode
Color
temperature,gray scale
Display brightness
adjustable
Grid type
adjustable
Grid brightness
adjustable
Interface
Standard
interface
USB
Host,USB Device,LAN, EDU signal WIFI
Aux(trigger output/PassFail )--only EDU with
this interface
Optional interface
PassFail
UART
HDMI
General specifications
Probe compensator output
Output voltage ,typical
about
2Vpp input≥1MΩ load
frequency、typical
1kHz
Power supply
100-120VACRMS(±10%),45Hz
to 440Hz,CATⅡ
120-240VACRMS(±10%),45Hz to 66Hz,CATⅡ
Power consumption
<30W
Fuse
T,3.15A,250V,5x20mm
Operating temperature
0~50
°C (32~122 °F)
Storage temperature
-40~+71
°C (-40~159.8 °F)
Humidity
≤+104℉(≤+40°C):
≤90% relative humidity
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
Cooling method
convection
Altitude
Operating
and nonoperating
3,000m(10,000
feet)
Mechanical shock
Random
vibration
0.31
g RMS from 50Hz to
500Hz,
10 minutes on each axis
Nonoperating
2.46g RMS from 5Hz to 500Hz,
10 minutes on each axis
Operating
50g,11ms,half-sine
wave
Mechanical
Size
318 x
140 x 150mm(length x width x height)
Weight
2900g
Oscilloscope function | |||||
Acquisition | Real-time sample rate | 1 GSa/s(single channel) 500 MSa/s(two channels) | |||
Note:digital channel 12,34 open at the same time,it is considered as one channel | |||||
Peak detection | Analog channel 4ns | ||||
Note:digital channels don’t support | |||||
Average mode | Analog channel | ||||
All channels reach N time samples at the same time,N can be selected from 2、4、8、16、32、 64、128、256、512 and 1024. |
|||||
Note:digital channels don’t support | |||||
High resolution | Up to 12bit | ||||
Note:digital channels don’t support | |||||
Minimum test pulse width | 8ns | ||||
Memory depth | Single channel 64M | ||||
Two channels 32M | |||||
Input | Channel quantity | 4 analog channels | |||
Note:data channels can’t be opened | |||||
3 analog channels | |||||
Note:digital channel LA1/LA2/LA3/LA4/LA1LA2/LA3LA4 | |||||
2 analog channels | |||||
Note:digital channels infinitize | |||||
1 analog channel | |||||
Note:digital channels infinitize | |||||
0 analog channel | |||||
Note:digital channels infinitize | |||||
Input coupling | DC、AC or GND | ||||
Note:digital channels don’t support | |||||
Input impedance,DC coupling | Analog channel | ||||
25pF±3 pF,1MΩ±2% | |||||
Digital channel | |||||
(300KΩ±2%) ,(8 pF±3 pF) | |||||
Supported probe attenuation factor | Analog channel 1X、10X、100X、1000X | ||||
Voltage classes | 300V CAT II | ||||
Maximum input voltage | Analog channel 300VRMS (10X) | ||||
Digital channel -25V~25V | |||||
Horizontal | Waveform interpolation | (sin x)/x | |||
Maximum record length | Single channel maximum 64M | ||||
Two channels maximum32M | |||||
three/four channels maximum 16M | |||||
Horizontal scale range | DSO6084 DSO6104 | ||||
2ns/div~100s/div 1, 2, 5 step by step | |||||
Time base mode | Y-T、X-Y、Roll | ||||
X-Y number | Channel 1,2 1 XY channel、channel3 4 1 XY channel | ||||
Zero offset | ±0.5 div× minimum time base gear | ||||
Sample Rate and | ±25ppm | ||||
Delay Time Accuracy | |||||
Clock drifting | ≤±5 ppm/year | ||||
Delta Time Measurement | single,“acquisition”mode | ||||
Accuracy | |||||
(Full Bandwidth) | ±(1 sample interval+100ppm×reading+0.6ns) | ||||
>16 times averages | |||||
±(1 sample interval+100ppm×reading+0.4ns) | |||||
Sample interval=sec/div÷200 | |||||
Vertical | Bandwidth(-3db) | DPO6082 | DPO6102 | DPO6202 | |
80MHz | 100MHz | 200MHz | |||
Vertical resolution | Analog channel 8bit | ||||
Digital channel 1bit | |||||
Vertical scale range | nput BNC position is 500μV/div~10V/div | ||||
Position range | 500μV/div to 120mV/div,±1V | ||||
122mV/div to 1.2V/div,±10V | |||||
1.22V/div to 10V/div,±50V | |||||
Optional analog bandwidth limitation | Typical 20MHz | ||||
Bass response(-3db) | In BNC position is≤10Hz | ||||
Rising time in BNC position,typical | DPO6082 | DPO6102 | DPO6202 | ||
≤4.4ns | ≤3.5ns | ≤1.8ns | |||
Vertical gain accuracy | In “normal” or “average” acquisition mode,the accuracy of 10V/div to 10mV/div is ±3% | ||||
In “normal” or “average” acquisition mode,the accuracy of 5mV/div to 500uV/div is ±4%. | |||||
DC offset accuracy | ±0.1 div±2 mV±1% offset value | ||||
The isolation of channels | DC maximum bandwidth:>40 dB | ||||
Note: Bandwidth reduced to 6MHz when using a 1X probe | |||||
Trigger | Trigger level range | ±5 divisions from the center of the screen | |||
Trigger mode | auto、general、single | ||||
Level | CH1~CH2 | ±4 divisions from the center of the screen | |||
Holdoff range | 8ns~10s | ||||
Trigger level accuracy | CH1~CH2 | 0.2 div×volts/div within ±4 divisions from the center of the screen | |||
Edge trigger | Slope | Rising edge,falling edge,rising or falling edge | |||
Signal source | CH1~CH2, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Pulse width trigger | Polarity | Positive polarity,negative polarity | |||
Condition(When) | <,>, !=, = | ||||
Signal source | CH1~CH2, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Pulse width range | 8ns ~ 10s | ||||
Video trigger | Signal standard | NTSC, PAL | |||
Signal source | CH1~CH2 | ||||
Synchronization | Scanning line、line number、odd field、even field、all field | ||||
Slope trigger | Slope | rise,fal | |||
condition(When) | <,>, !=, = | ||||
Signal source | CH1 ~ CH2 | ||||
Time range | 8ns ~ 10s | ||||
Overtime trigger | Signal source | CH1~CH2, | |||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Polarity | Positive polarity,negative polarity | ||||
Time range | 8ns ~ 10s | ||||
Window trigger | Signal source | CH1~CH2LA1~LA4 | |||
Pattern trigger | Pattern | 0:low level;1:high level;X:ignore; | |||
Level(signal source) | CH1~CH2 | ||||
Interval trigger | Slope | rise,fall | |||
condition(When) | <,>, !=, = | ||||
Signal source | CH1~CH2, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Time rangeTime range | 8ns ~ 10s | ||||
Delay trigger | Edge type | Rising edge,falling edge | |||
Signal source | CH1~CH2 | ||||
condition(When) | <,>, !=, = | ||||
Time range | 8ns ~ 10s | ||||
Set up hold trigger | Edge type | Rising edge,falling edge | |||
Signal source | CH1~CH2 | ||||
condition(When) | <,>, !=, = | ||||
Time range | 8ns ~ 10s | ||||
Runt trigger | Polarity | Positive polarity,negative polarity | |||
Condition(When) | <,>, !=, = | ||||
Signal source | CH1~CH2 | ||||
Time range | 8ns ~ 10s | ||||
UART trigger | condition(When) | start、stop、data、odd-even check、reception error | |||
Signal source(RX/TX) | CH1~CH2, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Data length | 1 byte | ||||
Data bit width | 5 bit, 6 bit, 7 bit, 8 bit | ||||
Odd-even check | none、odd、even | ||||
Free level | high、low | ||||
Baud rate (optional) |
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/11520 0/230400/380400/460400 bit/s |
||||
Baud rate(user-defined) | 300bit/s~334000bit/s | ||||
LIN trigger | condition(When) | Interval field、synchronization field、ID field、synchronization error、identifier、IDand data | |||
Signal source | CH1~CH2, | ||||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Baud rate(optional) |
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/11520 0/230400/380400/460400 bit/s |
||||
Baud rate(user-defined) | 300bit/s~334000bit/s | ||||
CAN trigger | condition(When) | Start bit、remote frame ID、data frame ID、frame ID、remote frame data、data frame data、wrong frame、all errors、answer error、overload frame | |||
Signal source | CH1~CH2 | ||||
Data format | Hex(hexadecimal) | ||||
Baud rate(optional) |
10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000 , 250000, 500000, 800000, 1000000 |
||||
Baud rate(user-defined) | 5kbit/s~1Mbit/s | ||||
SPI trigger | Signal source | CH1~CH2, | |||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Data bit width | 4, 8, 16, 24, 32 | ||||
IIC trigger | Signal source (SDA/SCL) | CH1~CH2, | |||
D1.0~D1.3, | |||||
D2.0~D2.3, | |||||
D3.0~D3.3, | |||||
D4.0~D4.3 | |||||
Data format | Hex(hexadecimal) | ||||
Data index | 0~7 | ||||
opportunity(condition) | Start bit、stop bit、no response、address、data、restart | ||||
Measurement | cursor | Voltage difference between cursors △V | |||
Time difference between cursors △T | |||||
Reciprocal of △T,in Hertz(1/△T) | |||||
Auto measurement | frequency、period、mean、peak-to-peak、RMS、minimum、mixmum、rising time、falling time、+ width、- width、base、top、middle、amplitude、overshoot、preshoot、rising edge phase difference、falling edge phase difference、+ duty、- duty、period mean、PRMS、FOVshoot、ROVshoot、BWIDTH、FRF、FFR、LRR、LRF、LFR、LFF | ||||
DVM | Data source | CH1,CH2 | |||
Measurement type | DC effective value | ||||
AC effective value | |||||
DC | |||||
Frequency meter | hardware 6 bits frequency meter | ||||
Arbitrary waveform generator | |||||
Arbitrary waveform generator(for oscilloscopes with signal source channels) | Channel number | 2 channels | |||
Sample rate | 200MSa/s | ||||
Vertical resolution | 12 bits | ||||
Maximum frequency | 25 MHz | ||||
Standard waveforms | sin、square、pulse、triangular,noise、DC | ||||
Sinc、index、semi-distortion、lorentz,dual tone multiple frequency,gauss,ECG | |||||
Arbitrary waveform | Arb1,Arb2,Arb3,Arb4 | ||||
Sin | Frequency range | 0.1Hz~25MHz | |||
square/pulse | Frequency range | 0.1Hz~10MHz | |||
triangular wave | Frequency range | 0.1Hz~1MHz | |||
Sampling wave | Frequency range | 0.1Hz~1MHz | |||
Index | Frequency range | 0.1Hz~5MHz | |||
Semi-distortion | Frequency range | 0.1Hz~1MHz | |||
lorentz | Frequency range | 0.1Hz~1MHz | |||
Dual tone multiple frequency | Frequency range | 0.1Hz~1MHz | |||
Gauss | Frequency range | 0.1Hz~1MHz | |||
ECG | Frequency range | 0.1Hz~1MHz | |||
Arbitrary wave | Frequency range | 0.1 Hz to 10 MHz | |||
Waveform length | 8KSa | ||||
Frequency | accuracy | 100 ppm(<10 kHz) 50 ppm(>10 kHz) | |||
resolution | 0.1 Hz or 4 bits,take the greater one | ||||
Amplitude | Output range | 10mV~7Vp-p(high impedance) | |||
5mV~3.5Vp-p(50Ω) | |||||
DC offset | range | ±3.5 V,high impedance | |||
±1.75 V,50 Ω | |||||
resolution | 100 μV or 3 bits,take the greater one | ||||
accuracy | 2%(1 kHz) | ||||
Output impedance | 50 Ω | ||||
Logic analyzer | |||||
Logic analyzer | Input impedance,DC coupling | Digital channel | |||
(300KΩ±2%) ,(8 pF±3 pF) | |||||
Threshold value | 4 channels in 1 group adjustable threshold value | ||||
Threshold option | TTL(1.4 V) | ||||
5.0 V CMOS(+2.5 V) | |||||
3.3 V CMOS(+1.65 V) | |||||
2.5 V CMOS(+1.25 V) | |||||
1.8 V CMOS(+0.9 V) | |||||
ECL(-1.3 V) | |||||
PECL(+3.7 V) | |||||
LVDS(+1.2 V) | |||||
0V | |||||
User-defined | |||||
Threshold range | ±7.0V,10mV step by step | ||||
Threshold accuracy | ±(100mV+3% threshold setting) | ||||
Dynamic range | ±5.0V+ threshold | ||||
Minimum voltage swing | 500 mVpp | ||||
Vertical resolution | 1 bit | ||||
General specifications | |||||
Display | Display type | 7"TFT diagonal liquid crystal | |||
Display resolution | 800(horizontal)*480(vertical)pixels | ||||
Display colour | 16 million colours(24 bits true colour) | ||||
Persistence time | minimum、1 s、5 s、10 s、30S、infinite | ||||
Display type | dot、vector | ||||
Display mode | Color temperature,gray scale | ||||
Display brightness | adjustable | ||||
Grid type | adjustable | ||||
Grid brightness | adjustable | ||||
Interface | Standard interface | USB Host,USB Device,LAN, EDU signal WIFI | |||
Aux(trigger output/PassFail )--only EDU with this interface | |||||
Optional interface | PassFail | ||||
UART | |||||
HDMI | |||||
General specifications | Probe compensator output | ||||
Output voltage ,typical | about 2Vpp input≥1MΩ load | ||||
frequency、typical | 1kHz | ||||
Power supply | 100-120VACRMS(±10%),45Hz to 440Hz,CATⅡ | ||||
120-240VACRMS(±10%),45Hz to 66Hz,CATⅡ | |||||
Power consumption | <30W | ||||
Fuse | T,3.15A,250V,5x20mm | ||||
Operating temperature | 0~50 °C (32~122 °F) | ||||
Storage temperature | -40~+71 °C (-40~159.8 °F) | ||||
Humidity | ≤+104℉(≤+40°C): ≤90% relative humidity | ||||
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity | |||||
Cooling method | convection | ||||
Altitude | Operating and nonoperating | 3,000m(10,000 feet) | |||
Mechanical shock | Random vibration | 0.31 g RMS from 50Hz to 500Hz, | |||
10 minutes on each axis | |||||
Nonoperating | 2.46g RMS from 5Hz to 500Hz, | ||||
10 minutes on each axis | |||||
Operating | 50g,11ms,half-sine wave | ||||
Mechanical | Size | 318 x 140 x 150mm(length x width x height) | |||
Weight | 2900g |
DPO6002B Series:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model | Description | View Manual |
HT300B,HT500B | 350Mhz,500MHz,10:1/1:1 | Download |
HT100B,HT200B | 100MHz,200MHz,10:1/1:1 | Download |
PP-80,PP-150,PP-200 | 60MHz,100MHz,200MHz,10:1/1:1 | Download |
PP80B, PP150B, PP200B, PP300B | 80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1 | Download |
PP-90 | 80MHz,10:1/1:1 | Download |
T3100 | 100MHz,100:1,2000VDC Peak AC | Download |
Model | Description | View Manual |
CC65 | AC/DC: 0 – 20KHz,20mA to 65A DC | Download |
CC650 | AC:0 – 5KHz,1A - 500A ,DC:1A - 650A | Download |
CC800 | AC:0 – 5KHz,1A - 500A ,DC:1A - 800A | Download |
