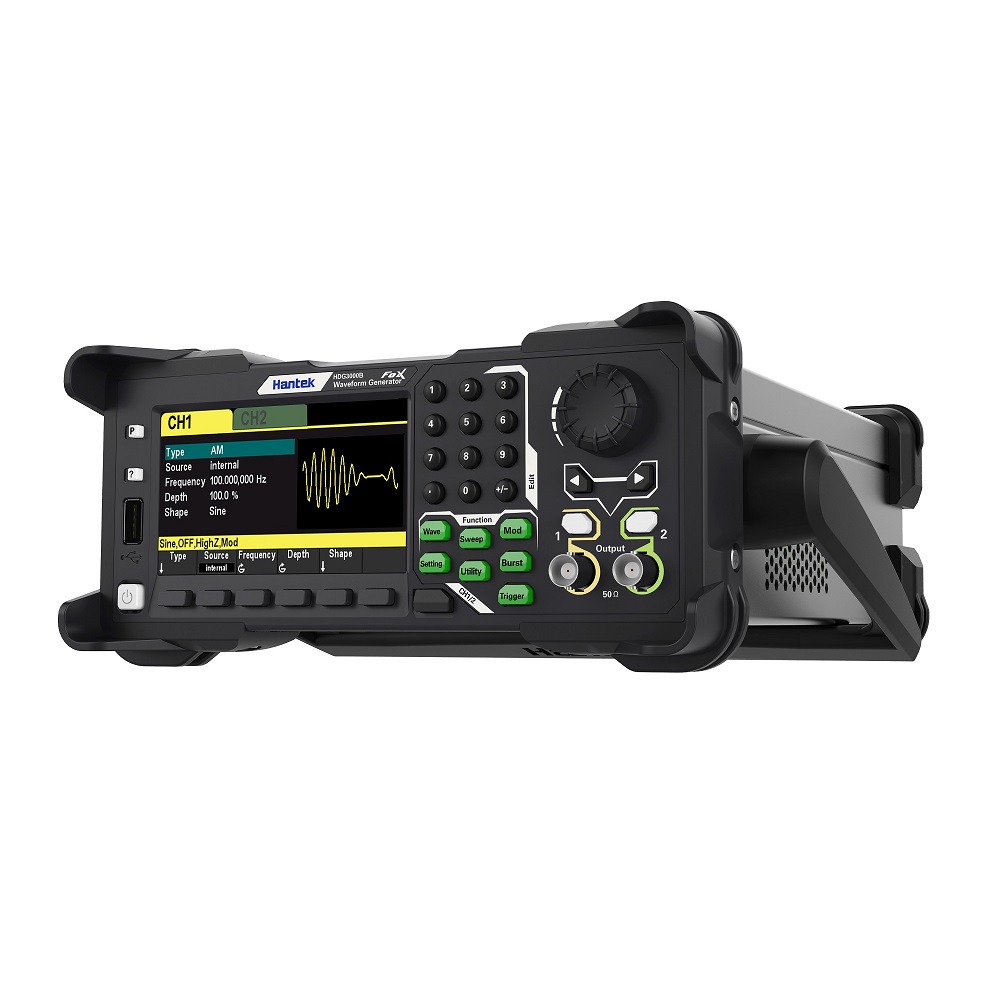

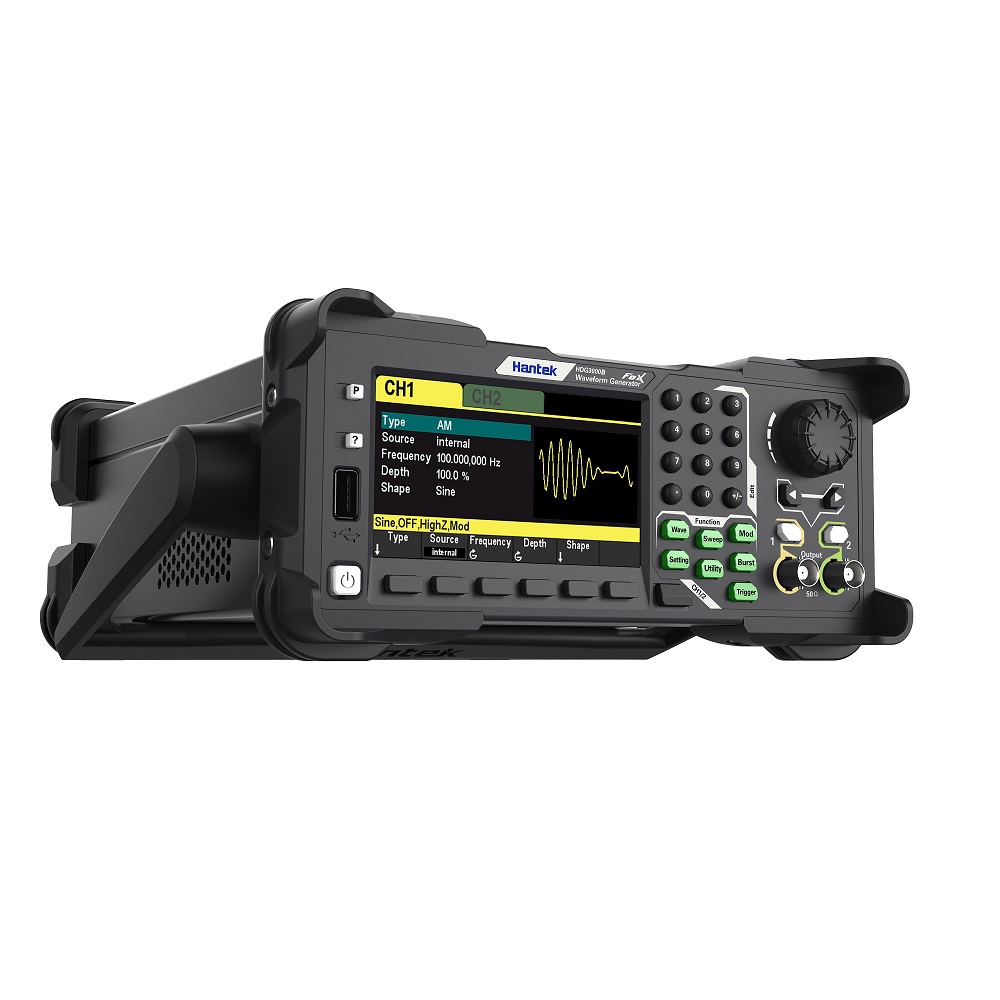

HDG3000B Series - Hantek Electronic & Your testing solution provider

HDG3000B sets arbitrary waveform generator, pulse generator, function generator, harmonic generator, frequency meter 5 functions in one. It uses the DDS (Direct Digital Synthesizer) technology, and can generate stable, pure, and low-distortion output signal. Humanized interface design and keyboard layout give users extraordinary experience. Rich configuration interfaces can easily achieve computer control of the instrument, which provides users with more solutions for measurement.

Frequency range: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.
Up to 250MSa/s sampling rate, no distortion of analog waveforms.
16-bit vertical resolution ensures the accuracy of waveform amplitude.
Equip with dual channels with equal performance, equivalent to two independent signal sources.
The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.
A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.
Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp.
Built-in 80MHz high-resolution frequency meter.
Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).
More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.
Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.

Equip with the sine wave with the maximum output bandwidth of 100MHz.

Frequency range: 1μHz~100MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.

Equip with the square wave with the maximum output bandwidth of 15MHz.

Frequency range: 1μHz~15MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.

Equip with the triangle wave with the maximum output bandwidth of 2MHz.

Frequency range: 1μHz~2MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°; Adjustable symmetry: 0%~100%.

Equip with more than 160 kinds of arbitrary waveform output.

Index rise, index fall, ECG signal, Gauss, half vector, Lorentz, dual tone multi-frequency, DC voltage and other more than 160 kinds of arbitrary signals.

Equip with dual channel output modulation waveform AM/FM.

Rich modulation functions, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.

Equip with dual channel output burst function.

Support control of burst output by internal, manual or external trigger sources. Three burst types are supported, including multi cycle, infinite cycle, and gated.

Equip with an 80MHz frequency meter.

The instrument can measure the frequency, period, duty cycle, positive pulse width and negative pulse width and other parameters of the external input signal.

Model	Channels	Max Output Frequency	Max Sampling Rate	Vertical Resolution	Waveform Length	Interface
HDG3012B	2CH	15MHz	250MSa/s	16Bits	2Mpts	USB Host，USB Device
HDG3022B	2CH	25MHz	250MSa/s	16Bits	2Mpts	USB Host，USB Device
HDG3042B	2CH	40MHz	250MSa/s	16Bits	2Mpts	USB Host，USB Device
HDG3062B	2CH	60MHz	250MSa/s	16Bits	2Mpts	USB Host，USB Device
HDG3082B	2CH	80MHz	250MSa/s	16Bits	2Mpts	USB Host，USB Device
HDG3102B	2CH	100MHz	250MSa/s	16Bits	2Mpts	USB Host，USB Device

Model	HDG3102B	HDG3082B	HDG3062B	HDG3042B	HDG3022B	HDG3012B
Channel	2
Wavelength	2M
Frequency range	100MHz	80MHz	60MHz	40MHz	25MHz	15MHz
Sampling rate	250MSa/s
Voltage resolution	16Bits
Waveform
Standard waveform output	sine wave, square wave, triangular wave, pulse wave, noise, harmonics
Arbitrary waveform output	160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc
Frequency property
Sine wave	1 μHz ~ 100 MHZ	1 μHz ~ 80 MHZ	1 μHz ~ 60 MHZ	1 μHz ~ 40 MHZ	1 μHz ~ 25 MHZ	1 μHz ~ 15 MHZ
Square wave	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
Pulse wave	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
Triangle wave	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ
Harmonic	1 μHz ~ 50 MHZ	1 μHz ~ 40 MHZ	1 μHz ~ 30 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 10 MHZ	1 μHz ~ 5 MHZ
Noise (3 db)	100 MHZ bandwidth
Arbitrary wave	1 μHz ~ 20 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
Resolution	1μHz
Precision	±1ppm, 18~28℃
Square wave property
Rise/Fall time	Typical (1kHz, 1Vpp)
	≥9ns
Overshoot	Typical (100kHz, 1Vpp)
	≤5%
Duty cycle	0.001% ~ 99.999%;
	The range varies with the frequency
Asymmetry	1% of the period plus 4ns
Triangular wave property
Linear	≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%)
Symmetry	0% ~ 100%
Impulse wave property
Cycle	67ns~1Ms	67ns~1Ms	67ns~1Ms	67ns~1Ms	67ns~1Ms	67ns~1Ms
Pulse	≥16ns	≥16ns	≥16ns	≥16ns	≥16ns	≥16ns
Rise/Fall time	≥9ns (limited by current frequency setting and pulse width setting)
Overshoot	Typical (1kHz, 1Vpp)
	≤5%
Arbitrary wave property
Wavelength	2M
Vertical resolution	16 Bits
Sampling rate	1μSa/s~62.5 MSa /s, 1μSa/s resolution
Time of rise/fall	Ns of 9 or higher
Overshoot	Typical (1Vpp)
	≤5%
Harmonic property
Harmonic frequency	≤16
Harmonic type	Even harmonics, odd harmonics, all harmonics
Harmonic amplitude	All harmonic amplitude can be set.
Harmonic phase	All harmonic amplitude can be set.
Amplitude property (50Ω terminal)
Amplitude range	≤10MHz: 1mVpp ~ 10Vpp;
	≤55MHz: 1mVpp ~ 5.5Vpp;
	≤80MHz:1mVpp ~ 3.5Vpp;
	≤100MHz:1mVpp ~ 2Vpp;
Precision	Typical (1kHz sine wave, 0V offset, > 10mVPP)
	± 1% setting value ± 5mVpp
Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω)	≤5MHz: ±0.1dB;
	≤15MHz: ±0.2dB;
	≤25MHz: ±0.3dB
	≤40MHz: ±0.5dB
	40MHz: ±1.0dB
Unit	Vpp, mVpp, Vrms, dBm(50Ω impedance)
Resolution	1mVpp
Offset property (50Ω terminal)
Scope	±5Vpkac+dc
Precision	±(1% of the setting value + 5mV + 1% of the amplitude)
Waveform output
Impedance	50 Ω
Modulation property
Modulation type	AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM
AM
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal, external and other channels
Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
Modulation frequency	2mHz~1MHz
Modulation depth	0% ~ 120%
DSB-AM
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal, external and other channels
Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency	2mHz~1MHz
Modulation depth	0% ~ 120%
FM
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal, external and other channels
Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency	2mHz~1MHz
PM
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal, external and other channels
Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency	2mHz~1MHz
Phase deviation	0 ° ~ 360 °
ASK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal and external
Modulation wave	50% duty cycle square wave
Modulation frequency	2mHz~1MHz
FSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal and external
Modulation wave	50% duty cycle square wave
Modulation frequency	2mHz~1MHz
PSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal and external
Modulation wave	50% duty cycle square wave
Modulation frequency	2mHz~1MHz
BPSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	internal
Data source	PN15, PN21, 01, 10
Modulation frequency	2mHz~1MHz
QPSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	internal
Data source	PN15, PN21
Modulation frequency	2mHz~1MHz
3FSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	internal
Modulation wave	50% duty cycle square wave
Modulation frequency	2mHz~1MHz
4FSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	internal
Modulation wave	50% duty cycle square wave
Modulation frequency	2mHz~1MHz
OSK
Carrier	Sine wave
Modulation source	Internal, external
Shock time	8 ns - 4.99975 ms
Modulation frequency	2mHz~1MHz
PWM
Carrier	Square wave
Modulation source	Internal, external and other channels
Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
Modulation frequency	2mHz~50KHz
Duty cycle deviation	0% ~ 50%
External modulation input
Input range	AM, DSB-AM, FM, PM, OSK, PWM: 75mVRMS ~ ± 5Vac + dc
	ASK, FSK, PSK: TTL level
Input bandwidth	50KHz
Input impedance	10 KΩ
Sweep frequency property
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Type	Linear
Direction	Upward
Frequency sweep time	1ms ~ 50Ks
Hold/return time	0ms ~ 50Ks
Trigger source	Internal, external, manual
Tag	Synchronize the model's falling edge
Burst property
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Carrier frequency	1 μHz ~ 100 MHZ	1 μHz ~ 80 MHZ	1 μHz ~ 60 MHZ	1 μHz ~ 40 MHZ	1 μHz ~ 25 MHZ	1 μHz ~ 15 MHZ
Burst counting	1 ~ 2000 000 000
Start/stop phase	0 ° ~ 360 °
Internal cycle	2 μs ~ 500 s
Door control source	External trigger
Trigger source	Internal, external, manual
Frequency meter
Measurement functions	Frequency, period, positive/negative pulse width, duty cycle
Frequency	1 μHz ~ 80 MHZ
Gate time	10ms~16s
Input signal range	0 ~ 3.3 V
Trigger property
Trigger input
Level	TTL - compatible
Slope	Up or down (optional)
Pulse width	>100ns
Trigger output
Level	TTL - compatible
The pulse width	>60ns
Maximum frequency	1MHz

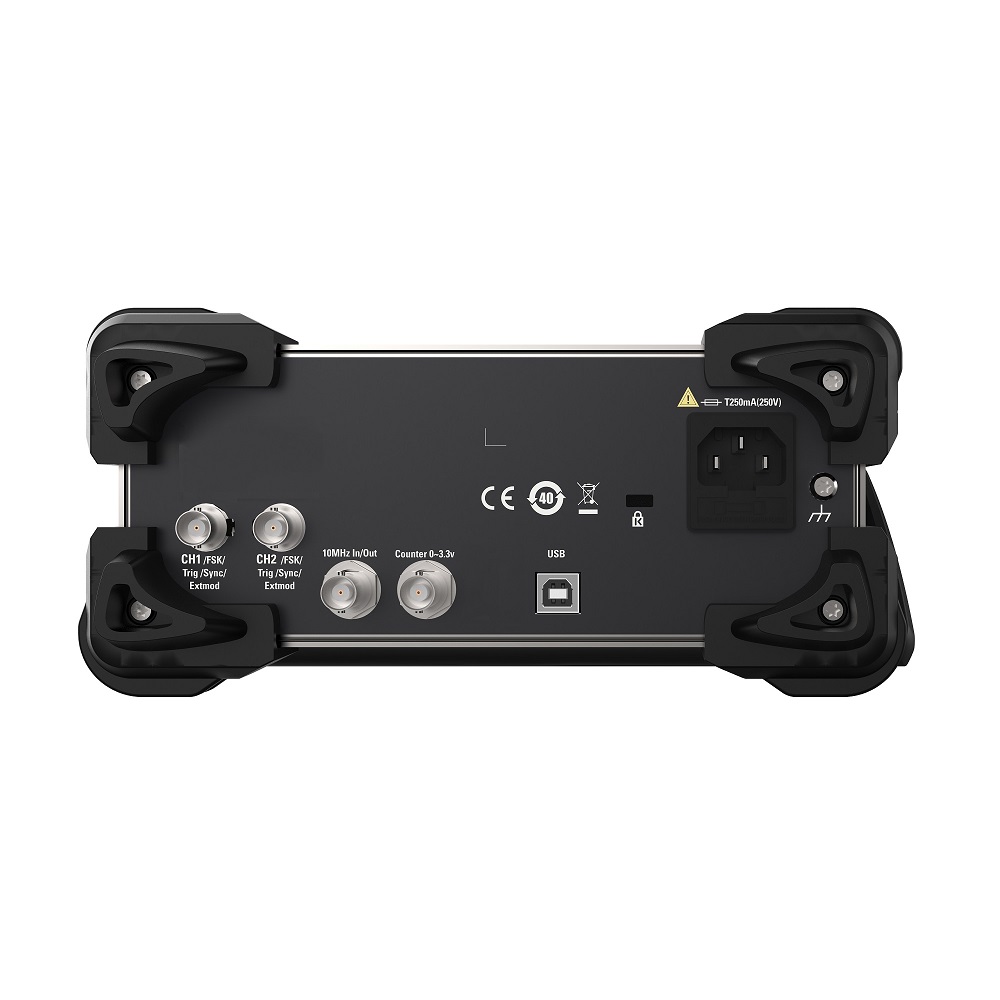

Reference clock
External reference input
Lock range	10 MHz ± 50 Hz
Level	Low level: 0~400mV, high level: 2.5V~5V
Locking time	< 2 s
Input impedance	50 Ω, DC coupling
Internal reference output
Frequency	10 MHz + 50 Hz
Level	3.3 Vpp
Output impedance (typical value)	50 Ω, DC coupling
Synchronous output
Level	TTL - compatible
Impedance	50Ω, nominal value
General features
Interface	USB Host, USB Device
Display	4.3-inch color TFT LCD screen
Voltage	100-120VAC_RMS(±10%),45Hz to 440Hz, CATⅡ
	120-240VAC_RMS(±10%),45Hz to 66Hz, CATⅡ
Power	<30W
Fuse	T, 0.5 A, 250 v, 5 x20mm
Environment
Temperature range	Operation: 10℃ ~ 40℃
	Non-operation: -20℃ ~ 60℃
Humidity range	≤+104℉(≤+40°C): Relative humidity ≤90%
	106℉~122℉ (+41°C ~50°C): Relative humidity ≤60%
Altitude	Operation: below 3000 meters
	Non-operation: below 15000 meters
Mechanical specifications
Dimensions (W × H × D)	308mm x 232mm x 110mm
Weight	3.09 KG

Model	HDG3102B	HDG3082B	HDG3062B	HDG3042B	HDG3022B	HDG3012B
Channel	2
Wavelength	2M
Frequency range	100MHz	80MHz	60MHz	40MHz	25MHz	15MHz
Sampling rate	250MSa/s
Voltage resolution	16Bits
Waveform
Standard waveform output	sine wave, square wave, triangular wave, pulse wave, noise, harmonics
Arbitrary waveform output	160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc
Frequency property
Sine wave	1 μHz ~ 100 MHZ	1 μHz ~ 80 MHZ	1 μHz ~ 60 MHZ	1 μHz ~ 40 MHZ	1 μHz ~ 25 MHZ	1 μHz ~ 15 MHZ
Square wave	1 μHz ~ 15MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
Pulse wave	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
Triangle wave	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ
Harmonic	1 μHz ~ 50 MHZ	1 μHz ~ 40 MHZ	1 μHz ~ 30 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 10 MHZ	1 μHz ~ 5 MHZ
Noise (3 db)	100 MHZ bandwidth
Arbitrary wave	1 μHz ~ 20 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
Resolution	1μHz
Precision	±1ppm, 18~28℃
Square wave property
Rise/Fall time	Typical (1kHz, 1Vpp)
	≥9ns
Overshoot	Typical (100kHz, 1Vpp)
	≤5%
Duty cycle	0.001% ~ 99.999%;
	The range varies with the frequency
Asymmetry	1% of the period plus 4ns
Triangular wave property
Linear	≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%)
Symmetry	0% ~ 100%
Impulse wave property
Cycle	67ns~1Ms	67ns~1Ms	67ns~1Ms	67ns~1Ms	67ns~1Ms	67ns~1Ms
Pulse	≥16ns	≥16ns	≥16ns	≥16ns	≥16ns	≥16ns
Rise/Fall time	≥9ns (limited by current frequency setting and pulse width setting)
Overshoot	Typical (1kHz, 1Vpp)
	≤5%
Arbitrary wave property
Wavelength	2M
Vertical resolution	16 Bits
Sampling rate	1μSa/s~62.5 MSa /s, 1μSa/s resolution
Time of rise/fall	Ns of 9 or higher
Overshoot	Typical (1Vpp)
	≤5%
Harmonic property
Harmonic frequency	≤16
Harmonic type	Even harmonics, odd harmonics, all harmonics
Harmonic amplitude	All harmonic amplitude can be set.
Harmonic phase	All harmonic amplitude can be set.
Amplitude property (50Ω terminal)
Amplitude range	≤10MHz: 1mVpp ~ 10Vpp;
	≤55MHz: 1mVpp ~ 5.5Vpp;
	≤80MHz:1mVpp ~ 3.5Vpp;
	≤100MHz:1mVpp ~ 2Vpp;
Precision	Typical (1kHz sine wave, 0V offset, > 10mVPP)
	± 1% setting value ± 5mVpp
Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω)	≤5MHz: ±0.1dB;
	≤15MHz: ±0.2dB;
	≤25MHz: ±0.3dB
	≤40MHz: ±0.5dB
	40MHz: ±1.0dB
Unit	Vpp, mVpp, Vrms, dBm(50Ω impedance)
Resolution	1mVpp
Offset property (50Ω terminal)
Scope	±5Vpkac+dc
Precision	±(1% of the setting value + 5mV + 1% of the amplitude)
Waveform output
Impedance	50 Ω
Modulation property
Modulation type	AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM
AM
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal, external and other channels
Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
Modulation frequency	2mHz~1MHz
Modulation depth	0% ~ 120%
DSB-AM
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal, external and other channels
Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency	2mHz~1MHz
Modulation depth	0% ~ 120%
FM
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal, external and other channels
Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency	2mHz~1MHz
PM
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal, external and other channels
Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency	2mHz~1MHz
Phase deviation	0 ° ~ 360 °
ASK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal and external
Modulation wave	50% duty cycle square wave
Modulation frequency	2mHz~1MHz
FSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal and external
Modulation wave	50% duty cycle square wave
Modulation frequency	2mHz~1MHz
PSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	Internal and external
Modulation wave	50% duty cycle square wave
Modulation frequency	2mHz~1MHz
BPSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	internal
Data source	PN15, PN21, 01, 10
Modulation frequency	2mHz~1MHz
QPSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	internal
Data source	PN15, PN21
Modulation frequency	2mHz~1MHz
3FSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	internal
Modulation wave	50% duty cycle square wave
Modulation frequency	2mHz~1MHz
4FSK
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source	internal
Modulation wave	50% duty cycle square wave
Modulation frequency	2mHz~1MHz
OSK
Carrier	Sine wave
Modulation source	Internal, external
Shock time	8 ns - 4.99975 ms
Modulation frequency	2mHz~1MHz
PWM
Carrier	Square wave
Modulation source	Internal, external and other channels
Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
Modulation frequency	2mHz~50KHz
Duty cycle deviation	0% ~ 50%
External modulation input
Input range	AM, DSB-AM, FM, PM, OSK, PWM: 75mVRMS ~ ± 5Vac + dc
	ASK, FSK, PSK: TTL level
Input bandwidth	50KHz
Input impedance	10 KΩ
Sweep frequency property
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Type	Linear
Direction	Upward
Frequency sweep time	1ms ~ 50Ks
Hold/return time	0ms ~ 50Ks
Trigger source	Internal, external, manual
Tag	Synchronize the model's falling edge
Burst property
Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Carrier frequency	1 μHz ~ 100 MHZ	1 μHz ~ 80 MHZ	1 μHz ~ 60 MHZ	1 μHz ~ 40 MHZ	1 μHz ~ 25 MHZ	1 μHz ~ 15 MHZ
Burst counting	1 ~ 2000 000 000
Start/stop phase	0 ° ~ 360 °
Internal cycle	2 μs ~ 500 s
Door control source	External trigger
Trigger source	Internal, external, manual
Frequency meter
Measurement functions	Frequency, period, positive/negative pulse width, duty cycle
Frequency	1 μHz ~ 80 MHZ
Gate time	10ms~16s
Input signal range	0 ~ 3.3 V
Trigger property
Trigger input
Level	TTL - compatible
Slope	Up or down (optional)
Pulse width	>100ns
Trigger output
Level	TTL - compatible
The pulse width	>60ns
Maximum frequency	1MHz
Reference clock
External reference input
Lock range	10 MHz ± 50 Hz
Level	Low level: 0~400mV, high level: 2.5V~5V
Locking time	< 2 s
Input impedance	50 Ω, DC coupling
Internal reference output
Frequency	10 MHz + 50 Hz
Level	3.3 Vpp
Output impedance (typical value)	50 Ω, DC coupling
Synchronous output
Level	TTL - compatible
Impedance	50Ω, nominal value
General features
Interface	USB Host, USB Device
Display	4.3-inch color TFT LCD screen
Voltage	100-120VAC_RMS(±10%),45Hz to 440Hz, CATⅡ
	120-240VAC_RMS(±10%),45Hz to 66Hz, CATⅡ
Power	<30W
Fuse	T, 0.5 A, 250 v, 5 x20mm
Environment
Temperature range	Operation: 10℃ ~ 40℃
	Non-operation: -20℃ ~ 60℃
Humidity range	≤+104℉(≤+40°C): Relative humidity ≤90%
	106℉~122℉ (+41°C ~50°C): Relative humidity ≤60%
Altitude	Operation: below 3000 meters
	Non-operation: below 15000 meters
Mechanical specifications
Dimensions (W × H × D)	308mm x 232mm x 110mm
Weight	3.09 KG
