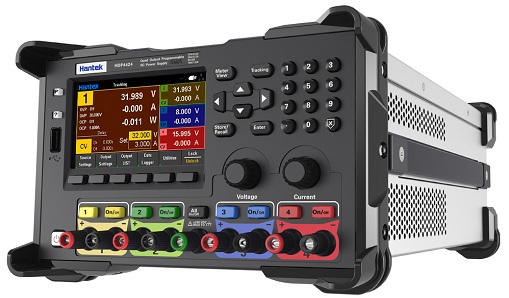

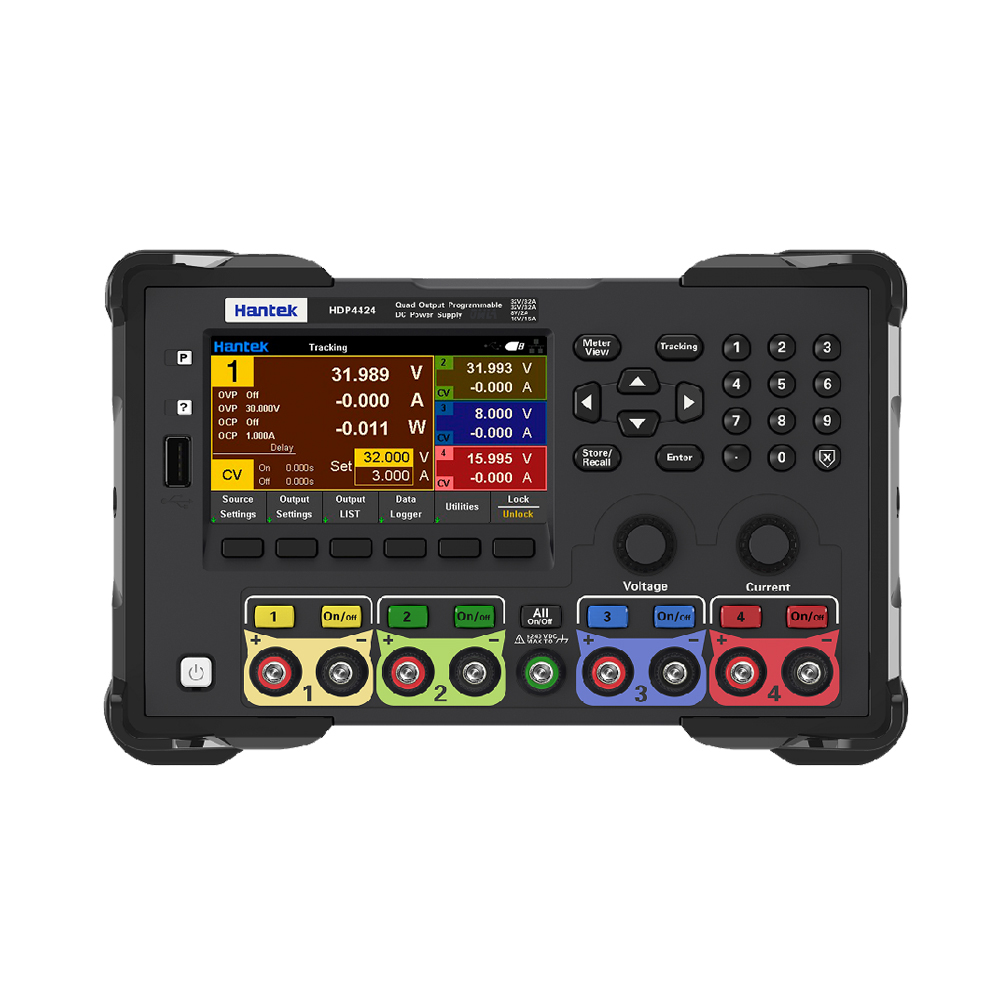

HDP4000 Series
High performance four-channel programmable linear DC regulated power supply; 4.3-inch color display, real-time display voltage/current/power value and waveform, which makes the output status and trend clear at a glance; 1mV/1mA high resolution, < 350 μVrms / 2 mVpp low ripple noise, 245W high output power, ≤50μs fast transient response; Four channels are electrically isolated and each channel is continuously adjustable; Over voltage, over current, over temperature, short circuit protection functions; Timing and delay output, constant voltage, constant current function; Four working modes: independent, series, parallel, tracking; Digital keyboard input and storage, keyboard lock function; Rich interface configurations: USB HOST, USB DEVICE, digital I/O interface, LAN, RS232/485, GPIB.
  • Four-channel programmable linear DC regulated power supply, 245W output power, electrical isolation between channels, four channels continuously adjustable.
  • The HDP4000S series supports rear output, making it easy to test system wiring, with a 2-wire/4-wire display mode.
  • 4.3-inch color display, real-time display voltage/current/power values and waveform, which makes the output status and trend clear at a glance.
  • High resolution: 1 mV, 1 mA; HDP4000S series resolution: 0.1 mV, 1UA.
  • Low ripple noise: < 350 μVrms / 2 mVpp.
  • Transient response time: ≤50μs.
  • Over voltage/over current/over temperature/short circuit protection functions. The over voltage and over current parameters can be flexibly set to achieve effective load protection.
  • Intelligent temperature control fan automatically adjusts the speed, effectively reducing fan noise.
  • The use of color and numeric identifiers makes it easy for users to identify information relevant to the output of a particular channel.
  • Provide 10 groups of storage for sequence/delay/record/panel condition settings.

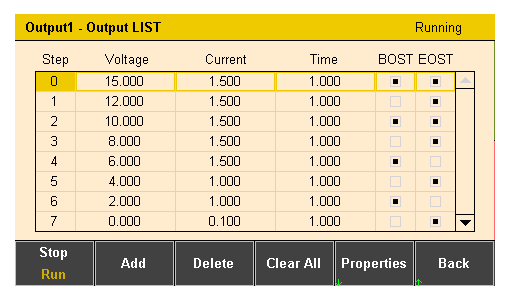

  • List function. By editing the single-step voltage, current, time, list function can generate a variety of complex sequences to meet the complicated test requirements.
  • Recorder function. The recorder can record the output voltage, current and power, and display them by graph.
  • Keyboard lock function to prevent misoperation.
  • Support SCPI remote command control.
  • Support U disk (FAT32 format, Flash) storage, one-click screenshot and data recording function.
  • Standard configuration ports: USB HOST, USB DEVICE, LAN, digital I/O interface, RS232/RS485 (HDP4324B/HDP4424B), GPIB (HDP4324H/HDP4424H).
Excellent industrial design
A perfect combination of art and technology. Not only beautiful and fashionable, but also durable, accurate and stable.
4.3-inch color display

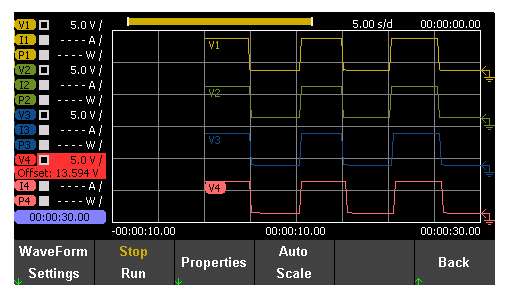

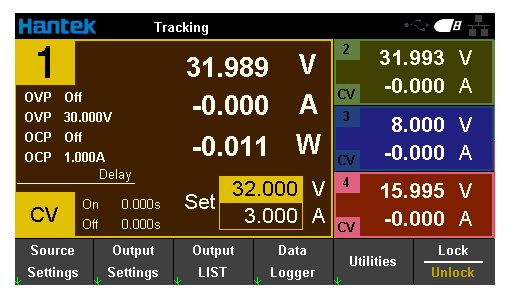

The set values and actual output values of the four channels are displayed on the same screen which makes users clear at a glance. Built-in V\A\W value and waveform display make the change trend all in control.
List and data recording functions
The list and data recording functions generate a variety of complex sequences by editing the single-step voltage, current and time to meet the complex test requirements, and record the actual voltage, current and power data of each step through the data recording function, and also generate waveform diagrams.
Low ripple noise, low load regulation rate, fast transient response
Low ripple noise: < 350 μVrms / 2 mVpp, meets the demand of high purity power supply. Low load regulation rate: Voltage: ≤0.01% + 2mV, current: ≤0.01% + 250μA, calmly copes with the change of load. Fast transient response time: ≤50μs, meets the needs of rapid voltage change.
Over voltage, over current, over temperature protection functions

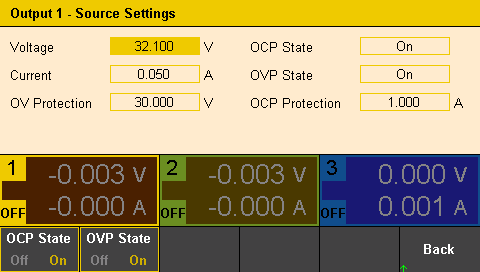

Provides the overvoltage and overcurrent protection functions. You can flexibly set the overvoltage and overcurrent parameters to effectively protect loads.

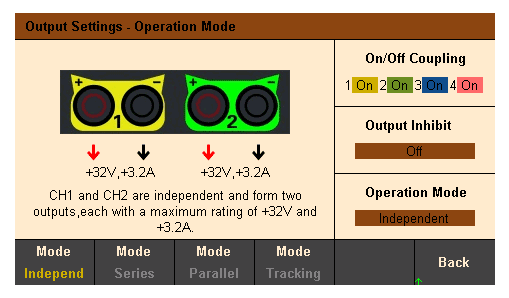

Four modes: independent, series, parallel, tracking
The series and parallel functions can combine two power supplies into one power supply to obtain double voltage or current, expanding the applicable range and flexibility of the power supply.
Rich interface configurations
USB HOST, USB DEVICE, LAN, 4-line digital I/O interface; RS232/RS485 (HDP4324B/HDP4424B); GPIB (HDP4324H/HDP4424H); Support U disk (FAT32 format, Flash) storage; Support SCPI remote command control; Supports post output function, 2-wire/4-wire mode display.

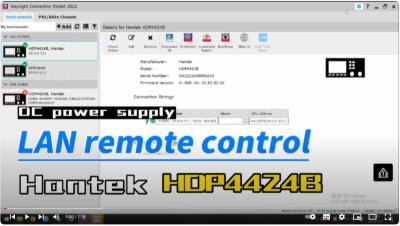

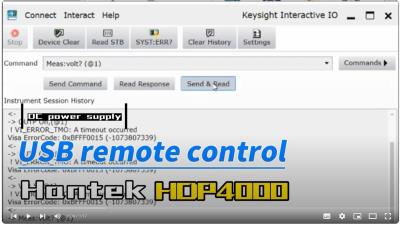

Convenient computer connection
Plug and play, safe and stable, provide free secondary development instructions, making it easy to form an automatic test system.
Model Channel Total power Output Resolution Noise Load regulation rate Power regulation rate Screen Standard interface
HDP4324 3CH 245W 32V/ 3.2A, 32V/3.2A, 8V/5A 1 mV, 1 mA <350μVrms / 2mVpp Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA; 		Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA; 		4.3 inch TFT USB HOST, USB DEVICE, Digital I/O, LAN
HDP4324B 3CH 245W 32V/ 3.2A, 32V/3.2A, 8V/5A 1 mV, 1 mA <350μVrms / 2mVpp Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA; 		Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA; 		4.3 inch TFT USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485
HDP4424 4CH 245W 32V/3.2A, 32V/3.2A, 8V/2A, 16V/1.5A 1 mV, 1 mA <350μVrms / 2mVpp Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA; 		Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA; 		4.3 inch TFT USB HOST, USB DEVICE, Digital I/O, LAN
HDP4424B 4CH 245W 32V/3.2A, 32V/3.2A, 8V/2A, 16V/1.5A 1 mV, 1 mA <350μVrms / 2mVpp Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA; 		Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA; 		4.3 inch TFT USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485

Model Channel Total power Output Resolution Noise Load regulation rate Power regulation rate Screen Standard interface
HDP4324S 3CH 245W 32V/ 3.2A, 32V/3.2A, 8V/5A 0.1 mV, 1 μA <350μVrms / 2mVpp Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA; 		Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA; 		4.3 inch TFT USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485
HDP4324SH 3CH 245W 32V/ 3.2A, 32V/3.2A, 8V/5A 0.1 mV, 1 μA <350μVrms / 2mVpp Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA; 		Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA; 		4.3 inch TFT USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485, GPIB
HDP4424S 4CH 245W 32V/3.2A, 32V/3.2A, 8V/2A, 16V/1.5A 0.1 mV, 1 μA <350μVrms / 2mVpp Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA; 		Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA; 		4.3 inch TFT USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485
HDP4424SH 4CH 245W 32V/3.2A, 32V/3.2A, 8V/2A, 16V/1.5A 0.1 mV, 1 μA <350μVrms / 2mVpp Voltage:≤0.01% + 2mV;
 Current:≤0.01% + 250μA; 		Voltage:≤0.01% + 2mV;
Current:≤0.01% + 250μA; 		4.3 inch TFT USB HOST, USB DEVICE, Digital I/O, LAN, RS232, RS485, GPIB
Dc output (0℃ ~ 40℃)
Channel voltage current
HDP43XX CH1 32V 3.2 A
CH2 32V 3.2 A
CH3 8V 5A
HDP44XX CH1 32V 3.2 A
CH2 32V 3.2 A
CH3 8V 2A
CH4 16V 1.5 A
Series-parallel output
Channel Series parallel
HDP43XX CH1 64 v, 3.2 A 32 v, 6.4 A
CH2
CH3 - -
HDP44XX CH1 64 v, 3.2 A 32 v, 6.4 A
CH2
CH3 - -
CH4 - -
Load regulation rate ± (output percentage + bias)
Voltage < 0.01% + 2 mV
Current < 0.01% + 250 μA
Linear regulation rate ± (output percentage + bias)
Voltage < 0.01% + 2 mV
Current < 0.01% + 250 μA
Ripple and noise (20Hz ~ 20MHz)
Norm voltage < 350 μVrms/ 2 mVpp
Accuracy (25℃±5℃) ± (output percentage + bias)
Channel programming read-back
voltage current voltage current
HDP43XX CH1 0.05% + 10 mV 0.2% + 5 mA 0.05% + 10 mV 0.2% + 5 mA
CH2
CH3 0.1% + 5 mV 0.1% + 10 mA 0.1% + 5 mV 0.1% + 10 mA
HDP44XX CH1 0.05% + 10 mV 0.2% + 5 mA 0.05% + 10 mV 0.2% + 5 mA
CH2
CH3 0.1% + 5 mV 0.1% + 10 mA 0.1% + 5 mV 0.1% + 10 mA
CH4
Transient response time
The time for the output current changing from full load to half load, or from half load to full load, and the output voltage returning to 15mV is less than 50μs.
Machinery
Size 232*153*392 mm
Weight HDP43XX 9.15 Kg
HDP44XX 9.45 Kg
Power supply
Ac input (50Hz to 60Hz) 100Vac±10%, 115Vac±10%, 230Vac±10% (Max. 250Vac)
Maximum input power 600VA
Environment
Cooling method Air cooling
Working temperature 0 ℃ to 50 ℃
Storage temperature - 40 ℃ ~ 70 ℃
Humidity 0℃ to 30℃ : ≤95% relative humidity
30℃ to 40℃ : ≤75% relative humidity
40 ° C to 50 ° C: ≤45% relative humidity
Altitude Below 3000 metres

Dc output (0℃ ~ 40℃)
Channel voltage current
HDP43XX CH1 32V 3.2 A
CH2 32V 3.2 A
CH3 8V 5A
HDP44XX CH1 32V 3.2 A
CH2 32V 3.2 A
CH3 8V 2A
CH4 16V 1.5 A
Series-parallel output
Channel Series parallel
HDP43XX CH1 64 v, 3.2 A 32 v, 6.4 A
CH2
CH3 - -
HDP44XX CH1 64 v, 3.2 A 32 v, 6.4 A
CH2
CH3 - -
CH4 - -
Load regulation rate ± (output percentage + bias)
Voltage < 0.01% + 2 mV
Current < 0.01% + 250 μA
Linear regulation rate ± (output percentage + bias)
Voltage < 0.01% + 2 mV
Current < 0.01% + 250 μA
Ripple and noise (20Hz ~ 20MHz)
Norm voltage < 350 μVrms/ 2 mVpp
Accuracy (25℃±5℃) ± (output percentage + bias)
Channel programming read-back
voltage current voltage current
HDP43XX CH1 0.05% + 10 mV 0.2% + 5 mA 0.05% + 10 mV 0.2% + 5 mA
CH2
CH3 0.1% + 5 mV 0.1% + 10 mA 0.1% + 5 mV 0.1% + 10 mA
HDP44XX CH1 0.05% + 10 mV 0.2% + 5 mA 0.05% + 10 mV 0.2% + 5 mA
CH2
CH3 0.1% + 5 mV 0.1% + 10 mA 0.1% + 5 mV 0.1% + 10 mA
CH4
Transient response time
The time for the output current changing from full load to half load, or from half load to full load, and the output voltage returning to 15mV is less than 50μs.
Machinery
Size 232*153*392 mm
Weight HDP43XX 9.15 Kg
HDP44XX 9.45 Kg
Power supply
Ac input (50Hz to 60Hz) 100Vac±10%, 115Vac±10%, 230Vac±10% (Max. 250Vac)
Maximum input power 600VA
Environment
Cooling method Air cooling
Working temperature 0 ℃ to 50 ℃
Storage temperature - 40 ℃ ~ 70 ℃
Humidity 0℃ to 30℃ : ≤95% relative humidity
30℃ to 40℃ : ≤75% relative humidity
40 ° C to 50 ° C: ≤45% relative humidity
Altitude Below 3000 metres

Hantek Catalogue 2023
2023-09-15
HDP4000_20220826_V1.4
2022-08-29
HDP_Quick Guide_EN
2022-04-02
HDP_SCPI_EN
2022-04-02
HDP Manual-EN20241120
2024-11-20

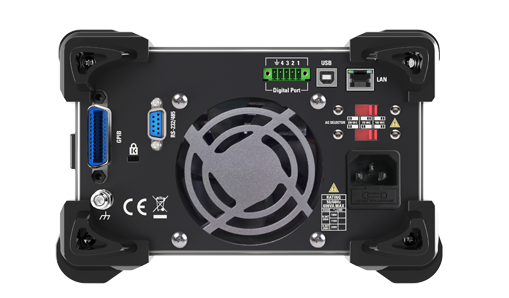

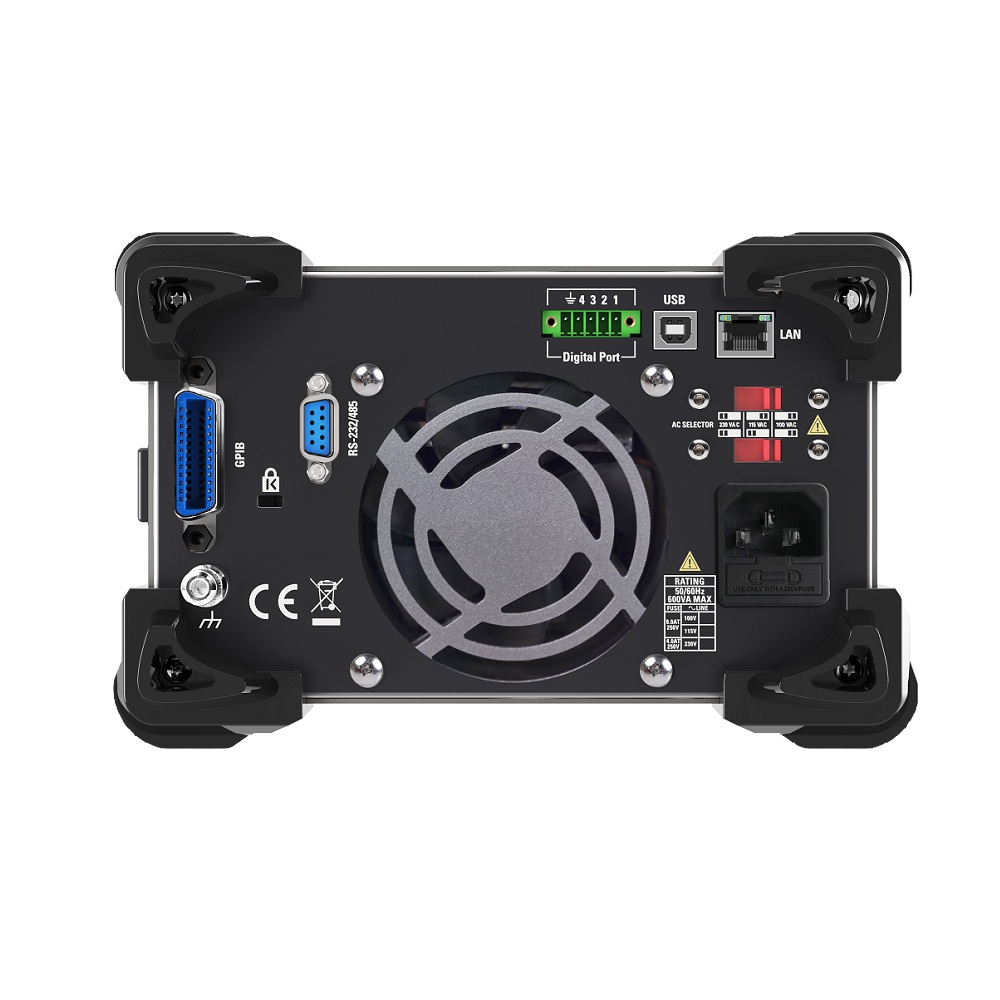

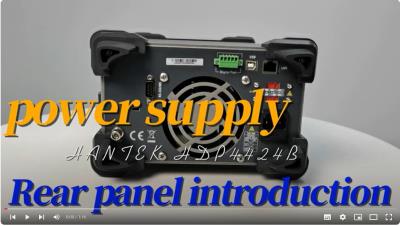

Rear panel introduction
Date Record View
DC power supply output Inhibit

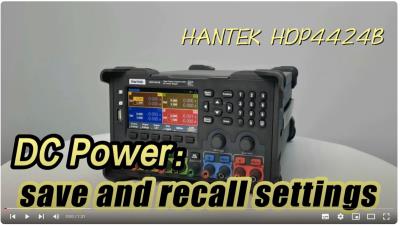

DC Power: save and recall settings

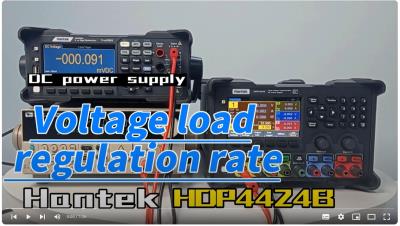

Measure voltage load adjustment rate

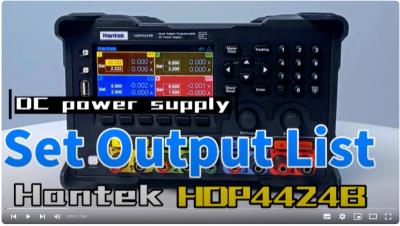

DC power supply output list

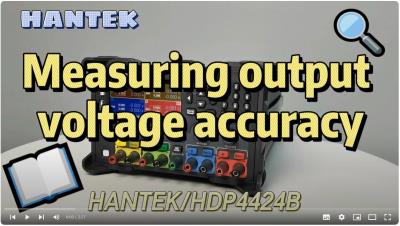

Measuring output voltage accuracy
Parallel power supply increases current?

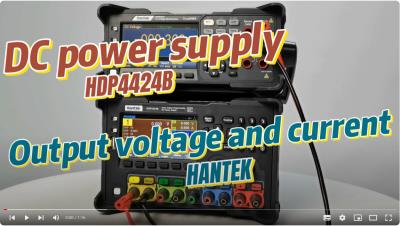

Output voltage and current
Programmable DC power supply Key and interface
DC Power Set Output List Properties
Measuring output current accuracy
Dc power I/O Settings Trigger input
Dc power I/O Settings Trigger input?
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter

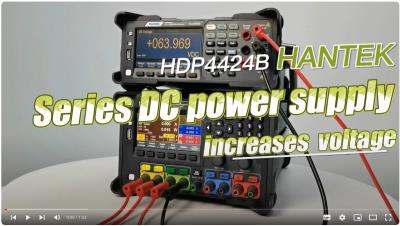

Series DC power supply
Set output list
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
DMM3065 bench multimeter
Channel delay
Channel delay
Startup settings
Output mode2
How to set the output vltage greater than 32 volts?

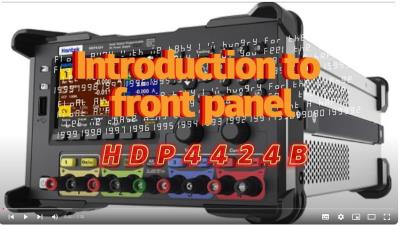

Introduction to front panel
Output suppression
Current back reading accuracy
I/O Settings

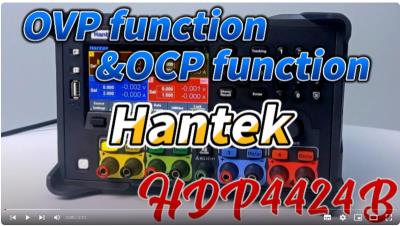

OVP function & OCP function
