Output rating | Model | Output voltage | Output current | RS232 | The AC input |

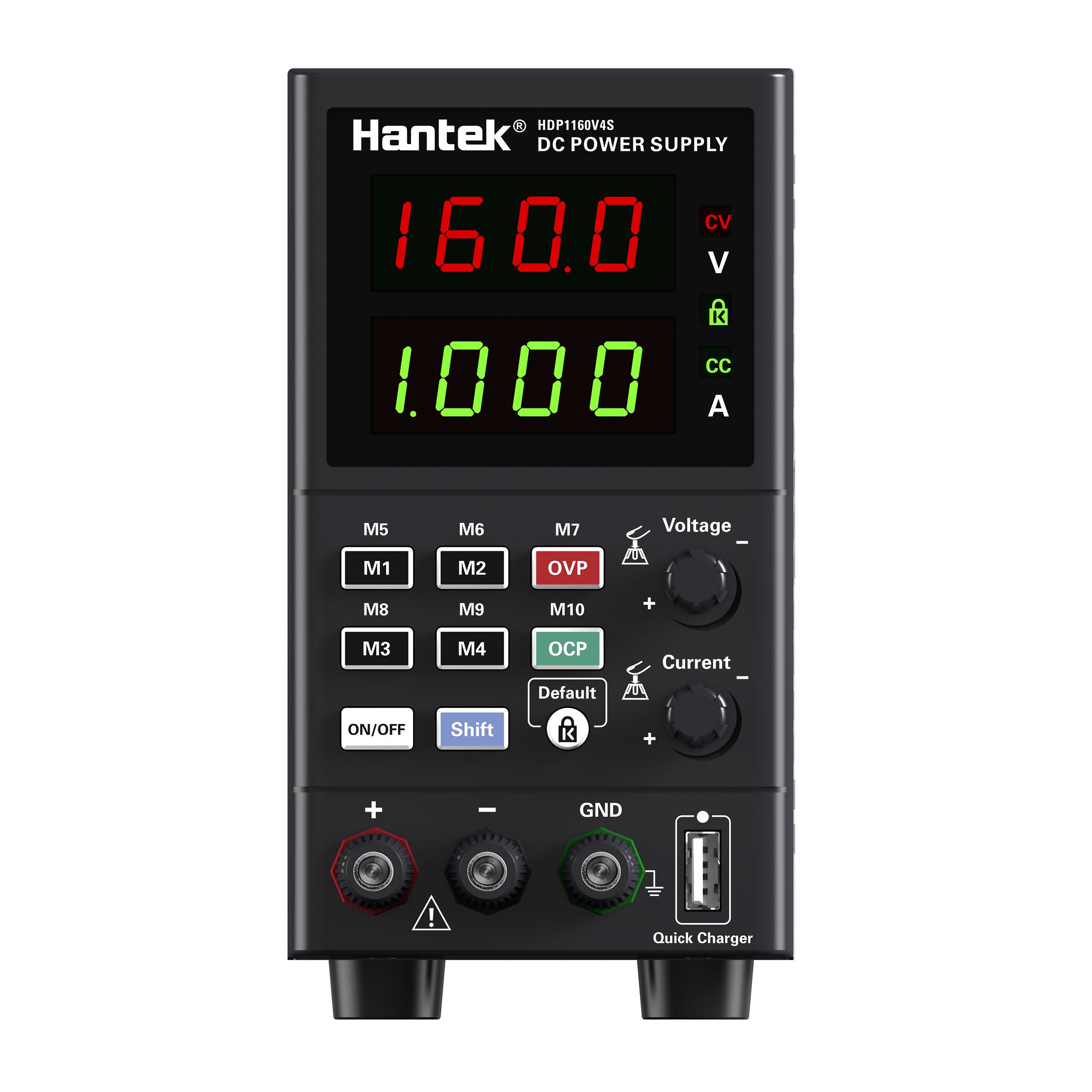

180W | HDP1160V4S | 0~160V | 0~4A | √ |
120
Vac ± 10% 220 Vac ± 10% |
180W | HDP180V8S | 0~80V | 0~8A | √ |
120 Vac ± 10% 220 Vac ± 10% |
Output rating
|
Model | Output voltage | Output current | RS232 | The AC input |
210W | HDP135V6 | 0~35V | 0~6A | - |
120
Vac ± 10% 220 Vac ± 10% |
210W | HDP135V6A | 0~35V | 0~6A | - | 220 Vac ± 10% |
210W | HDP135V6B | 0~35V | 0~6A | - | 120 Vac ± 10% |

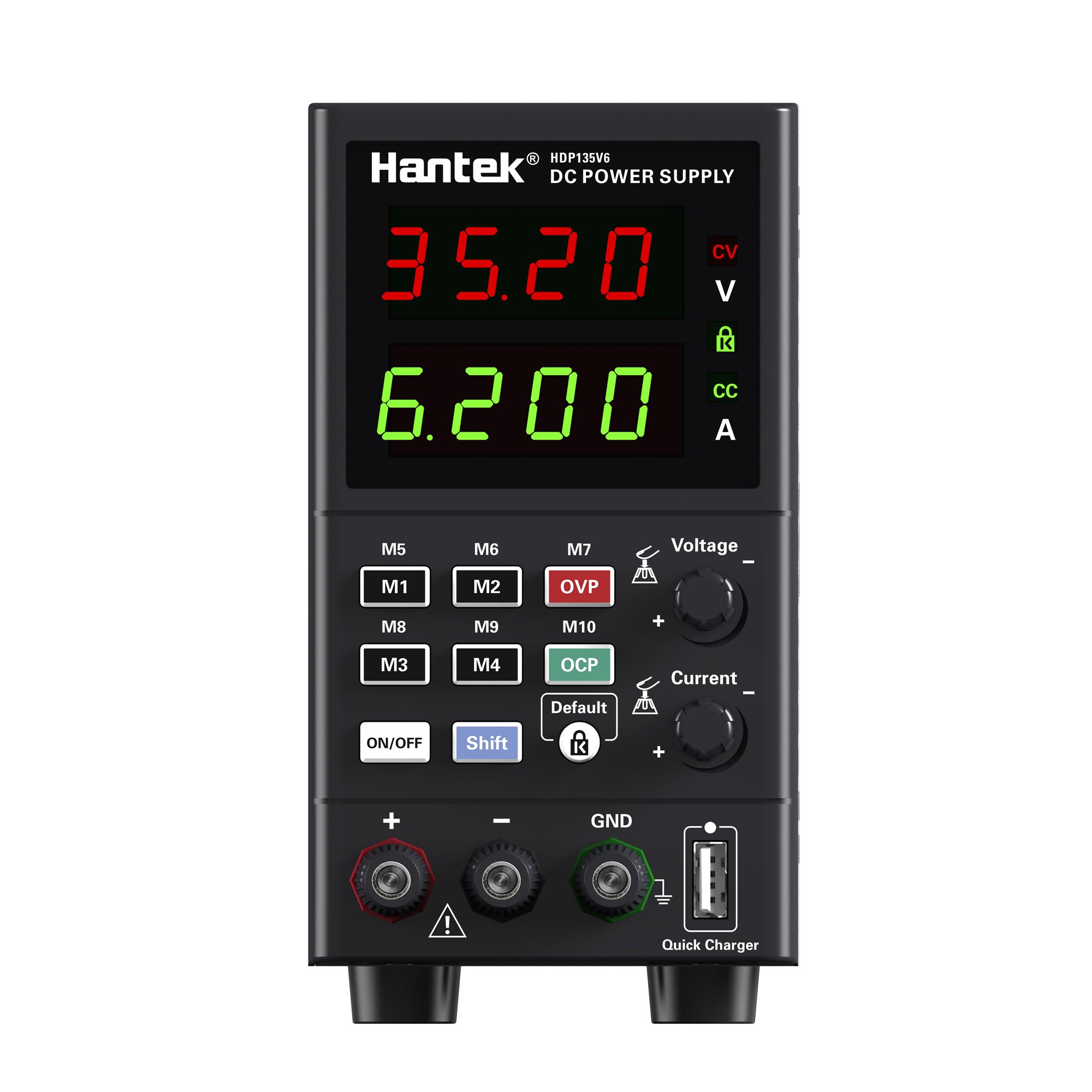

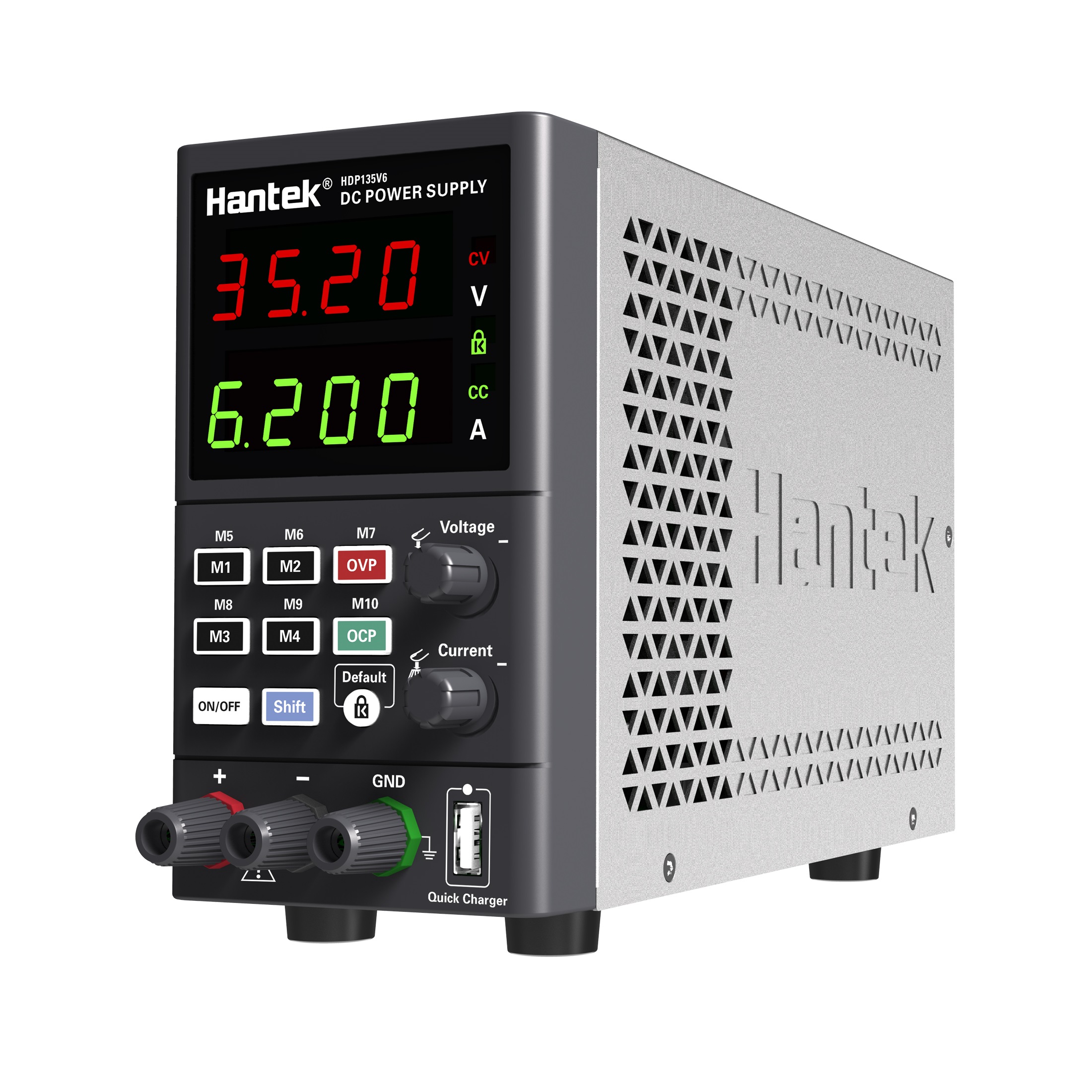

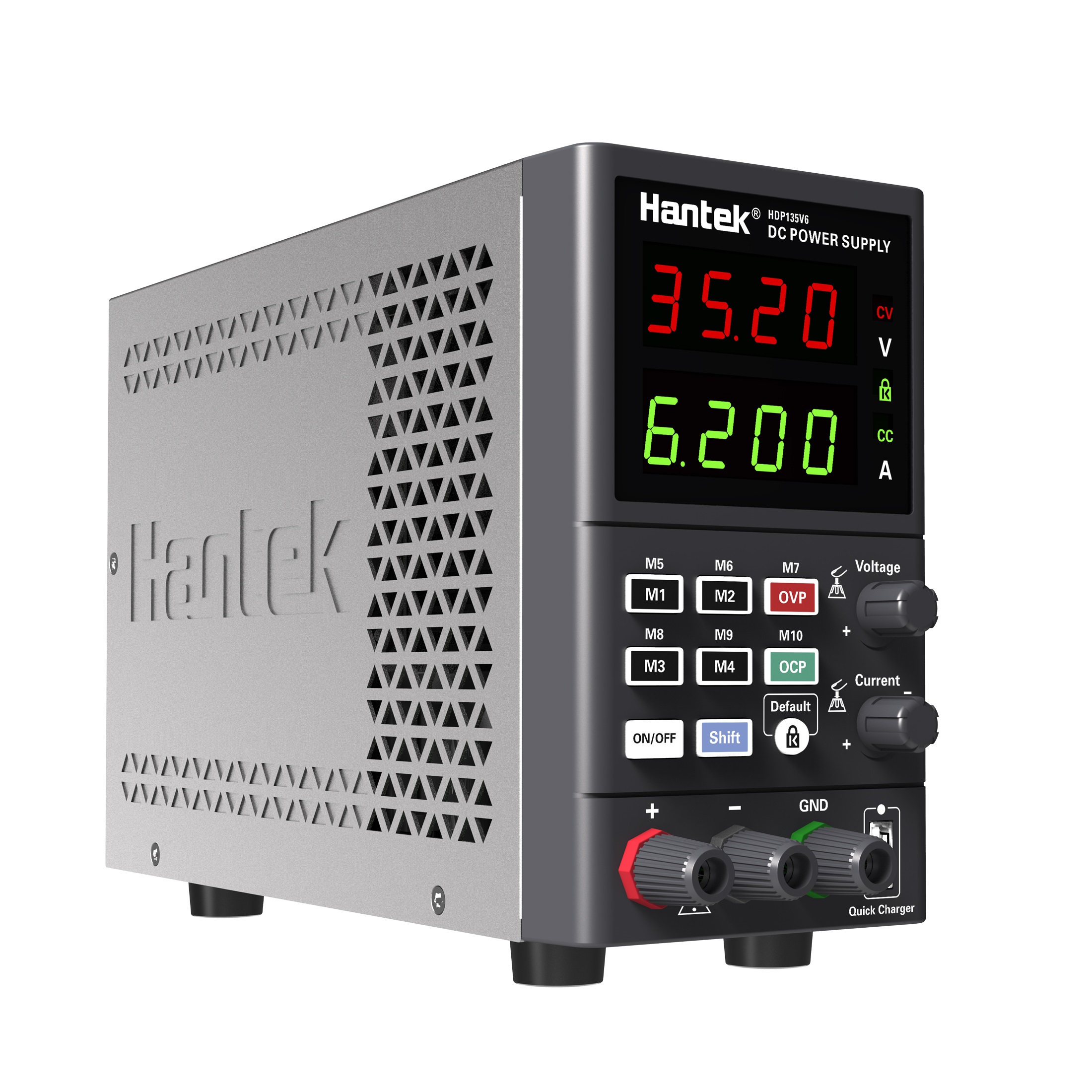

210W | HDP135V6S | 0~35V | 0~6A | √ |
120
Vac ± 10% 220 Vac ± 10% |
Voltage | |||
Load regulation | ≤0.1% + 5mV | ||
Linear regulation | ≤0.01% + 5mV | ||
Setting resolution | HDP135V6S | 10mV | |
HDP180V8S | 10mV | ||
HDP1160V4S | 0~100V | 10mV | |
100~160V | 100mV | ||
Setting precision | ≤0.1% + 1 digits | ||
Read back resolution | HDP135V6S | 10mV | |
HDP180V8S | 10mV | ||
HDP1160V4S | 0~100V | 10mV | |
100~160V | 100mV | ||
Read back accuracy | ≤0.1% + 1 digits | ||
Ripple | HDP135V6S | 10mVrms | |
HDP180V8S | 10mVrms | ||
HDP1160V4S | 15mVrms | ||
Overvoltage protection(OVP) | HDP135V6S | 0 ~ 37V ± 0.2%FS | |
HDP180V8S | 0 ~ 88V ± 0.2%FS | ||
HDP1160V4S | 0 ~ 176V ± 0.2%FS | ||
Maximum voltage | HDP135V6S | 35.2V ± 0.2% | |
HDP180V8S | 81V± 0.2% | ||
HDP1160V4S | 162V± 0.2% | ||
Current | |||
Load regulation | ≤0.2% + 3mA | ||
Linear regulation | ≤0.2% + 3mA | ||
Setting resolution | 1mA | ||
Setting precision | ≤0.2% + 3mA | ||
Read back resolution | 1mA | ||
Read back accuracy | ≤0.2% + 3 digits | ||
Ripple | HDP135V6S | 5mArms | |
HDP180V8S | 8mArms | ||
HDP1160V4S | 10mArms | ||
Overcurrent protection (OCP) | HDP135V6S | 0 ~ 7A ± 0.2%FS | |
HDP180V8S | 0 ~ 8.8A ± 0.2%FS | ||
HDP1160V4S | 0 ~ 4.4A ± 0.2%FS | ||
Maximum current | HDP135V6S | 6.2A ± 0.2% | |
HDP180V8S | 8.2A ± 0.2% | ||
HDP1160V4S | 4.1A ± 0.2% | ||
Quick charge | |||
Output voltage range | 5V ~ 12V | ||
Output power | Maximum 18 W | ||
Supported quick charging protocol | DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC | ||
General features | |||

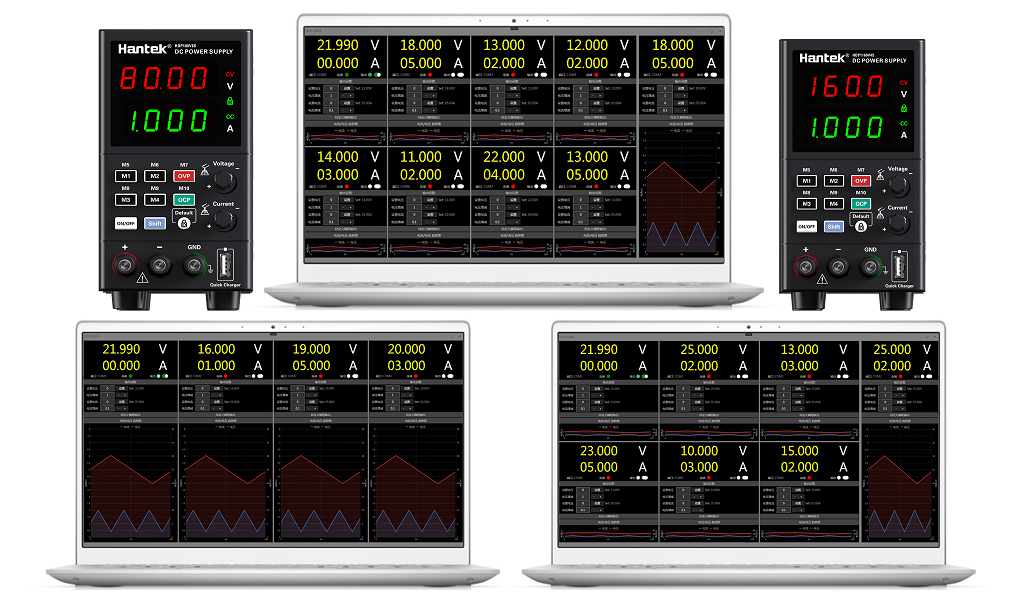

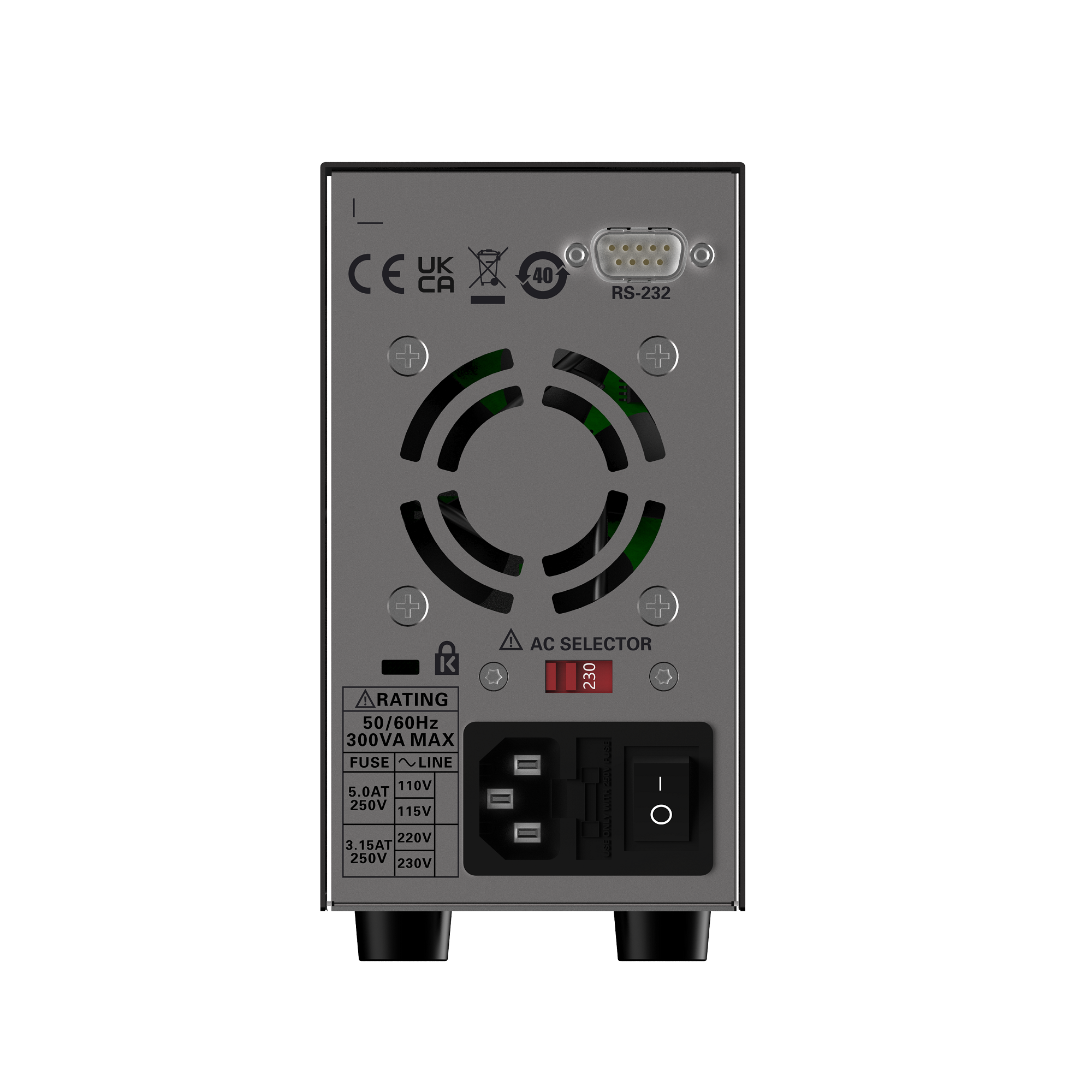

Remote interface | RS232 (Female connector) | ||
Baud rate: 2400 | |||
Data bit: 8 | |||
Stop bit: 1 | |||
None Parity check | |||
AC input | 115 Vac ± 10%, 230 Vac ± 10%, 50/60Hz | ||
Working conditions | Temperature -10 ° C to 40 ° C, relative humidity ≤80% | ||
Storage conditions | Temperature -20 ° C to 60 ° C, relative humidity ≤80% | ||
Cooling | Air cooling | ||
Weight | HDP135V6S | 1.30Kg | |
HDP180V8S | 1.50Kg | ||
HDP1160V4S | 1.50Kg | ||
Dimensions | 85×160×260(mm) |
