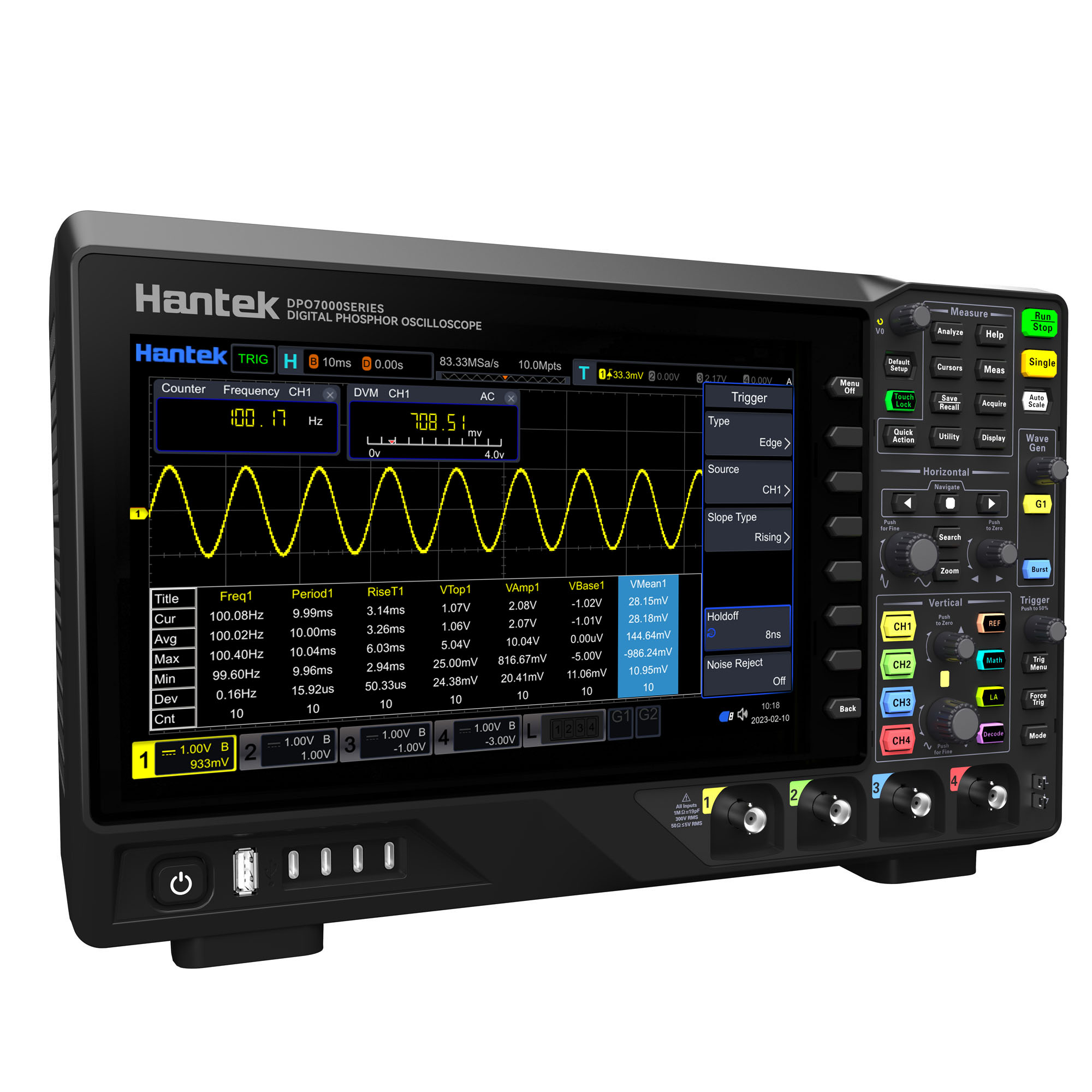

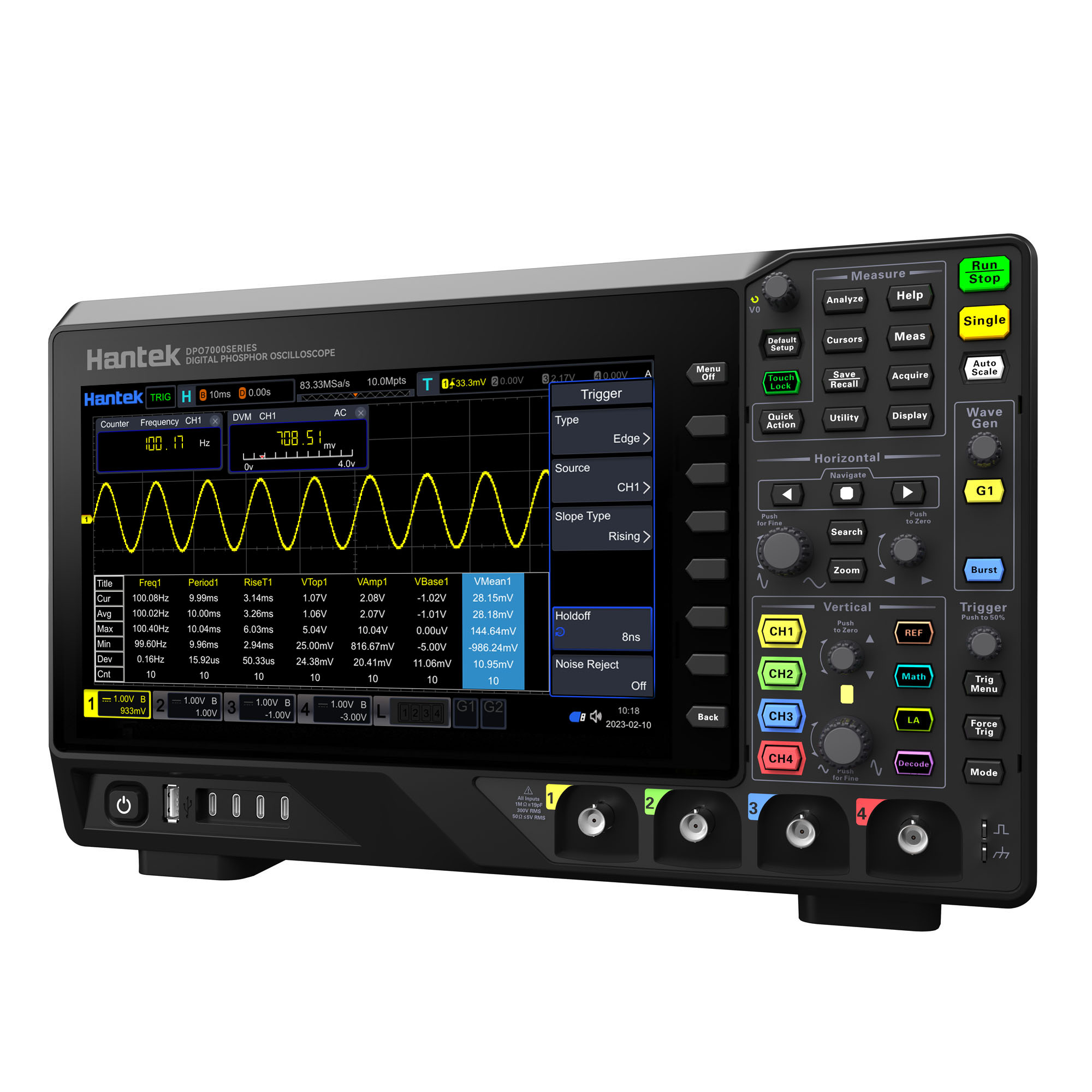

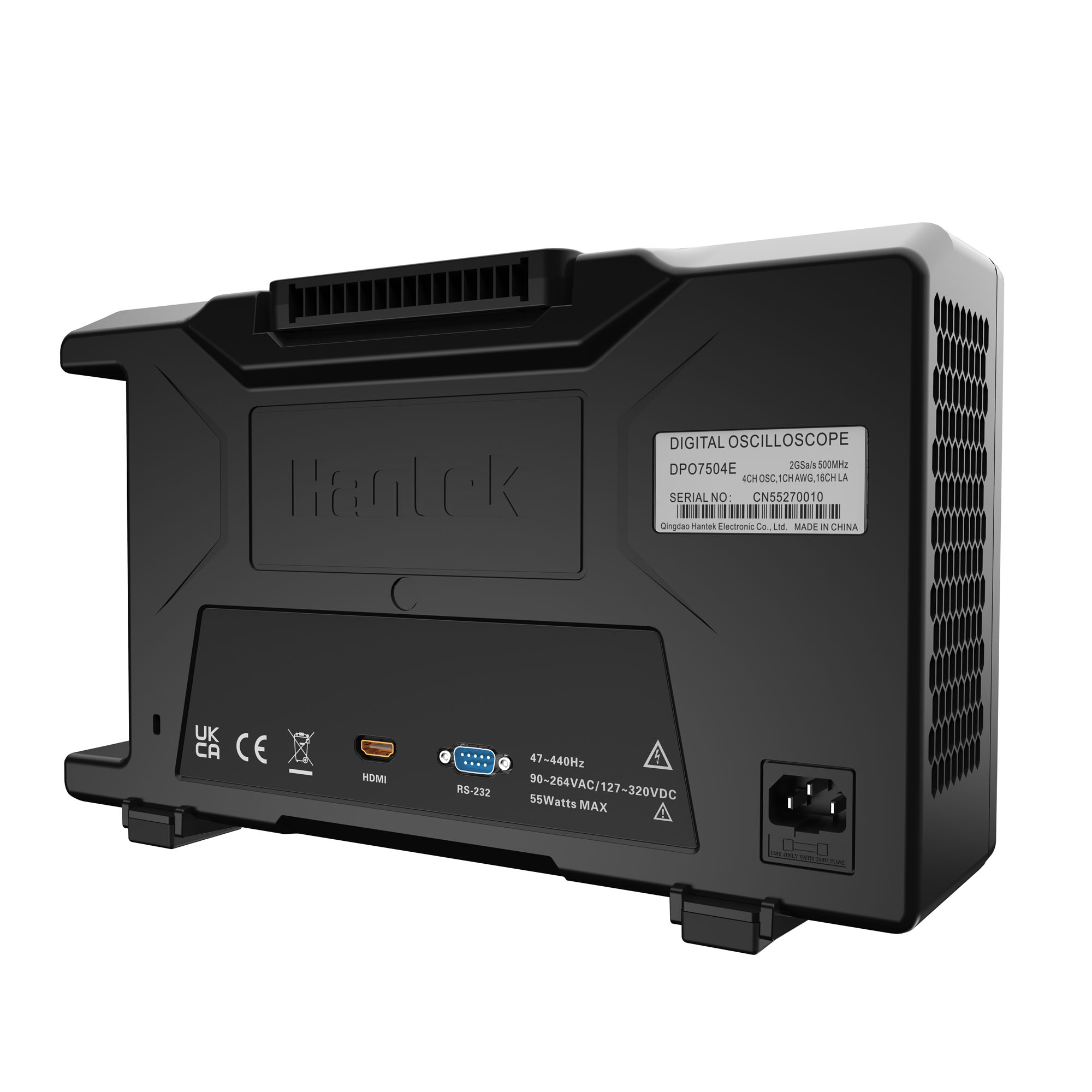

DPO7000 Series
10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display, 500MHz bandwidth, 2GSa/s sampling rate, 2G memory depth, 500.000wfms/s waveform capture rate; With a 25MHz waveform generator, supporting arbitrary wave output; 51 kinds of automatic measurement, providing full memory hardware measurement function; Rich serial protocol triggering and decoding functions; Multiple data analysis and processing functions; Integrate the functions of 7 instruments, significantly simplify the measurement system and speed up the measurement; Rich configuration interfaces are provided for more convenient use; It is a reliable oscilloscope that can provide you with professional measurement.
  • Set 8 independent instruments in one, including: oscilloscope / 16-channel logic analyzer/spectrum analyzer/arbitrary wave generator/digital voltmeter / frequency meter and accumulator/protocol analyzer;
  • Real-time sampling rate up to 2GSa/s, 2G memory depth, hardware real-time waveform recording and playback up to 2 million frames;
  • 10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display;
  • Rich serial protocol triggering and decoding functions;
  • Waveform capture rate is higher than 500,000 waveforms per second;
  • Up to 51 kinds of waveform parameters are automatically measured;
  • Multiple data analysis and processing functions: independent search, navigation keys and event list, histogram, baud chart, power analysis, counter.
2G memory depth
Ultra-long memory depth of 2G. Fully understand waveform overall and details, will not lose any accidental events and waveform changes.
Serial bus triggering and decoding
Provides bus triggering and decoding functions, supports multiple protocols UART, I2C, SPI, LIN, CAN and can decode and display bus protocol information quickly and intuitively.
Waveform digital fluorescent display
Provide digital fluorescence multi-level waveform grayscale display effect, which can help users quickly find potential anomalies in the signal.
25MHz function/arbitrary waveform generator
Waveform generator, integrated with a variety of commonly used built-in waveforms, supports customized arbitrary waveform, arbitrary wave burst output, and modulated waveform output.
Area trigger function
By drawing the region, you can set the region trigger. The region trigger can simplify the operation of advanced trigger and quickly isolate the waveform of interest.

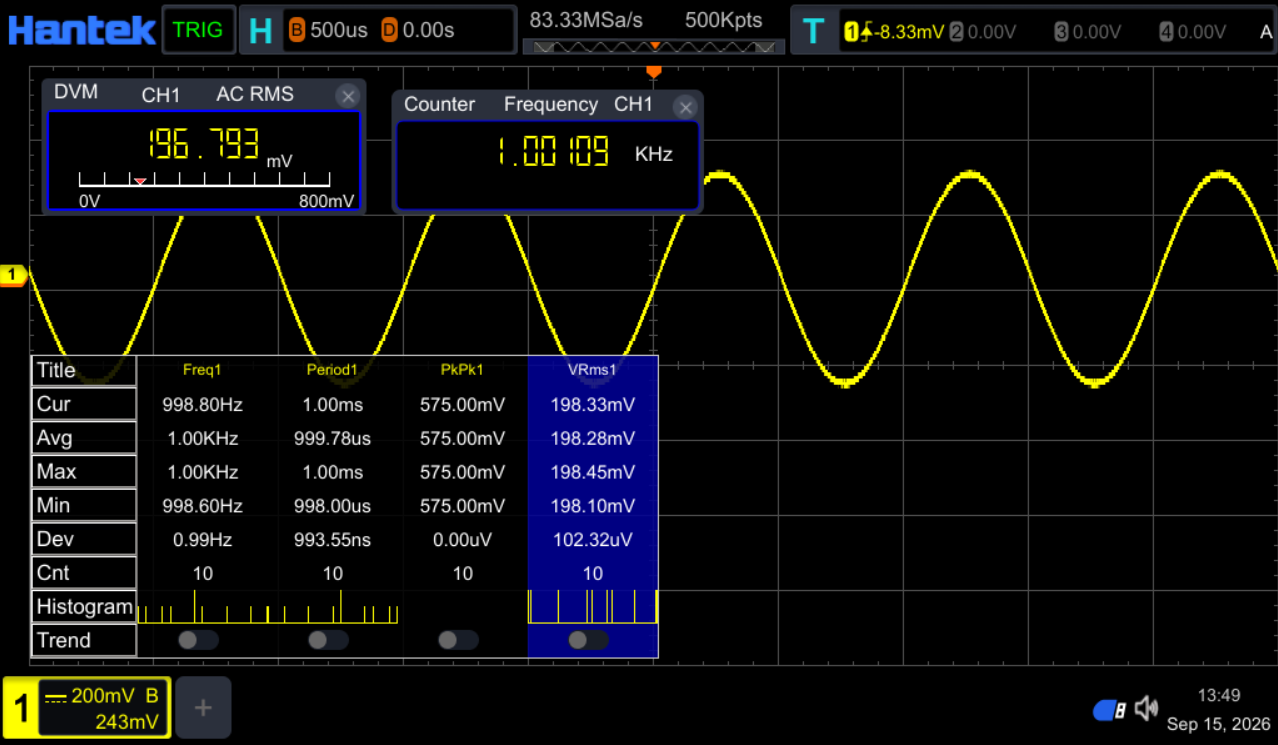

Test parameter function
5-digit digital voltmeter and 6-digit hardware frequency meter function; Real-time statistics of minimum, maximum, average, standard deviation and other information enable you to execute tests more efficiently.
Waveform recording and playback
The waveform recording function option is provided to record the waveform changes in real time without interruption, and mark the time on the signal, so as to play back the waveform conveniently and find out the fault.
Quick operation function
The shortcut operation panel including 15 common functions can be opened with one button without searching. Make the operation faster and the measurement more efficient.
Model  Channel  Bandwidth Highest real-time Sampling rate Maximun memory depth Maximum waveform capture rate Logical analyzer Waveform generator
DPO7102C 2CH 100MHz 2GSa/s 2Gpts 500,000 wfms/s -- --
DPO7202C 2CH 200MHz 2GSa/s 2Gpts 500,000 wfms/s -- --
DPO7352C 2CH 350MHz 2GSa/s 2Gpts 500,000 wfms/s -- --
DPO7502C 2CH 500MHz 2GSa/s 2Gpts 500,000 wfms/s -- --
DPO7104C 4CH 100MHz 2GSa/s 2Gpts 500,000 wfms/s -- --
DPO7204C 4CH 200MHz 2GSa/s 2Gpts 500,000 wfms/s -- --
DPO7354C 4CH 350MHz 2GSa/s 2Gpts 500,000 wfms/s -- --
DPO7504C 4CH 500MHz 2GSa/s 2Gpts 500,000 wfms/s -- --

Model Channel Bandwidth Highest real-time Sampling rate Maximun memory depth Maximun memory depth Logical analyzer Waveform generator
DPO7102E 2CH 100MHz 2GSa/s 2Gpts 500,000 wfms/s 16CH 25MHz,1CH
DPO7202E 2CH 200MHz 2GSa/s 2Gpts 500,000 wfms/s 16CH 25MHz,1CH
DPO7352E 2CH 350MHz 2GSa/s 2Gpts 500,000 wfms/s 16CH 25MHz,1CH
DPO7502E 2CH 500MHz 2GSa/s 2Gpts 500,000 wfms/s 16CH 25MHz,1CH
DPO7104E 4CH 100MHz 2GSa/s 2Gpts 500,000 wfms/s 16CH 25MHz,1CH
DPO7204E 4CH 200MHz 2GSa/s 2Gpts 500,000 wfms/s 16CH 25MHz,1CH
DPO7354E 4CH 350MHz 2GSa/s 2Gpts 500,000 wfms/s 16CH 25MHz,1CH
DPO7504E 4CH 500MHz 2GSa/s 2Gpts 500,000 wfms/s 16CH 25MHz,1CH
Model DPO7504E DPO7354E DPO7204E DPO7104E
Channel 4 Channel Oscilloscope+1 Channel Waveform Generator +16 Channel Logic Analyzer
Bandwidth 500MHz 350MHz 200MHz 100MHz
Real-time Sampling Rate 2GSa/s single channel, 2GSa/s half channel, 1GSa/s all channel
Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), 250Mpts (full channel)
Waveform Capture Rate 500,000 wfms/s [25ns dot display single channel automatic memory depth]
Vertical Resolution 8 bit
Vertical Sensitivity 1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range 500ps/div~1ks/div 1ns/div~1ks/div 2ns/div~1ks/div 2ns/div~1ks/div
Time Base Accuracy ±1 ppm ± 1 ppm/year
Bandwidth limitation 20 MHz, 100MHz, 200MHz, 350MHz；Independent optional for each channel
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Logic，Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Bus and Decoding UART, I2C, SPI, LIN, CAN
Mathematical Operation A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement 51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Hardware Recording and Playback More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance and Capacitance 1 MΩ ± 1%，50 Ω ± 1% ；19 pF ± 3 pF
Arbitrary Waveform Generator Sampling rate 200 MSa/s, vertical resolution 12 bit, maximum output frequency 25 MHz, Sine, Square, Pulse, Ramp, Noise, DC, Sinc, Exp.rise, Exp.fall, Lorentz, Gauss, ECG, Haversine and other 13 standard waveforms
Digital Channel 16CH, 1GSa/s sampling rate

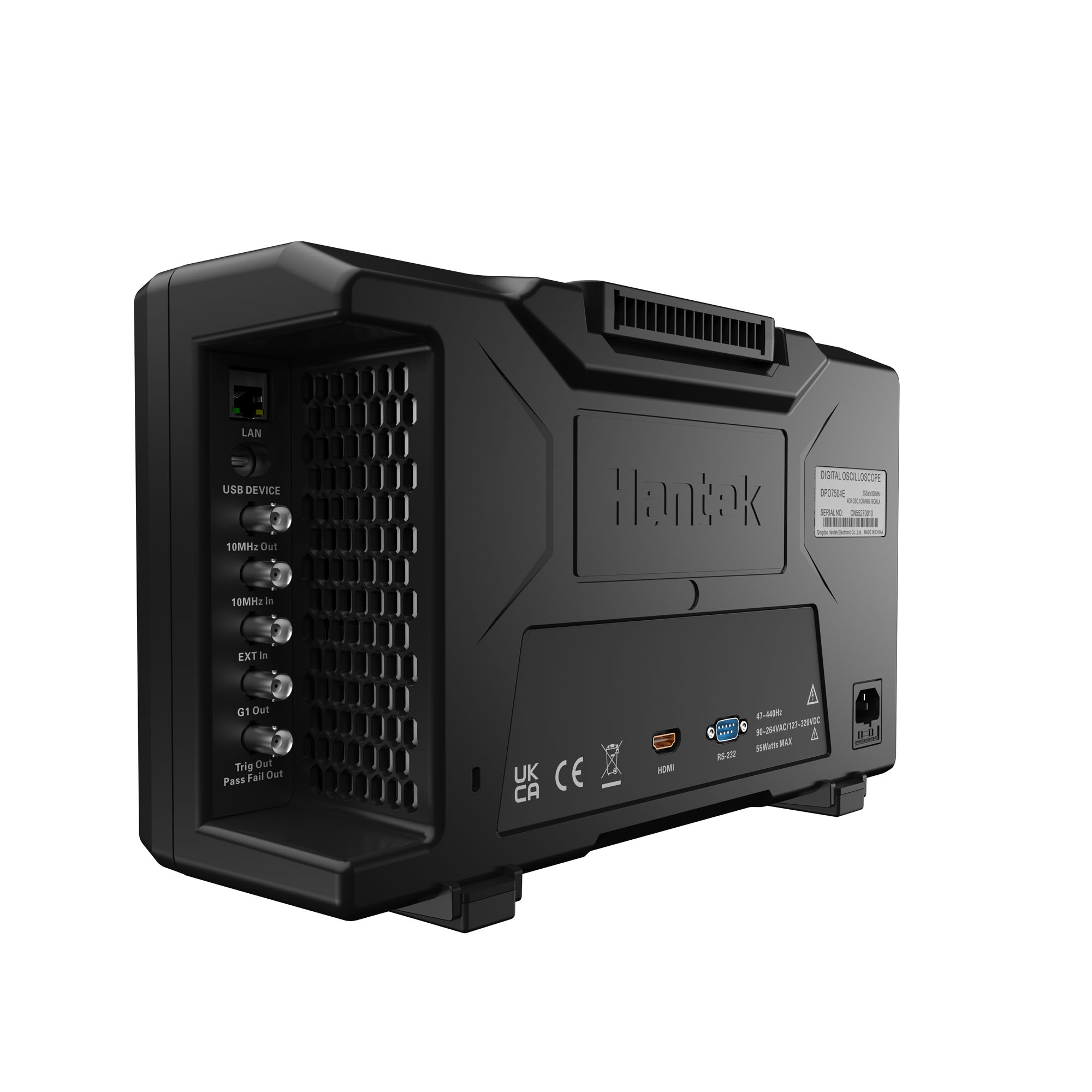

Interface USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen 10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow
Model DPO7504E DPO7354E DPO7204E DPO7104E
Channel 4 Channel Oscilloscope+1 Channel Waveform Generator +16 Channel Logic Analyzer
Bandwidth 500MHz 350MHz 200MHz 100MHz
Real-time Sampling Rate 2GSa/s single channel, 2GSa/s half channel, 1GSa/s all channel
Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), 250Mpts (full channel)
Waveform Capture Rate 500,000 wfms/s [25ns dot display single channel automatic memory depth]
Vertical Resolution 8 bit
Vertical Sensitivity 1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range 500ps/div~1ks/div 1ns/div~1ks/div 2ns/div~1ks/div 2ns/div~1ks/div
Time Base Accuracy ±1 ppm ± 1 ppm/year
Bandwidth limitation 20 MHz, 100MHz, 200MHz, 350MHz；Independent optional for each channel
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Logic，Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Bus and Decoding UART, I2C, SPI, LIN, CAN
Mathematical Operation A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement 51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Hardware Recording and Playback More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance and Capacitance 1 MΩ ± 1%，50 Ω ± 1% ；19 pF ± 3 pF
Arbitrary Waveform Generator Sampling rate 200 MSa/s, vertical resolution 12 bit, maximum output frequency 25 MHz, Sine, Square, Pulse, Ramp, Noise, DC, Sinc, Exp.rise, Exp.fall, Lorentz, Gauss, ECG, Haversine and other 13 standard waveforms
Digital Channel 16CH, 1GSa/s sampling rate
Interface USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen 10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow
Standard Accessories
Data cable
Type-C data cable, used for instrument and PC communication. Before use, it is necessary to install Keysight IO software on the PC.
Passive probe
Two channel machines equipped with two passive probes; Four channel machines equipped with four passive probes; 100MHz machine equipped with HT-100B; 200MHz machine equipped with HT-200B; 350MHz machine equipped with HT300B; 500MHz machine equipped with HT500B
Power line
The instrument comes with a standard power cord from the user's country, which can also be purchased separately.
Packing list
Including: calibration certificate, packing list, warranty card, and certificate of conformity
Optional Accessories
DPO7000-BW10T20
100MHz to 200MHz upgrade option (applicable to DPO7104/DPO7102)
DPO7000-BW10T35
100MHz to 350MHz upgrade option (applicable to DPO7104/DPO7102)
DPO7000-BW10T50
100MHz to 500MHz upgrade option (applicable to DPO7104/DPO7102)
DPO7000-BW20T35
200MHz to 350MHz upgrade option (applicable to DPO7204/DPO7202)
DPO7000-BW20T50
200MHz to 500MHz upgrade option (applicable to DPO7204/DPO7202)
DPO7000-BW35T50
350MHz to 500MHz upgrade option (applicable to DPO7354/DPO7352)
DPO7000-PWR
Power Analysis Option
DPO7000-AWG
50MHz AWG Option
DPO7000-TA
I2C/SPI/RS232/UART/CAN/LIN Serial Triggering and Analysis
DPO7000-BD
Baud Chart Option
Oscilloscope rack kit
Used to secure the machine to the testing cabinet for use.
Logic Analyzer - Probe
Logic analyzer test accessories.
Logic Analyzer - Clip
Test clips for logic analyzers.
Logic Analyzer - Connection cable
Logic analyzer test accessories.
