Battery Tester HBT4000 Series - Hantek Electronic & Your testing solution provider

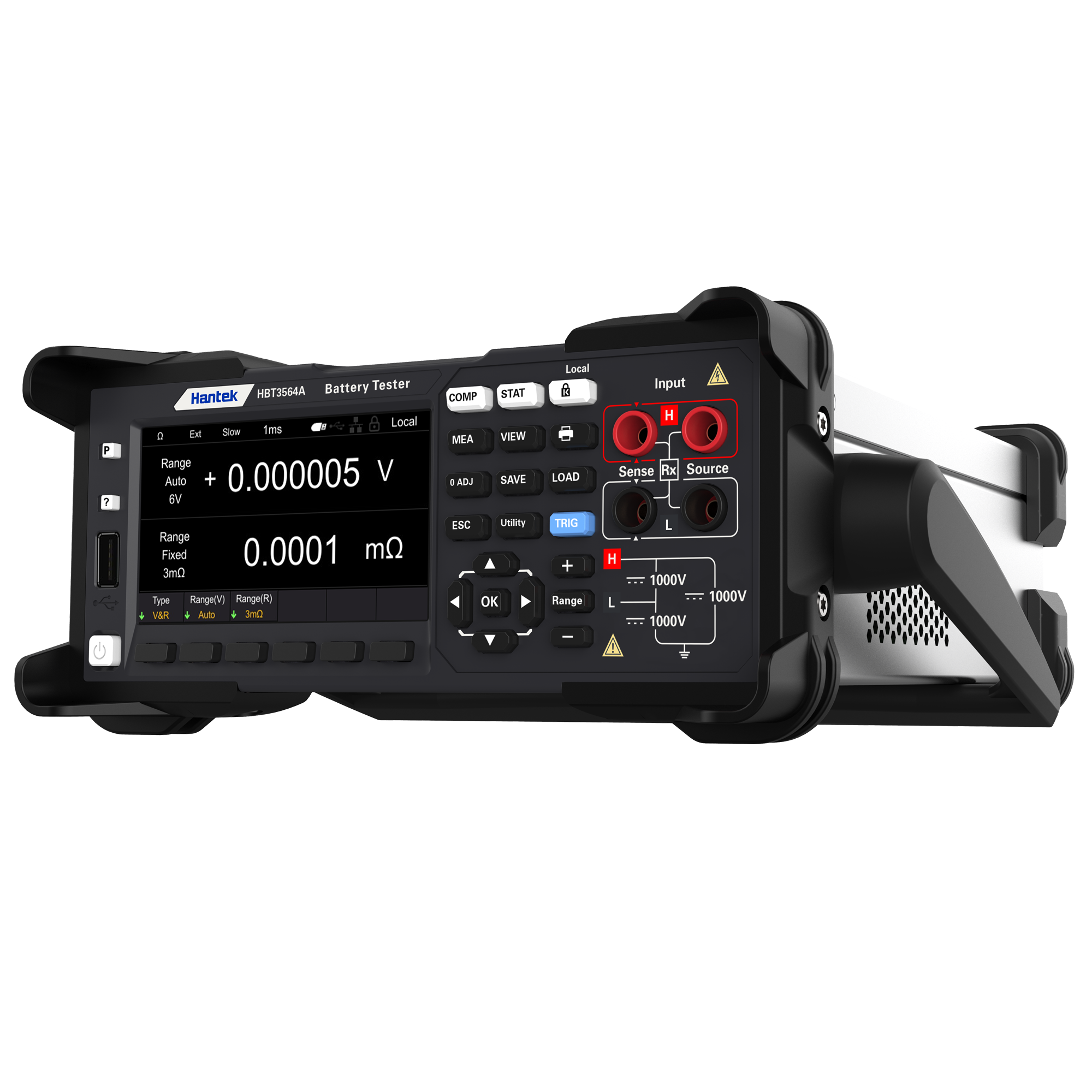

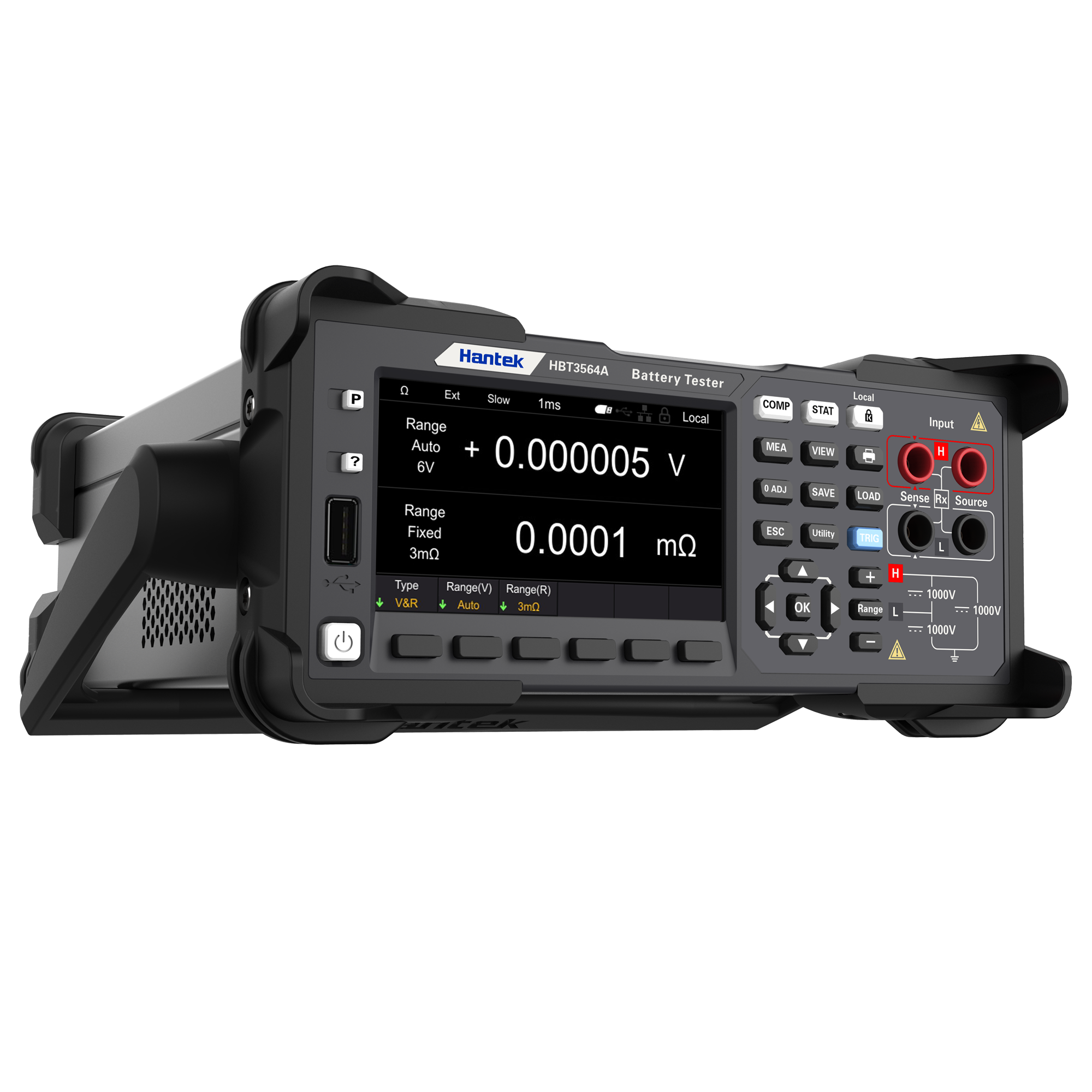

6 1/2-bit reading high -resolution internal resistance tester is a battery internal resistance tester with high accuracy and rapid measurement characteristics. The measured resistance range reaches 3.9kΩ and the measurement voltage range reaches 410V.
1μV voltage resolution, 0.1μΩ Resistance resolution, with high precision, high speed, suitable for various battery types.

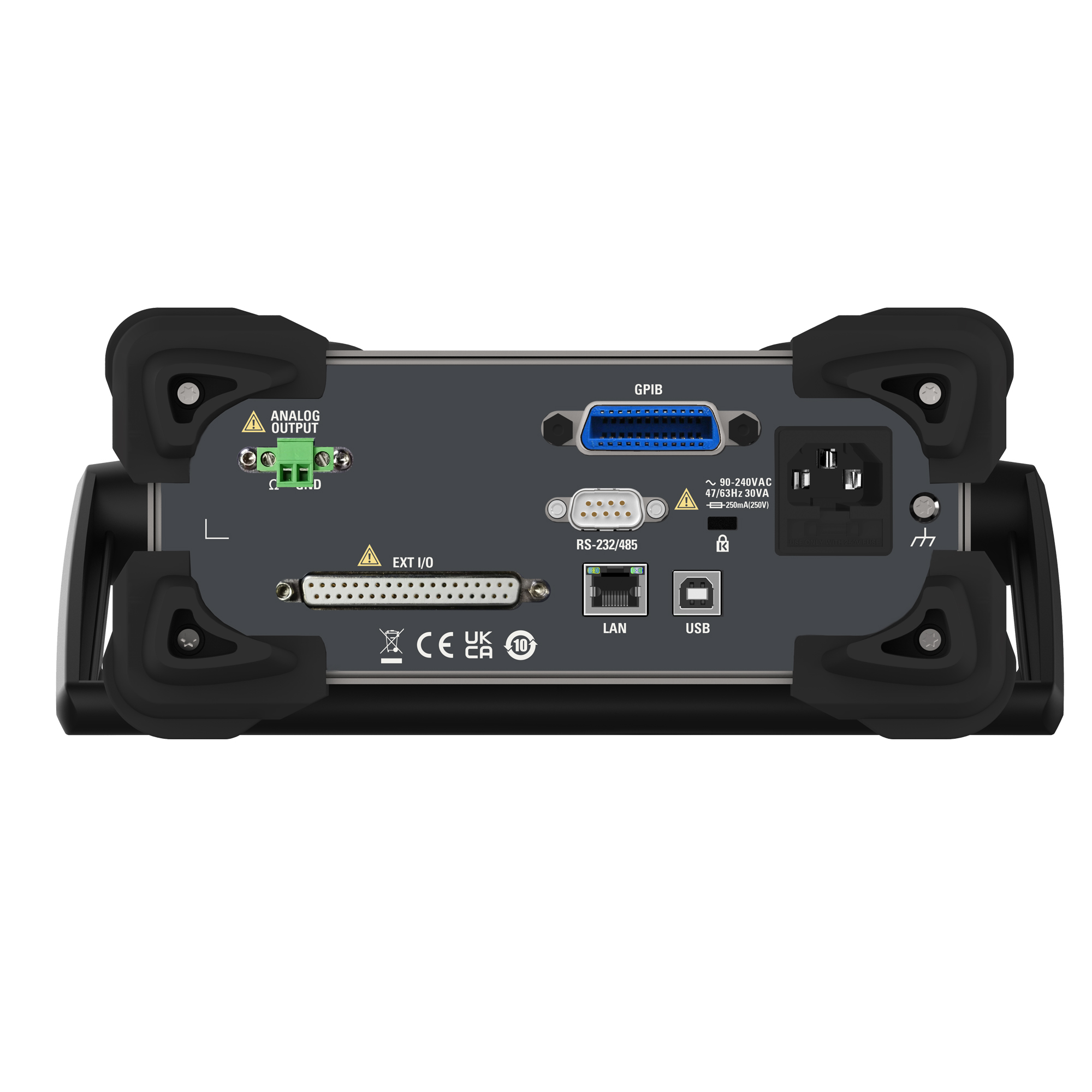

Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, optional GPIB interface, suitable for more testing scenarios.
Using AC 4 -terminal method, the impedance can not be affected by the impedance of the test line during the impedance measurement.
It has a comparison function with resistance and voltage respectively, and the battery intimidation and voltage are displayed at the same time.
Support U disk screenshots to save functions, and you can upgrade the instrument program through the U disk.
Sampling rate: slow/medium/fast, with a maximum speed of approximately 40 ms for high-speed measurement.
Internal impedance measurement range:3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3.9kΩ.
The full range of voltage measurement covers:160V/260V/410V
Draw the normal distribution diagram to observe the normal distribution of the measurement results.
The measurement results are easily saved into the U disk to facilitate subsequent data analysis and processing.

High precision and wide range

6 1/2, resistance measurement range 0~3.9kΩ, 1μV voltage resolution, 0.1μΩ resistance resolution, with high precision, fast measurement characteristics of the battery internal resistance tester, covering the most large battery pack to button cell test requirements, accurate to meet your needs.

Comparator function

Resistance and voltage are independent, and the function of displaying and output the measurement results will help you better understand the working status of your circuit or equipment.

Save/Load Function

The startup settings can be saved to the internal or U disk. There is no need to perform tedious application settings every time you use. Press the corresponding power -on settings button to easily load the previously saved application settings.

Three-speed sampling rate

The sampling rate can be changed in three stages (Fast/Horotelic/Slow), and the appropriate sampling rate can be selected according to different testing needs. The fastest high-speed measurement can be about 40 ms. The lower the sampling rate, the higher the testing accuracy.

Correction function

The calibration is divided into voltage calibration and resistance calibration, which is used to compensate the bias voltage or gain drift of the internal circuit of the instrument to improve the test accuracy.

Statistical function

Calculating a variety of statistical indicators, including but not limited to Average, Max, Min, Parent Standard Deviation, etc., makes it easy to plot the normal distribution and helps you visualize the normal distribution of your measurements.

Rich configuration interfaces

Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, optional GPIB interface.

Model	Resistance Resolution	Resistance Range	Resistance Range	Voltage Resolution	Voltage Range	Voltage Accuracy	Interface
HBT4561A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~160V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4561H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~160V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB
HBT4562A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~260V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4562H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~260V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB
HBT4563A	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~410V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTFUT
HBT4563H	0.1μΩ	0~3.9kΩ	士0.5%rdg土10dgt(3mΩ),士0.5%rdg土5dgt（30mΩ-3900Ω）	1μV	0~410V	士0.01%rdg土3dgt	RS232/485 USB LAN IO ANALOGOUTPUT GPIB

Model

HBT4561A/H

HBT4562A/H

HBT4563A/H

HBT4564A/H

HBT4565A/H

HBT4566A/H

Voltage

Measurement

Range

160V

260V

410V

1300V

1700V

2100V

Max. Display

176V

286V

451V

1430V

1870V

2310V

Resolution

1 μV

10 μV

Accuracy

±0.01% rdg ±3 dgt

Resistance Measurement

Range

Max. Display

Resolution

Measurement Current

Accuracy

3 mΩ

30 mΩ or more

3 mΩ

3.6 mΩ

0.1 μΩ

100 mA

±0.5% rdg ±10 dgt

±0.5% rdg ±5 dgt

30 mΩ

36 mΩ

1 μΩ

100 mA

300 mΩ

360 mΩ

10 μΩ

10 mA

3 Ω

3.6 Ω

100 μΩ

1 mA

30 Ω

36Ω

1 mΩ

100 μA

300 Ω

360 Ω

10 mΩ

10 μA

3900 Ω

3910 Ω

100 mΩ

10 μA

Measurement Method

AC four-terminal method

Measurement Frequency

1 kHz

Response Time

5 ms approx.

Open Terminal Voltage

12 V peak

15 V peak

Sampling Period

(Frequency: 50 Hz/60 Hz)

Meas.

Speed

Fast

Medium

Slow

ΩV

60 ms

300 ms

600 ms

Ω or V

40 ms

200 ms

400 ms

Allowable Total Line Res.(error detection)

Range

3 mΩ

30 mΩ

300 mΩ

3 Ω

Sense Line

3 Ω

20 Ω

Source Line

3 Ω

20 Ω

200 Ω

Function

Zero Adjustment

Yes

Meas. Current Pulse Output

Pulse, Continuous

Statistical Calculations

Mean, Maximum, Minimum, Standard Deviation, Sample Standard Deviation, Process Capability Index (Dispersion), Process Capability Index (Deviation)

Delay Time

1 ms to 9999 ms

Average

1, 2, 4, 8 times

Save/Load

Up to 1000

Trigger

Internal, External, Manual

Interface

Standard

RS232/485, USB, LAN, I/O, Analog Output

Optional

GPIB (HBT4000H series models only)

Display

4.3 inch LCD

AC Input

110 V ±10 % or 220 V ± 10 %, 47 to 63 Hz

Dimension (WxHxD)

Low voltage: 208.5mm*84.5mm*264mm

High voltage: 208.5mm*84.5mm*344mm

Model

HBT4561A/H

HBT4562A/H

HBT4563A/H

HBT4564A/H

HBT4565A/H

HBT4566A/H

Voltage

Measurement

Range

160V

260V

410V

1300V

1700V

2100V

Max. Display

176V

286V

451V

1430V

1870V

2310V

Resolution

1 μV

10 μV

Accuracy

±0.01% rdg ±3 dgt

Resistance Measurement

Range

Max. Display

Resolution

Measurement Current

Accuracy

3 mΩ

30 mΩ or more

3 mΩ

3.6 mΩ

0.1 μΩ

100 mA

±0.5% rdg ±10 dgt

±0.5% rdg ±5 dgt

30 mΩ

36 mΩ

1 μΩ

100 mA

300 mΩ

360 mΩ

10 μΩ

10 mA

3 Ω

3.6 Ω

100 μΩ

1 mA

30 Ω

36Ω

1 mΩ

100 μA

300 Ω

360 Ω

10 mΩ

10 μA

3900 Ω

3910 Ω

100 mΩ

10 μA

Measurement Method

AC four-terminal method

Measurement Frequency

1 kHz

Response Time

5 ms approx.

Open Terminal Voltage

12 V peak

15 V peak

Sampling Period

(Frequency: 50 Hz/60 Hz)

Meas.

Speed

Fast

Medium

Slow

ΩV

60 ms

300 ms

600 ms

Ω or V

40 ms

200 ms

400 ms

Allowable Total Line Res.(error detection)

Range

3 mΩ

30 mΩ

300 mΩ

3 Ω

Sense Line

3 Ω

20 Ω

Source Line

3 Ω

20 Ω

200 Ω

Function

Zero Adjustment

Yes

Meas. Current Pulse Output

Pulse, Continuous

Statistical Calculations

Mean, Maximum, Minimum, Standard Deviation, Sample Standard Deviation, Process Capability Index (Dispersion), Process Capability Index (Deviation)

Delay Time

1 ms to 9999 ms

Average

1, 2, 4, 8 times

Save/Load

Up to 1000

Trigger

Internal, External, Manual

Interface

Standard

RS232/485, USB, LAN, I/O, Analog Output

Optional

GPIB (HBT4000H series models only)

Display

4.3 inch LCD

AC Input

110 V ±10 % or 220 V ± 10 %, 47 to 63 Hz

Dimension (WxHxD)

Low voltage: 208.5mm*84.5mm*264mm

High voltage: 208.5mm*84.5mm*344mm
