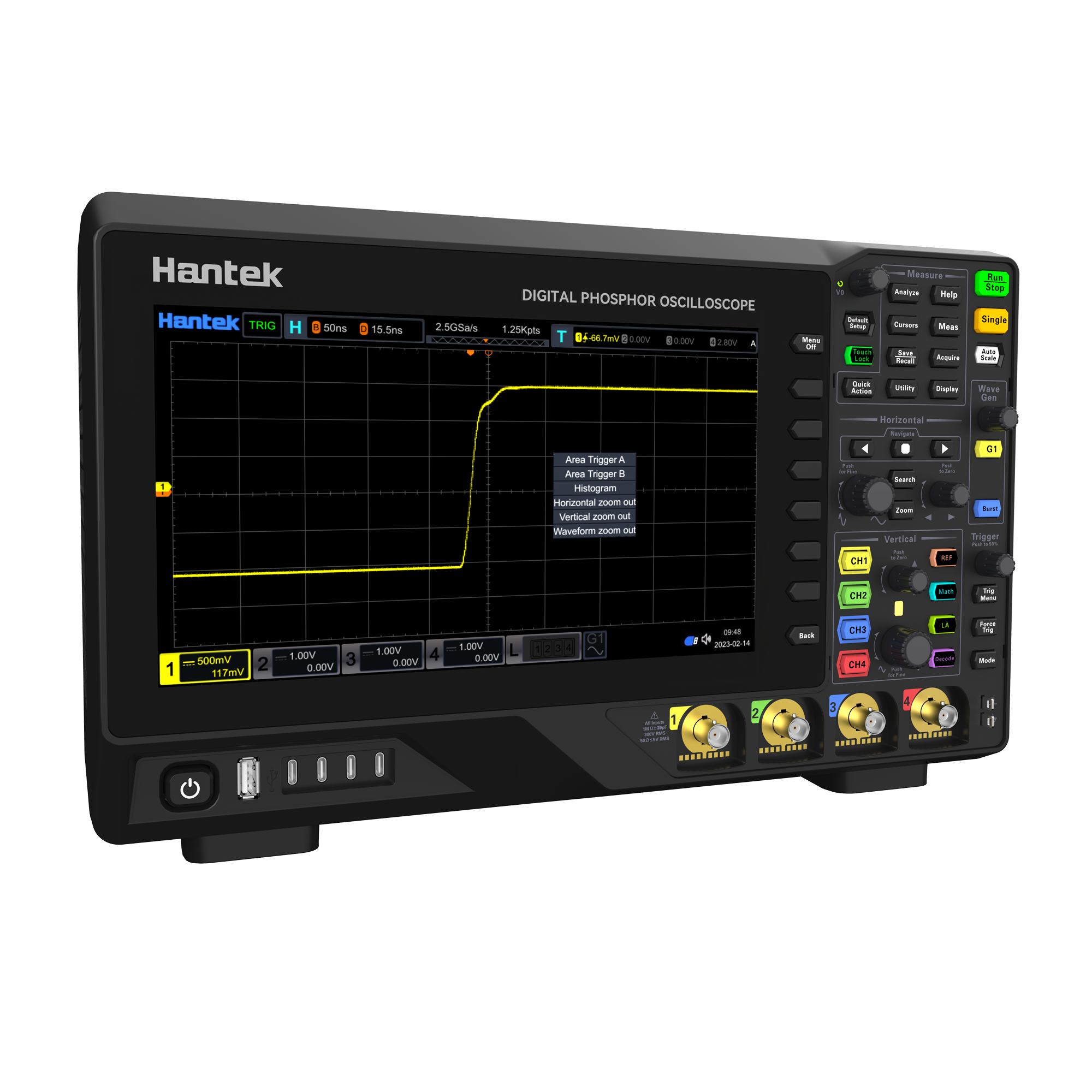

HRDO2000 Series
12-bit vertical resolution, 500MHz bandwidth, 2.5GSa/s sampling rate; Waveform capture rate is higher than 1.1 million waveforms per second, quickly capture instantaneous signals; Set 8 independent instruments in one, highly integrated function; Built-in dual channel 200MHz signal source, 0-14V voltage output, can meet diverse test needs; 10.1 inch multi-touch capacitive screen with 256 level waveform gray scale and color temperature display; Rich serial protocol triggering and decoding capabilities. Up to 51 waveform parameters are automatically measured, plus full-memory hardware measurement. A variety of data analysis and processing functions, such as independent search, navigation keys and event lists, histograms, baud charts, power analysis, counters, etc., improve work efficiency. Choosing HRDO2000 is to choose an efficient, accurate and convenient test solution!
  • 12-bit vertical resolution, 2.5Sa/s sampling rate, 500MHz bandwidth;
  • Set 8 independent instruments in one, including: 4-Channel oscilloscope/16-channel logic analyzer/spectrum analyzer/2-Channel arbitrary wave generator/digital voltmeter / 6-bit frequency meter and accumulator/protocol analyzer/protocol generator;
  • 10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display;
  • Rich serial protocol triggering and decoding functions;
  • Waveform capture rate is higher than 1.1 million waveforms per second;
  • Up to 51 kinds of waveform parameters are automatically measured, and full memory hardware measurement function is also provided;
  • Multiple data analysis and processing functions: independent search, navigation keys and event list, histogram, baud chart, power analysis, counter.
Model Channel Bandwidth Vertical Resolution Highest real-time Sampling Rate Maximun Memory
Depth 		Maximum Waveform
Capture Rate 		Logical Analyzer Waveform Generator
HRDO2054E 4CH 500MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s 16CH 200MHz,2CH
HRDO2034E 4CH 350MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s 16CH 200MHz,2CH
HRDO2024E 4CH 200MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s 16CH 200MHz,2CH
HRDO2014E 4CH 100MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s 16CH 200MHz,2CH
Model Channel Bandwidth Vertical Resolution Highest real-time Sampling Rate Maximun Memory
Depth 		Maximum Waveform
Capture Rate 		Logical Analyzer Waveform Generator
HRDO2054C 4CH 500MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO2034C 4CH 350MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO2024C 4CH 200MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO2014C 4CH 100MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s -- --
Model HRDO2054E HRDO2034E HRDO2024E HRDO2014E
Channel 4-Channel Oscilloscope+2-Channel Waveform Generator +16-Channel Logic Analyzer
Bandwidth 500MHz 350MHz 200MHz 100MHz
Real-time Sampling Rate 2.5GSa/s single channel, 2.5GSa/s half channel, 1.25GSa/s all channel
Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels)
Waveform Capture Rate 1,100,000 wfms/s
Vertical Resolution 12-bit
Vertical Sensitivity 1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range 500ps/div~1ks/div 1ns/div~1ks/div 2ns/div~1ks/div 2ns/div~1ks/div
Time Base Accuracy ±1 ppm ± 1 ppm/year
Bandwidth limitation 20 MHz, 200MHz; Independent optional for each channel
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Runt, Superamp, Pattern, Delay, Setup/Hold, UART, LIN, CAN, SPI, I2C
Bus and Decoding UART, I2C, SPI, LIN, CAN
Mathematical Operation A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement 51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function Frequency meter, digital voltmeter, power analysis, histogram, search, navigation, history, baud chart
Hardware Recording and Playback More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance and Capacitance 1 MΩ ± 1%，50 Ω ± 1% ；18 pF ± 3 pF
Arbitrary Waveform Generator 2-channel signal source, 16-bit vertical resolution, maximum output frequency 200 MHz, sine, square wave, pulse, triangle wave, noise, DC, Sinc, exponential, half-distortion, Lorentz, DTMF, Gaussian, ECG and other 13 standard waveforms
Digital Channel 16CH, 1GSa/s sampling rate
Interface USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen 10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow
Model HRDO2054E HRDO2034E HRDO2024E HRDO2014E
Channel 4-Channel Oscilloscope+2-Channel Waveform Generator +16-Channel Logic Analyzer
Bandwidth 500MHz 350MHz 200MHz 100MHz
Real-time Sampling Rate 2.5GSa/s single channel, 2.5GSa/s half channel, 1.25GSa/s all channel
Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels)
Waveform Capture Rate 1,100,000 wfms/s
Vertical Resolution 12-bit
Vertical Sensitivity 1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range 500ps/div~1ks/div 1ns/div~1ks/div 2ns/div~1ks/div 2ns/div~1ks/div
Time Base Accuracy ±1 ppm ± 1 ppm/year
Bandwidth limitation 20 MHz, 200MHz; Independent optional for each channel
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Runt, Superamp, Pattern, Delay, Setup/Hold, UART, LIN, CAN, SPI, I2C
Bus and Decoding UART, I2C, SPI, LIN, CAN
Mathematical Operation A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement 51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function Frequency meter, digital voltmeter, power analysis, histogram, search, navigation, history, baud chart
Hardware Recording and Playback More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance and Capacitance 1 MΩ ± 1%，50 Ω ± 1% ；18 pF ± 3 pF
Arbitrary Waveform Generator 2-channel signal source, 16-bit vertical resolution, maximum output frequency 200 MHz, sine, square wave, pulse, triangle wave, noise, DC, Sinc, exponential, half-distortion, Lorentz, DTMF, Gaussian, ECG and other 13 standard waveforms
Digital Channel 16CH, 1GSa/s sampling rate
Interface USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen 10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow
Probe
Model Description View Manual
HT300B,HT500B 350Mhz,500MHz,10:1/1:1 Download
HT100B，HT200B 100MHz,200MHz,10:1/1:1 Download
PP-80,PP-150,PP-200 60MHz,100MHz,200MHz,10:1/1:1 Download
PP80B, PP150B, PP200B, PP300B 80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1 Download
PP-90 80MHz,10:1/1:1 Download
T3100 100MHz，100：1，2000VDC Peak AC Download
AC/DC Current Clamp
Model Description View Manual
CC65 AC/DC: 0 – 20KHz，20mA to 65A DC Download
CC650 AC:0 – 5KHz，1A - 500A ，DC:1A - 650A Download
CC800 AC:0 – 5KHz，1A - 500A ，DC:1A - 800A Download
High voltage isolated probe
Model Description View Manual
HT8050 50MHz，1300V peakAC，1:50，1:500 Download
HT8100 100MHz，1300V peakAC，1:50，1:500 Download
