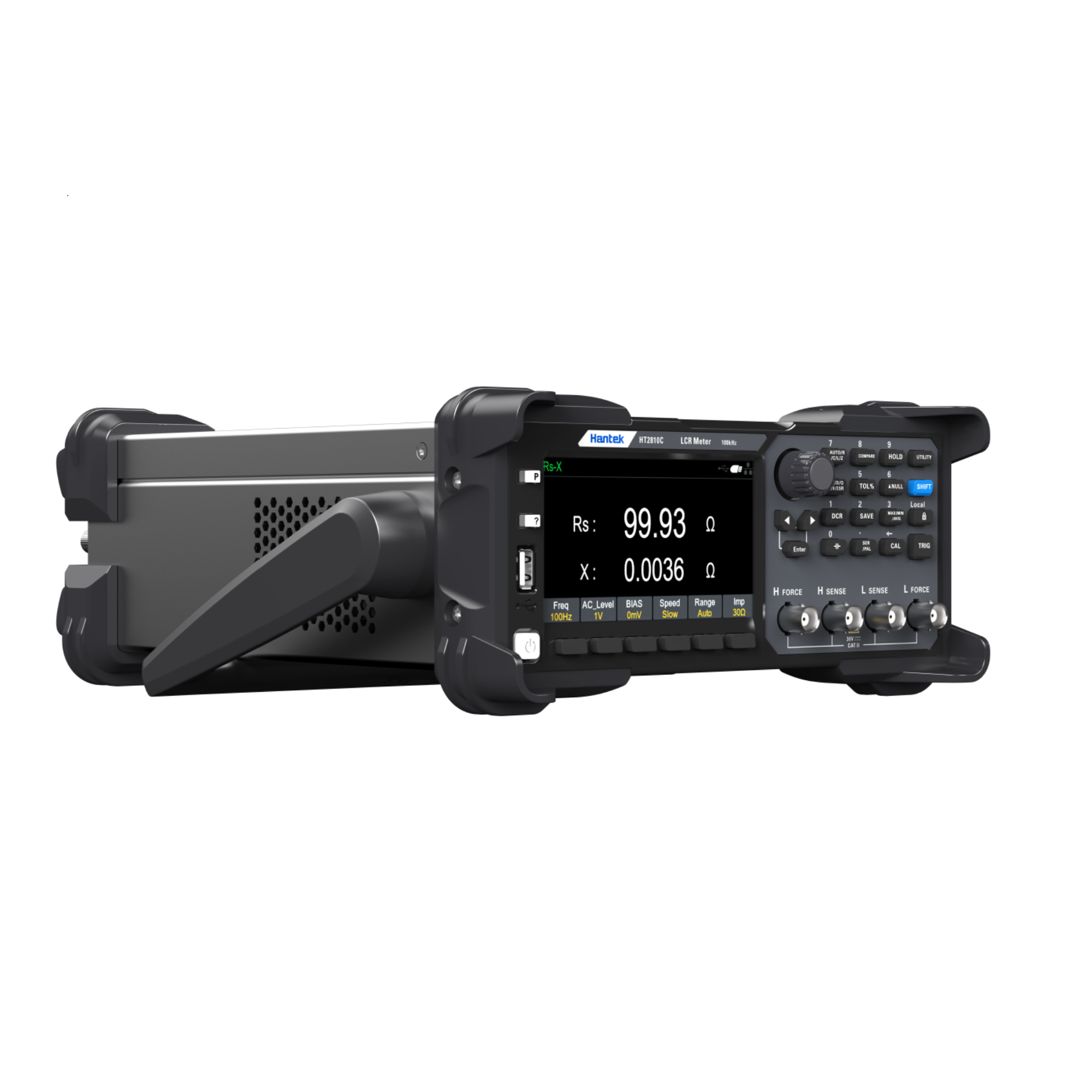

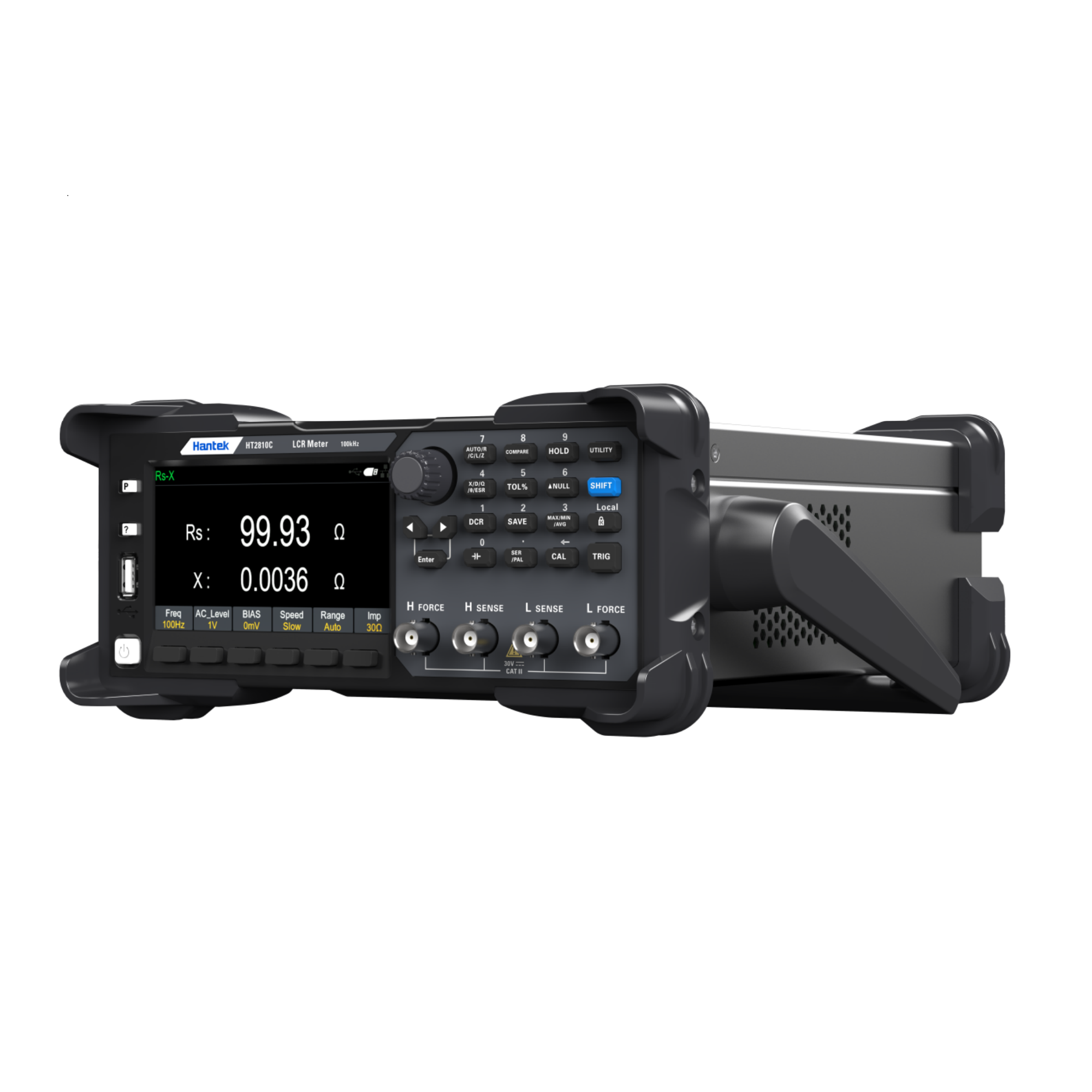

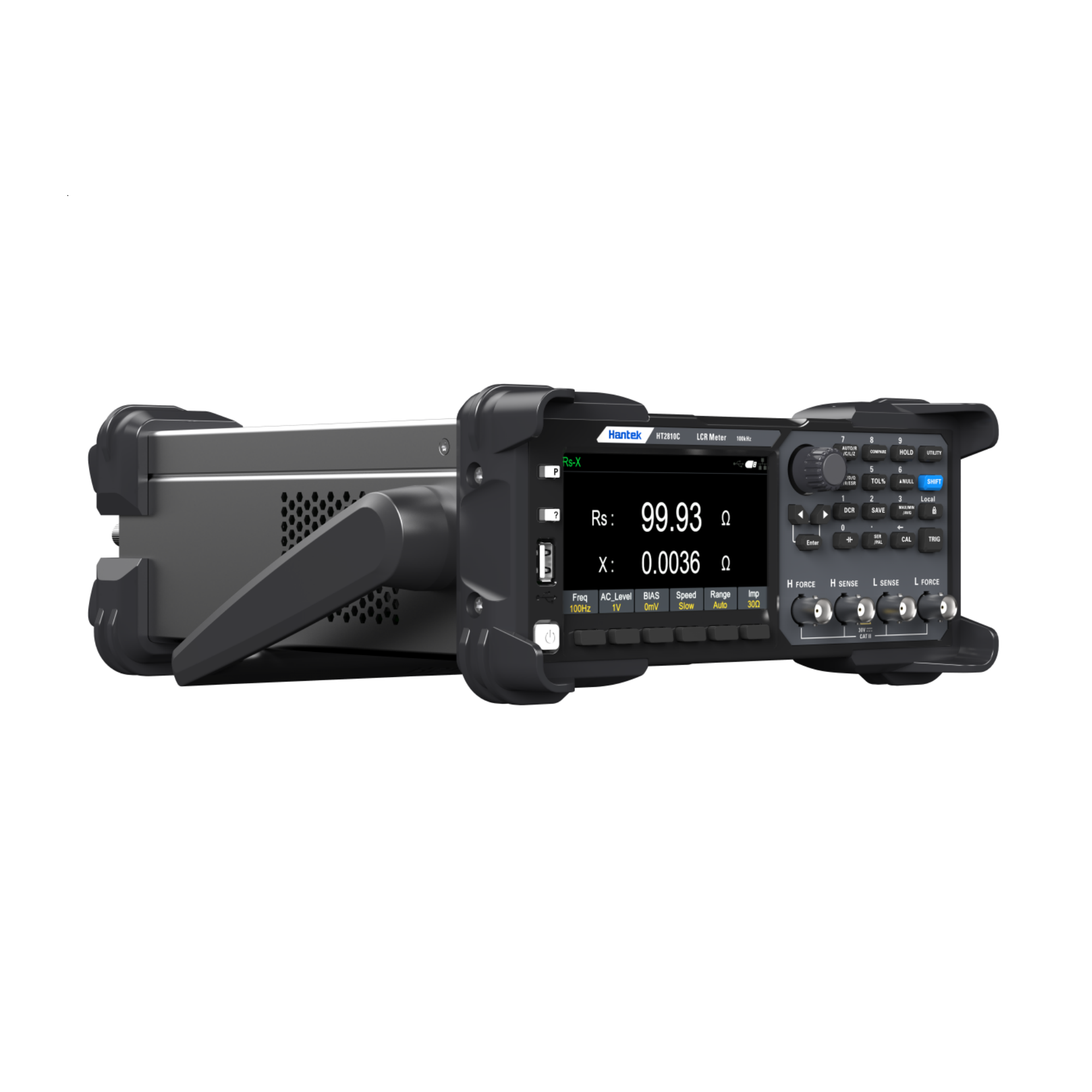

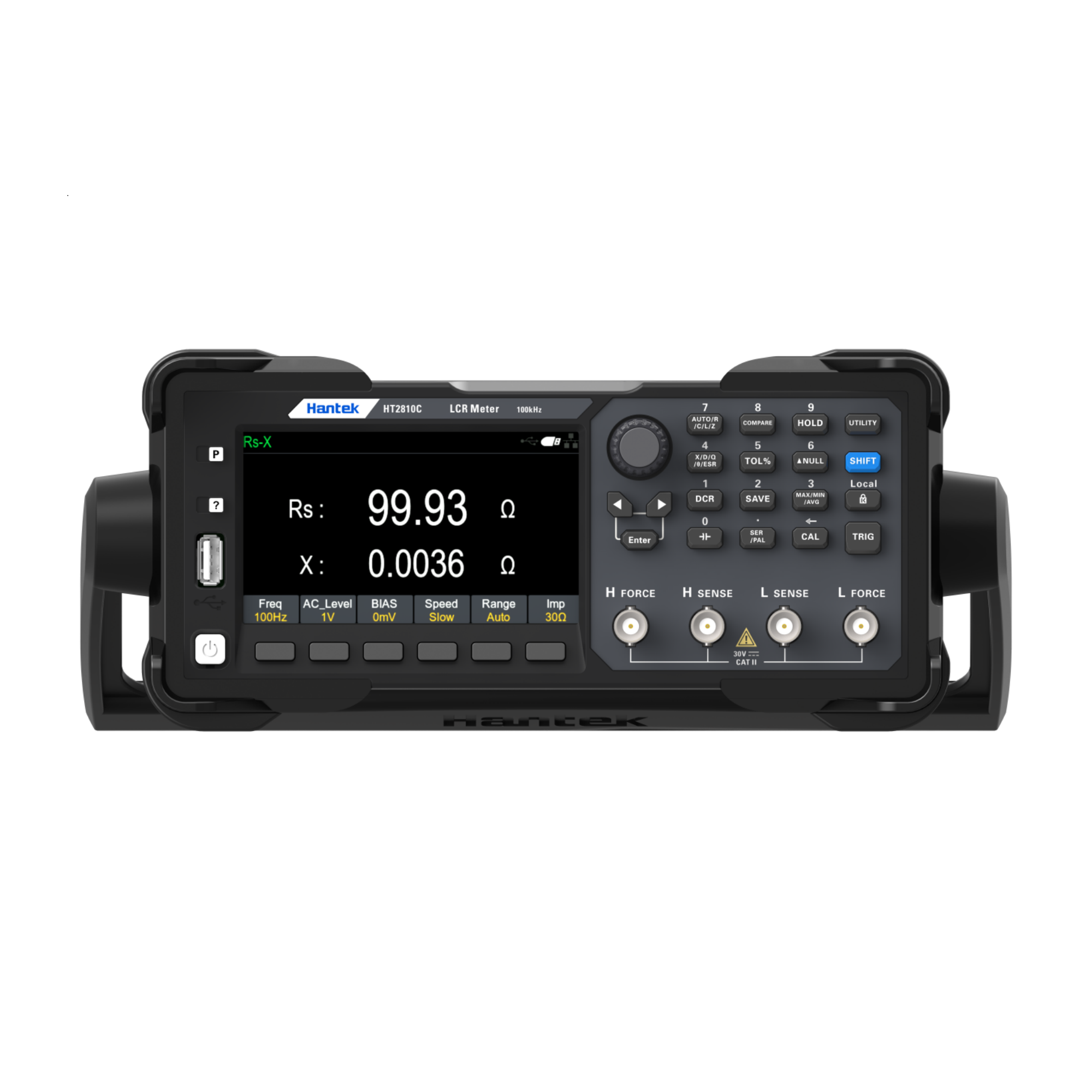

HT2810C
Automatic identification of component types; Maximum test signal frequency: 100 kHz; AC test signal level: 100 - 2000 mVrms; DC bias voltage: 0 - 1500 mV; Supports DC resistance and electrolytic capacitor measurement; Basic accuracy: 0.1%; Supports open-circuit and short-circuit calibration; Data hold and data logging functions; 4.3-inch LCD display with support for Chinese and English interfaces; Standard interfaces: USB HOST, USB DEVICE, LAN, RS232/485, Handler; Supports SCPI communication protocol; Handler interface with support for comparator sorting and list scanning.
  • Automatic identification of component types.
  • Maximum test signal frequency: 100 kHz.
  • AC test signal level: 100mV-2000mV continuously adjustable，1mV steps
  • DC bias voltage: 0mV-1500mV adjustable，1mV steps
  • Supports DC resistance and electrolytic capacitor measurement.
  • Basic accuracy: 0.1%.
  • Supports open-circuit and short-circuit correction.
  • Data hold and data logging functions.
  • 4.3-inch LCD display with support for Chinese and English interfaces.
  • Standard interfaces: USB HOST, USB DEVICE, LAN, RS232/485, Handler.
  • Supports SCPI communication protocol.
  • Handler interface with support for comparator sorting and list scanning.
R/C/L Measurement
Main： R/C/ L/Z； Secondary：X/D/Q/θ/ESR
Data Hold and Record Function
When the data hold function is enable, the measured data remains unchanged. When the data logging function is enable, the maximum value, minimum value and average value are displayed.
Comparator Function
The comparator provides five sorting grades (BIN:1, BIN:2, BIN:3, BIN:AUX, BIN:OUT).
Open/Short Circuit Correction
Open and short circuit correction are used to eliminate measurement errors introduced by the parasitic parameters of the instrument and test fixtures. If precise measurement is required, it is recommended to perform open-circuit and short-circuit correctiom before the measurement.

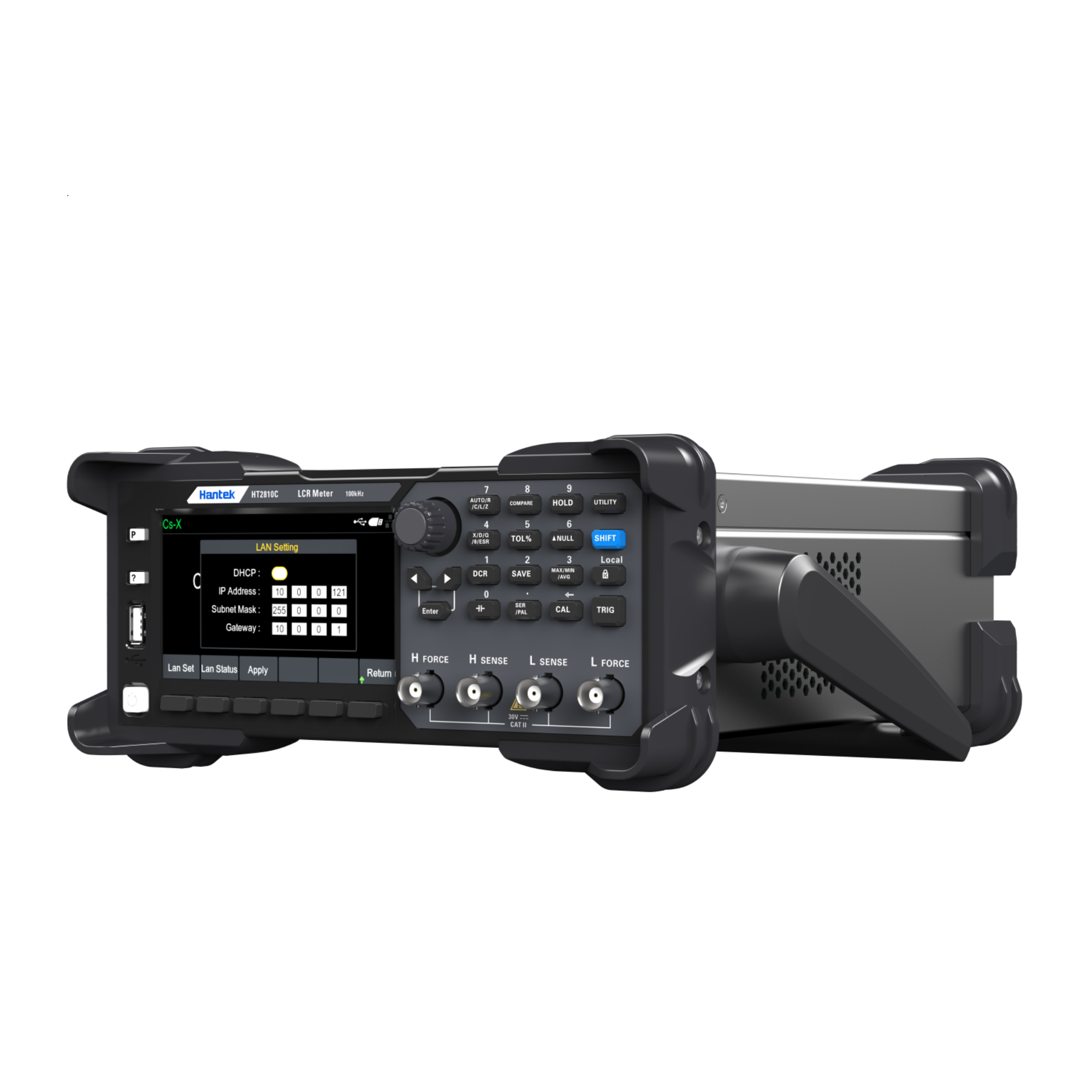

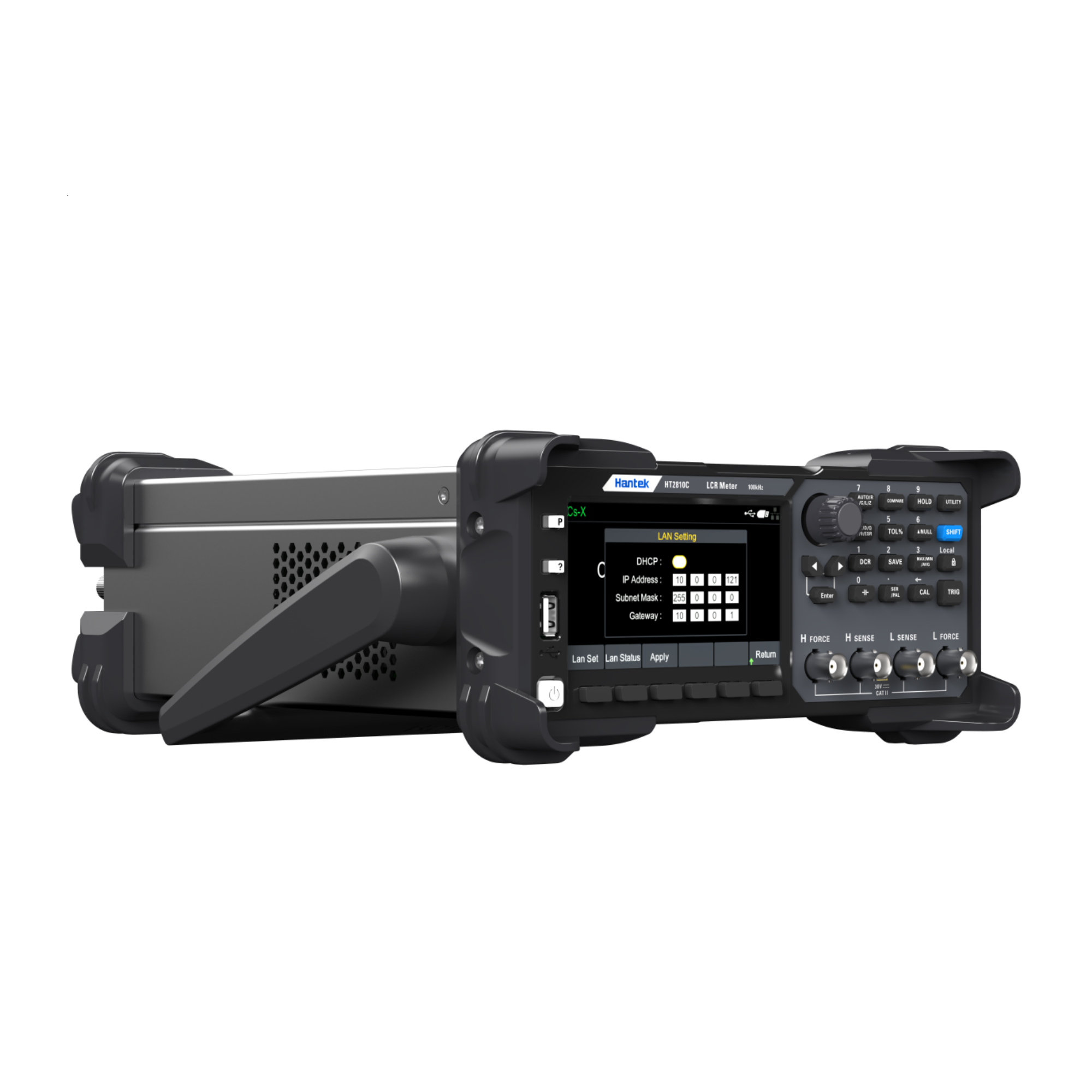

Multiple interface functions

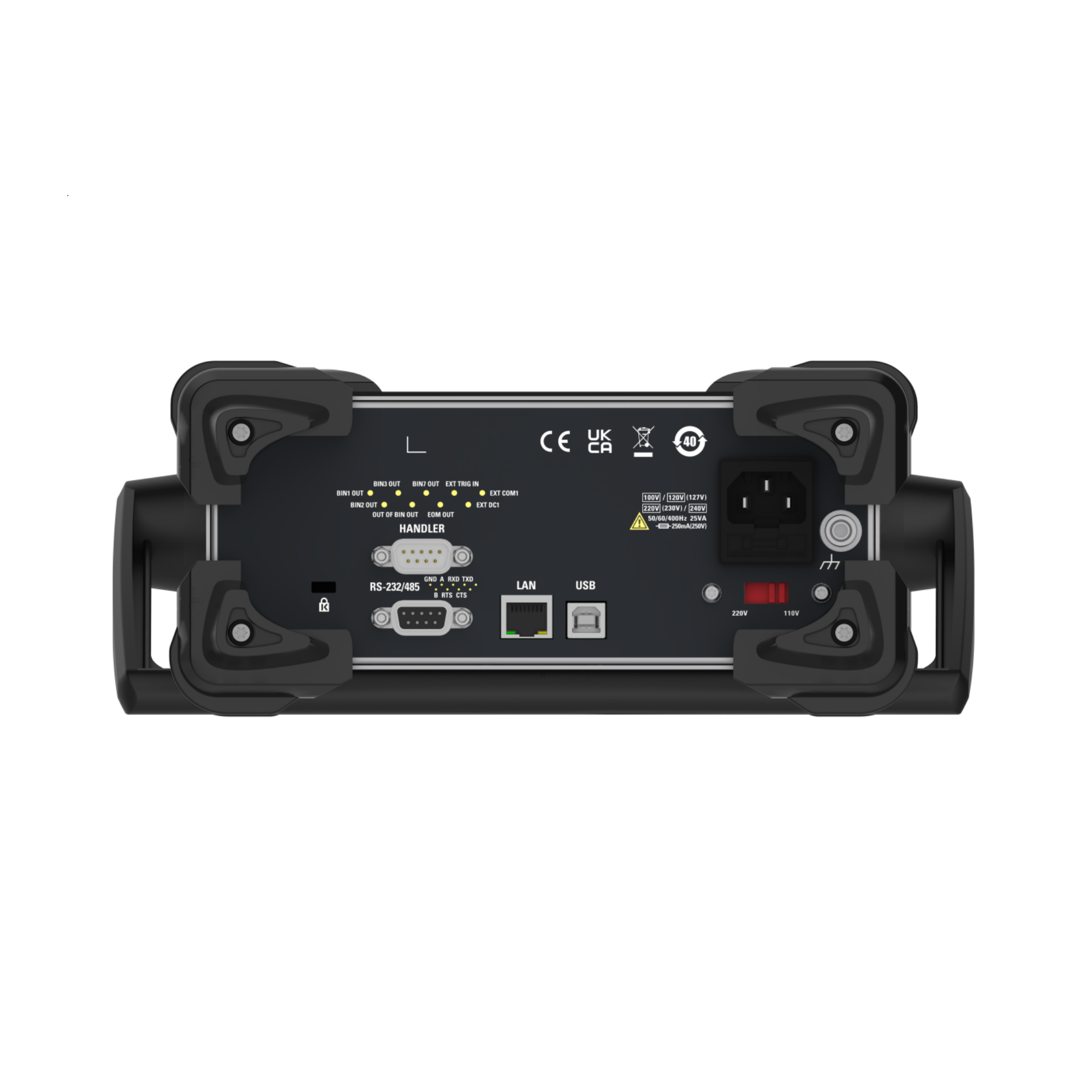

RS232/485, LAN and USB DEVICE interfaces to achieve remote data communication, which can meet the requirements of current market automation applications. Handler interface, which is mainly used for outputting the sorting grades results.


Model HT2810C
Test signal frequency 100Hz-100kHz continuously adjustable，1Hz steps
Display digits Main Parameter: 5 digits, Second Parameter: 5 digits
Test Parameter Main：R/C/ L/Z；Secondary：X/D/Q/θ/ESR
Parameter display  range R 0.0001Ω - 399.99MΩ
C 0.0001pF – 39.999mF
L 0.0001μH – 39.999kH
Basic accuracy 0.10%
Display speed Slow: 2 times/second；Middle: 5 times/second;  Fast: 10 times/second;
AC test signal level (Vrms) 100 - 2000mV continuously adjustable, 1mV steps
DC bias voltage 0 - 1500mV adjustable, 1mV steps
Range mode Auto, Optional special range
Signal source output impedance Selectable 30Ω, 100Ω, ±1%
Correction Open, Short
Equivalent circuit Serial, Parallel
Trigger mode Auto, Bus, EXT
Save/Recall Setting parameters can be saved internally with 6 sets of positions, which can be recalled by user.
DCR display range 0.0001Ω ~ 99.99MΩ
Comparator function Tolerance range：-100% ~ +100%;
5 bins (BIN:1, BIN:2, BIN:3, BIN:OUT, BIN:AUX)
Interface USB HOST, USB DEVICE, LAN, RS232/485, Handler
Language Chinese, English
LCD display Backlight brightness adjustable
Other Electrolytic Capacitor Test Mode，Keyboard Lock Function



Model HT2810C
Test signal frequency 100Hz-100kHz continuously adjustable，1Hz steps
Display digits Main Parameter: 5 digits, Second Parameter: 5 digits
Test Parameter Main：R/C/ L/Z；Secondary：X/D/Q/θ/ESR
Parameter display  range R 0.0001Ω - 399.99MΩ
C 0.0001pF – 39.999mF
L 0.0001μH – 39.999kH
Basic accuracy 0.10%
Display speed Slow: 2 times/second；Middle: 5 times/second;  Fast: 10 times/second;
AC test signal level (Vrms) 100 - 2000mV continuously adjustable, 1mV steps
DC bias voltage 0 - 1500mV adjustable, 1mV steps
Range mode Auto, Optional special range
Signal source output impedance Selectable 30Ω, 100Ω, ±1%
Correction Open, Short
Equivalent circuit Serial, Parallel
Trigger mode Auto, Bus, EXT
Save/Recall Setting parameters can be saved internally with 6 sets of positions, which can be recalled by user.
DCR display range 0.0001Ω ~ 99.99MΩ
Comparator function Tolerance range：-100% ~ +100%;
5 bins (BIN:1, BIN:2, BIN:3, BIN:OUT, BIN:AUX)
Interface USB HOST, USB DEVICE, LAN, RS232/485, Handler
Language Chinese, English
LCD display Backlight brightness adjustable
Other Electrolytic Capacitor Test Mode，Keyboard Lock Function


Standard Accessories
Packing list
Includes: Calibration certificate, packing list, warranty card and certificate of conformity.
Four-terminal insulation test leads
Connect them to the four test terminals on the front panel of the instrument.
USB cable
Square USB cable, used for instrument communication with PC. Before use, you need to install IO software on the PC side.
Power cord
The instrument is equipped with a standard power cord in the country where the user is located, and can also be purchased separately.
