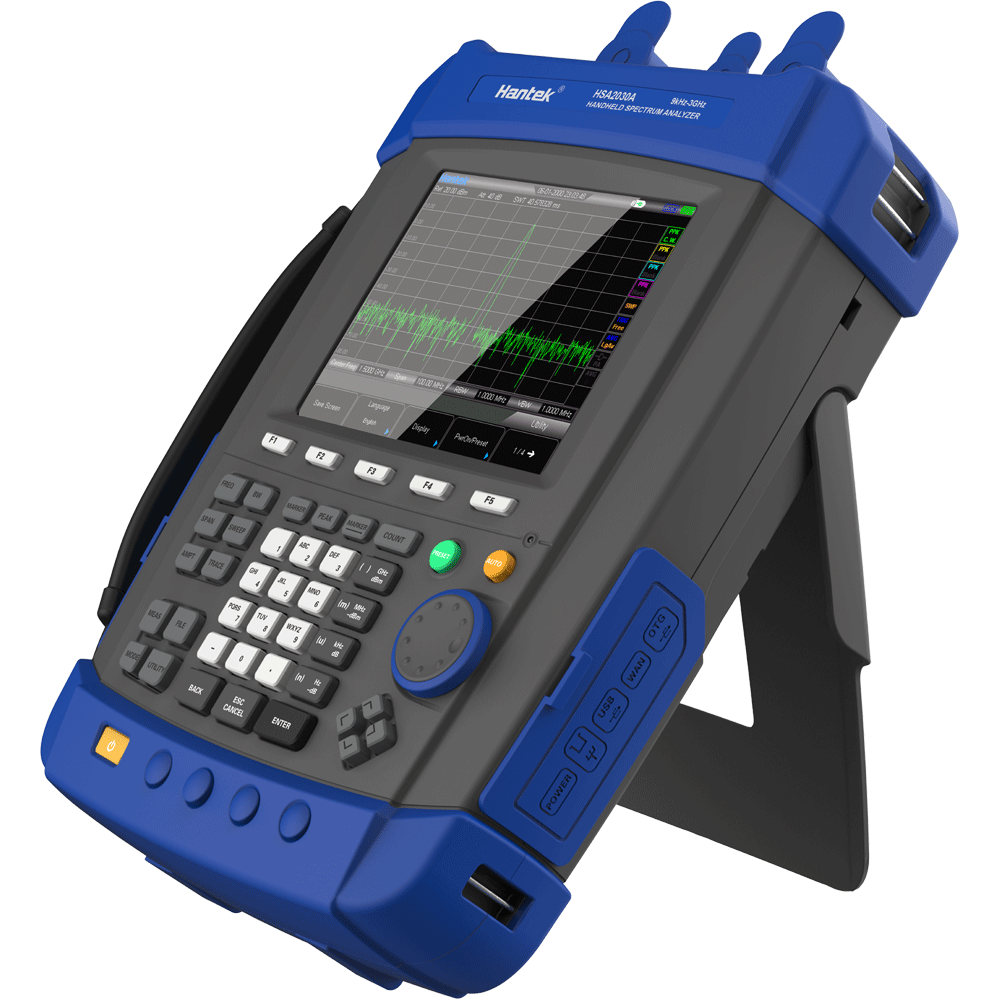

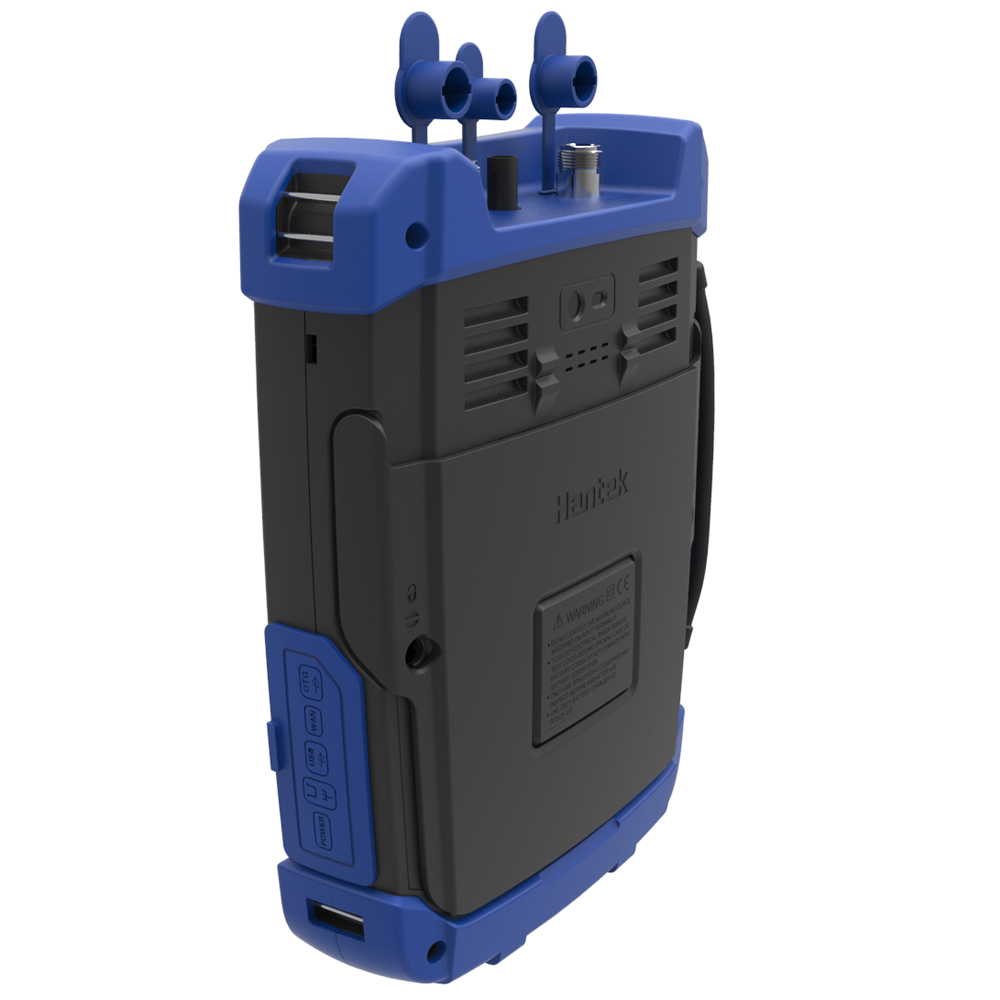

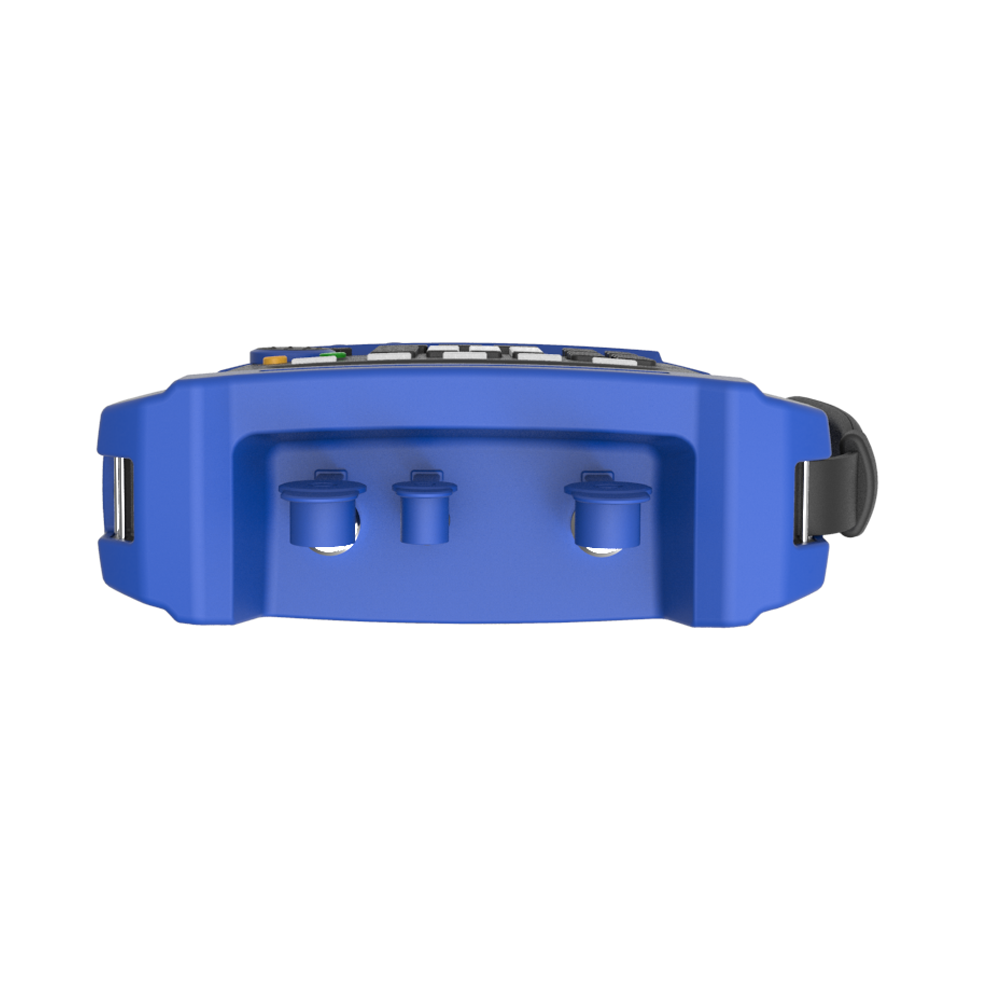

Features
Wireless service provider: interferometric analysis, site repairmen.
TV & Radio: interferometric analysis, check of channel power.
Spectrum management agency: spectrum monitor.
RBW低至10Hz 2
DANL低至-161dBm 6
0span测试时域信号1
SSB相位噪声归一化为-92dBc 6
PC上位机软件：
|
Parameters |
|||
|
Model |
HSA2030A |
HSA2030B |
|
|
Frequency |
|||
|
Frequency Range |
9KHz~3.2GHz AC Coupled |
9KHz~3.2GHz AC Coupled 5M~3.2GHz TG |
|
|
Frequency Resolution |
1Hz |
||
|
Reference Frequency |
10MHz |
||
|
Frequency Readout Accuracy |
±(frequency indication*frequency reference uncertainty+1%*span+20%RBW+marker resolution+1Hz) |
||
|
Internal 10MHz Reference Accuracy |
Aging rate |
±1ppm/year（0℃~50℃，Reference is 25℃） |
|
|
Temperature stability |
±1ppm/year |
||
|
Marker Resolution |
(Frequency span)/(number of sweep points-1) |
||
|
Resolution Bandwidth（RBW） |
|||
|
-3dB Bandwidth |
10Hz to 1MHz，1-3-10 sequence |
||
|
Accuracy |
±5% RBW=10Hz~1MHz nominal |
||
|
Resolution Filter Shape Factor |
＜5:1 nominal |
||
|
Video Bandwidth（VBW） |
-3dB bandwidth |
1Hz to 1MHz，1-3-10 sequence |
|
|
Accuracy |
±10% VBM=1Hz~1MHz nominal |
||
|
Displayed Average Noise Level (normalized to1Hz) |
|||
|
9K~1MHz |
Preamp off |
-108dBm，typical -127dBm |
|
|
1MHz ~10MHz |
-128dBm，typical -146dBm |
||
|
10MHz ~500MHz |
-142dBm，typical -146dBm |
||
|
500MHz ~2.5GHz |
-141dBm，typical -145dBm |
||
|
2.5GHz ~3.2GHz |
-136dBm，typical -140dBm |
||
|
9K~1MHz |
Preamp on |
-131dBm，typical -150dBm |
|
|
1MHz ~10MHz |
-148dBm，typical -163dBm |
||
|
10MHz ~500MHz |
-161dBm，typical -164dBm |
||
|
500MHz ~2.5GHz |
-159dBm，typical -162dBm |
||
|
2.5GHz ~3.2GHz |
-158dBm，typical -161dBm |
||
|
SSB Phase Noise |
|||
|
Carrier Offset(20℃~ 30℃，500MHz Central Frequency） |
10K |
< -92 dBc/Hz, typical -95 dBc/Hz |
|
|
30K |
< -93 dBc/Hz, typical -96 dBc/Hz |
||
|
100K |
< -95 dBc/Hz, typical -97 dBc/Hz |
||
|
1MHz |
< -117 dBc/Hz, typical -119 dBc/Hz |
||
|
Sweep Time |
|||
|
Range |
Span >100Hz |
2ms to 1000s |
|
|
Span=0Hz |
600ns to 200s |
||
|
Sweep Mode |
Continuous, single |
||
|
Trigger Source |
Free run; video; external |
||
|
Trigger slope |
Selectable positive or negative edge |
||
|
Trigger delay |
Span =0Hz |
±12ms to ±12s nominal |
|
|
Frequency Counter |
|||
|
Counter Resolution |
1Hz |
||
|
Accuracy |
± (marker frequency × frequency reference uncertainty + counter resolution) |
||
|
Level Display Range |
|||
|
Log Scale and Units |
1 to 10 dB/divisions in 1, 2, 5, 10 dB steps, 10 divisions displayed |
||
|
Linear Scale and Units |
0 to 100%，10 divisions displayed |
||
|
Scale Unit |
dBm，dBmV,dBuV,Watts，Volts |
||
|
Sweep (Trace) Points |
461 |
||
|
Number of Markers |
4 |
||
|
Detectors |
Normal, positive peak, dample, negative peak, RMS |
||
|
Number of Traces |
4 |
||
|
Trace Functions |
Clear/write, maximum hold, minimum hold, average, check，close |
||
|
Level Measurement Error |
±1.5dB(excluding input VSWR mismatch) 20~30℃，peak detector, preamplifier off, input signal -50dBm to 0dBm |
||
|
Reference Level |
|||
|
Setting Range |
-100dBm to +30dBm, steps of 1dB |
||
|
Setting Resolution |
Log scale |
0.01dB |
|
|
Linear scale |
Almost log（2.236μV to 7.07V） |
||
|
Amplitude |
|||
|
Maximum Safety Input Level |
Average continuous power |
+33dBm |
|
|
DC input voltage |
50Vdc |
||
|
Measurement Range |
9KHz~2MHz |
Displayed average noise level (DANL) to +10dB |
|
|
2MHz~3.2GHz |
Displayed average noise level (DANL) to +20dB |
||
|
Input attenuator range |
0 to 51dB,1dB steps |
||
|
Spurious Response |
|||
|
Second Harmonic Distortion（SHI） |
<65dBc，50MHz to 3.2GHz（Mixer level -30dBm，attenuator =0dB，preamp off，20℃~30℃） |
||
|
Input Related Spurious |
<-75dBc，(input mixer = -30dBm) |
||
|
Inherent Residual Response |
<-90dBm，typical -98dBm (Input terminated and 0 dB RF attenuation, preamplifier off) |
||
|
RF Input VSWR (at Tuned Frequency) |
10MHz to 3.2GHz |
＜1.5:1, nominal Attenuator setting 10~20dB |
|
|
10MHz Reference/External Trigger Input |
|||
|
Reference Iinput Frequency |
10MHz |
||
|
Reference Input Amplitude |
0~10dBm |
||
|
Trigger Voltage |
5V TTL level |
||
|
Connector and Output Impendence |
N female；（50Ω） |
||
|
Gennral Feature |
|||
|
Interface Language |
English，Chinese，Chinese Traditional |
||
|
Display Index |
5.7 inch，640*480 resolution，64M color LCD display |
||
|
Temperature Range |
Working |
-10℃ to +50℃，（battery：0℃ to 50℃） |
|
|
Storage |
-40℃ to +70℃，（battery :-20℃ to 50℃） |
||
|
Relative Humidity |
<95% |
||
|
Weight |
2.9kg（with battery），2.6kg（without battery） |
||
|
Size |
260m X 220m X 75m |
||
|
Power |
Input voltage range |
DC: 12-17V, maximum 2.8A input 220VAC±15% |
|
|
AC frequency range |
40Hz to 60Hz |
||
|
Power consumption |
Maximum 32W |
||
|
|
|
|
|
Standard Accessory：
Optional Accessory：
Kit I ：
Kit II ：
