Hantek 2G Logic Anzlyzer Hantek4032L on Offer
March 12, 2013
1740
0
Characteristic
  • Hantek4032L combines the function of logic analyzer, bus analyzer, and logic probe etc. in one. It’s suitable for various digital circuits development, testing, analysis and debug, is an able aider for electronics development & electronic
    measuring engineers, and teaching and research work at college.
  • It's 2Gbit memory depth (DDR2), 400MSa/s sampling rate, and 150MHz bandwidth can meet your various needs.
  • The innovative trigger mode and new analysis measurement tool make your measurement simple and efficient.
  • It can set edge, level, bus, data width etc. Trigger mode, easy to use.
  • Its innovative data analysis function makes your analyze UART, SPI, and I2C etc. data more easy and relax.
  • The strong protocol secondary analytic capability is able to export files in CSV, TXT, DOC format, which facilitate secondary analysis with other tools.
  • Plug and play high speed USB 2.0 interface.
  • Excellent industrial design, similar interface to digital storage oscilloscope, easy to use.

 Hardware Specification



Channel 32
Input Impedance 200K(C=10p)
Input Voltage Range -6V~60V
Voltage Threshold Range -6V~6V
Max. Sample Rate 400MHz
Max. Input Signal Bandwidth  150MHz
Min Time Resolution 2ns
Sample Depth 64M Sample
Memory Depth 2G bits
Compatible Input TTL, LVTTL, CMOS, LVCOMS, ECL, PECL, EIA
Electrostatic Protected Area 15KV
Interface USB Port
Voltage Range 4.5V~5.5V
Power Max. 3.5W
Temperature Range Operation: -10∩~60∩;
Storage: -40∩~60∩
Operating System WinXP/2000/Win7
Size&Weight 207(D) x 37(H) x 123(W) mm, about 390g




 Accessories


Product

Hantek4032L

Cable

USB Cord

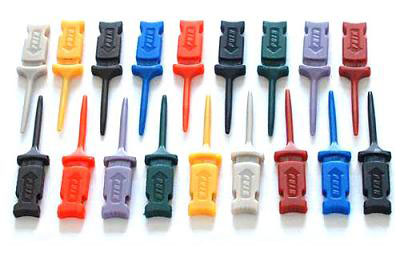

Test Hook
