Bluetooth/USB Data Logger Hantek365 Supports iPad Now!

May 19, 2014

1543

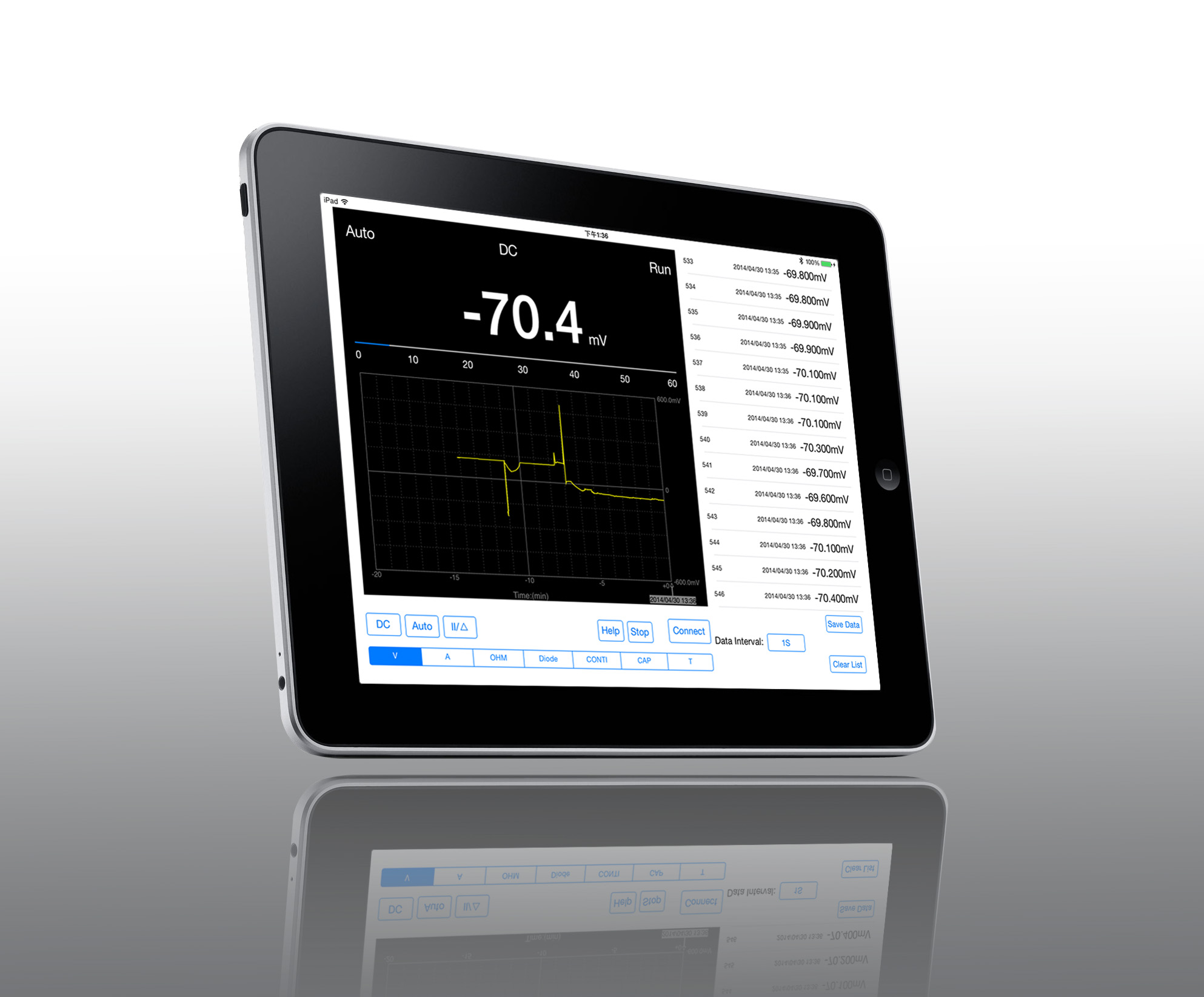

The data logger new models Hantek365E and Hantek365F support iPad. Connect to iPad via Bluetooth.

Users can search and download Hantek365E/F software from APP Store.

Features:

Safe electrical isolation ensures the safety of the operator and device effectively.
Long time record voltage, current, resistance, capacitance and on-off etc. in real time, and create trend curves chart.
True RMS measurement can precisely measure the virtual value of various voltage waveforms in real time, and no need to consider waveform parameter and distortion which is unmatched on any other RMS instruments.
Plug play USB interface, build-in lithium battery, support bluetooth wireless transmission.
Simple, handy and flexible control software.
Support computer and iPad with Bluetooth 4.0 module.
Software support: iPad, Windows8, Windows 7, Windows 2000, Windows XP.

Function	Range	Accuracy	Resolution
DC Voltage	60.00mV	±1% ±1 digit	10uV
	600.00mV		100uV
	6.00V		1mV
	60.00V		10mV
	60.00V		100mV
	800V		1V
AC Voltage	60.00mV	±1%±3 digit	10uV
	600.00mV		100uV
	6.00V		1mV
	60.00V		10mV
	600.0V		100mV
DC Current	60.00mA	±1.5%±1 digit	10uA
	600.00mA	±1%±1 digit	100uA
	6.000A	±1.5%±3 digit	1mA
	10.00A	±1.5%±3 digit	10mA
AC Current	60.00mA	±1.5%±1 digit	10uA
	600.00mA	±1%±1 digit	100uA
	6.000A	±1.5%±3 digit	1mA
	10.00A	±1.5%±3 digit	10mA
Resistance	600	±1%±3 digit	0.1Ω
	6.000 K	±1%±1 digit	1Ω
	60.00 K		10Ω
	600.0 K		100Ω
	6.000 M		1KΩ
	60.00 M	±1.5%±3 digit	10KΩ
Capacitance	40.00nF	±1%±1 digit	10pF
	400.00nF		100pF
	4.000uF		1nF
	40.00uF		10pF
	400.0uF		100pF
	Attention: The smallest capacitance value that can be measured in 5nF
Diode	0V~2.0V
