HDG3000C Series


HDG3000C sets arbitrary waveform generator, pulse generator, function generator, harmonic generator, frequency meter 5 functions in one. It uses the DDS (Direct Digital Synthesizer) technology, and can generate stable, pure, and low-distortion output signal. Humanized interface design and keyboard layout give users extraordinary experience. Rich configuration interfaces can easily achieve computer control of the instrument, which provides users with more solutions for measurement.
  • Overview
  • Parameters
  • Comparison

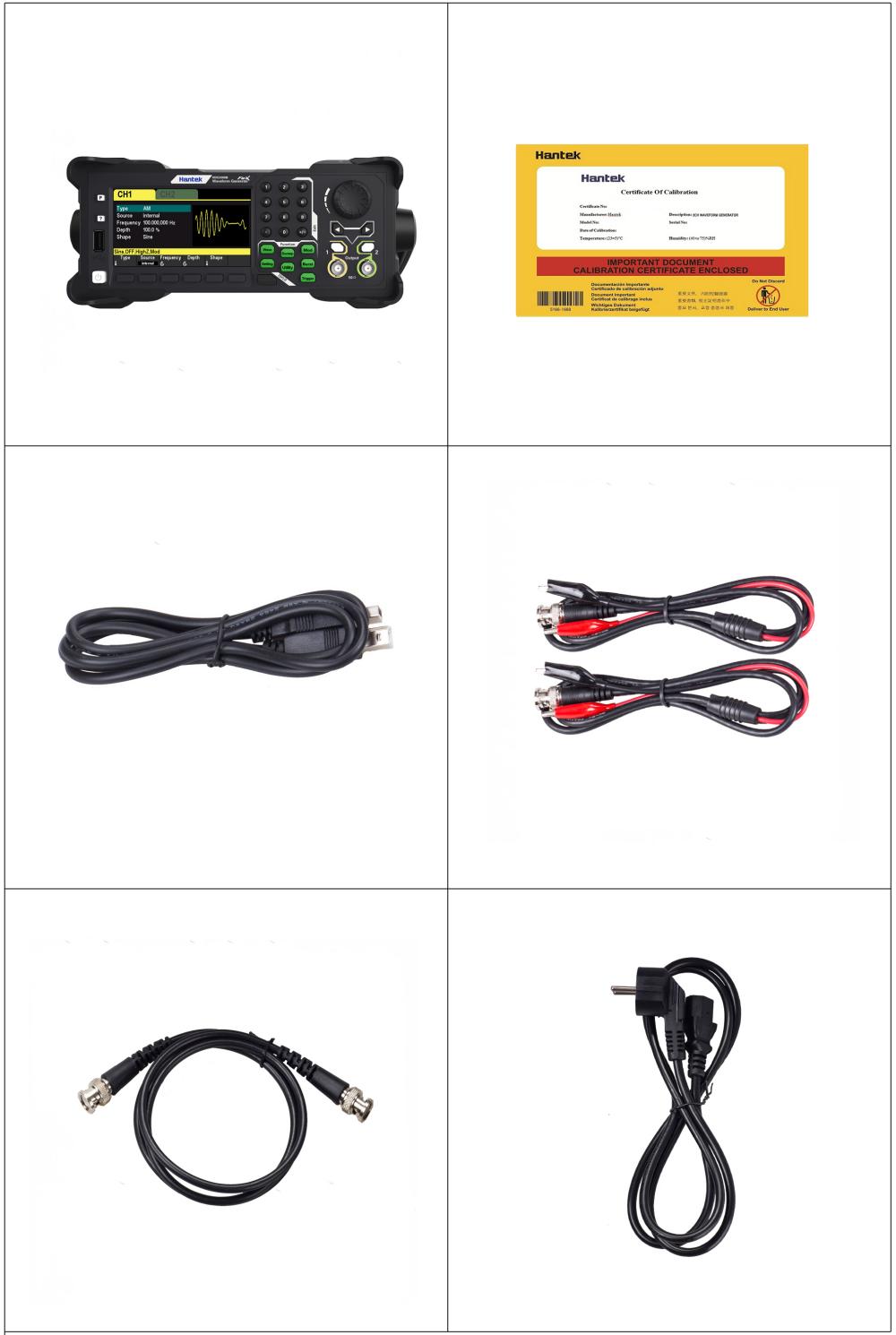

  • Accessories
  • Download
  • Probe

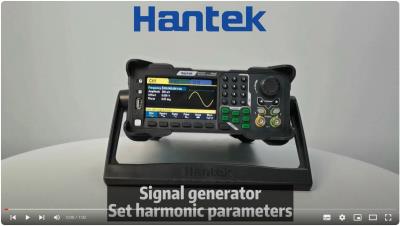

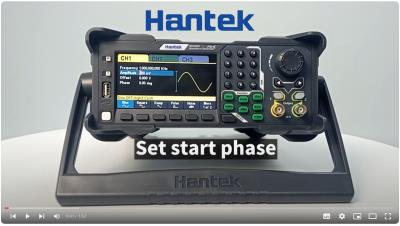

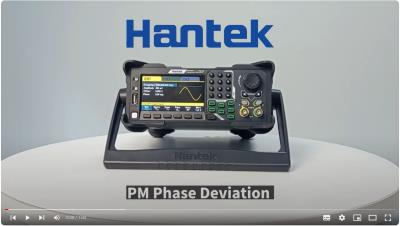

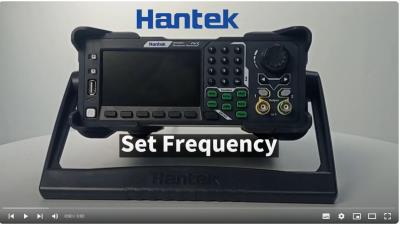

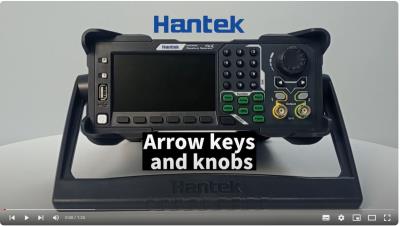

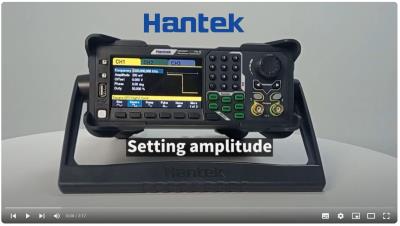

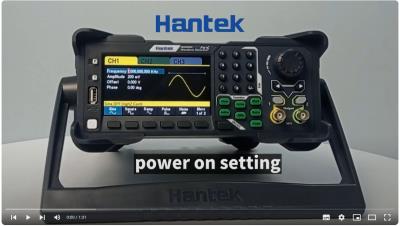

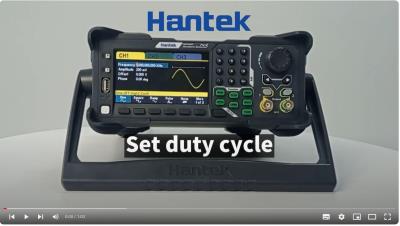

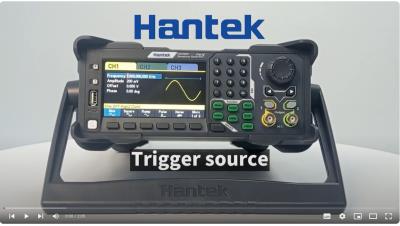

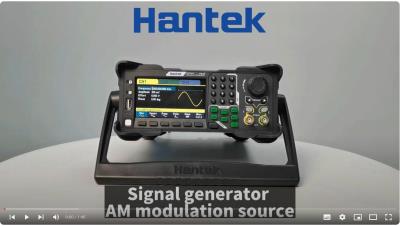

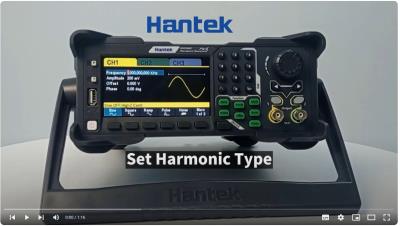

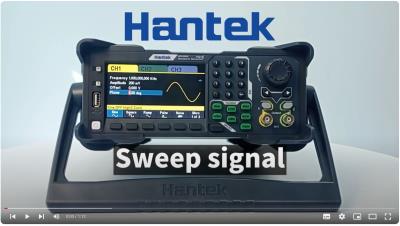

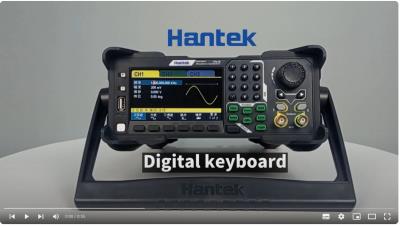

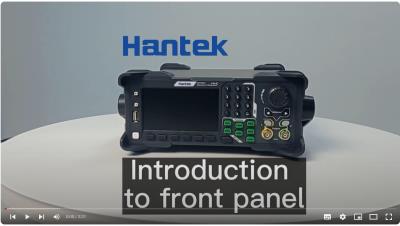

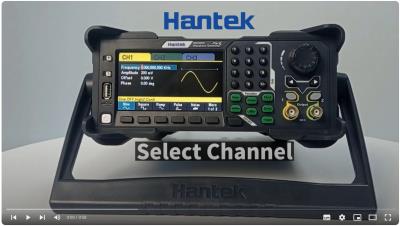

  • Video
HDG3000C sets arbitrary waveform generator, pulse generator, function generator, harmonic generator, frequency meter 5 functions in one. It uses the DDS (Direct Digital Synthesizer) technology, and can generate stable, pure, and low-distortion output signal. Humanized interface design and keyboard layout give users extraordinary experience. Rich configuration interfaces can easily achieve computer control of the instrument, which provides users with more solutions for measurement.
  • Frequency range: CH1&CH2: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz;CH3:1μHz ~ 20MHz.
  • Up to 250MSa/s sampling rate, no distortion of analog waveforms.
  • 16-bit vertical resolution ensures the accuracy of waveform amplitude.
  • The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.

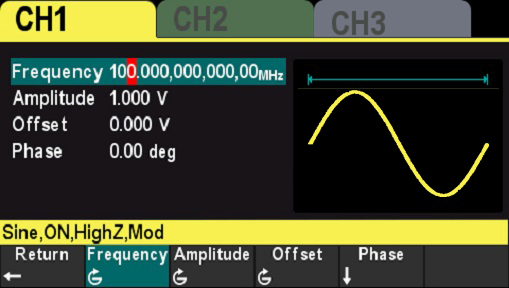

  • A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.
  • Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.

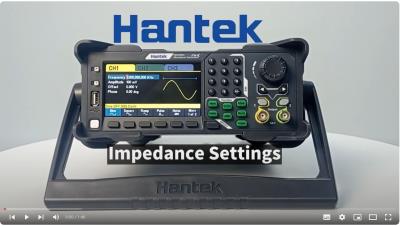

  • 1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp.
  • Built-in 80MHz high-resolution frequency meter.

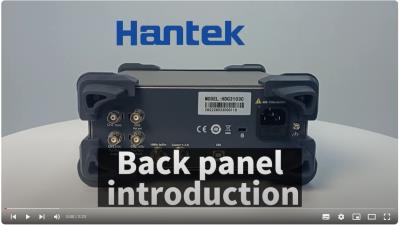

  • Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).
  • More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.

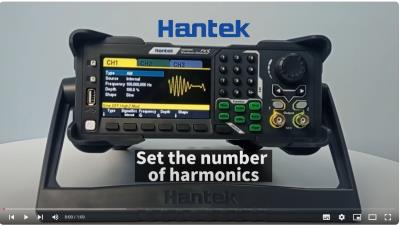

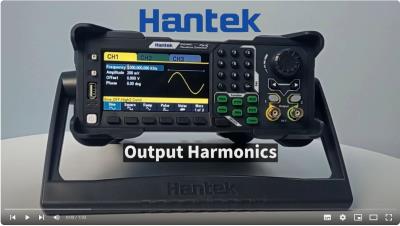

  • Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.
Equip with the sine wave with the maximum output bandwidth

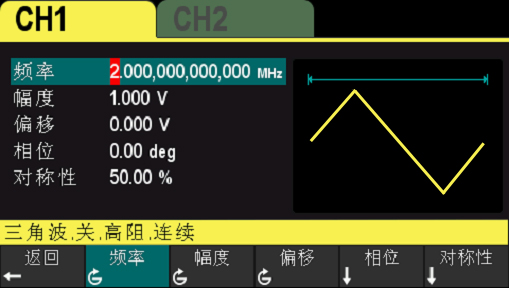

Frequency range: 1μHz~100MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.

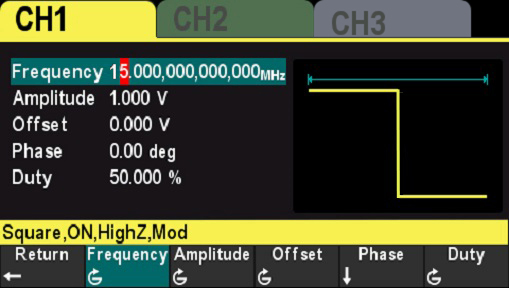

Equip with the square wave with the maximum output bandwidth
Frequency range: 1μHz~15MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.
Equip with the triangle wave with the maximum output bandwidth
Frequency range: 1μHz~2MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°; Adjustable symmetry: 0%~100%.

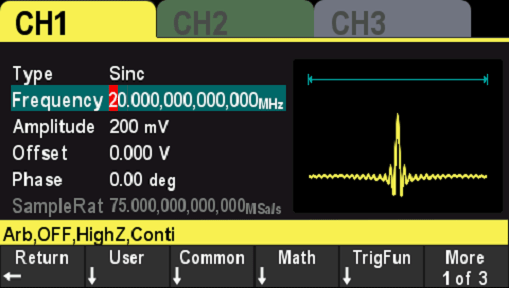

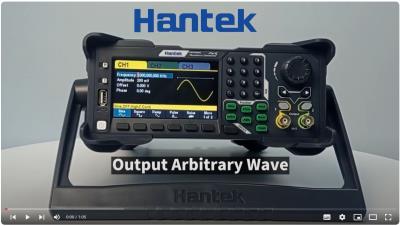

Equip with more than 160 kinds of arbitrary waveform output.
Index rise, index fall, ECG signal, Gauss, half vector, Lorentz, dual tone multi-frequency, DC voltage and other more than 160 kinds of arbitrary signals.

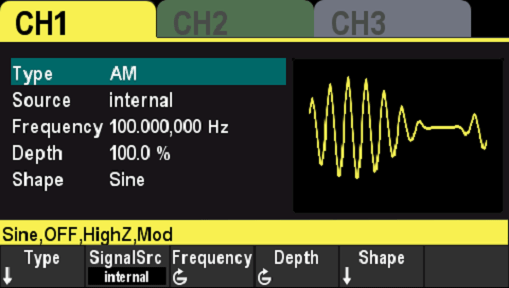

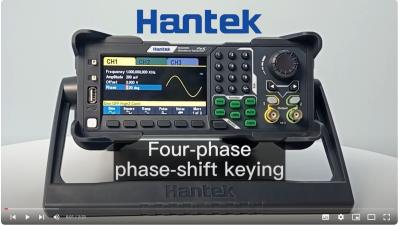

Equip with dual channel output modulation waveform AM/FM.
Rich modulation functions, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
Equip with dual channel output burst function.

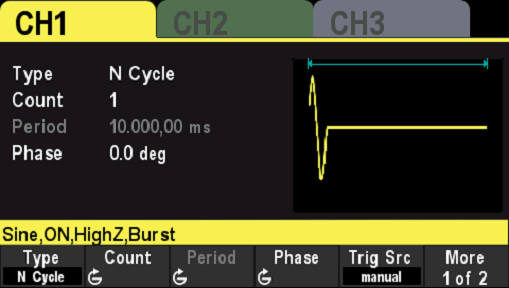

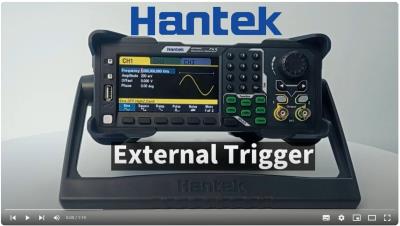

Support control of burst output by internal, manual or external trigger sources. Three burst types are supported, including multi cycle, infinite cycle, and gated.
Equip with an 80MHz frequency meter.

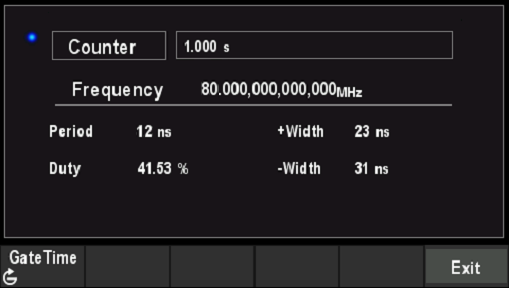

The instrument can measure the frequency, period, duty cycle, positive pulse width and negative pulse width and other parameters of the external input signal.
Model Channels Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Interface Mark
HDG3023C 3CH 25MHz 250MSa/s 16Bits 2Mpts USB Host，USB Device  Only for CH1/CH2, please refer to the detailed specification of CH3 in the manual
HDG3043C 3CH 40MHz 250MSa/s 16Bits 2Mpts USB Host，USB Device
HDG3063C 3CH 60MHz 250MSa/s 16Bits 2Mpts USB Host，USB Device
HDG3083C 3CH 80MHz 250MSa/s 16Bits 2Mpts USB Host，USB Device
HDG3103C 3CH 100MHz 250MSa/s 16Bits 2Mpts USB Host，USB Device
Model HDG3103C HDG3083C HDG3063C HDG3043C HDG3023C
Channel 3
Wavelength 2M
Frequency range 100MHz 80MHz 60MHz 40MHz 25MHz
Sampling rate 250MSa/s
Voltage resolution 16Bits
Waveform（CH1&CH2）
Standard waveform output sine wave, square wave, triangular wave, pulse wave, noise, harmonics
Arbitrary waveform output 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc
Frequency property
Sine wave 1 μHz ~ 100 MHZ 1 μHz ~ 80 MHZ 1 μHz ~ 60 MHZ 1 μHz ~ 40 MHZ 1 μHz ~ 25 MHZ
Square wave 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ
Pulse wave 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ
Triangle wave 1 μHz ~ 2 MHZ 1 μHz ~ 2 MHZ 1 μHz ~ 2 MHZ 1 μHz ~ 2 MHZ 1 μHz ~ 2 MHZ
Harmonic 1 μHz ~ 50 MHZ 1 μHz ~ 40 MHZ 1 μHz ~ 30 MHZ 1 μHz ~ 20 MHZ 1 μHz ~ 10 MHZ
Noise (3 db) 100 MHZ bandwidth
Arbitrary wave 1 μHz ~ 20 MHZ 1 μHz ~ 20 MHZ 1 μHz ~ 20 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ
Resolution 1μHz
Precision ±1ppm, 18~28℃
Square wave property
Rise/Fall time Typical (1kHz, 1Vpp)
≥9ns
Overshoot Typical (100kHz, 1Vpp)
≤5%
Duty cycle 0.001% ~ 99.999%;
The range varies with the frequency
Asymmetry 1% of the period plus 4ns
Triangular wave property
Linear ≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%)
Symmetry 0% ~ 100%
Impulse wave property
Cycle 67ns~1Ms 67ns~1Ms 67ns~1Ms 67ns~1Ms 67ns~1Ms
Pulse ≥16ns ≥16ns ≥16ns ≥16ns ≥16ns
Rise/Fall time ≥9ns (limited by current frequency setting and pulse width setting)
Overshoot Typical (1kHz, 1Vpp)
≤5%
Arbitrary wave property
Wavelength 2M
Vertical resolution 16 Bits
Sampling rate 1μSa/s~62.5 MSa /s, 1μSa/s resolution
Time of rise/fall Ns of 9 or higher
Overshoot Typical (1Vpp)
≤5%
Harmonic property
Harmonic frequency ≤16
Harmonic type Even harmonics, odd harmonics, all harmonics
Harmonic amplitude All harmonic amplitude can be set.
Harmonic phase All harmonic amplitude can be set.
Amplitude property (50Ω terminal)
Amplitude range ≤10MHz: 1mVpp ~ 10Vpp;
≤40MHz: 1mVpp ~ 5.5Vpp;
≤60MHz: 1mVpp ~ 4Vpp;
≤80MHz:1mVpp ~ 2Vpp;
≤100MHz:1mVpp ~ 1.5Vpp;
Precision Typical (1kHz sine wave, 0V offset, > 10mVPP)
± 1% setting value ± 5mVpp
Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω) ≤5MHz: ±0.1dB;
≤15MHz: ±0.2dB;
≤25MHz: ±0.3dB
≤40MHz: ±0.5dB
≤60MHz: ±1.0dB
Unit Vpp, mVpp, Vrms, dBm(50Ω impedance)
Resolution 1mVpp
Offset property (50Ω terminal)
Scope ±5Vpkac+dc
Precision ±(1% of the setting value + 5mV + 1% of the amplitude)
Waveform output
Impedance 50 Ω
Modulation property
Modulation type AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM
AM
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal, external and other channels
Modulation wave Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
Modulation frequency 2mHz~1MHz
Modulation depth 0% ~ 120%
DSB-AM
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal, external and other channels
Modulation wave Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency 2mHz~1MHz
Modulation depth 0% ~ 120%
FM
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal, external and other channels
Modulation wave Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency 2mHz~1MHz
PM
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal, external and other channels
Modulation wave Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency 2mHz~1MHz
Phase deviation 0 ° ~ 360 °
ASK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal and external
Modulation wave 50% duty cycle square wave
Modulation frequency 2mHz~1MHz
FSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal and external
Modulation wave 50% duty cycle square wave
Modulation frequency 2mHz~1MHz
PSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal and external
Modulation wave 50% duty cycle square wave
Modulation frequency 2mHz~1MHz
BPSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source internal
Data source PN15, PN21, 01, 10
Modulation frequency 2mHz~1MHz
QPSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source internal
Data source PN15, PN21
Modulation frequency 2mHz~1MHz
3FSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source internal
Modulation wave 50% duty cycle square wave
Modulation frequency 2mHz~1MHz
4FSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source internal
Modulation wave 50% duty cycle square wave
Modulation frequency 2mHz~1MHz
OSK
Carrier Sine wave
Modulation source Internal, external
Shock time 8 ns - 4.99975 ms
Modulation frequency 2mHz~1MHz
PWM
Carrier Square wave
Modulation source Internal, external and other channels
Modulation wave Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
Modulation frequency 2mHz~50KHz
Duty cycle deviation 0% ~ 50%
External modulation input
Input range AM, DSB-AM, FM, PM, OSK, PWM: 75mVRMS ~ ± 5Vac + dc
ASK, FSK, PSK: TTL level
Input bandwidth 50KHz
Input impedance 10 KΩ
Sweep frequency property
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Type Linear
Direction Upward
Frequency sweep time 1ms ~ 50Ks
Hold/return time 0ms ~ 50Ks
Trigger source Internal, external, manual
Tag Synchronize the model's falling edge
Burst property
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Carrier frequency 1 μHz ~ 100 MHZ 1 μHz ~ 80 MHZ 1 μHz ~ 60 MHZ 1 μHz ~ 40 MHZ 1 μHz ~ 25 MHZ
Burst counting 1 ~ 2000 000 000
Start/stop phase 0 ° ~ 360 °
Internal cycle 2 μs ~ 500 s
Door control source External trigger
Trigger source Internal, external, manual
Frequency meter
Measurement functions Frequency, period, positive/negative pulse width, duty cycle
Frequency 1 μHz ~ 80 MHZ
Gate time 10ms~16s
Input signal range 0 ~ 3.3 V
Trigger property
Trigger input
Level TTL - compatible
Slope Up or down (optional)
Pulse width >100ns
Trigger output
Level TTL - compatible
The pulse width >60ns
Maximum frequency 1MHz
Reference clock
External reference input
Lock range 10 MHz ± 50 Hz
Level Low level: 0~400mV, high level: 2.5V~5V
Locking time < 2 s
Input impedance 50 Ω, DC coupling
Internal reference output
Frequency 10 MHz + 50 Hz
Level 3.3 Vpp
Output impedance (typical value) 50 Ω, DC coupling
Synchronous output
Level TTL - compatible
Impedance 50Ω, nominal value
Waveform（CH3）
Standard waveform output  sine wave, square wave, triangular wave,noise, harmonics,DC
Arbitrary waveform output 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc
Frequency sine wave：1uHz ~ 20MHz
 square wave：1uHz ~ 5MHz
 triangular wave：1 uHz ~ 1 MHz
 harmonics：1uHz ~ 5MHz
Arbitrary waveform：1uHz ~ 15MHz
Precision ±1ppm, 18~28℃
Sampling rate 150MSa/s
Wavelength 8K
Voltage resolution 12bit
Amplitude range 2 mVpp ~ 7 Vpp（High resistance）
Output impedance  50Ω
General features
Interface USB Host, USB Device
Display 4.3-inch color TFT LCD screen
Voltage 100-120VACRMS(±10%),45Hz to 440Hz, CATⅡ
120-240VACRMS(±10%),45Hz to 66Hz, CATⅡ
Power <30W
Fuse T, 0.5 A, 250 v, 5 x20mm
Environment
Temperature range Operation: 10℃ ~ 40℃
Non-operation: -20℃ ~ 60℃
Humidity range ≤+104℉(≤+40°C): Relative humidity ≤90%
106℉~122℉ (+41°C ~50°C): Relative humidity ≤60%
Altitude Operation: below 3000 meters
Non-operation: below 15000 meters
Mechanical specifications
Dimensions (W × H × D) 308mm x 232mm x 110mm
Weight 3.09KG
Model HDG3103C HDG3083C HDG3063C HDG3043C HDG3023C
Channel 3
Wavelength 2M
Frequency range 100MHz 80MHz 60MHz 40MHz 25MHz
Sampling rate 250MSa/s
Voltage resolution 16Bits
Waveform（CH1&CH2）
Standard waveform output sine wave, square wave, triangular wave, pulse wave, noise, harmonics
Arbitrary waveform output 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc
Frequency property
Sine wave 1 μHz ~ 100 MHZ 1 μHz ~ 80 MHZ 1 μHz ~ 60 MHZ 1 μHz ~ 40 MHZ 1 μHz ~ 25 MHZ
Square wave 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ
Pulse wave 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ
Triangle wave 1 μHz ~ 2 MHZ 1 μHz ~ 2 MHZ 1 μHz ~ 2 MHZ 1 μHz ~ 2 MHZ 1 μHz ~ 2 MHZ
Harmonic 1 μHz ~ 50 MHZ 1 μHz ~ 40 MHZ 1 μHz ~ 30 MHZ 1 μHz ~ 20 MHZ 1 μHz ~ 10 MHZ
Noise (3 db) 100 MHZ bandwidth
Arbitrary wave 1 μHz ~ 20 MHZ 1 μHz ~ 20 MHZ 1 μHz ~ 20 MHZ 1 μHz ~ 15 MHZ 1 μHz ~ 15 MHZ
Resolution 1μHz
Precision ±1ppm, 18~28℃
Square wave property
Rise/Fall time Typical (1kHz, 1Vpp)
≥9ns
Overshoot Typical (100kHz, 1Vpp)
≤5%
Duty cycle 0.001% ~ 99.999%;
The range varies with the frequency
Asymmetry 1% of the period plus 4ns
Triangular wave property
Linear ≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%)
Symmetry 0% ~ 100%
Impulse wave property
Cycle 67ns~1Ms 67ns~1Ms 67ns~1Ms 67ns~1Ms 67ns~1Ms
Pulse ≥16ns ≥16ns ≥16ns ≥16ns ≥16ns
Rise/Fall time ≥9ns (limited by current frequency setting and pulse width setting)
Overshoot Typical (1kHz, 1Vpp)
≤5%
Arbitrary wave property
Wavelength 2M
Vertical resolution 16 Bits
Sampling rate 1μSa/s~62.5 MSa /s, 1μSa/s resolution
Time of rise/fall Ns of 9 or higher
Overshoot Typical (1Vpp)
≤5%
Harmonic property
Harmonic frequency ≤16
Harmonic type Even harmonics, odd harmonics, all harmonics
Harmonic amplitude All harmonic amplitude can be set.
Harmonic phase All harmonic amplitude can be set.
Amplitude property (50Ω terminal)
Amplitude range ≤10MHz: 1mVpp ~ 10Vpp;
≤40MHz: 1mVpp ~ 5.5Vpp;
≤60MHz: 1mVpp ~ 4Vpp;
≤80MHz:1mVpp ~ 2Vpp;
≤100MHz:1mVpp ~ 1.5Vpp;
Precision Typical (1kHz sine wave, 0V offset, > 10mVPP)
± 1% setting value ± 5mVpp
Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω) ≤5MHz: ±0.1dB;
≤15MHz: ±0.2dB;
≤25MHz: ±0.3dB
≤40MHz: ±0.5dB
≤60MHz: ±1.0dB
Unit Vpp, mVpp, Vrms, dBm(50Ω impedance)
Resolution 1mVpp
Offset property (50Ω terminal)
Scope ±5Vpkac+dc
Precision ±(1% of the setting value + 5mV + 1% of the amplitude)
Waveform output
Impedance 50 Ω
Modulation property
Modulation type AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM
AM
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal, external and other channels
Modulation wave Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
Modulation frequency 2mHz~1MHz
Modulation depth 0% ~ 120%
DSB-AM
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal, external and other channels
Modulation wave Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency 2mHz~1MHz
Modulation depth 0% ~ 120%
FM
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal, external and other channels
Modulation wave Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency 2mHz~1MHz
PM
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal, external and other channels
Modulation wave Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency 2mHz~1MHz
Phase deviation 0 ° ~ 360 °
ASK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal and external
Modulation wave 50% duty cycle square wave
Modulation frequency 2mHz~1MHz
FSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal and external
Modulation wave 50% duty cycle square wave
Modulation frequency 2mHz~1MHz
PSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source Internal and external
Modulation wave 50% duty cycle square wave
Modulation frequency 2mHz~1MHz
BPSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source internal
Data source PN15, PN21, 01, 10
Modulation frequency 2mHz~1MHz
QPSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source internal
Data source PN15, PN21
Modulation frequency 2mHz~1MHz
3FSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source internal
Modulation wave 50% duty cycle square wave
Modulation frequency 2mHz~1MHz
4FSK
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source internal
Modulation wave 50% duty cycle square wave
Modulation frequency 2mHz~1MHz
OSK
Carrier Sine wave
Modulation source Internal, external
Shock time 8 ns - 4.99975 ms
Modulation frequency 2mHz~1MHz
PWM
Carrier Square wave
Modulation source Internal, external and other channels
Modulation wave Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
Modulation frequency 2mHz~50KHz
Duty cycle deviation 0% ~ 50%
External modulation input
Input range AM, DSB-AM, FM, PM, OSK, PWM: 75mVRMS ~ ± 5Vac + dc
ASK, FSK, PSK: TTL level
Input bandwidth 50KHz
Input impedance 10 KΩ
Sweep frequency property
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Type Linear
Direction Upward
Frequency sweep time 1ms ~ 50Ks
Hold/return time 0ms ~ 50Ks
Trigger source Internal, external, manual
Tag Synchronize the model's falling edge
Burst property
Carrier Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Carrier frequency 1 μHz ~ 100 MHZ 1 μHz ~ 80 MHZ 1 μHz ~ 60 MHZ 1 μHz ~ 40 MHZ 1 μHz ~ 25 MHZ
Burst counting 1 ~ 2000 000 000
Start/stop phase 0 ° ~ 360 °
Internal cycle 2 μs ~ 500 s
Door control source External trigger
Trigger source Internal, external, manual
Frequency meter
Measurement functions Frequency, period, positive/negative pulse width, duty cycle
Frequency 1 μHz ~ 80 MHZ
Gate time 10ms~16s
Input signal range 0 ~ 3.3 V
Trigger property
Trigger input
Level TTL - compatible
Slope Up or down (optional)
Pulse width >100ns
Trigger output
Level TTL - compatible
The pulse width >60ns
Maximum frequency 1MHz
Reference clock
External reference input
Lock range 10 MHz ± 50 Hz
Level Low level: 0~400mV, high level: 2.5V~5V
Locking time < 2 s
Input impedance 50 Ω, DC coupling
Internal reference output
Frequency 10 MHz + 50 Hz
Level 3.3 Vpp
Output impedance (typical value) 50 Ω, DC coupling
Synchronous output
Level TTL - compatible
Impedance 50Ω, nominal value
Waveform（CH3）
Standard waveform output  sine wave, square wave, triangular wave,noise, harmonics,DC
Arbitrary waveform output 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc
Frequency sine wave：1uHz ~ 20MHz
 square wave：1uHz ~ 5MHz
 triangular wave：1 uHz ~ 1 MHz
 harmonics：1uHz ~ 5MHz
Arbitrary waveform：1uHz ~ 15MHz
Precision ±1ppm, 18~28℃
Sampling rate 150MSa/s
Wavelength 8K
Voltage resolution 12bit
Amplitude range 2 mVpp ~ 7 Vpp（High resistance）
Output impedance  50Ω
General features
Interface USB Host, USB Device
Display 4.3-inch color TFT LCD screen
Voltage 100-120VACRMS(±10%),45Hz to 440Hz, CATⅡ
120-240VACRMS(±10%),45Hz to 66Hz, CATⅡ
Power <30W
Fuse T, 0.5 A, 250 v, 5 x20mm
Environment
Temperature range Operation: 10℃ ~ 40℃
Non-operation: -20℃ ~ 60℃
Humidity range ≤+104℉(≤+40°C): Relative humidity ≤90%
106℉~122℉ (+41°C ~50°C): Relative humidity ≤60%
Altitude Operation: below 3000 meters
Non-operation: below 15000 meters
Mechanical specifications
Dimensions (W × H × D) 308mm x 232mm x 110mm
Weight 3.09KG
Hantek Catalogue 2023
2023-09-15
Software
2023-02-20
HDG3000C Data Manual
2024-08-20
HDG3000C Programming Manual
2024-08-20
HDG3000C Quick Guide
2024-08-20
HDG3000C User Manual
2024-08-20


MyHantek
Service
Download
About Hantek
Qingdao Hantek Electronic Co., Ltd. Copyright (c) 2020 Hantek. All Rights Reserved. | Contact with Hantek | 鲁ICP备05034335号
