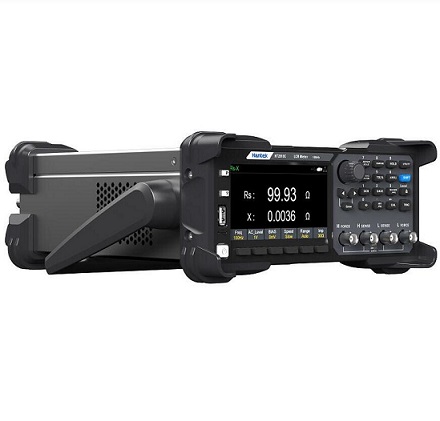

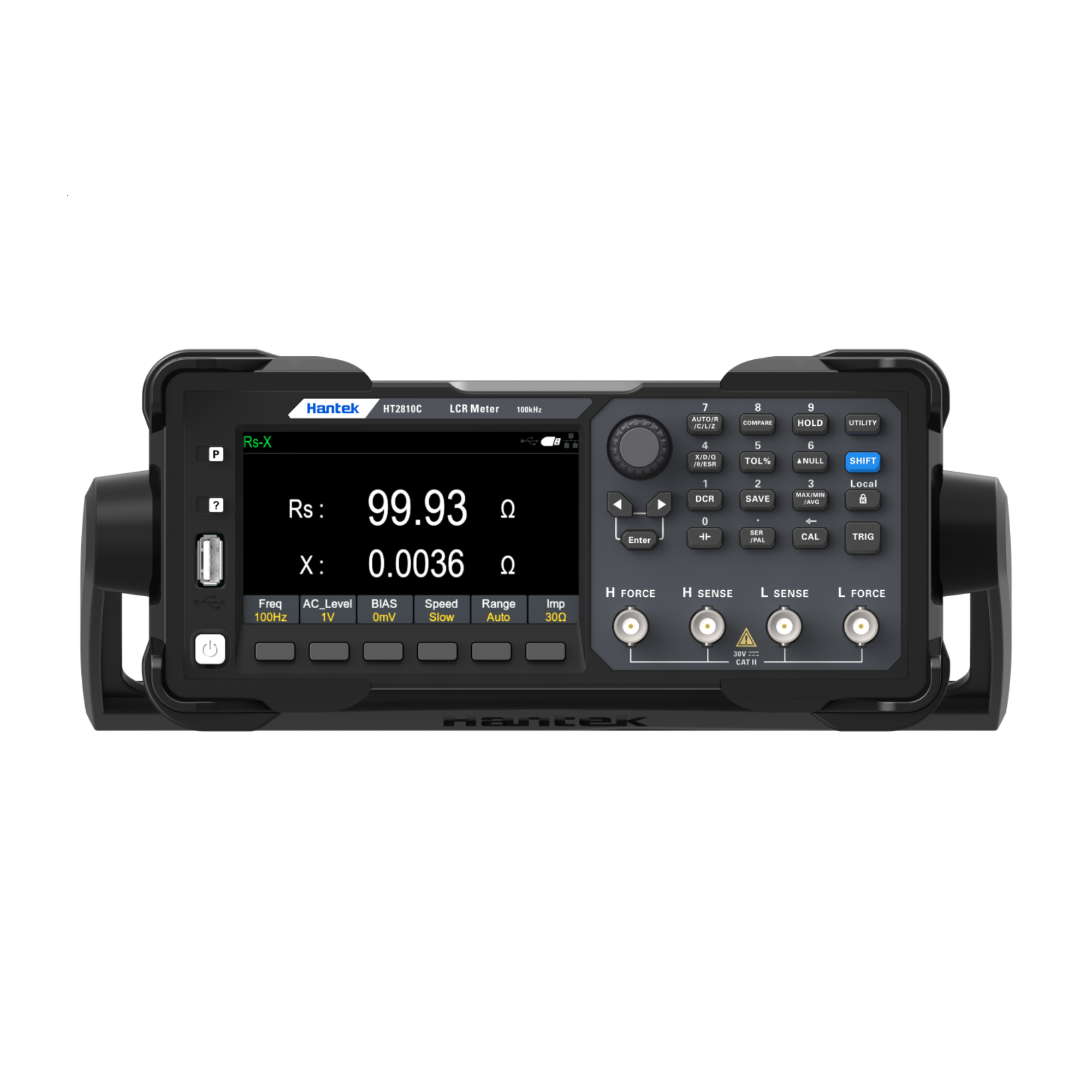

HT2810C

Overview
Parameters
Comparison
Accessories
Download

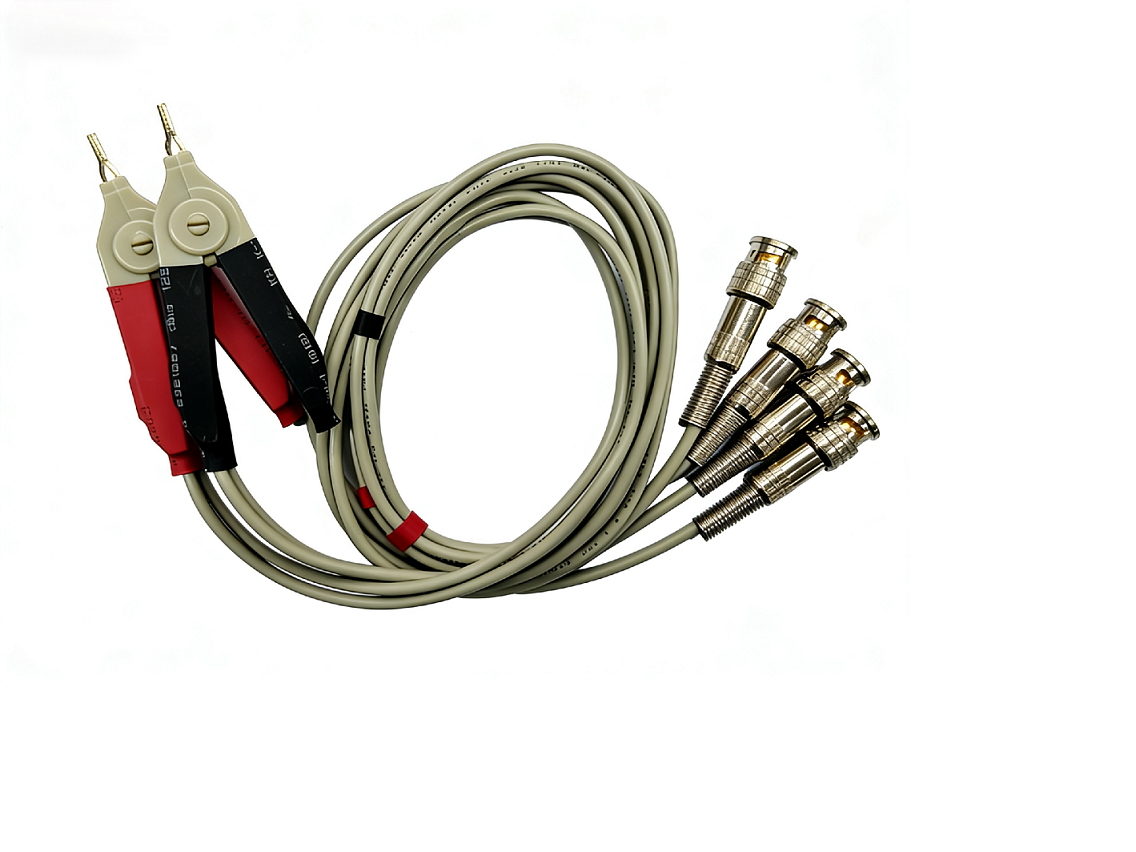

Probe
Video

Automatic identification of component types.
Maximum test signal frequency: 100 kHz.
AC test signal level: 100mV-2000mV continuously adjustable，1mV steps
DC bias voltage: 0mV-1500mV adjustable，1mV steps
Supports DC resistance and electrolytic capacitor measurement.
Basic accuracy: 0.1%.
Supports open-circuit and short-circuit correction.
Data hold and data logging functions.
4.3-inch LCD display with support for Chinese and English interfaces.
Standard interfaces: USB HOST, USB DEVICE, LAN, RS232/485, Handler.
Supports SCPI communication protocol.
Handler interface with support for comparator sorting and list scanning.

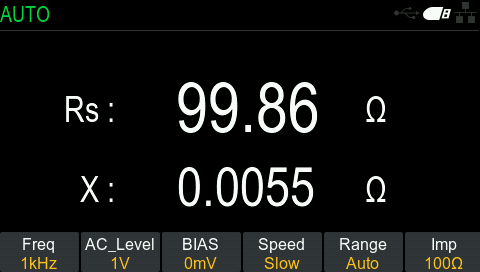

R/C/L Measurement

Main： R/C/ L/Z； Secondary：X/D/Q/θ/ESR

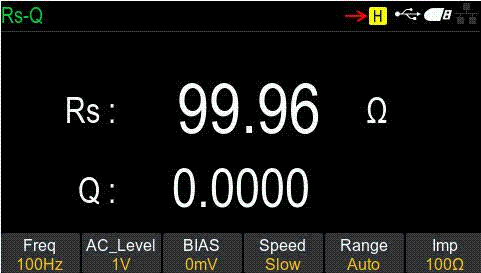

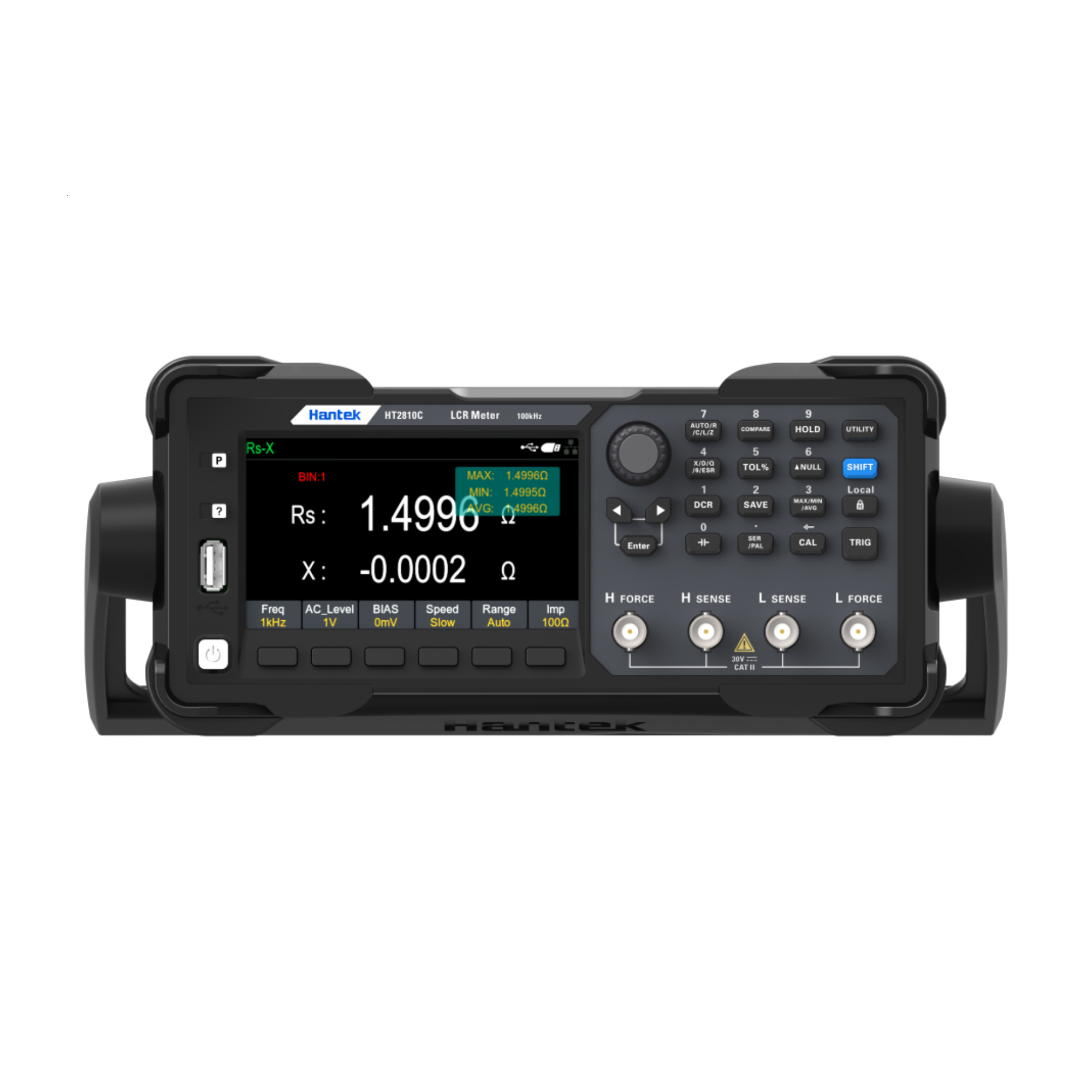

Data Hold and Record Function

When the data hold function is enable, the measured data remains unchanged. When the data logging function is enable, the maximum value, minimum value and average value are displayed.

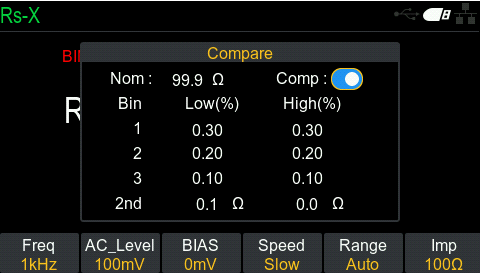

Comparator Function

The comparator provides five sorting grades (BIN:1, BIN:2, BIN:3, BIN:AUX, BIN:OUT).

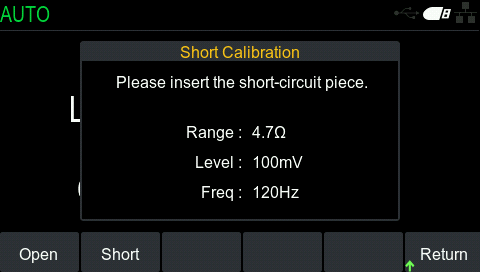

Open/Short Circuit Correction

Open and short circuit correction are used to eliminate measurement errors introduced by the parasitic parameters of the instrument and test fixtures. If precise measurement is required, it is recommended to perform open-circuit and short-circuit correctiom before the measurement.

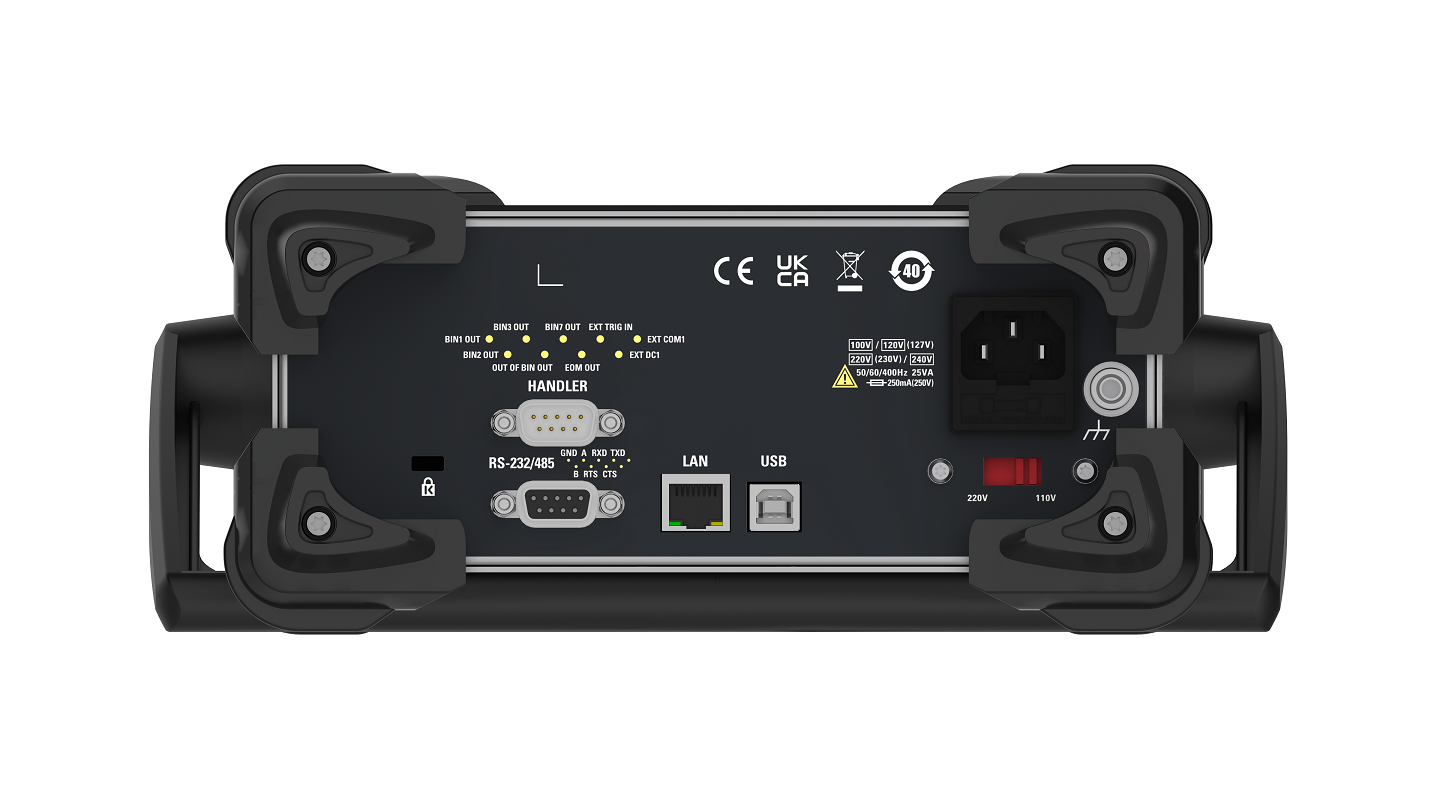

Multiple interface functions

RS232/485, LAN and USB DEVICE interfaces to achieve remote data communication, which can meet the requirements of current market automation applications. Handler interface, which is mainly used for outputting the sorting grades results.

Model	HT2810C
Test signal frequency	100Hz-100kHz continuously adjustable，1Hz steps
Display digits	Main Parameter: 5 digits, Second Parameter: 5 digits
Test Parameter	Main：R/C/ L/Z；Secondary：X/D/Q/θ/ESR
Parameter display range	R	0.0001Ω - 399.99MΩ
	C	0.0001pF – 39.999mF
	L	0.0001μH – 39.999kH
Basic accuracy	0.10%
Display speed	Slow: 2 times/second；Middle: 5 times/second; Fast: 10 times/second;
AC test signal level (Vrms)	100 - 2000mV continuously adjustable, 1mV steps
DC bias voltage	0 - 1500mV adjustable, 1mV steps
Range mode	Auto, Optional special range
Signal source output impedance	Selectable 30Ω, 100Ω, ±1%
Correction	Open, Short
Equivalent circuit	Serial, Parallel
Trigger mode	Auto, Bus, EXT
Save/Recall	Setting parameters can be saved internally with 6 sets of positions, which can be recalled by user.
DCR display range	0.0001Ω ~ 99.99MΩ
Comparator function	Tolerance range：-100% ~ +100%;
	5 bins (BIN:1, BIN:2, BIN:3, BIN:OUT, BIN:AUX)
Interface	USB HOST, USB DEVICE, LAN, RS232/485, Handler
Language	Chinese, English
LCD display	Backlight brightness adjustable
Other	Electrolytic Capacitor Test Mode，Keyboard Lock Function
