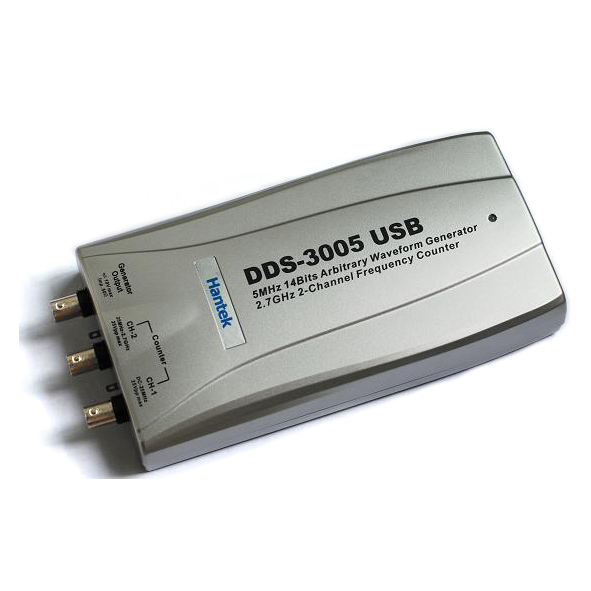

2.7GHz Frequency Counter, PC USB Function/Arbitrary Waveform Generator;
14bits D/A resolution;
USB2.0 interface, no external power source required, easy to use.
2.7GHz Frequency Counter, PC USB Function/Arbitrary Waveform Generator.
It is completely compatible with TEK document format, it can directly read the wavy documents of the oscillograph and the wavy documents edited by TEK wavy editing software to make the its wave reappear.
14bits D/A resolution.
USB2.0 interface, no external power source required, easy to use.
Automatic calibration.
One computer can connect many DDS, extend channel easily.
Operating System: Windows 7, Windows Me, Windows NT, Windows 2000, Windows XP, VISTA.
Labview\VB\VC\Delphi\C++Build Second Design instance.
Function Picture
Waveform Output Channel
Frequency Range
0.1Hz(DC)~5MHz
Resolution
0.01Hz
DAC Clock
0~50MHz Continuously adjustable, in step of 0.2Hz
Channels
1CH waveform output
Memory Depth
256KSa
Vertical Resolution
14 Bits
Stability
<30ppm
Amplitude
±10V Max.
Output Impedance
50 Ω
Output Current
50mA Vpeak=100mA
Low Pass Filter
5MHz, 1MHz, 100KHz, 10KHz, 1KHz Programmable Control
Harmonic Wave distortion
-65dBc(1KHz), -53dBc(10KHz)
Frequency Counter Channel 1
Range
DC~25MHz
Input Power
400mVpp~25Vpp
Coupling Mode
AC, DC Programmable
Accuracy
±Time Base Error ±1 Count
Input Impedance
50KΩ
Frequency Counter Channel 2
Range
25MHz~2.7GHz
Input Power
400mVpp~25Vpp
Coupling Mode
AC
Accuracy
±Time Base Error ±1 Count
Input Impedance
50 Ω
Digital Input and Output
Bits
8 Bits+ Synchronized Signal 1 Bit + External Signal 1 Bit
