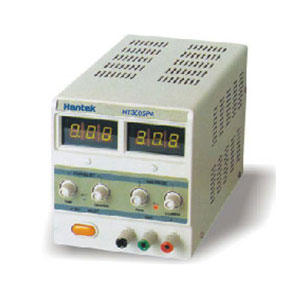

HT3000PA Series


One channel, 0-30V output; 0-3A/0-5A Current output; Two LEDS Display output current and voltage.
  • Overview
  • Parameters
  • Comparison

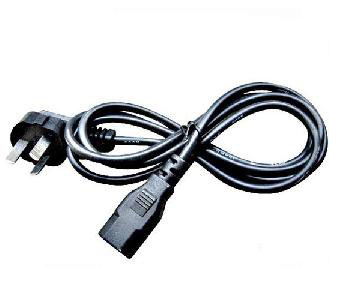

  • Accessories
  • Download

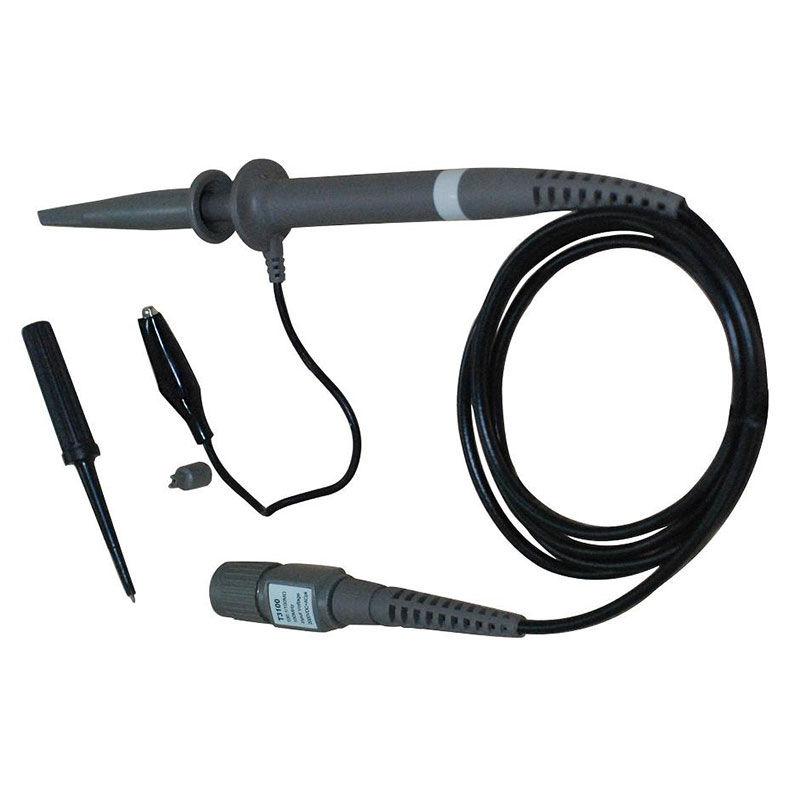

  • Probe
OneDrive Download
  • SMD adhesive sheet element technology for internal PCB construction
  • Two LEDS Display output current and voltage
  • Multiloop high precision voltage regulation
  • Progressive current regulation
  • Dual termimal system Safety test style or expandable screw terminals
  • Overload protection circuit
  • Low ripple voltage:<1mVp-p
  • Output polarity:positive or negative
  • Rugged reinfirced metal frame construction
Model HT3003PA HT3005PA
Output Voltage 0-30V 0-30V
Output Current 0-3A 0-5A
Input Voltage 220V±10%,  50Hz±2Hz
Source effect CV≤1x10-4+3mV, CC≤2x10-3+6mA
Load effect CV≤2x10-4+3mV, CC≤2x10-4+6mA
Ripple & Noise CV≤1mVrms,CC≤10mArms
Protection current Limiting
Voltage Accuracy Reading±1% ±1 Digits
Current Accuracy Reading±2% ±2 Digits
Environment Ambient Temperature:  0-40℃; Humidity:  <90%
Weight About 5KG About 6KG
