Spectrograph

Series

Bandwidth

Channels

Sampling Rate

Other

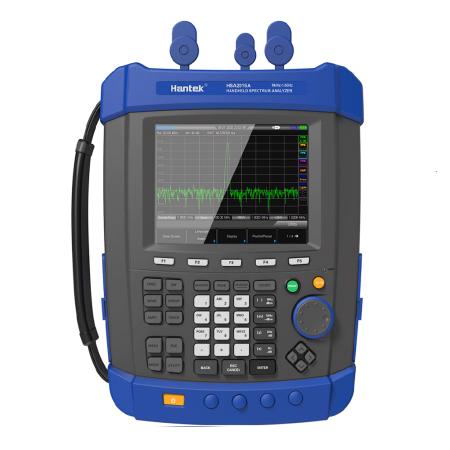

Frequency range
9KHz-1.6GHz，
Sensitivity -161dBm，
RBW:10Hz~1MHz,
FMAM audio demodulator
frequency counter

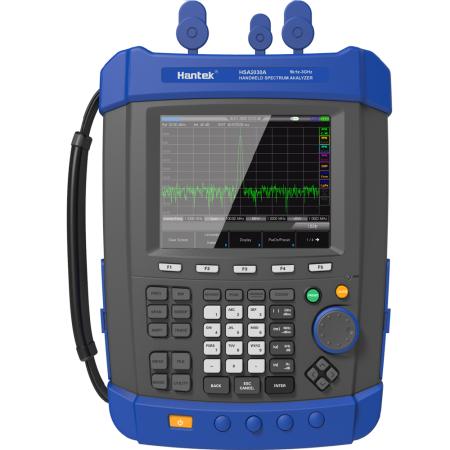

Frequency range
9KHz-3.2GHz，
Sensitivity -161dBm，
RBW:10Hz~1MHz,
FMAM audio demodulator
frequency counter

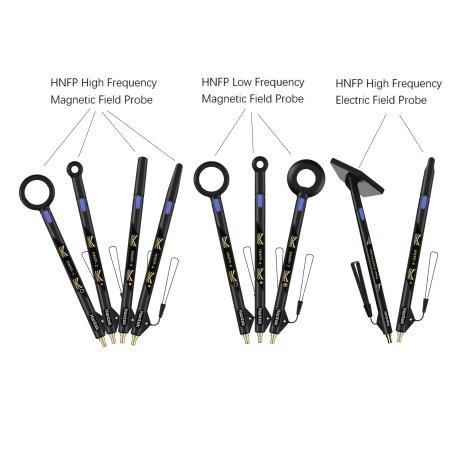

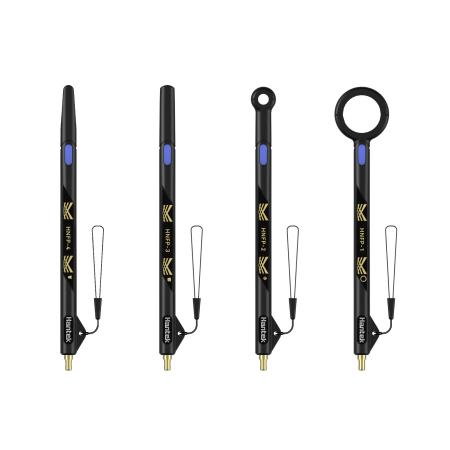

High Frequency Magnetic Field Probes (30MHz to 3GHz)

Resolution: HNFP-1: 25mm
HNFP-2: 10mm
HNFP-3: 5mm
HNFP-4: 2mm

Accurate testing of high-frequency magnetic fields (H), effective shielding of electric field interference (E)
Electromagnetic compatibility rectification, accurate positioning of magnetic field interference sources

Low Frequency Magnetic Field Probes (9kHz-50MHz)

Resolution: HNFP-5: 25mm
HNFP-6: 10mm
HNFP-7: 25mm

Accurate testing of low-frequency magnetic fields (H), effective shielding of electric field interference (E)

High Frequency Electric Field Probes (30MHz to 3GHz)

Accurate testing of electric field (E)
Electromagnetic compatibility rectification with precise location of electric field interference sources

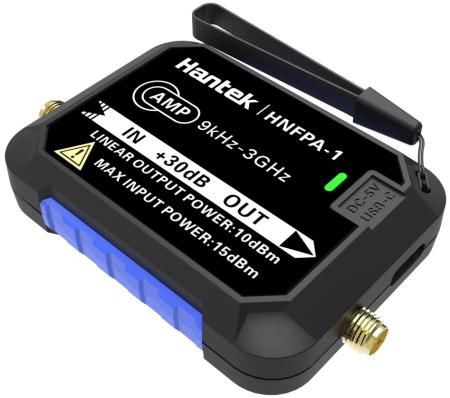

RF Amplifier (9KHz-3GHz)

Typical Gain: 30dB
Flatness: ±1.5dB
Maximum Linear Output Power: 10dBm
Maximum Input Power: 15dBm

Used to amplify the weak signals to be tested
Improves the sensitivity of the system to be tested
Comes standard with USB adapter and USB boost power adapter cable
