Low Frequency Magnetic Field Probes (9kHz-50MHz)

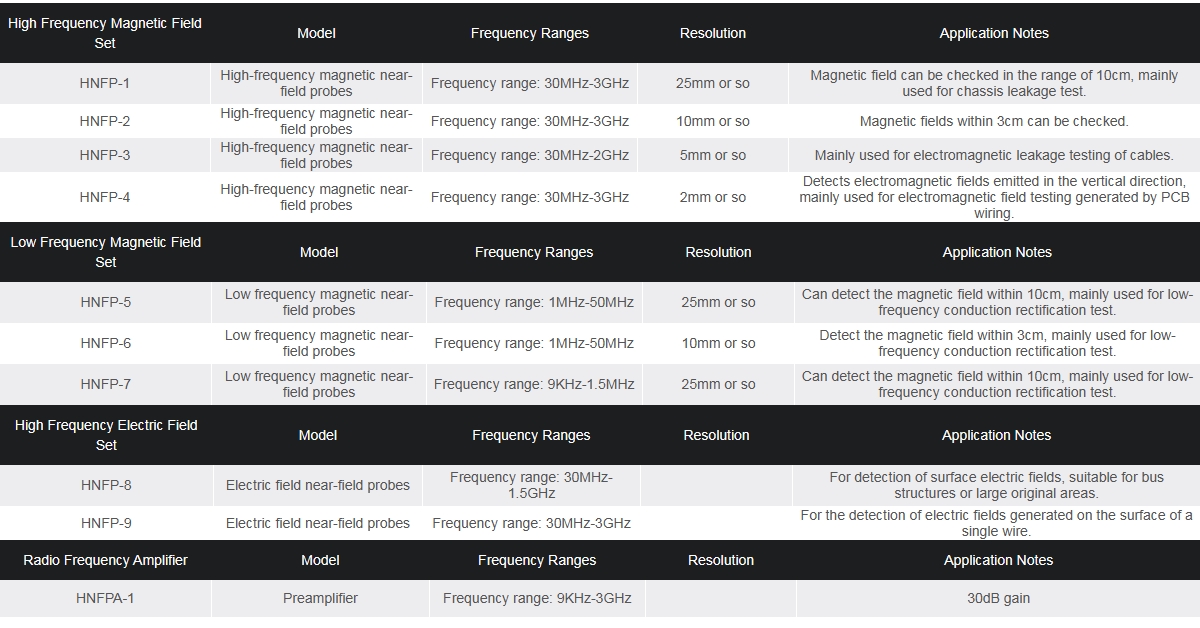

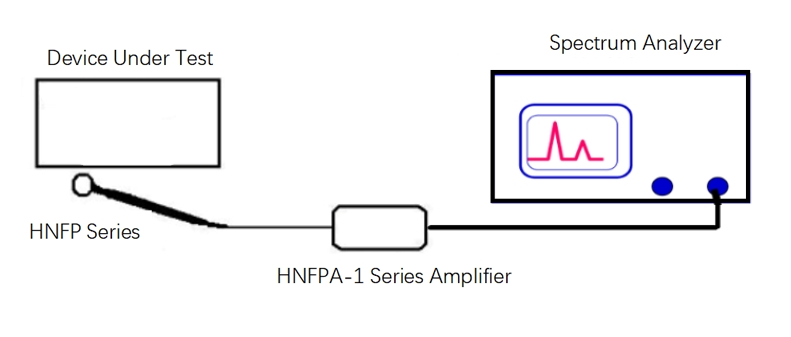

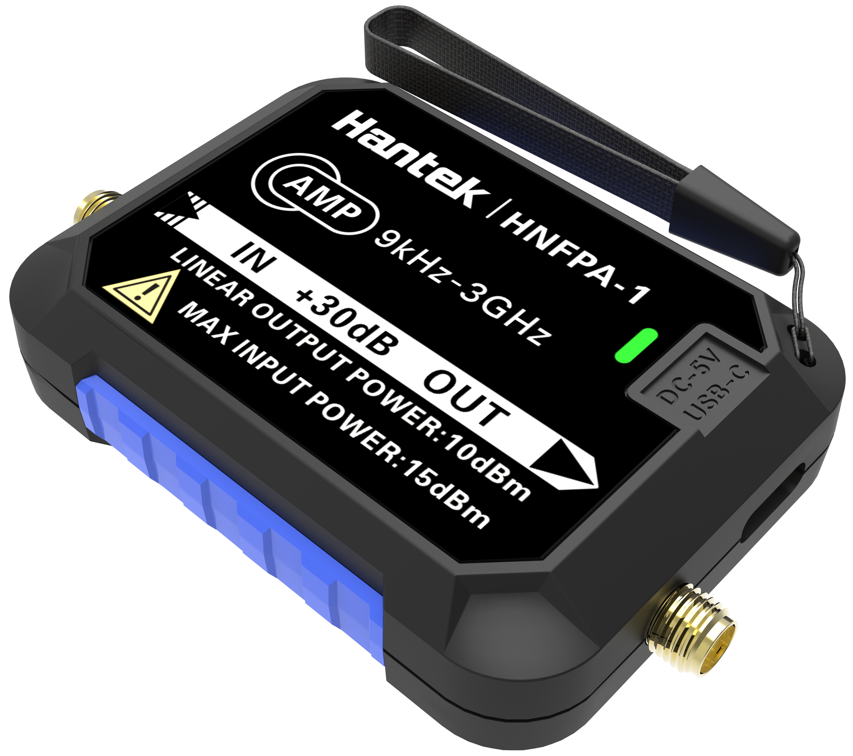

The HNFP series of near-field probes cover the 9KHz to 3GHz frequency range and can be used to build cost-effective EMI troubleshooting solutions to solve a wide range of EMI problems. It consists of seven probes dedicated to testing magnetic fields (H) and two high frequency probes dedicated to testing electric fields (E). The magnetic field probes contain special electrically isolated probe heads with different head shapes to suit different scenarios of near-field measurement tasks. All near-field probes are passive, and the probes are connected directly to a spectrometer or oscilloscope via a 50 Ω cable for real-time magnetic field testing and analysis. When the interference signal is weak, with our (30dB gain) pre-RF amplifier (HNFPA-1) can improve the system test sensitivity. Help engineers to identify and solve potential EMI/EMC problems before the product is sent out for conformance testing.
  • Overview
  • Parameters
  • Comparison

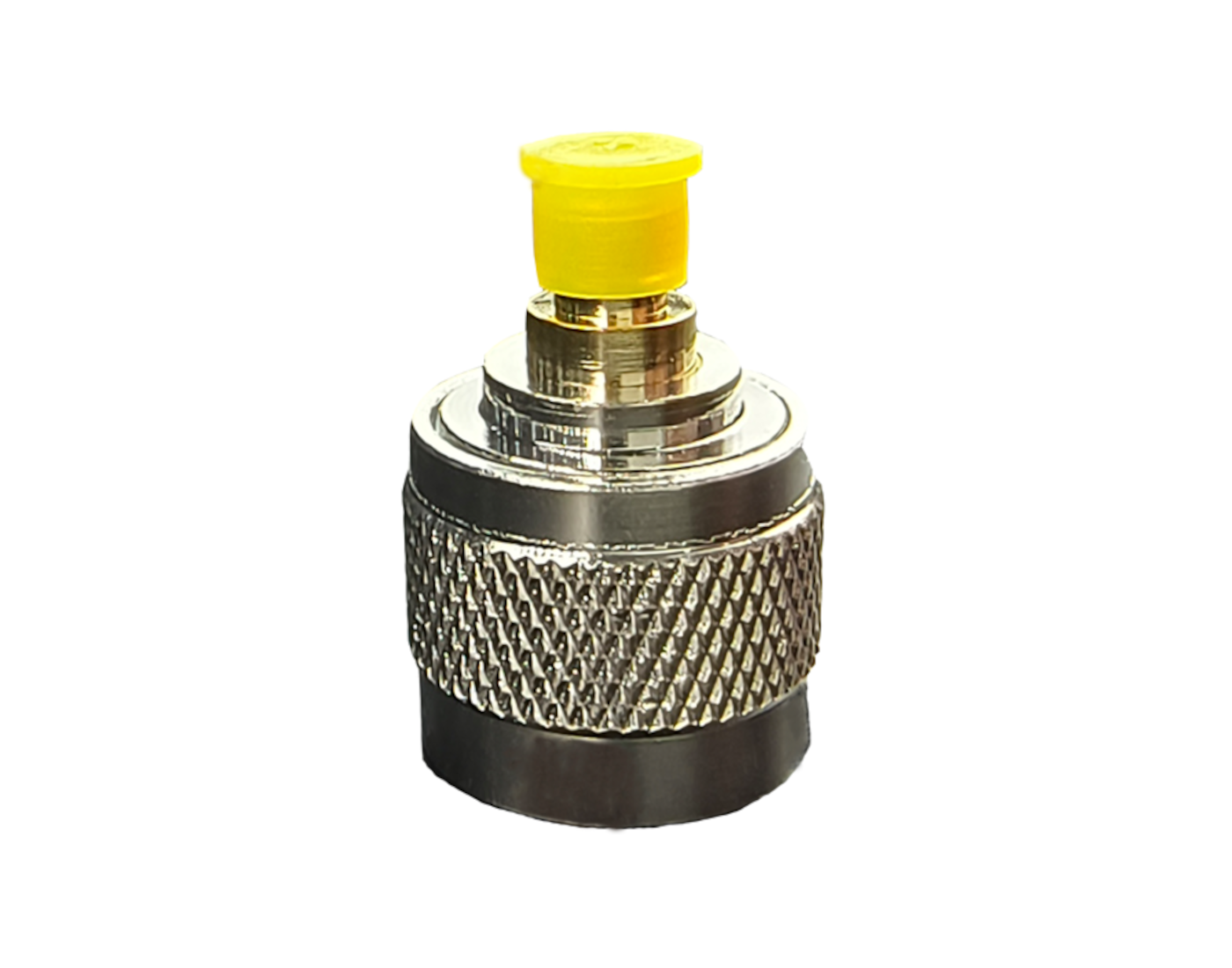

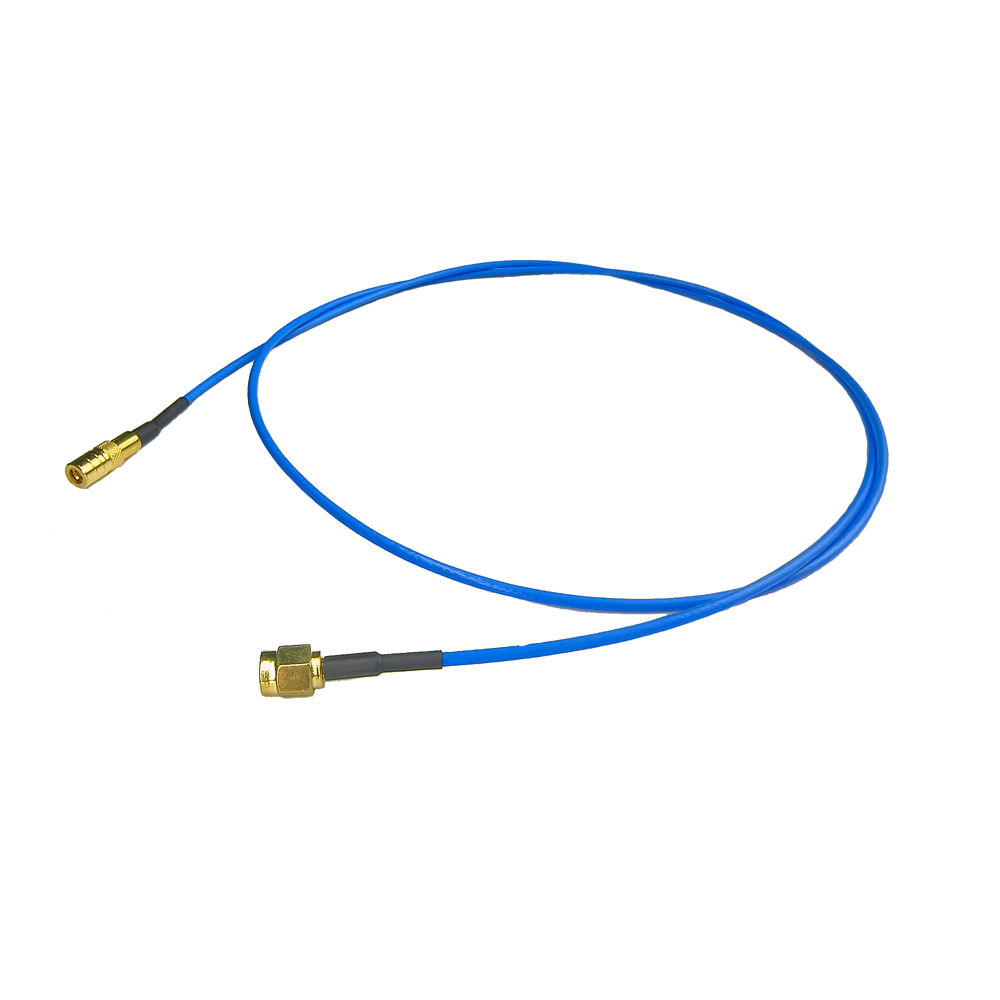

  • Accessories
  • Download
  • Probe
