High Frequency Magnetic Field Probes (30MHz to 3GHz)
Measurement connections

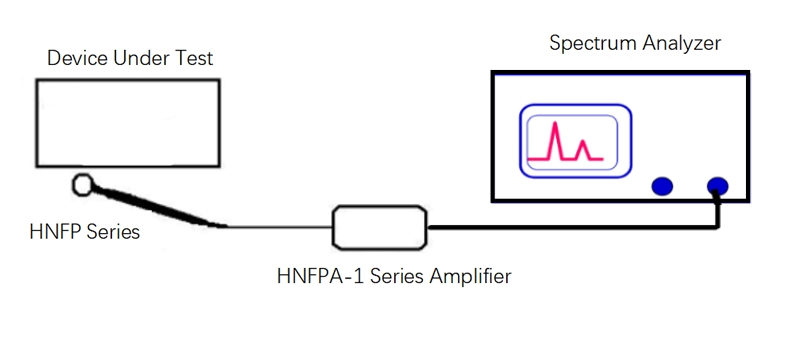

Connection to the device under test
The HNFP series near-field probes are used for non-contact measurements in close proximity to the device under test. When measuring, please pay attention to the direction of placement of the near-field probe.
Product characteristics
Model |
Summarize |

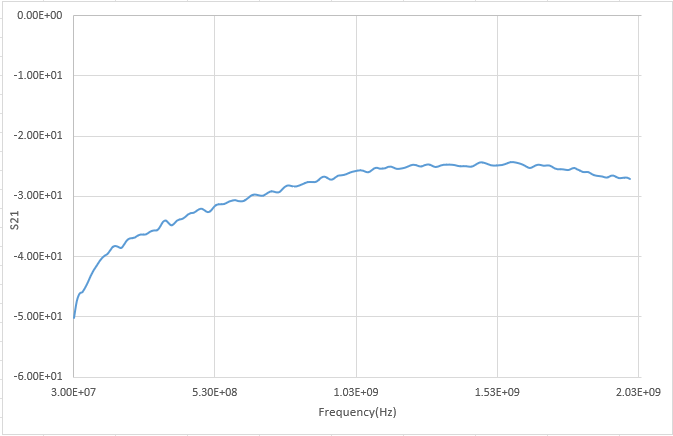

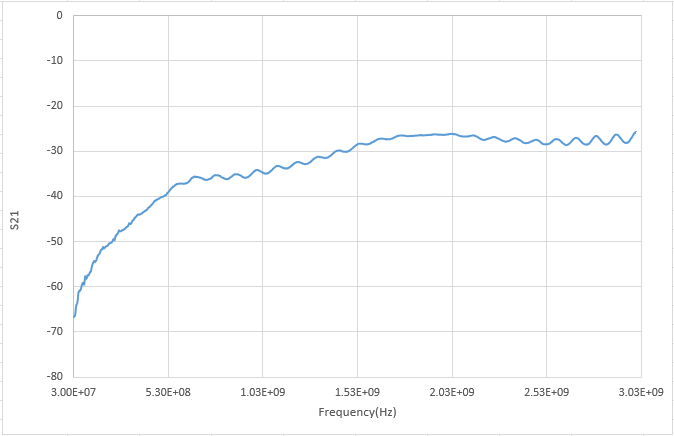

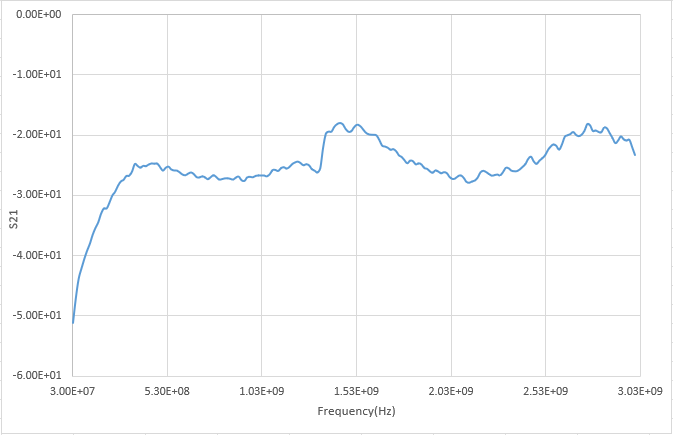

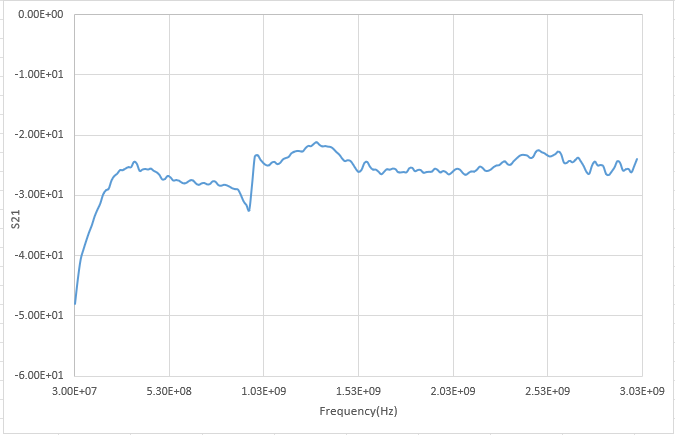

CharacteristicCurve |
HNFP-1 |
Magnetic field near-field probe. Detects magnetic fields within 10cm. Frequency range: 30MHz to 3 GHz. Resolution: 25mm or so. |
|
HNFP-2 |
Magnetic field near-field probe that Checks magnetic fields within 3 cm. Frequency range: 30MHz to 3 GHz. Resolution: around 10mm. |
|
HNFP-3 |
Magnetic field near-field probes, mainly used for electromagnetic leakage testing of cables. Frequency range: 30MHz to 2 GHz. Resolution: around 5mm. |
|
HNFP-4 |
Magnetic field near-field probe that detects electromagnetic fields emitted in a vertical direction. Frequency range: 30MHz to 3 GHz Resolution: around 2mm |
|

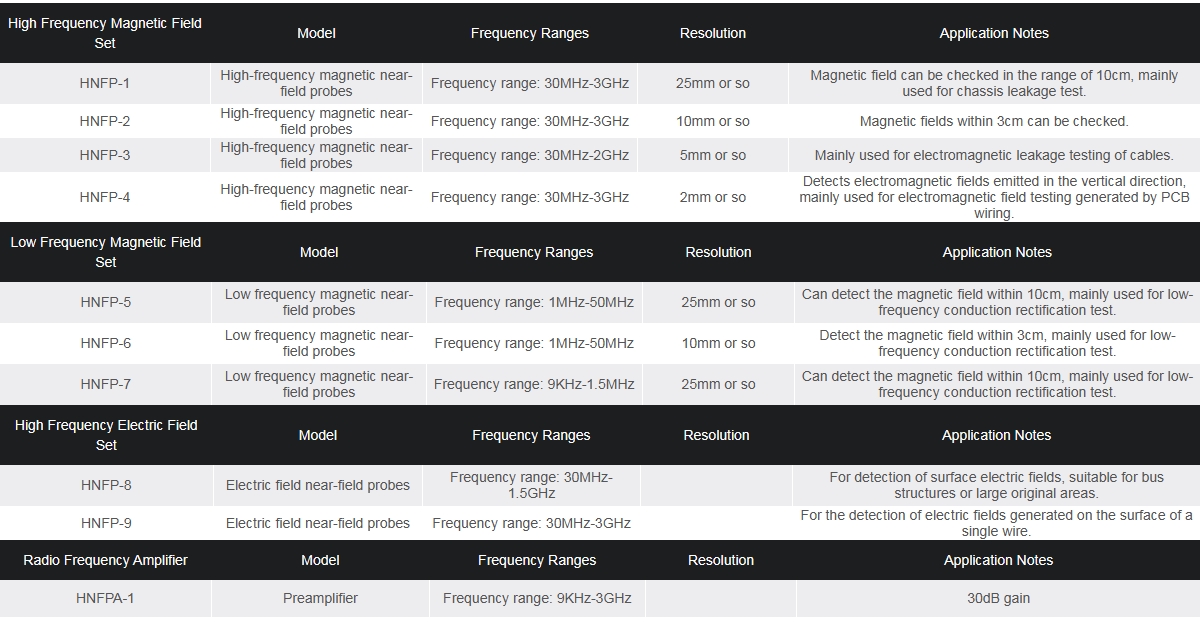

High Frequency Magnetic Field Set | Model | Frequency Ranges | Resolution | Application Notes |
HNFP-1 | High-frequency magnetic near-field probes | Frequency range: 30MHz-3GHz | 25mm or so | Magnetic field can be checked in the range of 10cm, mainly used for chassis leakage test. |
HNFP-2 | High-frequency magnetic near-field probes | Frequency range: 30MHz-3GHz | 10mm or so | Magnetic fields within 3cm can be checked. |
HNFP-3 | High-frequency magnetic near-field probes | Frequency range: 30MHz-2GHz | 5mm or so | Mainly used for electromagnetic leakage testing of cables. |
HNFP-4 | High-frequency magnetic near-field probes | Frequency range: 30MHz-3GHz | 2mm or so | Detects electromagnetic fields emitted in the vertical direction, mainly used for electromagnetic field testing generated by PCB wiring. |
Low Frequency Magnetic Field Set | Model | Frequency Ranges | Resolution | Application Notes |
HNFP-5 | Low frequency magnetic near-field probes | Frequency range: 1MHz-50MHz | 25mm or so | Can detect the magnetic field within 10cm, mainly used for low-frequency conduction rectification test. |
HNFP-6 | Low frequency magnetic near-field probes | Frequency range: 1MHz-50MHz | 10mm or so | Detect the magnetic field within 3cm, mainly used for low-frequency conduction rectification test. |
HNFP-7 | Low frequency magnetic near-field probes | Frequency range: 9KHz-1.5MHz | 25mm or so | Can detect the magnetic field within 10cm, mainly used for low-frequency conduction rectification test. |
High Frequency Electric Field Set | Model | Frequency Ranges | Resolution | Application Notes |
HNFP-8 | Electric field near-field probes | Frequency range: 30MHz-1.5GHz | For detection of surface electric fields, suitable for bus structures or large original areas. | |
HNFP-9 | Electric field near-field probes | Frequency range: 30MHz-3GHz | For the detection of electric fields generated on the surface of a single wire. |
Radio Frequency Amplifier | Model | Frequency Ranges | Resolution | Application Notes |
HNFPA-1 | Preamplifier | Frequency range: 9KHz-3GHz | 30dB gain |
Frequency |
|
Frequency Ranges |
Low Frequency: 9kHz to 50MHz High Frequency: 30MHz to 3GHz |
Port Type |
|
Port Format |
SMB (male) type |
Adapter (cable connector) |
N (male) - SMA (female) type |

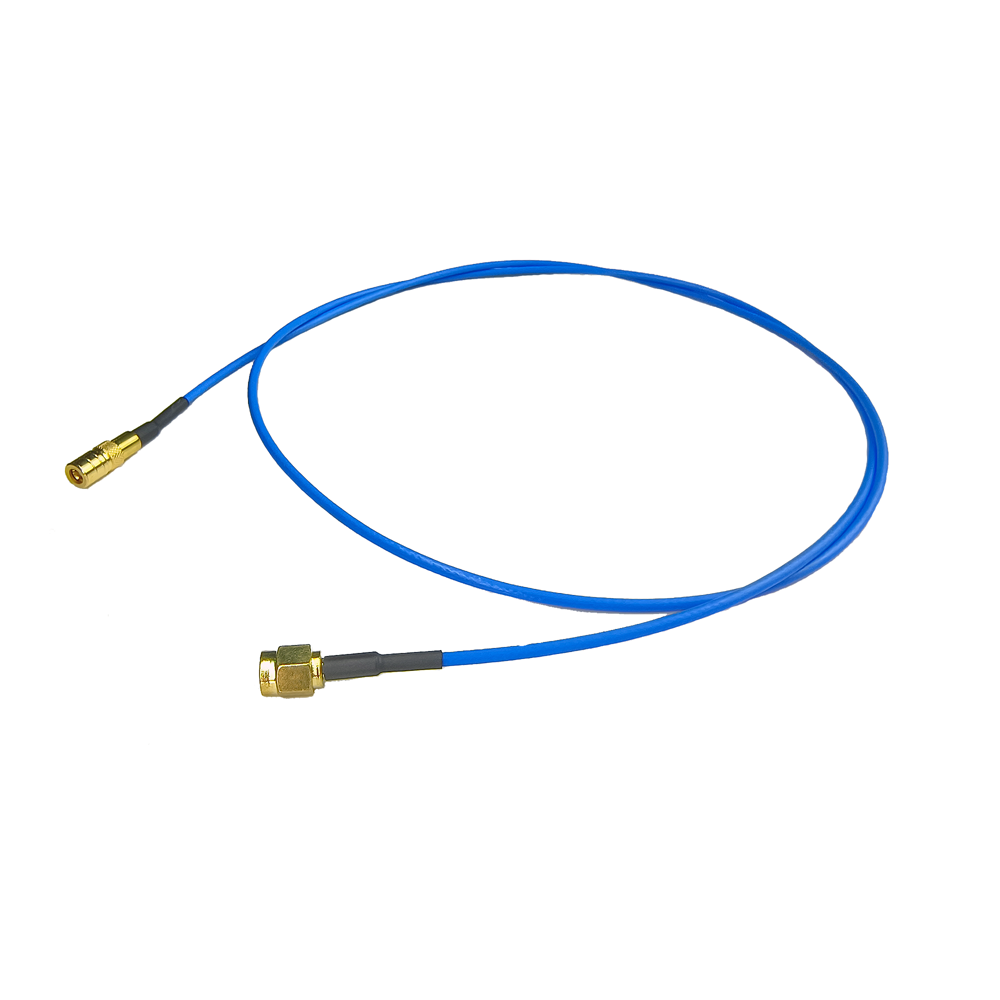

Radio Frequency Cables |
BNC (male) - SMB (female) type, 1m |
Select | Series | Bandwidth | Channels | Sampling Rate | Other |
---|---|---|---|---|---|
![]() HSA2016 Series
|
9KHz-1.6GHz | RF IN + TG OUT | -- | Frequency range 9KHz-1.6GHz, Sensitivity -161dBm, RBW:10Hz~1MHz, FMAM audio demodulator frequency counter |
|
![]() HSA2030 Series
|
9KHz-3.2GHz | RF IN + TG OUT | -- | Frequency range 9KHz-3.2GHz, Sensitivity -161dBm, RBW:10Hz~1MHz, FMAM audio demodulator frequency counter |
|
![]() High Frequency Magnetic Field Probes (30MHz to 3GHz)
|
30MHz to 3GHz | 4 probe shapes | Resolution: HNFP-1: 25mm HNFP-2: 10mm HNFP-3: 5mm HNFP-4: 2mm |
Accurate testing of high-frequency magnetic fields (H), effective shielding of electric field interference (E) Electromagnetic compatibility rectification, accurate positioning of magnetic field interference sources |
|
![]() Low Frequency Magnetic Field Probes (9kHz-50MHz)
|
9kHz-50MHz | 3 probe shapes | Resolution: HNFP-5: 25mm HNFP-6: 10mm HNFP-7: 25mm |
Accurate testing of low-frequency magnetic fields (H), effective shielding of electric field interference (E) | |
![]() High Frequency Electric Field Probes (30MHz to 3GHz)
|
30MHz~3GHz | 2 probe shapes | -- | Accurate testing of electric field (E) Electromagnetic compatibility rectification with precise location of electric field interference sources |
|
![]() RF Amplifier (9KHz-3GHz)
|
9KHz-3GHz | IN:1 OUT:1 |
Typical Gain: 30dB Flatness: ±1.5dB Maximum Linear Output Power: 10dBm Maximum Input Power: 15dBm |
Used to amplify the weak signals to be tested Improves the sensitivity of the system to be tested Comes standard with USB adapter and USB boost power adapter cable |
