Features：

•  4 analog channels, waveform capture rate is 400,000FPS.
• 1GSa/s real-time sampling rate, 500uV-10V/DIV input sensitivity, and 250MHz bandwidth.

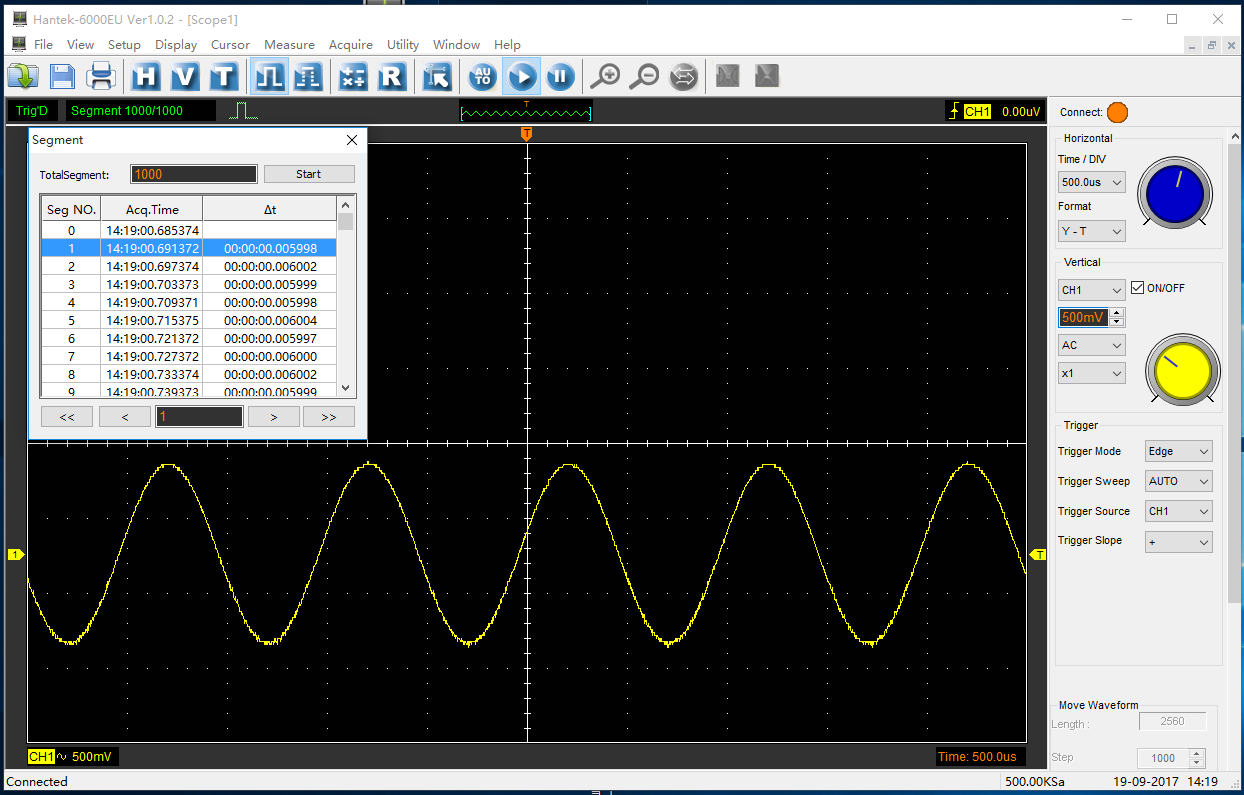

• 128Mpts memory depth, 80,000 section fragmentation. Segmented capture the event which meets the condition with very small deadtime.

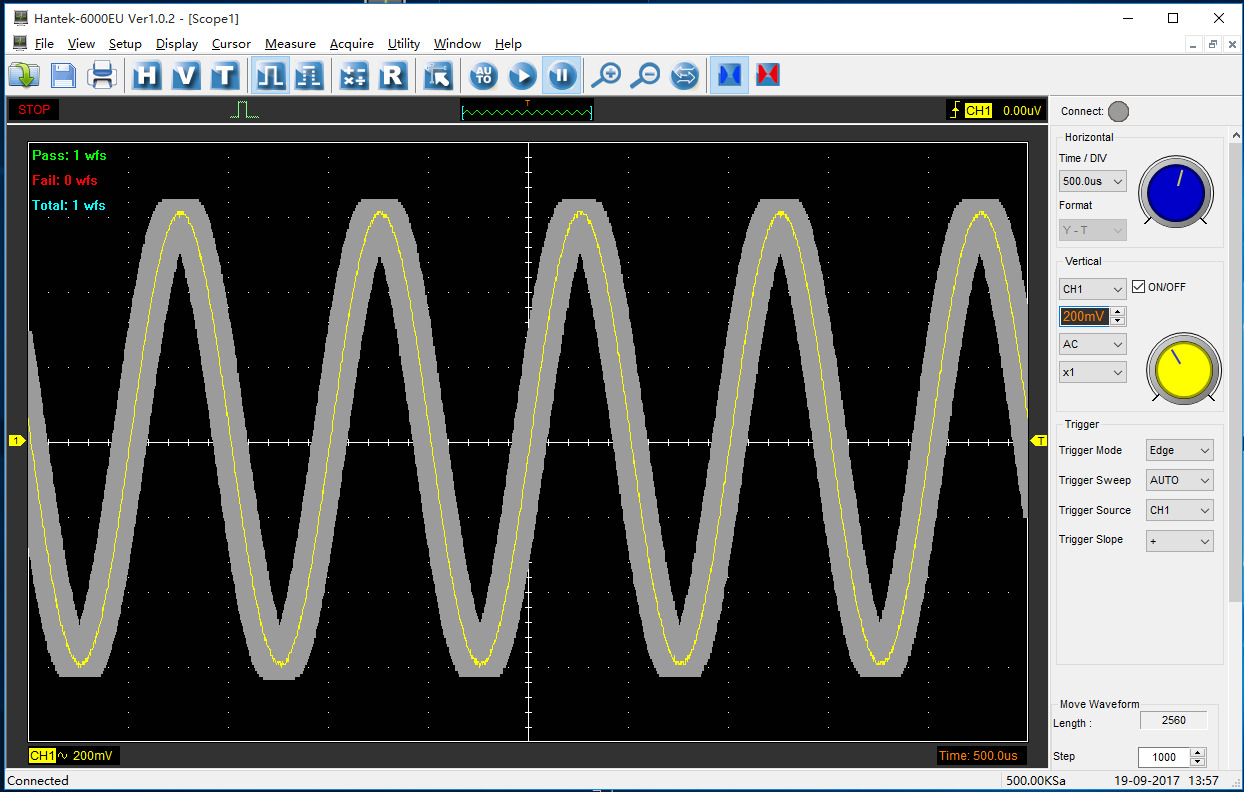

• Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.

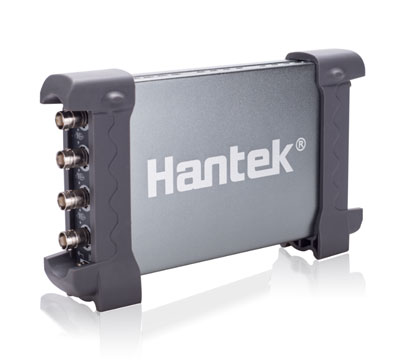

• Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
• Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.
  Software support: Windows10, Windows 8, Windows 7
• The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.
•  More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

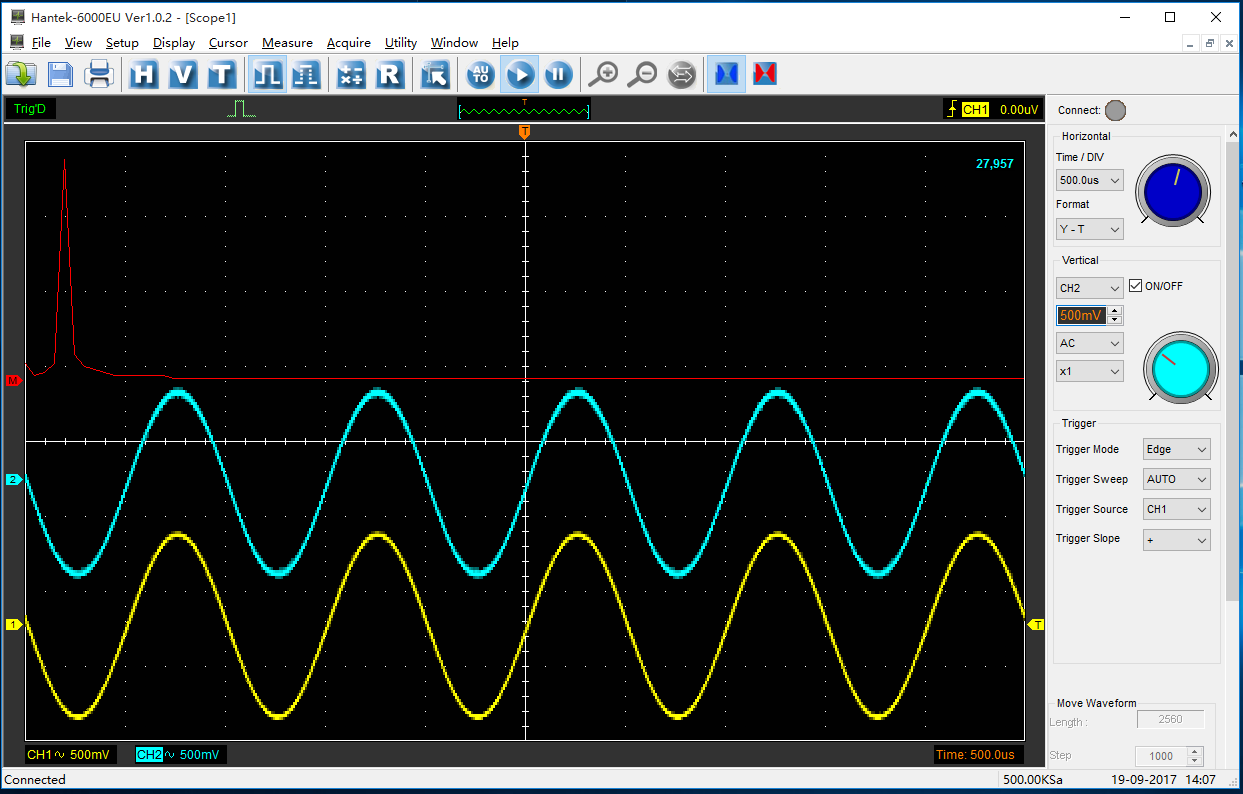

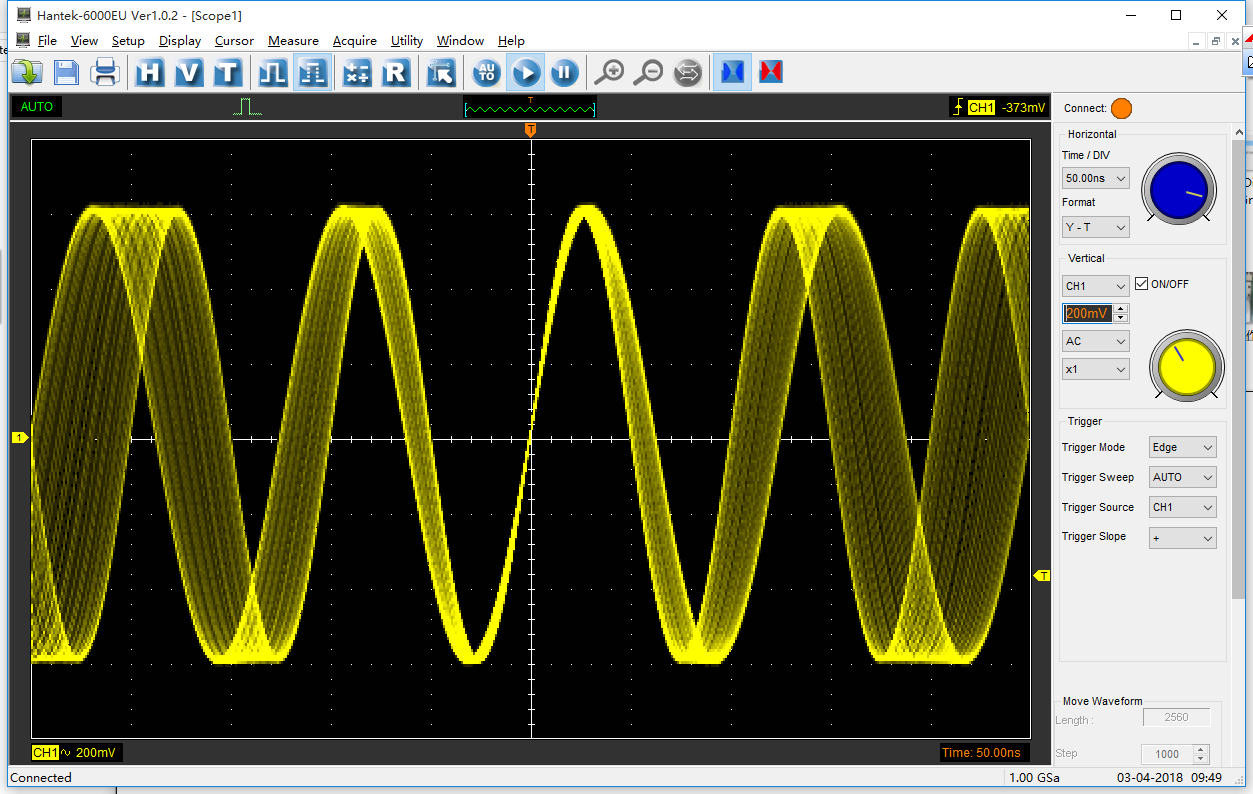

•  Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display. FFT spectrum analyzer
•  One computer could connect with multiple oscilloscopes, expand the channel number easily.
• Provide secondary development library DLL; Provide Labview\VB\VC\QT  developing examples.
