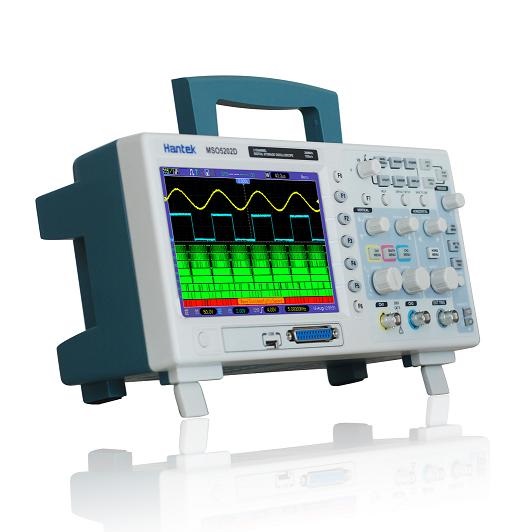

MSO5000D Series
Feature:
Function Picture:
This device is running Linux , for more detail see(S/N<15000)
This device is running Linux , for more detail see(S/N>15000)
2mV/div
to 20mV/div, ±400mV
50mV/div
to 200mV/div, ±2V
500mV/div
to 2V/div, ±40V
Model
MSO5202D
MSO5102D
MSO5062D
Acquisition
Sample Rate
Real-Time
Sample: 1GS/s
Acquisition
Modes
Normal
Normal data only
Peak Detect
High-frequency and randon
glith capture
Average
Waveform Average, selectable
4,8,16,32,64,128
Inputs
Inputs
Coupling
AC, DC, GND
Inputs
Impendance
1MΩ±2% ‖20pF±3pF
Probe
Attenuation
1X, 10X
Supported Probe Attenuation Factor
1X, 10X, 100X, 1000X
Maximum Input Voltage
CAT I
and CAT II: 300VRMS (10×), Installation Category;
CAT III: 150VRMS (1×);
Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC
at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less
than 450V. Excursion above 300V should be of less than 100ms duration. RMS
signal level including all DC components removed through AC coupling must be
limited to 300V. If these values are exceeded, damage to the oscilloscope may
occur.
Horizontal
Sample Rate
Range
500MS/s--1GS/s
Waveform
Interpolation
(sin x)/x
Record Length
1M
SEC/DIV Range
2ns/div to 40s/div,
8ns/div to 40s/div
Sample Rate and
Delay Time Accuracy
±50ppm（at over any ≥1ms time interval)
Position Range
2ns/div
to 8ns/div;
(-8div x s/div) to 20ms;
20ns/div
to 80us/div; (-8div x s/div) to 40ms;
200us/div to 40s/div; (-8div x s/div) to 400s;
Delta Time Measurement Accuracy
(Full Bandwidth)
Single-shot,
Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);
>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns);
Sample interval = s/div ÷ 200
Vertical System
Vertical
Resolution
8-bit resolution, all
channel sampled simultaneously
Position Range
2mV/div
to 10V/div
Bandwidth
200MHz
100MHz
60MHz
Rise Time at
BNC( typical)
1.8ns
3.5ns
5.8ns
Offset Range
Math
+, -, *, /, FFT
FFT
Windows: Hanning、Flatop、Rectamgular、Bartlett、Blackman; 1024 sample point
Bandwidth Limit
20MHz
Low Frequency
Response (-3db)
≤10Hz at BNC
DC Gain
Accuracy
±3%
for Normal or Average acquisition mode, 10V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
DC Measurement Accuracy,
Average Acquisition Mode
When
vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) only
10mV/div or greater is selected;
When vertical displacement is not zero, and N≥16: ± [3% × (reading +
vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings
from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 10V/div
Volts Measurement Repeatability,
Average Acquisition Mode
Delta
volts between any two averages of ≥16 waveforms acquired under same setup and
ambient conditions
Trigger System
Trigger Types
Edge,
Video, Pulse, Slope, Over time, Alternative
Trigger
Source
CH1,
CH2, EXT, EXT/5, AC Line
Trigger Modes
Auto,
Normal, Single
Coupling Type
DC,
AC, Noise Reject, HF Reject, LF Reject
Trigger Sensitivity
(Edge Trigger Type)
DC(CH1,CH2):
1div from DC to 10MHz;1.5div from 10MHz to 100MHz; 2div from 100MHz to
Full;
DC(EXT): 200mV from DC to 100MHz; 350mV from 100MHz to 200MHz;
DC(EXT/5): 1V from DC to 100MHz;1.75V from 100MHz to 200MHz;
AC: Attenuates signals below 10Hz
HF Reject: Attenuates signals above 80KHz;
LF Reject: Same as the DC-coupled limits for frequencies above 150KHz;
attenuates signals below 150KHz
Trigger Level
Range
CH1/CH2:
±8 divisions from center of screen;
EXT: ±1.2V;
EXT/5:±6V
Trigger Level Accuracy( typical)Accuracy is for signals having
rise and fall times ≥20ns
CH1/CH2:
0.2div × volts/div within ±4 divisions from center of screen;
EXT: ± (6% of setting + 40mV);
EXT/5: ± (6% of setting + 200mV);
Set Level to
50%(typical)
Operates
with input signals ≥50Hz
Video Trigger
Video Trigger
Type
CH1,
CH2: Peak-to-peak amplitude of 2 divisions;
EXT: 400mV;
EXT/5: 2V
Signal Formats and Field Rates, Video Trigger Type
Supports
NTSC, PAL and SECAM broadcast systems for any field or any line
Holdoff Range
100ns
~ 10s
Pulse Width
Trigger
Pulse Width
Trigger Mode
Trigger
when (< , >, = , or ≠); Positive pulse or Negative pulse
Pulse Width
Trigger Point
Equal:
The oscilloscope triggers when the trailing edge of the pulse crosses the
trigger level.
Not Equal: If the pulse is narrower than the specified width, the trigger
point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse
continues longer than the time specified as the Pulse Width.
Less than: The trigger point is the trailing edge.
Greater than (also called overtime trigger): The oscilloscope triggers when
a pulse continues longer than the time specified as the Pulse Width
Pulse Width
Range
20ns
~ 10s
Slope Trigger
Slope Trigger
Mode
Trigger
when (< , > , = , or ≠ ); Positive slope or Negative slope
Slope Trigger
Point
Equal:
The oscilloscope triggers when the waveform slope is equal to the set
slope.
Not Equal: The oscilloscope triggers when the waveform slope is not equal
to the set slope.
Less than: The oscilloscope triggers when the waveform slope is less than
the set slope.
Greater than: The oscilloscope triggers when the waveform slope is greater
than the set slope.
Time Range
20ns
~ 10s
Overtime
Trigger
Over Time
Mode
Rising
edge or Falling edge
Time Range
20ns
~ 10s
Alternative
Trigger
Trigger on
CH1
Internal
Trigger: Edge, Pulse Width, Video, Slope
Trigger on
CH2
Internal
Trigger: Edge, Pulse Width, Video, Slope
Trigger
Frequency Counter
Readout
Resolution
6
digits
Accuracy
(typical)
±30ppm
(including all frequency reference errors and ±1 count errors)
Frequency
Range
AC
coupled, from 4Hz minimum to rated bandwidth
Signal
Source
Pulse
Width or Edge Trigger modes: all available trigger sources
The Frequency Counter measures trigger source at all times, including when
the oscilloscope acquisition pauses due to changes in the run status, or
acquisition of a single shot event has completed.
Pulse Width Trigger mode: The oscilloscope counts pulses of significant
magnitude inside the 1s measurement window that qualify as triggerable
events, such as narrow pulses in a PWM pulse train if set to < mode and
the width is set to a relatively small time.
Edge Trigger mode: The oscilloscope counts all edges of sufficient
magnitude and correct polarity.
Video Trigger mode: The Frequency Counter does not work.
Measurement
Cursor
Measurement
Voltage
difference between cursors: △V
Time difference between cursors: △T
Reciprocal of △T in
Hertz (1/ΔT)
Auto
Measuerment
Frequency,
Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time,
+Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase,
Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot,
RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
Logic Analyzer Specifications
Channels
16
Channels
Max. Input
Impendence
200K(C=10p)
Input Voltage
Range
-60V~60V
Logic
Threshold Range
-8V~8V
Max. Sample
Rate
500MHz
Compatible Input
TTL,
CMOS, ECL
Sample Depth
512K
Trigger
Edge Trigger
D0-D15
select slope (rising or falling edge)
Pulse Width
D0-D15
select pulse polarity (positive or negative pulse), trigger when (=, ≠, >,
<), trigger pulse width
Code-type
D0-D15
select code-type (H, L, X)
Duration
D0-D15
select persist time and trigger when (data terminate, data start, and data
delay)
Queue
D0-D15
select specific data index (0-3) and code-type (H, L, X)
Repeat
D0-D15
select code-type (H, L, X) and repeat times
General Features
Display
Display Type
7
inch 64K color TFT (diagonal liquid crystal)
Display
Resolution
800
horizontal by 480 vertical pixels
Display
Contrast
Adjustable
(16 gears) with the progress bar
Probe
Compensator Output
Output
Voltage( typical)
About
5Vpp into ≥1MΩ load
Frequency(typical)
1kHz
Power Supply
Supply Voltage
100-120VACRMS(±10%),
45Hz to 440Hz, CATⅡ
120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ
Power
Consumption
<30W
Fuse
2A, T
rating, 250V
Environmental
Temperature
Operating:
32℉ to 122℉ (0℃ to 50℃);
Nonoperating: -40℉ to
159.8℉ (-40℃ to +71℃)
Cooling
Method
Convection
Humidity
+104℉ or below (+40℃ or below): ≤90% relative
humidity;
106℉ to 122℉ (+41℃ to 50℃):
≤60% relative humidity
Altitude
Operating:
Below 3,000m (10,000 feet);
Nonoperaring: Below 15,000m(50,000 feet)
Size & Weight
Size
385mm x 200mm x 245mm
Weight
2.08KG(without Packing）
| Select | Model | Bandwidth | Channels | Sampling rate | Other |
|---|---|---|---|---|---|
DPO7000 Series
|
500MHz 350MHz 200MHz 100MHz |
4-channels oscilloscope 1-channel waveform generator 16-channels logic analyzer |
2GSa/s single channel 1GSa/s half channel 1GSa/s full channels |
Oscilloscope/16-channels logic analyzer/spectrum analyzer/ arbitrary waveform generator/digital voltmeter/ 6-bit frequency meter and accumulator/protocol analyzer 2G storage depth |
|
DPO8000 Series
|
1GHz 800MHz 500MHz 300MHz |
4-channels oscilloscope 1-channel waveform generator 16-channels logic analyzer |
8GSa/s single channel 8GSa/s half channel 4GSa/s full channels |
Oscilloscope/16-channels logic analyzer/spectrum analyzer/ arbitrary waveform generator/digital voltmeter/ 6-bit frequency meter and accumulator/protocol analyzer 2G storage depth |
|
HRDO4000 Series
|
3GHz 2.5GHz 2GHz 1GHz 800MHz 500MHz |
4-Channel Oscilloscope 2-Channel Waveform Generator 16-Channel Logic Analyzer |
10GSa/s single channel 10GSa/s half channel 5GSa/s all channel |
4-Channel Oscilloscope/16-Channel Logic Analyzer/Spectrum Analyzer/2-Channel Arbitrary Wave Generator/Digital Voltmeter/6-bit Frequency Meter and Accumulator/Protocol Analyzer/Protocol Generator 2G Memory Depth |
|
HRDO2000 Series
|
500MHz 350MHz 200MHz 100MHz |
4-Channel Oscilloscope 2-Channel Waveform Generator 16-Channel Logic Analyzer |
2.5GSa/s single channel 2.5GSa/s half channel 1.25GSa/s all channel |
4-Channel Oscilloscope/16-Channel Logic Analyzer/Spectrum Analyzer/2-Channel Arbitrary Wave Generator/Digital Voltmeter/6-bit Frequency Meter and Accumulator/Protocol Analyzer/Protocol Generator 2G Memory Depth |
|
DSO2000 Series
|
150MHz 100MHz |
2 | 1GSa/s | 2 CH oscilloscope 1 CH 25MHz waveform generator 5 kinds of serial protocol trigger and decode 32 kinds of auto measurements with statistics SCPI remote control 2 sets of DVM |
|
DPO6004B(C)/MPO6004D Series
|
80MHz 100MHz 200MHz |
4CH OSC 2CH AFG 16CH LA DVM FFT Serial Bus triggering and decoder |
1GSa/s | 400000 wfm/s 5 serial decoding option 64M memory depth,up to 80,000 segments 13 kinds of waveforms inside 7 inch WVGA capacitive touch screen |
|
DPO6002B(C)/MPO6002D
|
80MHz 100MHz 200MHz |
2CH OSC 2CH AFG 16CH LA DVM FFT Serial Bus triggering and decoder |
1GSa/s | 400000 wfm/s 5 serial decoding option 64M memory depth,up to 80,000 segments 13 kinds of waveforms inside 7 inch WVGA capacitive touch screen |
|
DSO4004C Series
|
80-250MHz | 4CH +1CH WG+ EXT | 1GSa/s | Oscilloscope + waveform generator 7'' High resolution(800x480); 64K memory depth, USB Host/Device, Support U-disk memory, systom update DVM digital DMM, Auto range |
|
DSO4004B Series
|
80-250MHz | 4CH + EXT | 1GSa/s | Oscilloscope 7'' High resolution(800x480); 64K memory depth, USB Host/Device, Support U-disk memory, systom update DVM digital DMM, Auto range |
|
DSO4000C Series
|
200/100/70MHz | 2CH DSO +1CH GENERATOR + External Trigger |
1GSa/s | Oscilloscope+Waveform Generator , 40K Record Length; 7 inch 64K color LCD display (WVGA 800x480), Integrated USB Host/Device |
|
MSO5000D Series
|
200/100/60MHz | 2CH+16CH(LA)+EXT | 1GSa/s(Analog) 500MSa/s(LA) |
7powerful trigger function, 1M Record Length, USB interface system upgrade, 16CH Logic Analyzer, 7'' LCD WVGA 800*480; VGA Optional |
|
DSO5000P Series
|
200/100/70MHz | 2CH + EXT | 1GSa/s | 40K Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, Powerful trigger function; |
|
DSO5000B Series
|
200/100/60MHz | 2CH+EXT | 1GSa/s | 1M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, 7powerful trigger function; VGA Optional |
|
DSO5000BM Series (Discontinued)
|
200/100/60MHz | 2CH+EXT | 1GSa/s | 2M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480 7powerful trigger function; VGA Optional |
|
DSO5000BMV Series (Discontinued)
|
200/100/60MHz | 2CH+EXT | 1GSa/s | 2M Record Length, Video Help function; Built in 4G SD Card 7'' LCD WVGA 800*480 7powerful trigger function, USB interface system upgrade; VGA Optional |
 |
|
|
|
|
|
|
 |
| Model | Description | View Manual |
| HT300B,HT500B | 350Mhz,500MHz,10:1/1:1 | Download |
| HT100B，HT200B | 100MHz,200MHz,10:1/1:1 | Download |
| PP-80,PP-150,PP-200 | 60MHz,100MHz,200MHz,10:1/1:1 | Download |
| PP80B, PP150B, PP200B, PP300B | 80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1 | Download |
| PP-90 | 80MHz,10:1/1:1 | Download |
| T3100 | 100MHz，100：1，2000VDC Peak AC | Download |
| Model | Description | View Manual |
| CC65 | AC/DC: 0 – 20KHz，20mA to 65A DC | Download |
| CC650 | AC:0 – 5KHz，1A - 500A ，DC:1A - 650A | Download |
| CC800 | AC:0 – 5KHz，1A - 500A ，DC:1A - 800A | Download |
