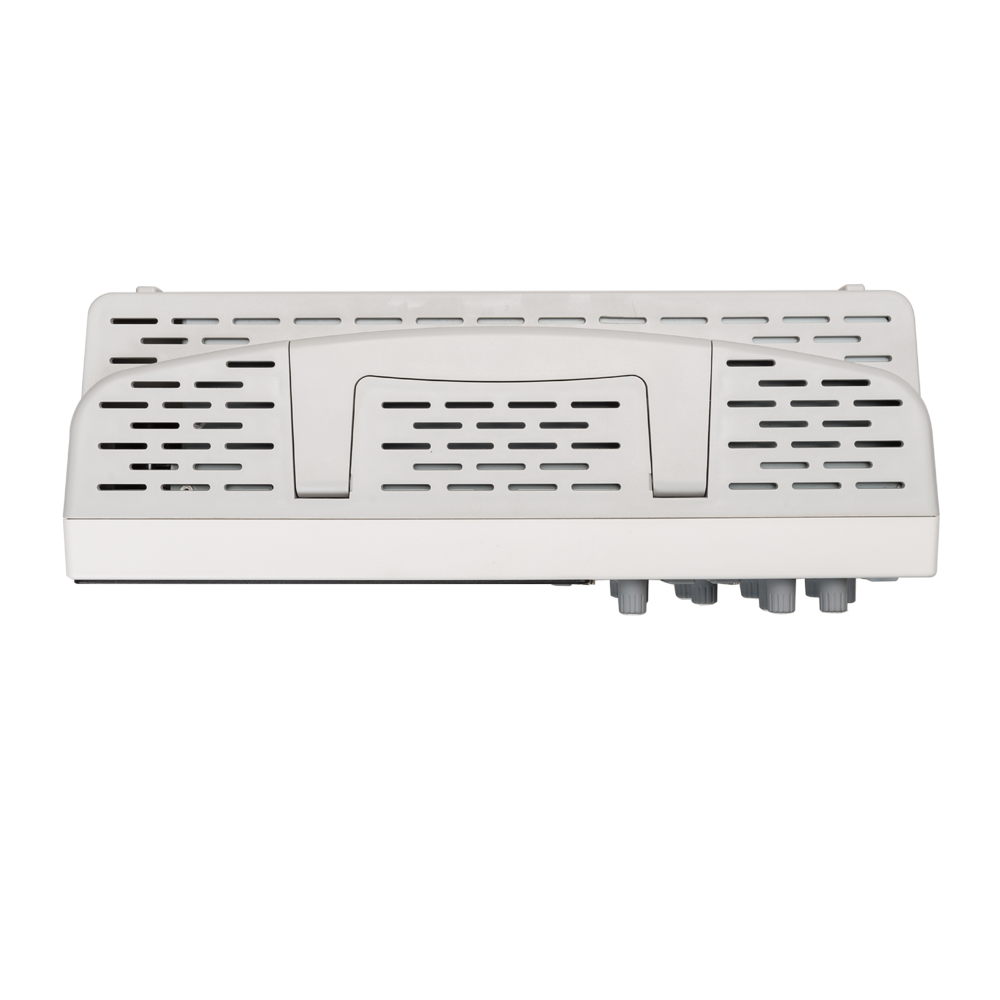

DSO4004C Series
Feature：
| Model | DSO4254C | DSO4204C | DSO4104C | DSO4084C |
| Bandwidth | 250MHz | 200MHz | 100MHz | 80MHz |
|
Horizontal |
||||
| Sample Rate Range | 1GS/s | |||
| Waveform Interpolation | (sin x)/x | |||
| Record Length | Maximum 64K samples per single-channel; | |||
| Maximum 32K samples per dual-channel (4K, 32K optional) | ||||
| SEC/DIV Range | 2ns/div~100s/div | |||
| 1, 2, 5 sequence | ||||
|
Sample Rate and Delay Time Accuracy |
±50ppm | |||
|
Delta Time Measurement Accuracy (Full Bandwidth) |
Single-shot, Normal mode ± (1 sample interval +100ppm × reading + 0.6ns) |
|||
|
>16 averages ± (1 sample interval + 100ppm × reading + 0.4ns) |
||||
| Sample interval = s/div ÷ 200 | ||||
| Vertical | ||||
| AD Converter |
8-bit resolution, each channel sampled simultaneously |
|||
| VOLTS/DIV Range | 500μV/div to 10V/div at input BNC | |||
| Position Range | 500μV/div~20mV/div, ±400mV | |||
| 50mV/div~200mV/div, ±2V | ||||
| 500mV/div~2V/div, ±40V | ||||
| 5V/div~10V/div, ±50V | ||||
| Selectable Analog Bandwidth Limit, typical | 20MHz | |||
| Low Frequency Response (-3db) | ≤10Hz at BNC | |||
| Rise Time at BNC, typical | DSO4254C | DSO4204C | DSO4104C | DSO4084C |
| <1.4ns | ≤1.8ns | ＜3.5ns | ≤4.4ns | |
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div | |||
| ±4% for Normal or Average acquisition mode, 5mV/div to 500μV/div | ||||
|
|
Note: Bandwidth reduced to 6MHz when using a 1X probe. | |||
|
Acquisition |
||||
| Acquisition Modes | Normal, Peak Detect, Average and HR | |||
| Acquisition Rate, typical | Up to 2000 waveforms per second per channel (Normal acquisition mode, no measurement) | |||
| Single Sequence | Acquisition Mode |
Acquisition Stop Time |
||
|
|
Normal, Peak Detect |
Upon single acquisition on all channels simultaneously | ||
|
|
Average | After N acquisitions on all channels simultaneously, N can be set to 4, 8, 16, 32, 64 or 128 | ||
|
Trigger |
||||
| Mode | Auto, Normal | |||
| Level | CH1~CH4 | ±4 divisions from center of screen | ||
| EXT | 0~3.3V | |||
| Holdoff Range | 20ns ~ 10s | |||
|
Trigger Level Accuracy |
CH1~CH4 | 0.2div × volts/div within ±4 divisions from center of screen | ||
| EXT |
± (6% of setting + 40mV) |
|||
| Edge Trigger | ||||
| Slope |
Rising, Falling, Rising&Falling |
|||
|
Source |
CH1~CH4/EXT | |||
| Pulse Width | ||||
| Polarity | Positive, Negative | |||
| Condition(When) | <, >, ≠, = | |||
| Source | CH1~CH4 | |||
| Width Range | 8ns ~ 10s | |||
| Resolution | 8ns | |||
| Video Trigger | ||||
| Signal Standard | NTSC, PAL | |||
| Source | CH1~CH4 | |||
| Sync | ScanLine, LinrNum, OddField, EvenField and AllField | |||
| Slope Trigger | ||||
| Slope | Rising, Falling | |||
| Condition(When) | <, >, ≠, = | |||
| Source | CH1 ~ CH4 | |||
| Time Range | 8ns ~ 10s | |||
| Resolution | 8ns | |||
| Overtime Trigger | ||||
| Source | CH1~CH4 | |||
| Polarity | Positive, Negative | |||
| Time Range | 8ns ~ 10s | |||
| Resolution | 8ns | |||
| Window Trigger | ||||
| Source | CH1~CH4 | |||
| Pattern Trigger | ||||
| Pattern | 0: Lower level; 1: High level; | |||
| Level | CH1~CH4 | |||
| Interval Trigger | ||||
| Slope | Rising, Falling | |||
| Condition(When) | <, >, ≠, = | |||
| Source | CH1~CH4 | |||
| Time Range | 8ns ~ 10s | |||
| Resolution | 8ns | |||
| Under Amp | ||||
| Polarity | Positive, Negative | |||
| Condition(When) | <, >, ≠, = | |||
| Source | CH1~CH4 | |||
| Time Range | 8ns ~ 10s | |||
| Resolution | 8ns | |||

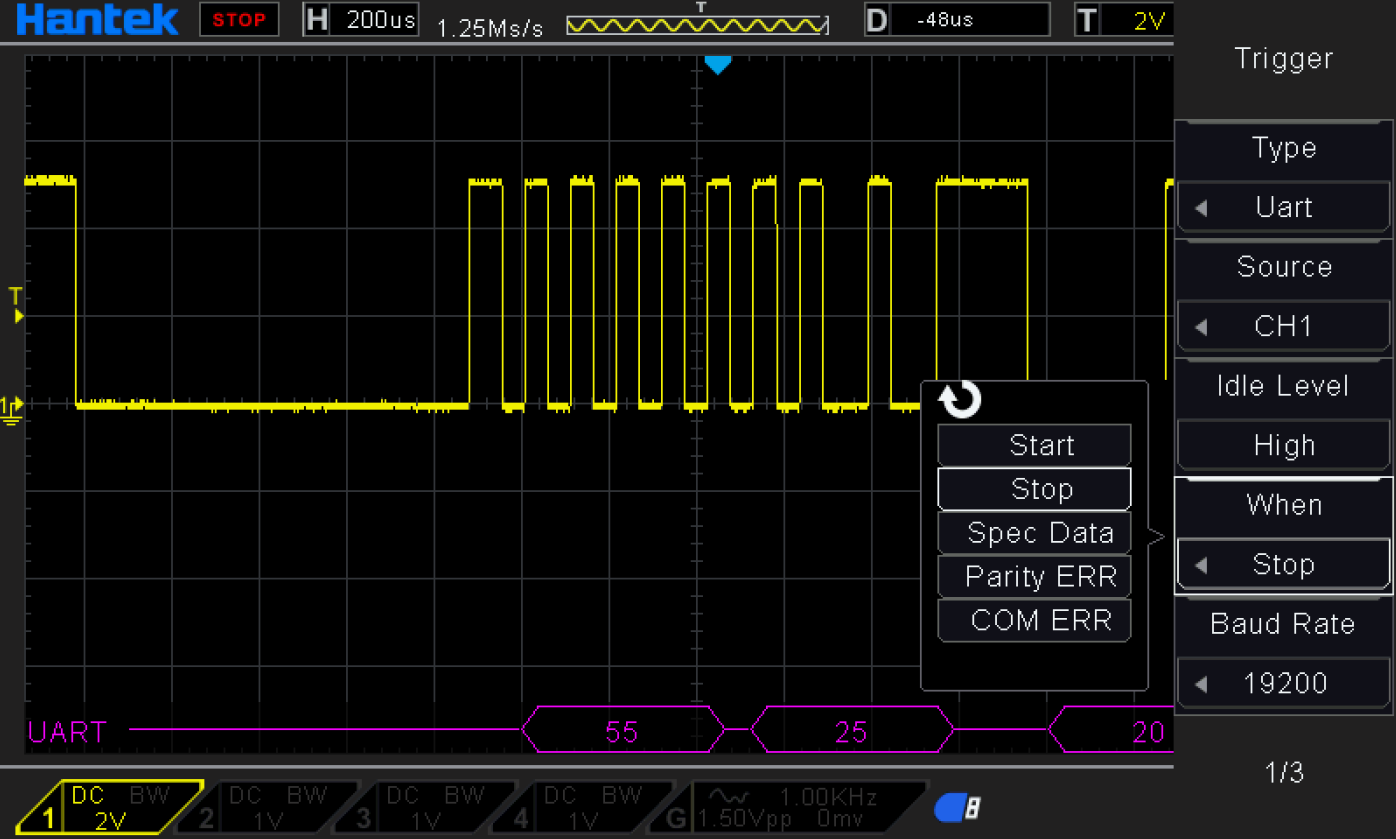

| UART Trigger | ||||
| Condition(When) | Start, Stop, Data, Parity Error, COM Error | |||
| Source(RX/TX) | CH1~CH4 | |||
| Data format | Hex | |||
| Condition(When) | <, >, ≠, = | |||
| Data Length | 1 byte | |||
| Data Length | 5 bit, 6 bit, 7 bit, 8 bit | |||
| Parity Check | None, Odd, Even | |||
| Idle Level | High, Low | |||
| Baud Rate(Selectable) | 110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s | |||
| Baud Rate (Custom) | 300bit/s~334000bit/s | |||
| LIN Trigger | ||||
| Condition(When) | Interval Field, Sync Field, Id field, Sync Id Error, Identifier, Id and Data | |||
| Source | CH1~CH4 | |||
| Data format | Hex | |||
| Baud Rate (Selectable) | 110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s | |||
| Baud Rate (Custom) | 300bit/s~334000bit/s | |||
| CAN Trigger | ||||
| Condition(When) | Start Bit, Remote Frame, Data Frame Id, Frame Id, DataFrame Id A, Error Frame, All Error, Ack Error, Overload Fram | |||
| Source | CH1~CH4 | |||
| Data format | Hex | |||
| Baud Rate (Selectable) | 10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000 | |||
| Baud Rate (Custom) | 5kbit/s~1Mbit/s | |||
| SPI Trigger | ||||
| Source (CS/CLK/Data) | CH1~CH4 | |||
| Data format | Hex | |||
| Data Length | 4, 8, 16, 24, 32 | |||
| IIC Trigger | ||||
| Source (SDA/SCL) | CH1~CH4 | |||
| Data format | Hex | |||
| Data Index | 0~7 | |||
| When(Condition) | Start, Stop, No Ack, Address, Data, Restart | |||
| Inputs | ||||
| Input Coupling | DC,AC or GND | |||
| Input Impedance, DC coupled | 20pF±3 pF，1MΩ±2% | |||
| Probe Attenuation | 1X,10X | |||
| Supported Probe Attenuation Factors | 1X, 10X, 100X, 1000X | |||
| Overvoltage Category | 300V CAT II | |||
| Maximum Input Voltage | 300VRMS (10X) | |||
| Measurements | ||||
| Cursors |
Voltage difference between cursors: △V Time difference between cursors: △T Reciprocal of △T in Hertz (1/ΔT) |
|||
| Automatic Measurements | Frequency, Period, Average, Pk-Pk, RMS, PeriodRms, Min, Max, RiseTime, FallTime, + Width, - Width, + Duty, - Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, PeriodAvg, FOVShoot, RPREShoot, BWidth, FRR, FFF, FRF, FFR, LRR, LRF, LFR and LFF | |||
| General Specifications | ||||
| Display | ||||
| Display Type | 7 inch 64K color TFT (diagonal liquid crystal) | |||
| Display Resolution | 800 horizontal by 480 vertical pixels | |||
| Display Contrast | Adjustable | |||
| Probe Compensator Output | ||||
| Output Voltage, typical | About 2Vpp into ≥1MΩ load | |||
| Frequency, typical | 1kHz | |||
| Power Supply | ||||
| Supply Voltage |
100-120VACRMS(±10%),45Hz to 440Hz，CATⅡ 120-240VACRMS(±10%),45Hz to 66Hz，CATⅡ |
|||
| Power Consumption | <30W | |||
| Fuse | T，3.15A，250V，5x20mm | |||
| Environmental | ||||
| Operating Temperature | 0~50 °C (32~122 °F) | |||
| Storage Temperature | -40~+71 °C (-40~159.8 °F) | |||
| Humidity | ≤+104℉(≤+40°C): ≤90% relative humidity | |||
| 106℉~122℉ (+41°C ~50°C): ≤60% relative humidity | ||||
| Cooling Method |
Convection |
|||
| Altitude | Operating and Nonoperating | 3,000m（10,000 feet） | ||
|
|
Random Vibration | 0.31gRMS from 50Hz to 500Hz, | ||
| 10 minutes on each axis | ||||
|
|
Nonoperating | 2.46gRMS from 5Hz to 500Hz | ||
| 10 minutes on each axis | ||||
| Mechanical Shock | Operating | 50g, 11ms, half sine | ||
| Mechanical | ||||
| Dimension | 318 x 110 x 150mm(L x W x H) | |||
| Weight |
2900g |
|||
| Arbitrary Waveform Generator Mode | ||||
| Waveform Frequency |
Sine: 0.1Hz~25MHz Square: 0.1Hz~10MHz Ramp: 0.1Hz~1MHz EXP: 0.1Hz~5MHz |
|||
| Amplitude |
5mV~3.5Vp-p(50Ω) 10mV~7Vp-p(High impedance) |
|||
| DAC | 2K~200MHz adjustable | |||
| Frequency Resolution | 0.001 | |||
| Channel |
1CH waveform output |
|||
| Waveform Depth | 4KSa | |||
| Vertical Resolution | 12 bit | |||
| Frequency Stability | <30ppm | |||
|
Output Impedance |
50 Ω | |||
