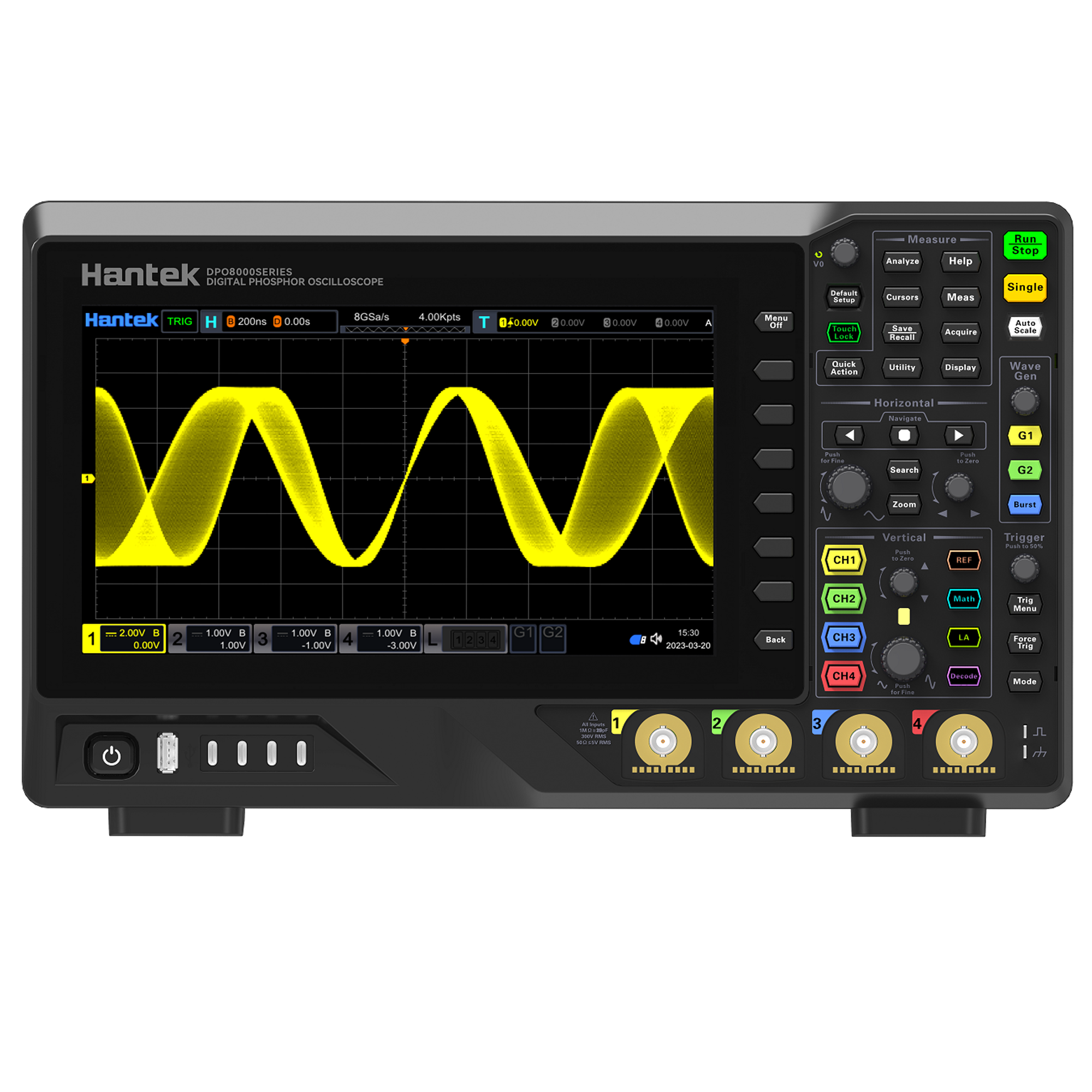

DPO8000 Series - Hantek Electronic & Your testing solution provider

Set 8 independent instruments in one, including: oscilloscope / 16-channel logic analyzer/spectrum analyzer/arbitrary wave generator/digital voltmeter / 6-bit frequency meter and accumulator/protocol analyzer/protocol generator;
Real-time sampling rate up to 8GSa/s, 2G memory depth, hardware real-time waveform recording and playback up to 2 million frames;
10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display;
Rich serial protocol triggering and decoding functions;
Waveform capture rate is higher than 600,000 waveforms per second;
Up to 41 kinds of waveform parameters are automatically measured, and full memory hardware measurement function is also provided;
RS232, I2C, SPILIN, CAN protocol generation function;
Built in two 200MHz wavefrom generator, 16 bit resolution, 0-14V voltage output;

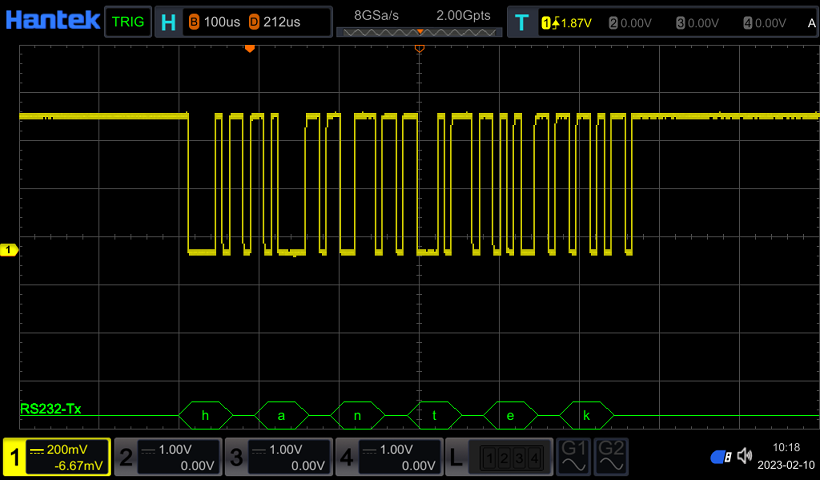

Serial bus triggering and decoding

Provides bus triggering and decoding functions, supports multiple protocols RS232, I2C, SPI, LIN, CAN and can decode and display bus protocol information quickly and intuitively.

2G memory depth

Ultra-long memory depth of 2G. Fully understand waveform overall and details, will not lose any accidental events and waveform changes.

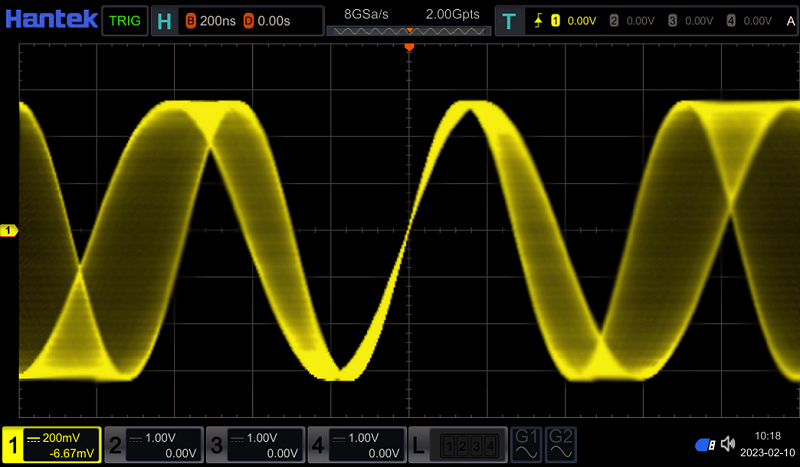

Waveform digital fluorescent display

Provide digital fluorescence multi-level waveform grayscale display effect, which can help users quickly find potential anomalies in the signal.

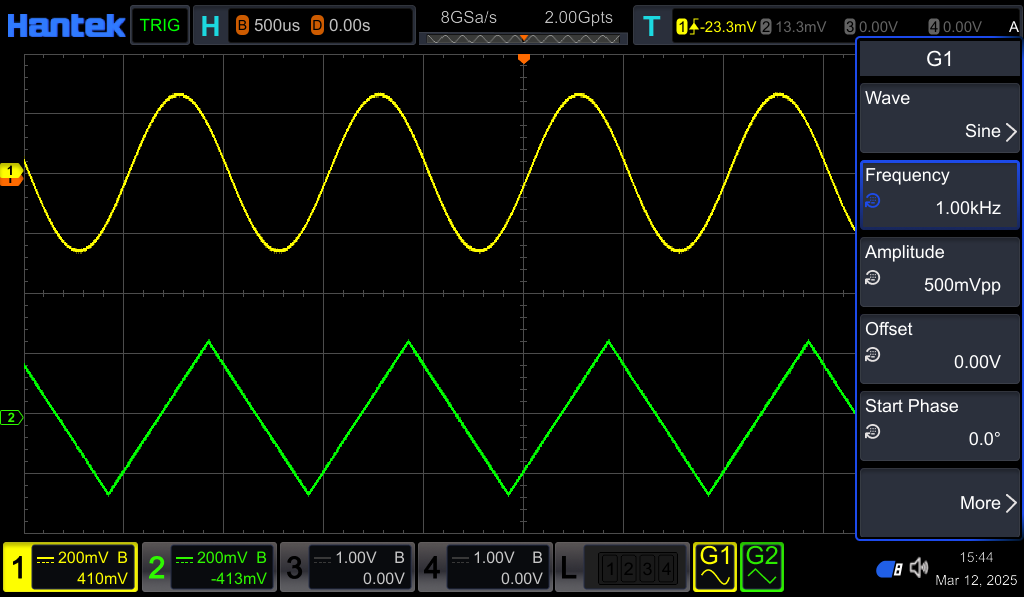

200MHz function/arbitrary waveform generator

Built in two 200MHz wavefrom generator, integrated with a variety of commonly used built-in waveforms, supports customized arbitrary waveform, arbitrary wave burst output, and modulated waveform output.

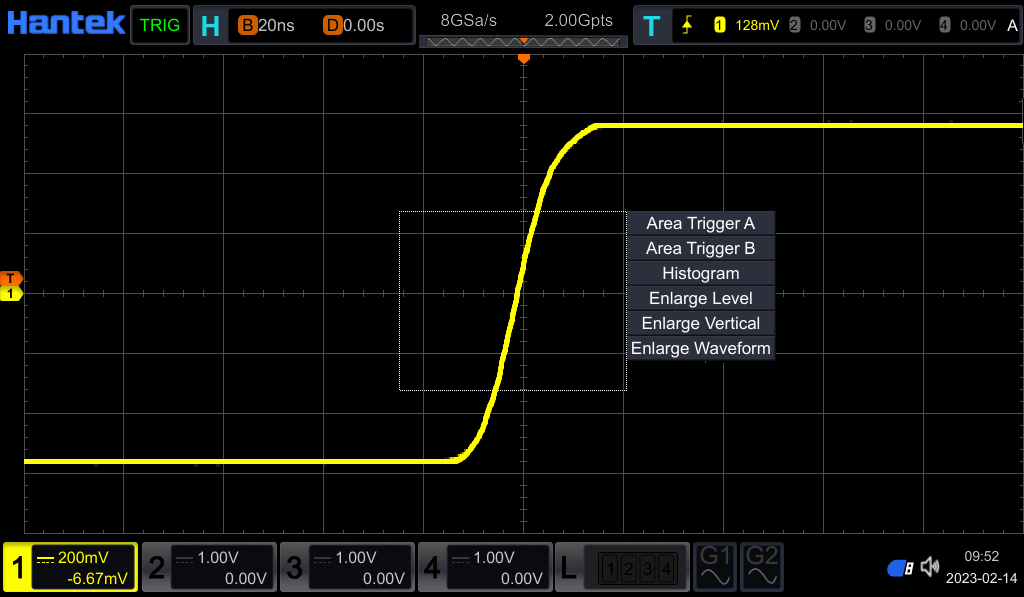

Area trigger function

By drawing the region, you can set the region trigger. The region trigger can simplify the operation of advanced trigger and quickly isolate the waveform of interest.

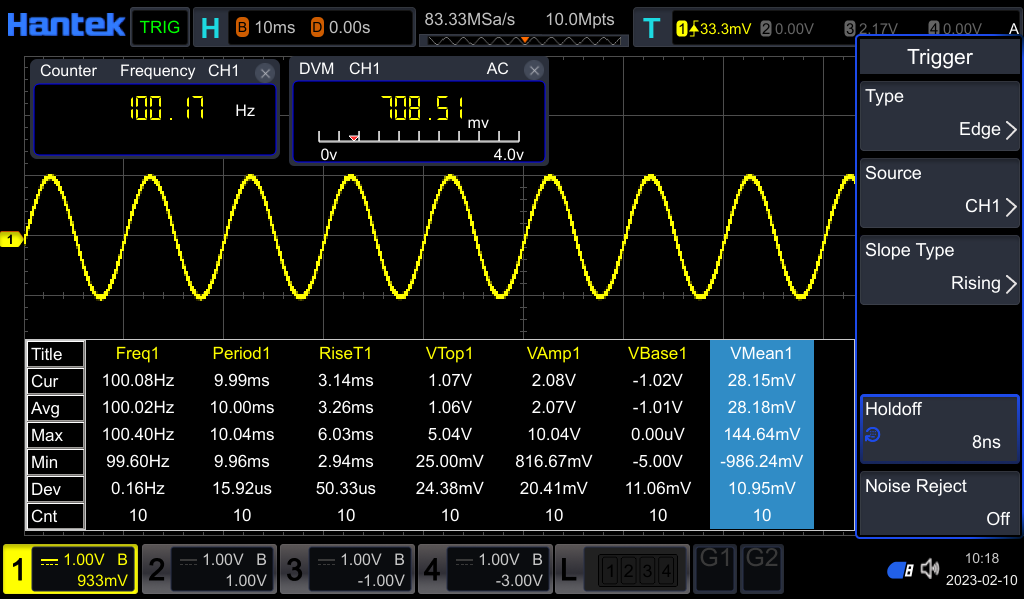

Test parameter function

5-digit digital voltmeter and 6-digit hardware frequency meter function; Real-time statistics of minimum, maximum, average, standard deviation and other information enable you to execute tests more efficiently.

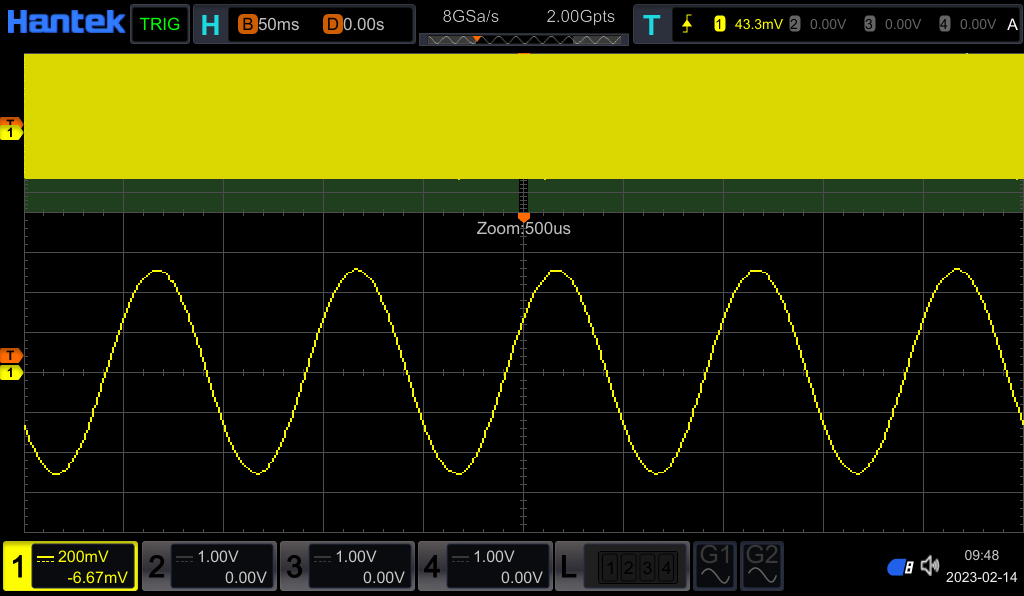

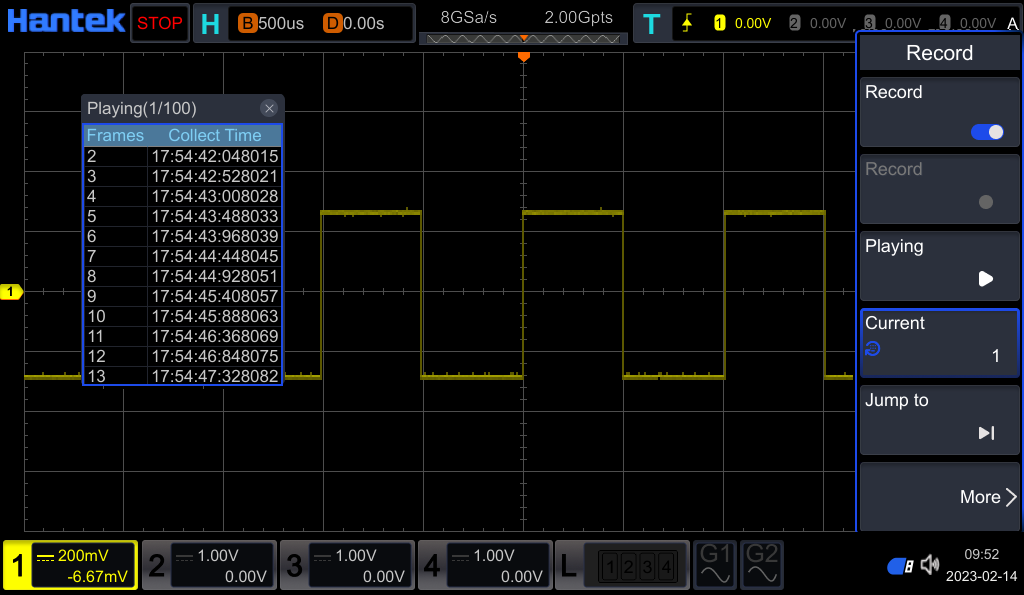

Waveform recording and playback

The waveform recording function option is provided to record the waveform changes in real time without interruption, and mark the time on the signal, so as to play back the waveform conveniently and find out the fault.

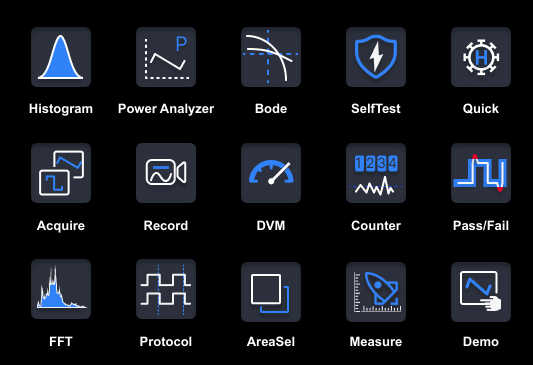

Quick operation function

The shortcut operation panel including 15 common functions can be opened with one button without searching. Make the operation faster and the measurement more efficient.

Model	Analog Channels	Bandwidth	Max. Real-time Sampling Rate	Max. Memory Depth	Max. Waveform Capture Rate	Digital Channels	Waveform Generator
DPO8104C	4	1GHz	8GSa/s	2Gpts	500,000 wfms/s	--	--
DPO8084C	4	800MHz	8GSa/s	2Gpts	500,000 wfms/s	--	--
DPO8054C	4	500MHz	8GSa/s	2Gpts	500,000 wfms/s	--	--
DPO8354C	4	350MHz	8GSa/s	2Gpts	500,000 wfms/s	--	--

Model	Analog Channel	Bandwidth	Max. Real-time Sampling Rate	Max. Memory Depth	Max. Waveform Capture Rate	Digital Channels	Waveform Generator
DPO8104E	4	1GHz	8GSa/s	2Gpts	500,000 wfms/s	16	200MHz, 2CH
DPO8084E	4	800MHz	8GSa/s	2Gpts	500,000 wfms/s	16	200MHz, 2CH
DPO8054E	4	500MHz	8GSa/s	2Gpts	500,000 wfms/s	16	200MHz, 2CH
DPO8354E	4	350MHz	8GSa/s	2Gpts	500,000 wfms/s	16	200MHz, 2CH

Model	DPO8104E	DPO8084E	DPO8054E	DPO8034E
Channels	4 Channel Oscilloscope+2 Channel Waveform Generator +16 Channel Logic Analyzer
Bandwidth	1GHz	800MHz	500MHz	300MHz
Sampling Rate	8GSa/s single channel, 8GSa/s half channel, 4GSa/s all channel
Memory Depth	2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), 250Mpts (full channel)
Waveform Capture Rate	600,000 wfms/s [25ns dot display single channel automatic memory depth]
Vertical Resolution	8 bit
Input Sensitivity	1 MΩ： 500uV/div ~ 10 V/div；50 Ω：500uV/div ~ 1 V/div
Timebase Range	200ps/div~1ks/div	500ps/div~1ks/div	500ps/div~1ks/div	1ns/div~1ks/div
Timebase Accuracy	±1 ppm ± 1 ppm/year
Bandwidth limit	20 MH, 100MHz, 200MHz, 350MHz, 650MHz, 750MHz (Independent optional for each channel)
Trigger Type	Edge, Pulse, Video, Slope, Overtime, Window, Runt, Superamp, Pattern, Delay, Setup/Hold, RS232, LIN, CAN, SPI, I2C
Serial Bus Decode	RS232, I2C, SPI, LIN, CAN
Arithmetic	Add, Subtract, Multiply, Divide, FFT, A＆＆B, A\|\|B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, AX+B, low Pass, high Pass, Band Pass, Band Stop
Automatic Measurements	41 measurements, measurements update continuously with statistics
Analyze	Counter, DVM, Power anlyzer, Histogram, Search, Navigate, Bode plotter
Recorder	More than 2 million frames (single channel)
Input Coupling	DC, AC or GND
Input Impedance	1 MΩ ± 1%，50 Ω ± 1% ；21 pF ± 3 pF
Waveform Generator	Sampling Rate: 1GSa/s Amplitude Resolution: 16 bit Max. Frequency: 200MHz Wavefrom: Sine, Square, Pulse, Ramp, Noise, DC, Sinc, EXP.rise, EXP.fall, Lorentz, ECG, Gauss, Haversine,Arb.

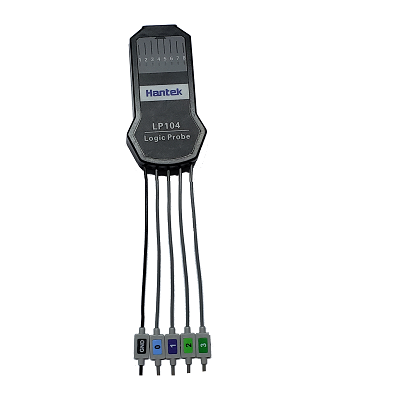

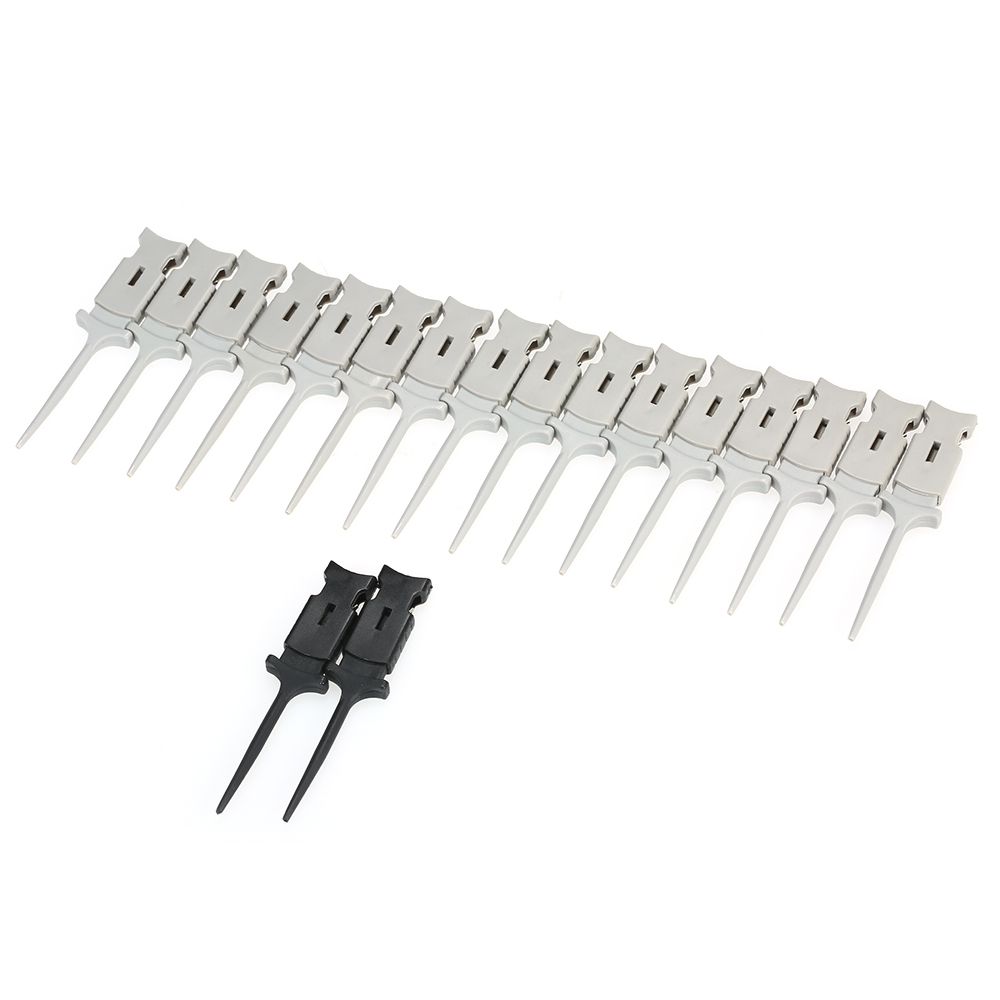

Digital Channels	Input Channels: 16CH
Connectivity	USB HOST, USB DEVICE, LAN; Option ports: HDMI, RS232
Display	10.1 inch capacitive multi-touch, 256 intensity levels, color graded persistence

Model	DPO8104E	DPO8084E	DPO8054E	DPO8034E
Channels	4 Channel Oscilloscope+2 Channel Waveform Generator +16 Channel Logic Analyzer
Bandwidth	1GHz	800MHz	500MHz	300MHz
Sampling Rate	8GSa/s single channel, 8GSa/s half channel, 4GSa/s all channel
Memory Depth	2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), 250Mpts (full channel)
Waveform Capture Rate	600,000 wfms/s [25ns dot display single channel automatic memory depth]
Vertical Resolution	8 bit
Input Sensitivity	1 MΩ： 500uV/div ~ 10 V/div；50 Ω：500uV/div ~ 1 V/div
Timebase Range	200ps/div~1ks/div	500ps/div~1ks/div	500ps/div~1ks/div	1ns/div~1ks/div
Timebase Accuracy	±1 ppm ± 1 ppm/year
Bandwidth limit	20 MH, 100MHz, 200MHz, 350MHz, 650MHz, 750MHz (Independent optional for each channel)
Trigger Type	Edge, Pulse, Video, Slope, Overtime, Window, Runt, Superamp, Pattern, Delay, Setup/Hold, RS232, LIN, CAN, SPI, I2C
Serial Bus Decode	RS232, I2C, SPI, LIN, CAN
Arithmetic	Add, Subtract, Multiply, Divide, FFT, A＆＆B, A\|\|B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, AX+B, low Pass, high Pass, Band Pass, Band Stop
Automatic Measurements	41 measurements, measurements update continuously with statistics
Analyze	Counter, DVM, Power anlyzer, Histogram, Search, Navigate, Bode plotter
Recorder	More than 2 million frames (single channel)
Input Coupling	DC, AC or GND
Input Impedance	1 MΩ ± 1%，50 Ω ± 1% ；21 pF ± 3 pF
Waveform Generator	Sampling Rate: 1GSa/s Amplitude Resolution: 16 bit Max. Frequency: 200MHz Wavefrom: Sine, Square, Pulse, Ramp, Noise, DC, Sinc, EXP.rise, EXP.fall, Lorentz, ECG, Gauss, Haversine,Arb.
Digital Channels	Input Channels: 16CH
Connectivity	USB HOST, USB DEVICE, LAN; Option ports: HDMI, RS232
Display	10.1 inch capacitive multi-touch, 256 intensity levels, color graded persistence

【Tip: up to 4 products can be compared】

Model	Bandwidth	Channels	Sampling rate	Other
DPO7000 Series	500MHz 350MHz 200MHz 100MHz	4-channels oscilloscope 1-channel waveform generator 16-channels logic analyzer	2GSa/s single channel 1GSa/s half channel 1GSa/s full channels	Oscilloscope/16-channels logic analyzer/spectrum analyzer/ arbitrary waveform generator/digital voltmeter/ 6-bit frequency meter and accumulator/protocol analyzer 2G storage depth
DPO8000 Series	1GHz 800MHz 500MHz 300MHz	4-channels oscilloscope 1-channel waveform generator 16-channels logic analyzer	8GSa/s single channel 8GSa/s half channel 4GSa/s full channels	Oscilloscope/16-channels logic analyzer/spectrum analyzer/ arbitrary waveform generator/digital voltmeter/ 6-bit frequency meter and accumulator/protocol analyzer 2G storage depth
HRDO4000 Series	3GHz 2.5GHz 2GHz 1GHz 800MHz 500MHz	4-Channel Oscilloscope 2-Channel Waveform Generator 16-Channel Logic Analyzer	10GSa/s single channel 10GSa/s half channel 5GSa/s all channel	4-Channel Oscilloscope/16-Channel Logic Analyzer/Spectrum Analyzer/2-Channel Arbitrary Wave Generator/Digital Voltmeter/6-bit Frequency Meter and Accumulator/Protocol Analyzer/Protocol Generator 2G Memory Depth
HRDO2000 Series	500MHz 350MHz 200MHz 100MHz	4-Channel Oscilloscope 2-Channel Waveform Generator 16-Channel Logic Analyzer	2.5GSa/s single channel 2.5GSa/s half channel 1.25GSa/s all channel	4-Channel Oscilloscope/16-Channel Logic Analyzer/Spectrum Analyzer/2-Channel Arbitrary Wave Generator/Digital Voltmeter/6-bit Frequency Meter and Accumulator/Protocol Analyzer/Protocol Generator 2G Memory Depth
DSO2000 Series	150MHz 100MHz	2	1GSa/s	2 CH oscilloscope 1 CH 25MHz waveform generator 5 kinds of serial protocol trigger and decode 32 kinds of auto measurements with statistics SCPI remote control 2 sets of DVM
DPO6004B(C)/MPO6004D Series	80MHz 100MHz 200MHz	4CH OSC 2CH AFG 16CH LA DVM FFT Serial Bus triggering and decoder	1GSa/s	400000 wfm/s 5 serial decoding option 64M memory depth,up to 80,000 segments 13 kinds of waveforms inside 7 inch WVGA capacitive touch screen
DPO6002B(C)/MPO6002D	80MHz 100MHz 200MHz	2CH OSC 2CH AFG 16CH LA DVM FFT Serial Bus triggering and decoder	1GSa/s	400000 wfm/s 5 serial decoding option 64M memory depth,up to 80,000 segments 13 kinds of waveforms inside 7 inch WVGA capacitive touch screen
DSO4004C Series	80-250MHz	4CH +1CH WG+ EXT	1GSa/s	Oscilloscope + waveform generator 7'' High resolution(800x480); 64K memory depth, USB Host/Device, Support U-disk memory, systom update DVM digital DMM, Auto range
DSO4004B Series	80-250MHz	4CH + EXT	1GSa/s	Oscilloscope 7'' High resolution(800x480); 64K memory depth, USB Host/Device, Support U-disk memory, systom update DVM digital DMM, Auto range
DSO4000C Series	200/100/70MHz	2CH DSO +1CH GENERATOR + External Trigger	1GSa/s	Oscilloscope+Waveform Generator , 40K Record Length; 7 inch 64K color LCD display (WVGA 800x480), Integrated USB Host/Device
MSO5000D Series	200/100/60MHz	2CH+16CH(LA)+EXT	1GSa/s(Analog) 500MSa/s(LA)	7powerful trigger function, 1M Record Length, USB interface system upgrade, 16CH Logic Analyzer, 7'' LCD WVGA 800*480; VGA Optional
DSO5000P Series	200/100/70MHz	2CH + EXT	1GSa/s	40K Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, Powerful trigger function;
DSO5000B Series	200/100/60MHz	2CH+EXT	1GSa/s	1M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, 7powerful trigger function; VGA Optional
DSO5000BM Series (Discontinued)	200/100/60MHz	2CH+EXT	1GSa/s	2M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480 7powerful trigger function; VGA Optional
DSO5000BMV Series (Discontinued)	200/100/60MHz	2CH+EXT	1GSa/s	2M Record Length, Video Help function; Built in 4G SD Card 7'' LCD WVGA 800*480 7powerful trigger function, USB interface system upgrade; VGA Optional

Standard Accessories

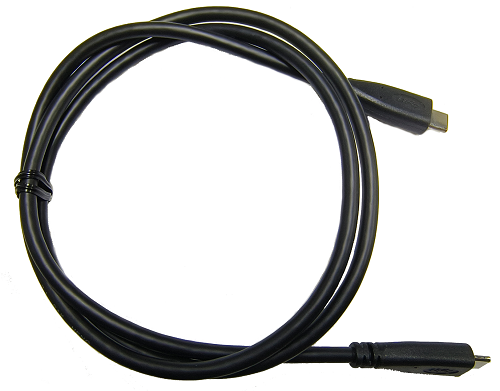

Data cable

Type-C data cable, used for instrument and PC communication. Before use, it is necessary to install Keysight IO software on the PC.

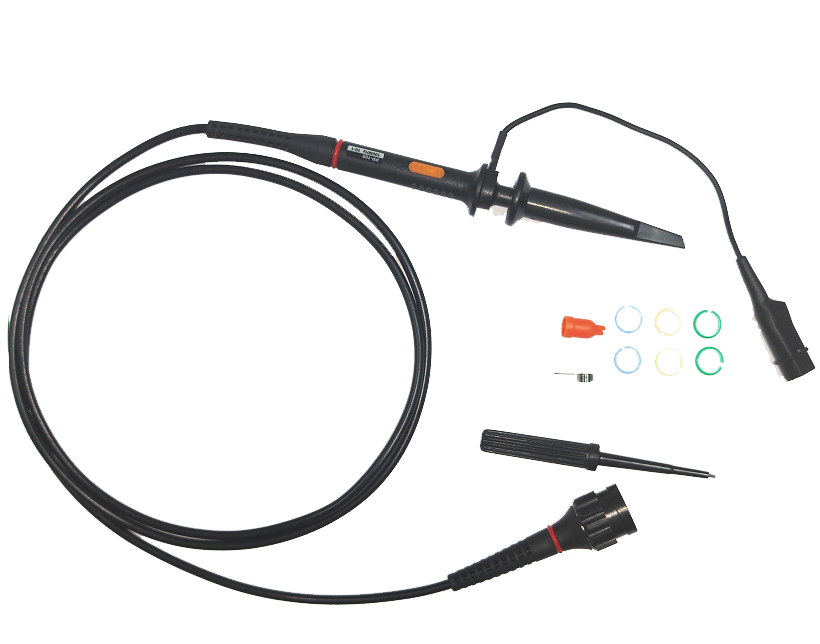

Passive probe

Two channel machines equipped with two passive probes; Four channel machines equipped with four passive probes; 100MHz machine equipped with PP100; 200MHz machine equipped with PP200; 350MHz machine equipped with HT300B; 500MHz machine equipped with HT500B.

Power line

The instrument comes with a standard power cord from the user's country, which can also be purchased separately.

Packing list

Including: calibration certificate, packing list, warranty card, and certificate of conformity.

Optional Accessories

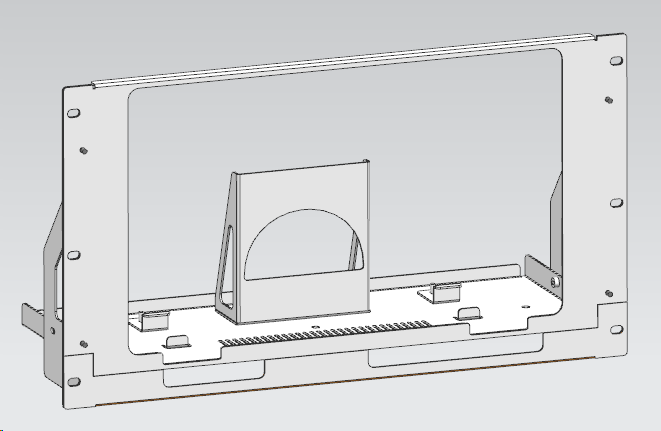

Oscilloscope rack kit

Used to secure the machine to the testing cabinet for use.

DPO8000 UserManual

2024-10-19

DPO8000 QuickGuide

2024-10-19

DPO8000 Programming Guide

2024-10-19

Probe

Model	Description	View Manual
HT300B,HT500B	350Mhz,500MHz,10:1/1:1	Download
HT100B，HT200B	100MHz,200MHz,10:1/1:1	Download
PP-80,PP-150,PP-200	60MHz,100MHz,200MHz,10:1/1:1	Download
PP80B, PP150B, PP200B, PP300B	80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1	Download
PP-90	80MHz,10:1/1:1	Download
T3100	100MHz，100：1，2000VDC Peak AC	Download

AC/DC Current Clamp

Model	Description	View Manual
CC65	AC/DC: 0 – 20KHz，20mA to 65A DC	Download
CC650	AC:0 – 5KHz，1A - 500A ，DC:1A - 650A	Download
CC800	AC:0 – 5KHz，1A - 500A ，DC:1A - 800A	Download

High voltage isolated probe

Model	Description	View Manual
HT8050	50MHz，1300V peakAC，1:50，1:500	Download
HT8100	100MHz，1300V peakAC，1:50，1:500	Download
