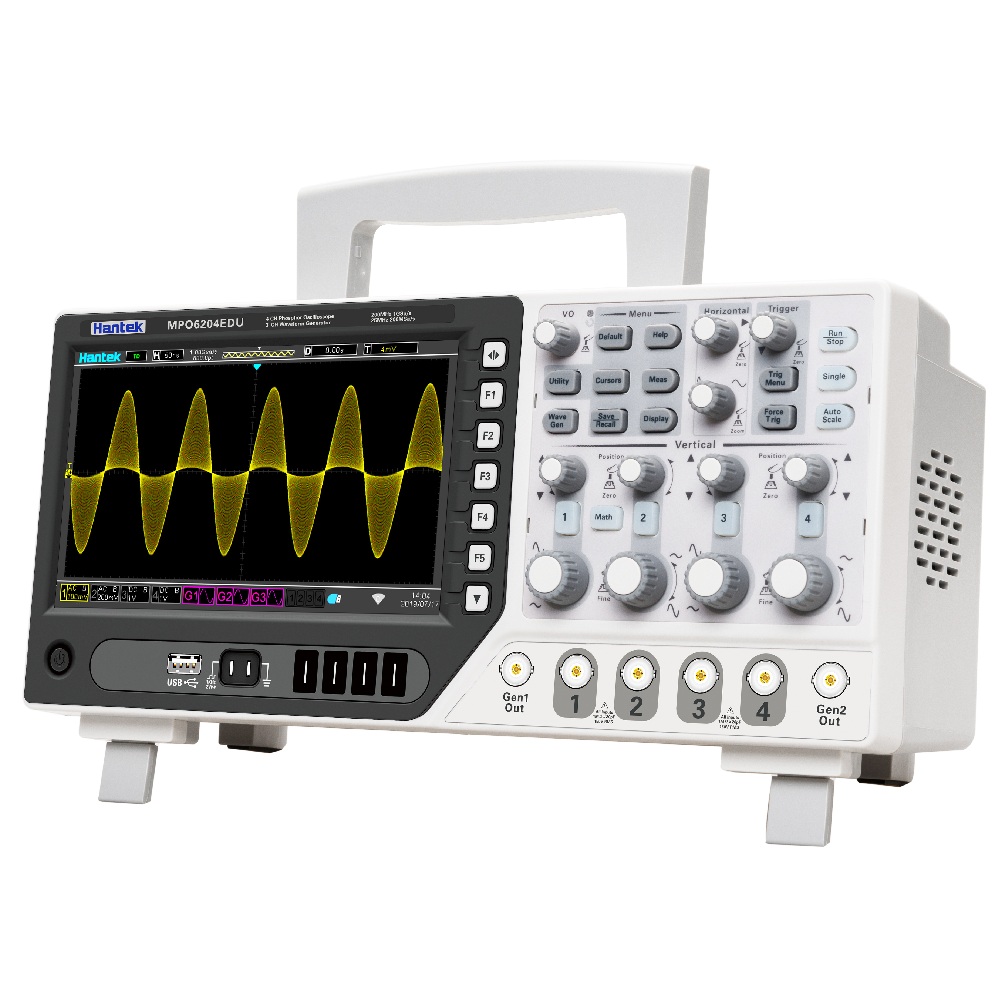

★Six in one oscilloscope:4 channels oscilloscope+16 channels logic analyzer+2 channels waveform generator+digital voltmeter+serial protocol analyzer+FFT spectral analysis.

★60 000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode)waveform capture rate.

★Segmented acquisition function,support to capture up to 80,000 sections.256 grade color display.

★Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers.Supply 5 serial decoding option.

★1 GSa/s real-time sample rate of the analog channels; 64 Mpts standardmemory depth.

★2-channe signal source,13 kinds of waveforms inside,4 sets of arbitrary waveforms,200M sample rate,8Kpts waveform length.

★1 GSa/s real-time sample rate of the digital channels.

★200 MHz, 100 MHz and 80 MHz analog channel bandwidth.

★Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.

★7 inch WVGA capacitive touch screen,(800*480) TFT , with ultra-wide screen, vivid picture, lowpower consumption and long service life.

★Auto measurement of 42 kinds of waveform parameters (with statistics).

★Bode diagram function(the oscilloscopes with signal source function can use).

★Multiple waveform math operation functions【MATH】.Event search function.

★Standard interfaces: USB Device, USB Host, LAN,Optional interfaces: HDMI ，UART

★Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick,economic and efficient creation and reconfiguration of test system.Supports remote command control.

Model

4-channel oscilloscope+2CH AFG + 16CH LA

Digital fluorescence display and color temperature display

Bode diagram function

256 grade color display

2-channel 25M waveform/Arb generator

Waveform capture rateup to 400,000

FFT function Scales show

Segmented acquisition and history waveform

16-channel digital channel

64M memory depth

7 inch capacitive touch screen

5 bits digital voltage meter , 6 bits frequency indicator

FFT function

Parameters

Oscilloscope function
Acquisition	Real-time sample rate		1 GSa/s（single channel） 500 MSa/s（two channels）
			250 MSa/s（three/four channels）；
			Note：digital channel 12，34 open at the same time,it is considered as one channel
	Peak detection		Analog channel 4ns
			Note：digital channels don’t support
	Average mode		Analog channel
			All channels reach N time samples at the same time，N can be selected from 2、4、8、16、32、 64、128、256、512 and 1024.
			Note：digital channels don’t support
	High resolution		Up to 12bit
			Note：digital channels don’t support
	Minimum test pulse width		8ns
	Memory depth		Single channel 64M
			Two channels 32M
			Three，four channels 16M
Input	Channel quantity		4 analog channels
			Note：data channels can’t be opened
			3 analog channels
			Note：digital channel LA1/LA2/LA3/LA4/LA1LA2/LA3LA4
			2 analog channels
			Note：digital channels infinitize
			1 analog channel
			Note：digital channels infinitize
			0 analog channel
			Note：digital channels infinitize
	Input coupling		DC、AC or GND
			Note：digital channels don’t support
	Input impedance，DC coupling		Analog channel
			25pF±3 pF，1MΩ±2%
			Digital channel
			(300KΩ±2%) ，(8 pF±3 pF)
	Supported probe attenuation factor		Analog channel 1X、10X、100X、1000X
	Voltage classes		300V CAT II
	Maximum input voltage		Analog channel 300VRMS (10X)
			Digital channel -25V~25V
Horizontal	Waveform interpolation		(sin x)/x
	Maximum record length		Single channel maximum 64M
			Two channels maximum32M
			three/four channels maximum 16M
	Horizontal scale range		DSO6084 DSO6104
			2ns/div~100s/div 1， 2， 5 step by step
	Time base mode		Y-T、X-Y、Roll
	X-Y number		Channel 1,2 1 XY channel、channel3 4 1 XY channel
	Zero offset		±0.5 div× minimum time base gear
	Sample Rate and		±25ppm
	Delay Time Accuracy
	Clock drifting		≤±5 ppm/year
	Delta Time Measurement		single，“acquisition”mode
	Accuracy
	(Full Bandwidth)		±（1 sample interval+100ppm×reading+0.6ns）
			＞16 times averages
			±（1 sample interval+100ppm×reading+0.4ns）
			Sample interval=sec/div÷200
Vertical	Bandwidth（-3db）		6084	6104	6204
			80MHz	100MHz	200MHz
	Vertical resolution		Analog channel 8bit
			Digital channel 1bit
	Vertical scale range		nput BNC position is 500μV/div~10V/div
	Position range		500μV/div to 120mV/div，±1V
			122mV/div to 1.2V/div，±10V
			1.22V/div to 10V/div，±50V
	Optional analog bandwidth limitation		Typical 20MHz
	Bass response（-3db）		In BNC position is≤10Hz
	Rising time in BNC position，typical		6084	6104	6204
			≤4.4ns	≤3.5ns	≤1.8ns
	Vertical gain accuracy		In “normal” or “average” acquisition mode，the accuracy o f 10V/div to 10mV/div is ±3%
			In “normal” or “average” acquisition mode，the accuracy of 5mV/div to 500uV/div is ±4%.
	DC offset accuracy		±0.1 div±2 mV±1% offset value
	The isolation of channels		DC maximum bandwidth：>40 dB
Note: Bandwidth reduced to 6MHz when using a 1X probe
Trigger	Trigger level range		±5 divisions from the center of the screen
	Trigger mode		auto、general、single
	Level		CH1~CH4	±4 divisions from the center of the screen
	Holdoff range		8ns~10s
	Trigger level accuracy		CH1~CH4	0.2 div×volts/div within ±4 divisions from the center of the screen
	Edge trigger	Slope	Rising edge，falling edge，rising or falling edge
		Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
	Pulse width trigger	Polarity	Positive polarity，negative polarity
		Condition(When)	<，>， !=， =
		Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Pulse width range	8ns ~ 10s
	Video trigger	Signal standard	NTSC， PAL
		Signal source	CH1~CH4
		Synchronization	Scanning line、line number、odd field、even field、all field
	Slope trigger	Slope	rise，fal
		condition(When)	<，>， !=， =
		Signal source	CH1 ~ CH4
		Time range	8ns ~ 10s
	Overtime trigger	Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Polarity	Positive polarity，negative polarity
		Time range	8ns ~ 10s
	Window trigger	Signal source	CH1~CH4LA1~LA4
	Pattern trigger	Pattern	0:low level；1:high level；X:ignore；
		Level（signal source）	CH1~CH4
	Interval trigger	Slope	rise，fall
		condition(When)	<，>， !=， =
		Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Time rangeTime range	8ns ~ 10s
	Delay trigger	Edge type	Rising edge，falling edge
		Signal source	CH1~CH4
		condition(When)	<，>， !=， =
		Time range	8ns ~ 10s
	Set up hold trigger	Edge type	Rising edge，falling edge
		Signal source	CH1~CH4
		condition(When)	<，>， !=， =
		Time range	8ns ~ 10s
	Runt trigger	Polarity	Positive polarity，negative polarity
		Condition(When)	<，>， !=， =
		Signal source	CH1~CH4
		Time range	8ns ~ 10s
	UART trigger	condition(When)	start、stop、data、odd-even check、reception error
		Signal source(RX/TX)	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Data format	Hex（hexadecimal）
		Data length	1 byte
Data bit width		5 bit， 6 bit， 7 bit， 8 bit
Odd-even check		none、odd、even
Free level		high、low
Baud rate (optional)		110/300/600/1200/2400/4800/9600/14400/19200/38400/57600 /115200/230400/380400/460400 bit/s
Baud rate(user-defined)		300bit/s~334000bit/s
LIN trigger	condition(When)	Interval field、synchronization field、ID field、synchronization error 、identifier、IDand data
	Signal source	CH1~CH4，
		D1.0~D1.3，
		D2.0~D2.3，
		D3.0~D3.3，
		D4.0~D4.3
	Data format	Hex（hexadecimal）
	Baud rate(optional)	110/300/600/1200/2400/4800/9600/14400/19200/38400/57600 /115200/230400/380400/460400 bit/s
	Baud rate(user-defined)	300bit/s~334000bit/s
CAN trigger	condition(When)	Start bit、remote frame ID、data frame ID、frame ID、remote frame data、data frame data、wrong frame、all errors、answer error、overload frame
	Signal source	CH1~CH4
	Data format	Hex（hexadecimal）
	Baud rate(optional)	10000， 20000， 33300， 500000， 62500， 83300， 100000， 125000， 250000， 500000， 800000， 1000000
	Baud rate(user-defined)	5kbit/s~1Mbit/s
SPI trigger	Signal source	CH1~CH4，
		D1.0~D1.3，
		D2.0~D2.3，
		D3.0~D3.3，
		D4.0~D4.3
	Data format	Hex（hexadecimal）
	Data bit width	4， 8， 16， 24， 32
IIC trigger	Signal source (SDA/SCL)	CH1~CH4，
		D1.0~D1.3，
		D2.0~D2.3，
		D3.0~D3.3，
		D4.0~D4.3
	Data format	Hex（hexadecimal）
	Data index	0~7
	opportunity(condition)	Start bit、stop bit、no response、address、data、restart
Measurement	cursor		Voltage difference between cursors △V
			Time difference between cursors △T
			Reciprocal of △T，in Hertz（1/△T）
	Auto measurement		frequency、period、mean、peak-to-peak、RMS、minimum、mixmum、rising time、falling time、+ width、- width、base、top、middle、amplitude、overshoot、preshoot、rising edge phase difference、falling edge phase difference、+ duty、- duty、period mean、PRMS、FOVshoot、ROVshoot、BWIDTH、FRF、FFR、LRR、LRF、LFR、LFF
	DVM		Data source	CH1，CH2，CH3，CH4
			Measurement type	DC effective value
				AC effective value
				DC
			Frequency meter	hardware 6 bits frequency meter
Arbitrary waveform generator
Arbitrary waveform generator(for oscilloscopes with signal source channels)	Channel number		2channels
	Sample rate		200MSa/s
	Vertical resolution		12 bits
	Maximum frequency		25 MHz
	Standard waveforms		sin、square、pulse、triangular，noise、DC
			Sinc、index、semi-distortion、lorentz，dual tone multiple frequency，gauss，ECG
	Arbitrary waveform		Arb1，Arb2，Arb3，Arb4
	Sin		Frequency range	0.1Hz~25MHz
	square/pulse		Frequency range	0.1Hz~10MHz
	triangular wave		Frequency range	0.1Hz~1MHz
	Sampling wave		Frequency range	0.1Hz~1MHz
	Index		Frequency range	0.1Hz~5MHz
	Semi-distortion		Frequency range	0.1Hz~1MHz
	lorentz		Frequency range	0.1Hz~1MHz
	Dual tone multiple frequency		Frequency range	0.1Hz~1MHz
	Gauss		Frequency range	0.1Hz~1MHz
	ECG		Frequency range	0.1Hz~1MHz
	Arbitrary wave		Frequency range	0.1 Hz to 10 MHz
	Waveform length		8KSa
	Frequency		accuracy	100 ppm（<10 kHz） 50 ppm（>10 kHz）
			resolution	0.1 Hz or 4 bits，take the greater one
	Amplitude		Output range	10mV~7Vp-p(high impedance)
				5mV~3.5Vp-p(50Ω)
	DC offset		range	±3.5 V，high impedance
				±1.75 V，50 Ω
			resolution	100 μV or 3 bits，take the greater one
			accuracy	2%（1 kHz）
	Output impedance		50 Ω
Logic analyzer
Logic analyzer	Input impedance,DC coupling		Digital channel
			(300KΩ±2%) ，(8 pF±3 pF)
	Threshold value		4 channels in 1 group adjustable threshold value
	Threshold option		TTL（1.4 V）
			5.0 V CMOS（+2.5 V）
			3.3 V CMOS（+1.65 V）
			2.5 V CMOS（+1.25 V）
			1.8 V CMOS（+0.9 V）
			ECL（-1.3 V）
			PECL（+3.7 V）
			LVDS（+1.2 V）
			0V
			User-defined
	Threshold range		±7.0V，10mV step by step
	Threshold accuracy		±(100mV+3% threshold setting)
	Dynamic range		±5.0V+ threshold
	Minimum voltage swing		500 mVpp
	Vertical resolution		1 bit
General specifications
Display	Display type		7"TFT diagonal liquid crystal
	Display resolution		800（horizontal）*480（vertical）pixels
	Display colour		16 million colours（24 bits true colour）
	Persistence time		minimum、1 s、5 s、10 s、30S、infinite
	Display type		dot、vector
	Display mode		Color temperature，gray scale
	Display brightness		adjustable
	Grid type		adjustable
	Grid brightness		adjustable
Interface	Standard interface		USB Host，USB Device，LAN， EDU signal WIFI
			Aux（trigger output/PassFail ）--only EDU with this interface
	Optional interface		PassFail
			UART
			HDMI
General specifications	Probe compensator output
	Output voltage ，typical		about 2Vpp input≥1MΩ load
	frequency、typical		1kHz
	Power supply		100-120VACRMS(±10%)，45Hz to 440Hz，CATⅡ
			120-240VACRMS(±10%)，45Hz to 66Hz，CATⅡ
	Power consumption		<30W
	Fuse		T，3.15A，250V，5x20mm
	Operating temperature		0~50 °C (32~122 °F)
	Storage temperature		-40~+71 °C (-40~159.8 °F)
	Humidity		≤+104℉(≤+40°C): ≤90% relative humidity
			106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
	Cooling method		convection
	Altitude		Operating and nonoperating	3，000m（10，000 feet）
	Mechanical shock		Random vibration	0.31 g_RMSfrom 50Hz to 500Hz，
				10 minutes on each axis
			Nonoperating	2.46g_RMS from 5Hz to 500Hz，
				10 minutes on each axis
			Operating	50g，11ms，half-sine wave
	Mechanical	Size	318 x 140 x 150mm(length x width x height)
		Weight	2900g

Oscilloscope function
Acquisition	Real-time sample rate		1 GSa/s（single channel） 500 MSa/s（two channels）
			250 MSa/s（three/four channels）；
			Note：digital channel 12，34 open at the same time,it is considered as one channel
	Peak detection		Analog channel 4ns
			Note：digital channels don’t support
	Average mode		Analog channel
			All channels reach N time samples at the same time，N can be selected from 2、4、8、16、32、 64、128、256、512 and 1024.
			Note：digital channels don’t support
	High resolution		Up to 12bit
			Note：digital channels don’t support
	Minimum test pulse width		8ns
	Memory depth		Single channel 64M
			Two channels 32M
			Three，four channels 16M
Input	Channel quantity		4 analog channels
			Note：data channels can’t be opened
			3 analog channels
			Note：digital channel LA1/LA2/LA3/LA4/LA1LA2/LA3LA4
			2 analog channels
			Note：digital channels infinitize
			1 analog channel
			Note：digital channels infinitize
			0 analog channel
			Note：digital channels infinitize
	Input coupling		DC、AC or GND
			Note：digital channels don’t support
	Input impedance，DC coupling		Analog channel
			25pF±3 pF，1MΩ±2%
			Digital channel
			(300KΩ±2%) ，(8 pF±3 pF)
	Supported probe attenuation factor		Analog channel 1X、10X、100X、1000X
	Voltage classes		300V CAT II
	Maximum input voltage		Analog channel 300VRMS (10X)
			Digital channel -25V~25V
Horizontal	Waveform interpolation		(sin x)/x
	Maximum record length		Single channel maximum 64M
			Two channels maximum32M
			three/four channels maximum 16M
	Horizontal scale range		DSO6084 DSO6104
			2ns/div~100s/div 1， 2， 5 step by step
	Time base mode		Y-T、X-Y、Roll
	X-Y number		Channel 1,2 1 XY channel、channel3 4 1 XY channel
	Zero offset		±0.5 div× minimum time base gear
	Sample Rate and		±25ppm
	Delay Time Accuracy
	Clock drifting		≤±5 ppm/year
	Delta Time Measurement		single，“acquisition”mode
	Accuracy
	(Full Bandwidth)		±（1 sample interval+100ppm×reading+0.6ns）
			＞16 times averages
			±（1 sample interval+100ppm×reading+0.4ns）
			Sample interval=sec/div÷200
Vertical	Bandwidth（-3db）		DPO6084	DPO6104	DPO6204
			80MHz	100MHz	200MHz
	Vertical resolution		Analog channel 8bit
			Digital channel 1bit
	Vertical scale range		nput BNC position is 500μV/div~10V/div
	Position range		500μV/div to 120mV/div，±1V
			122mV/div to 1.2V/div，±10V
			1.22V/div to 10V/div，±50V
	Optional analog bandwidth limitation		Typical 20MHz
	Bass response（-3db）		In BNC position is≤10Hz
	Rising time in BNC position，typical		DPO6084	DPO6104	DPO6204
			≤4.4ns	≤3.5ns	≤1.8ns
	Vertical gain accuracy		In “normal” or “average” acquisition mode，the accuracy o f 10V/div to 10mV/div is ±3%
			In “normal” or “average” acquisition mode，the accuracy of 5mV/div to 500uV/div is ±4%.
	DC offset accuracy		±0.1 div±2 mV±1% offset value
	The isolation of channels		DC maximum bandwidth：>40 dB
Note: Bandwidth reduced to 6MHz when using a 1X probe
Trigger	Trigger level range		±5 divisions from the center of the screen
	Trigger mode		auto、general、single
	Level		CH1~CH4	±4 divisions from the center of the screen
	Holdoff range		8ns~10s
	Trigger level accuracy		CH1~CH4	0.2 div×volts/div within ±4 divisions from the center of the screen
	Edge trigger	Slope	Rising edge，falling edge，rising or falling edge
		Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
	Pulse width trigger	Polarity	Positive polarity，negative polarity
		Condition(When)	<，>， !=， =
		Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Pulse width range	8ns ~ 10s
	Video trigger	Signal standard	NTSC， PAL
		Signal source	CH1~CH4
		Synchronization	Scanning line、line number、odd field、even field、all field
	Slope trigger	Slope	rise，fal
		condition(When)	<，>， !=， =
		Signal source	CH1 ~ CH4
		Time range	8ns ~ 10s
	Overtime trigger	Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Polarity	Positive polarity，negative polarity
		Time range	8ns ~ 10s
	Window trigger	Signal source	CH1~CH4LA1~LA4
	Pattern trigger	Pattern	0:low level；1:high level；X:ignore；
		Level（signal source）	CH1~CH4
	Interval trigger	Slope	rise，fall
		condition(When)	<，>， !=， =
		Signal source	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Time rangeTime range	8ns ~ 10s
	Delay trigger	Edge type	Rising edge，falling edge
		Signal source	CH1~CH4
		condition(When)	<，>， !=， =
		Time range	8ns ~ 10s
	Set up hold trigger	Edge type	Rising edge，falling edge
		Signal source	CH1~CH4
		condition(When)	<，>， !=， =
		Time range	8ns ~ 10s
	Runt trigger	Polarity	Positive polarity，negative polarity
		Condition(When)	<，>， !=， =
		Signal source	CH1~CH4
		Time range	8ns ~ 10s
	UART trigger	condition(When)	start、stop、data、odd-even check、reception error
		Signal source(RX/TX)	CH1~CH4，
			D1.0~D1.3，
			D2.0~D2.3，
			D3.0~D3.3，
			D4.0~D4.3
		Data format	Hex（hexadecimal）
		Data length	1 byte
Data bit width		5 bit， 6 bit， 7 bit， 8 bit
Odd-even check		none、odd、even
Free level		high、low
Baud rate (optional)		110/300/600/1200/2400/4800/9600/14400/19200/38400/57600 /115200/230400/380400/460400 bit/s
Baud rate(user-defined)		300bit/s~334000bit/s
LIN trigger	condition(When)	Interval field、synchronization field、ID field、synchronization error 、identifier、IDand data
	Signal source	CH1~CH4，
		D1.0~D1.3，
		D2.0~D2.3，
		D3.0~D3.3，
		D4.0~D4.3
	Data format	Hex（hexadecimal）
	Baud rate(optional)	110/300/600/1200/2400/4800/9600/14400/19200/38400/57600 /115200/230400/380400/460400 bit/s
	Baud rate(user-defined)	300bit/s~334000bit/s
CAN trigger	condition(When)	Start bit、remote frame ID、data frame ID、frame ID、remote frame data、data frame data、wrong frame、all errors、answer error、overload frame
	Signal source	CH1~CH4
	Data format	Hex（hexadecimal）
	Baud rate(optional)	10000， 20000， 33300， 500000， 62500， 83300， 100000， 125000， 250000， 500000， 800000， 1000000
	Baud rate(user-defined)	5kbit/s~1Mbit/s
SPI trigger	Signal source	CH1~CH4，
		D1.0~D1.3，
		D2.0~D2.3，
		D3.0~D3.3，
		D4.0~D4.3
	Data format	Hex（hexadecimal）
	Data bit width	4， 8， 16， 24， 32
IIC trigger	Signal source (SDA/SCL)	CH1~CH4，
		D1.0~D1.3，
		D2.0~D2.3，
		D3.0~D3.3，
		D4.0~D4.3
	Data format	Hex（hexadecimal）
	Data index	0~7
	opportunity(condition)	Start bit、stop bit、no response、address、data、restart
Measurement	cursor		Voltage difference between cursors △V
			Time difference between cursors △T
			Reciprocal of △T，in Hertz（1/△T）
	Auto measurement		frequency、period、mean、peak-to-peak、RMS、minimum、mixmum、rising time、falling time、+ width、- width、base、top、middle、amplitude、overshoot、preshoot、rising edge phase difference、falling edge phase difference、+ duty、- duty、period mean、PRMS、FOVshoot、ROVshoot、BWIDTH、FRF、FFR、LRR、LRF、LFR、LFF
	DVM		Data source	CH1，CH2，CH3，CH4
			Measurement type	DC effective value
				AC effective value
				DC
			Frequency meter	hardware 6 bits frequency meter
Arbitrary waveform generator
Arbitrary waveform generator(for oscilloscopes with signal source channels)	Channel number		2/3channels
	Sample rate		200MSa/s
	Vertical resolution		12 bits
	Maximum frequency		25 MHz
	Standard waveforms		sin、square、pulse、triangular，noise、DC
			Sinc、index、semi-distortion、lorentz，dual tone multiple frequency，gauss，ECG
	Arbitrary waveform		Arb1，Arb2，Arb3，Arb4
	Sin		Frequency range	0.1Hz~25MHz
	square/pulse		Frequency range	0.1Hz~10MHz
	triangular wave		Frequency range	0.1Hz~1MHz
	Sampling wave		Frequency range	0.1Hz~1MHz
	Index		Frequency range	0.1Hz~5MHz
	Semi-distortion		Frequency range	0.1Hz~1MHz
	lorentz		Frequency range	0.1Hz~1MHz
	Dual tone multiple frequency		Frequency range	0.1Hz~1MHz
	Gauss		Frequency range	0.1Hz~1MHz
	ECG		Frequency range	0.1Hz~1MHz
	Arbitrary wave		Frequency range	0.1 Hz to 10 MHz
	Waveform length		8KSa
	Frequency		accuracy	100 ppm（<10 kHz） 50 ppm（>10 kHz）
			resolution	0.1 Hz or 4 bits，take the greater one
	Amplitude		Output range	10mV~7Vp-p(high impedance)
				5mV~3.5Vp-p(50Ω)
	DC offset		range	±3.5 V，high impedance
				±1.75 V，50 Ω
			resolution	100 μV or 3 bits，take the greater one
			accuracy	2%（1 kHz）
	Output impedance		50 Ω
Logic analyzer
Logic analyzer	Input impedance,DC coupling		Digital channel
			(300KΩ±2%) ，(8 pF±3 pF)
	Threshold value		4 channels in 1 group adjustable threshold value
	Threshold option		TTL（1.4 V）
			5.0 V CMOS（+2.5 V）
			3.3 V CMOS（+1.65 V）
			2.5 V CMOS（+1.25 V）
			1.8 V CMOS（+0.9 V）
			ECL（-1.3 V）
			PECL（+3.7 V）
			LVDS（+1.2 V）
			0V
			User-defined
	Threshold range		±7.0V，10mV step by step
	Threshold accuracy		±(100mV+3% threshold setting)
	Dynamic range		±5.0V+ threshold
	Minimum voltage swing		500 mVpp
	Vertical resolution		1 bit
General specifications
Display	Display type		7"TFT diagonal liquid crystal
	Display resolution		800（horizontal）*480（vertical）pixels
	Display colour		16 million colours（24 bits true colour）
	Persistence time		minimum、1 s、5 s、10 s、30S、infinite
	Display type		dot、vector
	Display mode		Color temperature，gray scale
	Display brightness		adjustable
	Grid type		adjustable
	Grid brightness		adjustable
Interface	Standard interface		USB Host，USB Device，LAN， EDU signal WIFI
			Aux（trigger output/PassFail ）--only EDU with this interface
	Optional interface		PassFail
			UART
			HDMI
General specifications	Probe compensator output
	Output voltage ，typical		about 2Vpp input≥1MΩ load
	frequency、typical		1kHz
	Power supply		100-120VACRMS(±10%)，45Hz to 440Hz，CATⅡ
			120-240VACRMS(±10%)，45Hz to 66Hz，CATⅡ
	Power consumption		<30W
	Fuse		T，3.15A，250V，5x20mm
	Operating temperature		0~50 °C (32~122 °F)
	Storage temperature		-40~+71 °C (-40~159.8 °F)
	Humidity		≤+104℉(≤+40°C): ≤90% relative humidity
			106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
	Cooling method		convection
	Altitude		Operating and nonoperating	3，000m（10，000 feet）
	Mechanical shock		Random vibration	0.31 g_RMSfrom 50Hz to 500Hz，
				10 minutes on each axis
			Nonoperating	2.46g_RMS from 5Hz to 500Hz，
				10 minutes on each axis
			Operating	50g，11ms，half-sine wave
	Mechanical	Size	318 x 140 x 150mm(length x width x height)
		Weight	2900g

【Tip: up to 4 products can be compared】

Model	Bandwidth	Channels	Sampling rate	Other
DPO7000 Series	500MHz 350MHz 200MHz 100MHz	4-channels oscilloscope 1-channel waveform generator 16-channels logic analyzer	2GSa/s single channel 1GSa/s half channel 1GSa/s full channels	Oscilloscope/16-channels logic analyzer/spectrum analyzer/ arbitrary waveform generator/digital voltmeter/ 6-bit frequency meter and accumulator/protocol analyzer 2G storage depth
DSO2000 Series	150MHz 100MHz	2	1GSa/s	2 CH oscilloscope 1 CH 25MHz waveform generator 5 kinds of serial protocol trigger and decode 32 kinds of auto measurements with statistics SCPI remote control 2 sets of DVM
DPO6004B(C)/MPO6004D Series	80MHz 100MHz 200MHz	4CH OSC 2CH AFG 16CH LA DVM FFT Serial Bus triggering and decoder	1GSa/s	400000 wfm/s 5 serial decoding option 64M memory depth,up to 80,000 segments 13 kinds of waveforms inside 7 inch WVGA capacitive touch screen
DPO6002B(C)/MPO6002D	80MHz 100MHz 200MHz	2CH OSC 2CH AFG 16CH LA DVM FFT Serial Bus triggering and decoder	1GSa/s	400000 wfm/s 5 serial decoding option 64M memory depth,up to 80,000 segments 13 kinds of waveforms inside 7 inch WVGA capacitive touch screen
DSO4004C Series	80-250MHz	4CH +1CH WG+ EXT	1GSa/s	Oscilloscope + waveform generator 7'' High resolution(800x480); 64K memory depth, USB Host/Device, Support U-disk memory, systom update DVM digital DMM, Auto range
DSO4004B Series	80-250MHz	4CH + EXT	1GSa/s	Oscilloscope 7'' High resolution(800x480); 64K memory depth, USB Host/Device, Support U-disk memory, systom update DVM digital DMM, Auto range
DSO4000C Series	200/100/70MHz	2CH DSO +1CH GENERATOR + External Trigger	1GSa/s	Oscilloscope+Waveform Generator , 40K Record Length; 7 inch 64K color LCD display (WVGA 800x480), Integrated USB Host/Device
MSO5000D Series	200/100/60MHz	2CH+16CH(LA)+EXT	1GSa/s(Analog) 500MSa/s(LA)	7powerful trigger function, 1M Record Length, USB interface system upgrade, 16CH Logic Analyzer, 7'' LCD WVGA 800*480; VGA Optional
DSO5000P Series	200/100/70MHz	2CH + EXT	1GSa/s	40K Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, Powerful trigger function;
DSO5000B Series	200/100/60MHz	2CH+EXT	1GSa/s	1M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, 7powerful trigger function; VGA Optional
DSO5000BM Series (Discontinued)	200/100/60MHz	2CH+EXT	1GSa/s	2M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480 7powerful trigger function; VGA Optional
DSO5000BMV Series (Discontinued)	200/100/60MHz	2CH+EXT	1GSa/s	2M Record Length, Video Help function; Built in 4G SD Card 7'' LCD WVGA 800*480 7powerful trigger function, USB interface system upgrade; VGA Optional
DPO8000 Series	1GHz 800MHz 500MHz 300MHz	4-channels oscilloscope 1-channel waveform generator 16-channels logic analyzer	8GSa/s single channel 8GSa/s half channel 4GSa/s full channels	Oscilloscope/16-channels logic analyzer/spectrum analyzer/ arbitrary waveform generator/digital voltmeter/ 6-bit frequency meter and accumulator/protocol analyzer 2G storage depth

DPO6004B Series：

DPO6004C Series：

MPO6004D Series：

DPO6004B(C)/MPO6004D SCPI

2021-03-13

DPO6004B(C)/MPO6004D Manual

2021-01-21

DPO6004B(C)/MPO6004D Software

2021-04-02

DPO6004B(C)/MPO6004D Programming Instance

2020-09-15

DPO6004B(C)/MPO6004D Firmware

2022-11-19

Probe

Model	Description	View Manual
HT300B,HT500B	350Mhz,500MHz,10:1/1:1	Download
HT100B，HT200B	100MHz,200MHz,10:1/1:1	Download
PP-80,PP-150,PP-200	60MHz,100MHz,200MHz,10:1/1:1	Download
PP80B, PP150B, PP200B, PP300B	80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1	Download
PP-90	80MHz,10:1/1:1	Download
T3100	100MHz，100：1，2000VDC Peak AC	Download

AC/DC Current Clamp

Model	Description	View Manual
CC65	AC/DC: 0 – 20KHz，20mA to 65A DC	Download
CC650	AC:0 – 5KHz，1A - 500A ，DC:1A - 650A	Download
CC800	AC:0 – 5KHz，1A - 500A ，DC:1A - 800A	Download

High voltage isolated probe

Model	Description	View Manual
HT8050	50MHz，1300V peakAC，1:50，1:500	Download
HT8100	100MHz，1300V peakAC，1:50，1:500	Download
